ASHMORE GUARDIAN patrol vessel (1983/2008)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ashmore Guardian | ACV110 | K Shipyard, Fremantle | 1983 | 1983 // 3.2008 | stricken 2014 |
|
Displacement standard, t |
|
|
Displacement full, t |
339brt |
|
Length, m |
34.9 |
|
Breadth, m |
8.00 |
|
Draught, m |
3.00 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3406E diesels |
|
Power, h. p. |
450 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
small arms |
| Electronic equipment | radar |
|
Complement |
6 + 10 |
Project history: Modifies commercial fleet support ship chartered to protect offshore maritime areas off NW Australia. Customs.
Modernizations: None.
Naval service: No significant events.

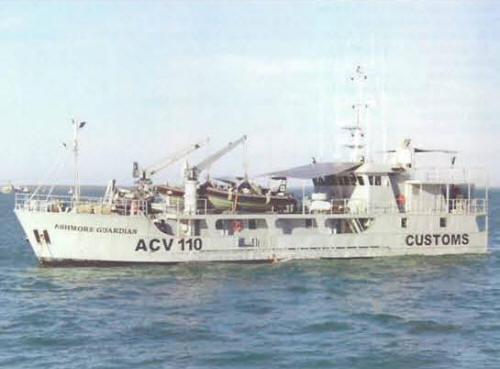

Ashmore Guardian 2008
