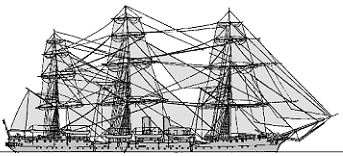

Presidente Sarmiento 1898
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Presidente Sarmiento | 615 | Laird, Birkenhead, UK | 2.1896 | 31.8.1897 | 6.1898 | preserved 6.1962 |
|
Displacement normal, t |
|
|
Displacement full, t |
2733 |
|
Length, m |
85.5 pp |
|
Breadth, m |
13.3 |
|
Draught, m |
5.94 max |
|
No of shafts |
2 |
|
Machinery |
2 VC, 4 cylindrical boilers |
|
Power, h. p. |
1800 |
|
Max speed, kts |
13 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
4 x 1 - 120/43 Armstrong Y, 6 x 1 - 57/42 Nordenfelt, 2 x 1 - 37/27 Maxim-Nordenfelt, 3 - 356 TT (2 beam, 1 stern) |
|
Complement |
305 + 40 cadets |
Project history: Sailing area was 2300m2. Ship-rigged.
Modernizations: None.
Naval service: Since 1962 Presidente Sarmiento preserved as museum ship.
Many thanks to Wolfgang Stöhr for additional information on this page.
