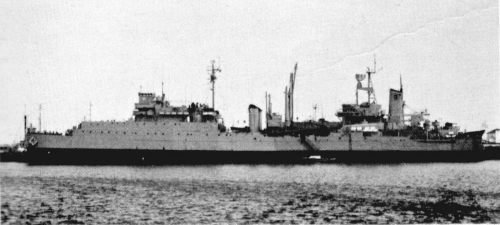

Candido de Lasala 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Candido de Lasala (ex-Gunston Hall) | Q43 | Moore, Oakland, USA | 1942 | 1.5.1943 | 11.1943 // 25.5.1970 | deleted 1982 |
|
Displacement standard, t |
4490 |
|
Displacement full, t |
9375 |
|
Length, m |
138.4 wl 139.5 oa |
|
Breadth, m |
22.0 |
|
Draught, m |
4.83 |
|
No of shafts |
2 |
|
Machinery |
2 Skinner Uniflow QuiPE, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
7400 |
|
Max speed, kts |
15.4 |
|
Fuel, t |
oil 1770 |
| Endurance, nm(kts) | 7400 (15) |
|
Armament |
2 x 4 - 40/60 Mk 2, 2 x 2 - 40/60 Mk 1, helicopter deck |
| Military load | 3 LCT(5) or 3 LCT(6) or 2 LCT(3) or 2 LCT(4) or 14 LCM(3) or 1450 t of cargo or 41 LVT or 47 DUKW (up to 92 LVT or 108 DUKW if additional decks are installed), 332 marines |
|
Electronic equipment |
presumably SF or SG or SL or SU radar |
|
Complement |
254 |
Project history: Former USN war-built LSD. When required she was used as a depot ship for small craft.
Modernizations:
None.Naval service: No significant events.
Candido de Lasala 1980
© Ivan Gogin, 2015
