Cabo San Antonio 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Cabo San Antonio | Q42 | AFNE, Rio Santiago | 15.9.1967 | 20.7.1968 | 1.11.1978 | deleted 1997 |
|
Displacement standard, t |
4300 |
|
Displacement full, t |
8000 |
|
Length, m |
129.8 wl 134.7 oa |
|
Breadth, m |
18.9 |
|
Draught, m |
5.50 |
|
No of shafts |
2 |
|
Machinery |
6 diesels |
|
Power, h. p. |
13700 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
3 x 4 - 40/60 Mk 2, 2 x 1 - 20/70 Mk 10 |
| Military load |
4 LCVP, 23 tanks, 700 troops |
| Electronic equipment | AWS-1, nav. radars |
| Complement | 124 |
Project history: Very similar to US De Soto County LSTs, differed mainly by armament and in having 60t heavy-lift king post set.
Modernizations:
1988: - AWS-1 radar; + SPS-10 radarNaval service: Cabo San Antonio was inoperable since late 1980s due to main engines problems but was finally deleted only in 1997.

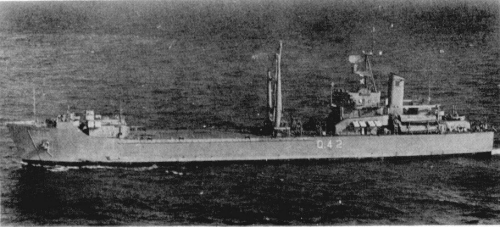

Cabo San Antonio 1978
