Murature 1945
King 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Murature | P20 | AFNE, Rio Santiago | 3.1940 | 5.7.1943 | 4.1945 | deleted 9.2014 | |
| King | P21 | AFNE, Rio Santiago | 6.1938 | 2.11.1943 | 7.1946 | in service (2019) |
|
Displacement standard, t |
900 |
|
Displacement full, t |
1032 |
|
Length, m |
76.8 |
|
Breadth, m |
8.80 |
|
Draught, m |
2.30 |
|
No of shafts |
2 |
|
Machinery |
2 Werkspoor diesels |
|
Power, h. p. |
2500 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil 90 |
|
Endurance, nm(kts) |
6000(12) |
|
Armament |
3 x 1 - 105/45 Vickers-Armstrong Mk P, 1 x 2 - 40/60 Mk 1, 2 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90, 4 DCT |
|
Complement |
130 |
Project history: They were designed and laid down as minelayers in a 4-ship class, but during construction the design was modified towards strengthening of anti-submarine armament at the expense of abandoning from mines. Sister-ships Piedra Buena and Azopardo were completed in 1954-1957 under the changed design as anti-submarine frigates.
Modernizations: 1960s, both: - 3 x 1 - 105/45; + 3 x 1 - 105/41 Bofors M45, Decca 1226 radar, 3 x 1 - 12.7/90
Naval service: No significant events.

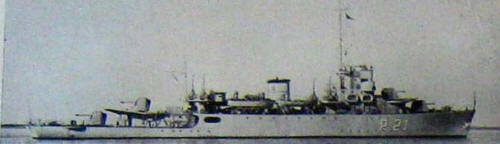

King 1952

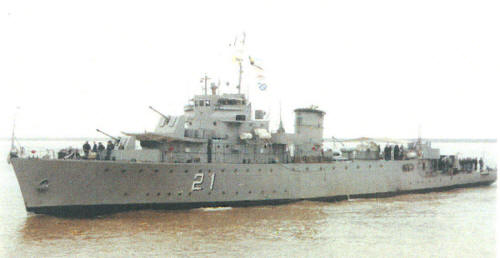

King 2003
