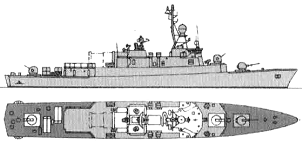

Espora 1990
Parker 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Espora | P10, 1989- P41 | AFNE, Rio Santiago | 10.3.1980 | 23.1.1982 | 5.7.1985 | in service (2019) | |
| Rosales | P11, 1989- P42 | AFNE, Rio Santiago | 7.1.1981 | 4.3.1983 | 14.11.1986 | in service (2019) | |
| Spiro | P12, 1989- P43 | AFNE, Rio Santiago | 1.4.1982 | 24.6.1983 | 24.11.1987 | in service (2019) | |
| Parker | P44 | AFNE, Rio Santiago | 9.2.1982 | 31.3.1984 | 17.4.1990 | in service (2019) | |
| Robinson | P45 | AFNE, Rio Santiago | 6.6.1983 | 15.2.1985 | 28.8.2000 | in service (2019) | |
| Gómez Roca (ex-Seaver) | P46 | AFNE, Rio Santiago | 1.12.1983 | 14.11.1986 | 17.5.2004 | in service (2019) |
|
Displacement standard, t |
1560 |
|
Displacement full, t |
1790 |
|
Length, m |
86.4 pp 91.2 oa |
|
Breadth, m |
11.1 |
|
Draught, m |
3.33 hull 4.50 sonar |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 16PC2-5 V400 diesels |
|
Power, h. p. |
20400 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil 230 |
|
Endurance, nm(kts) |
4000(18) |
|
Armament |
10-12: 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 2 - 70/40 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90, 2 x 3 - 324 ILAS-3 TT, helicopter deck 44, 45: 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 2 - 70/40 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90, 2 x 3 - 324 ILAS-3 TT, 1 helicopter (Alouette III) 46: 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 2 - 70/40 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90, 2 x 3 - 324 ILAS-3 TT, 1 helicopter (Fennec) |
|
Electronic equipment |
10-12, 44: Decca 1226, DA-05/2, WM-28, LIROD radars, ASO-4 sonar, RQN-3B, TQN-2X ECM suites, 2x Dagaie decoy RL, SEWACO CCS 45, 46: Selesmar NavBat, DA-05/2, WM-28, LIROD radars, ASO-4 sonar, RQN-3B, TQN-2X ECM suites, 2x Dagaie decoy RL, SEWACO CCS |
|
Complement |
93 |
Project history: The design, based on the Portuguese Joao Coutinho, was ordered on 1 August 1979. Designed by Blohm & Voss, using the modular concept, these ships allow much flexibility in armament fit according to need. Whole class was built in Argentina with German assistance. First three completed without helicopter hangar. Parker was the first fitted with telescoping hangar. Armament au-eumemed by two 12.7mm MGs. It was intended to fit whole class with eight MM40 Exocet SSM instead of four MM38. Capable of operating Lynx helicopter, but were equipped with SA 319B Alouette III, later with Fennec.
Modernizations: 2009, all: + LIROD radar (2nd)
Naval service: No significant events.

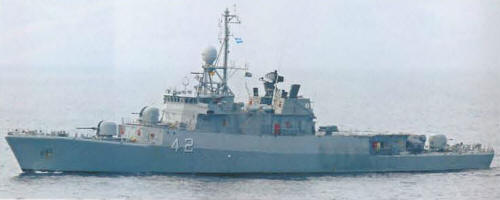

Rosales 2008

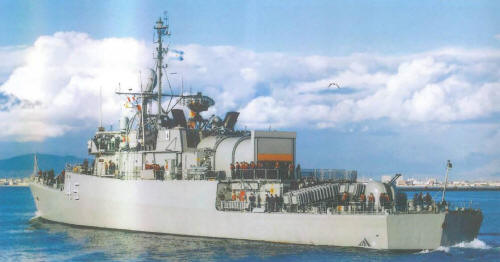

Robinson 2008
