Drummond 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Drummond (ex-Good Hope) | P1, 1985- P31 | DCN, Lorient, France | 12.3.1976 | 5.3.1977 | 25.9.1978 | in service (2019) | |
| Guerrico (ex-Transvaal) | P2, 1985- P32 | DCN, Lorient, France | 1.10.1976 | 13.8.1977 | 10/1978 | in service (2019) | |
| Granville | P3, 1985- P33 | DCN, Lorient, France | 1.12.1978 | 28.6.1980 | 22.6.1981 | in service (2019) |
|
Displacement standard, t |
1100 |
|
Displacement full, t |
1250 |
|
Length, m |
76.0 pp 80.5 oa |
|
Breadth, m |
10.3 |
|
Draught, m |
3.55 hull 5.25 sonar |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PC 2V400 diesels |
|
Power, h. p. |
12000 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4500(15) |
|
Armament |
1, 2: 4 x 1 MM38 Exocet SSM (4 MM38), 1 x 1 - 100/55 Mle 68, 1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 4, 2 x 1 - 12.7/90, 2 x 3 - 324 ILAS-3 TT 3: 4 x 1 MM38 Exocet SSM (4 MM38), 1 x 1 - 100/55 Mle 68, 1 x 2 - 70/40 Breda-Bofors Compact Twin 40, 2 x 1 - 20/70 Mk 4, 2 x 1 - 12.7/90, 2 x 3 - 324 ILAS-3 TT |
|
Electronic equipment |
1, 2: DRBV-51A, Decca 202, DRBC-32E radars, 2x Panda Mk 2 e/o director, Diodon sonar, DR-2000S3, Alligator 51 ECM suites, 2x Syllex decoy RL, MINIACO C31 CCS 3: DRBV-51A, Decca 202, DRBC-32E radars, Panda Mk 2, Naja Mk 2 e/o directors, Diodon sonar, DR-2000S3, Alligator 51 ECM suites, 2x Dagaie decoy RL, MINIACO C31 CCS |
|
Complement |
95 |
Project history: Good Hope and Transvaal were originally built for South Africa, but delivery was embargoed. They were purchased by Argentina on 25 September 1978. Drummond and Guerrico, the ex-South African units, were originally ordered for the French Navy as Lieutenant de Vaisseau le Henaff and Commandant I'Herminier.
Modernizations: 1980s, Guerrico; 1990s, Drummond: - 1 x 1 - 40/60, 1x Panda Mk 2 e/o director; + 1 x 2 - 40/70 Breda-Bofors Compact Twin 40, Naja Mk 2 e/o director
1980s, all: - Decca 202 radar; + Decca 1226 radar
2000s, all: - Decca 1226 radar; + Selesmar NavBat radar
Naval service: All three units were deployed extensively during the Falklands conflict. Guerrico supported the South Georgia operation on 3 April 1982. She was hit by Carl Gustav anti-tank rocket and heavy small arms fire. The hit was just below the Exocet launcher and the damage was modest.

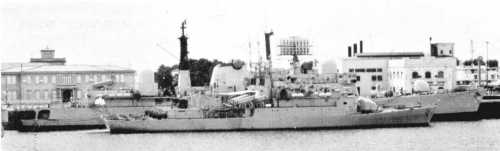

Drummond 1980

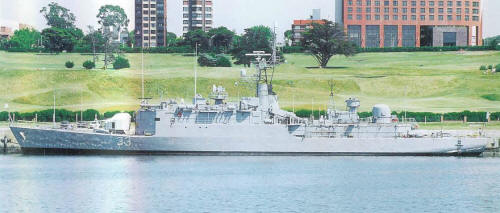

Granville 2002
