| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Delfín (ex-R1) | GC13 | Ijsselwerf, Rotterdam, Netherlands | 1957 | 14.5.1957 // 23.1.1970 | in service (2019) |
|
Displacement standard, t |
900 |
|
Displacement full, t |
1280 |
|
Length, m |
51.0 pp 56.9 oa |
|
Breadth, m |
9.35 |
|
Draught, m |
4.34 |
|
No of shafts |
1 |
|
Machinery |
2 MAN-Deutz diesels |
|
Power, h. p. |
2965 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
6720(10) |
|
Armament |
1 x 1 - 20/70 Mk 4, 2 x 1 - 12.7/90 |
|
Electronic equipment |
2x Decca radars |
|
Complement |
27 |
Project history: Former whaler, purchased in 1969 from Calpe Shipping Co (Gibraltar) and converted for patrol duties.
Modernizations: None.
Naval service: No significant events.

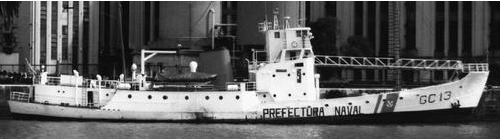

Delfín 1998

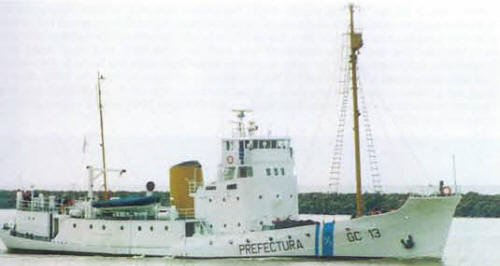

Delfín 2003
