Seguí 1975
Bouchard 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Seguí (ex-Hank) | D25 | Federal, Kearny, USA | 1/1944 | 21.5.1944 | 8/1944 // 1.7.1972 | deleted 1983 | |
| Bouchard (ex-Borie) | D26 | Federal, Kearny, USA | 2/1944 | 4.7.1944 | 9/1944 // 1.7.1972 | deleted 1984 | |
| Piedra Buena (ex-Collett) | D29 | 231 | Bath Iron Wks, USA | 10/1943 | 5.3.1944 | 5/1944 // 1977 | deleted 1984 |
D25
| Data variant | D25 |
|
Displacement standard, t |
2610 |
|
Displacement full, t |
3320 |
|
Length, m |
112.5 wl 114.8 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.32 full load |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
34 |
|
Fuel, t |
oil 379 - 504 |
| Endurance, nm(kts) | 3300 (20) |
|
Armament |
3 x 2 - 127/38 Mk 38, 2 x 2 - 76/50 Mk 33, 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL |
|
Electronic equipment |
SPS-6, SPS-10, Mk 25, Mk 35 radars, SQS-30 sonar |
|
Complement |
331 |
D26, 29
| Data variant | D26, 29 |
|
Displacement standard, t |
2345 |
|
Displacement full, t |
3210 |
|
Length, m |
112.5 wl 114.8 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.30 |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
33.4 |
|
Fuel, t |
oil 497 |
| Endurance, nm(kts) | 3300 (20) |
|
Armament |
3 x 2 - 127/38 Mk 38, 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 helicopter (Alouette III) |
|
Electronic equipment |
SPS-10, SPS-40, Mk 25 radars, SQS-30, SQA-10 sonars |
|
Complement |
291 |
Project history: Ex-USN Allen M. Sumner class destroyers, last two ships modified under FRAM II. Collett and Mansfield were originally purchased in 1974 for spares, resoectively in April and June, but first was activated in 1977 to replace decommissioned Espora. Mansfield was considered commissioned as Espora but later cannibalized.
Modernizations: 1977-1978, all: + 4 x 1 MM38 Exocet SSM (4 MM38)
Naval service: No significant events.

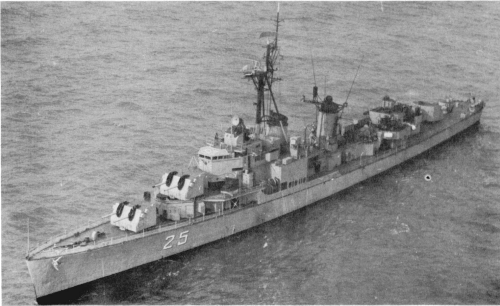

Seguí 1978

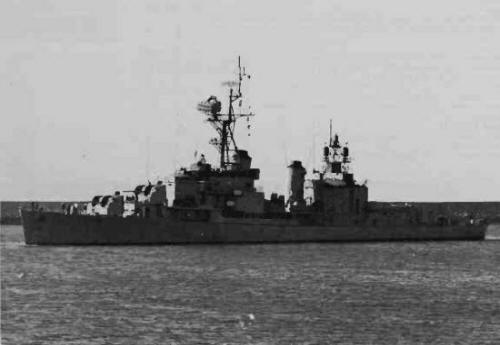

Bouchard 1983
Many thanks to Wolfgang Stöhr for additional information on this page.
© Ivan Gogin, 2017
