Patria 1894
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Patria | 595 | Laird, Birkenhead, UK | 12/1893 | 1894 | survey vessel 1921, stricken 1927 |
|
Displacement normal, t |
1029 trials |
|
Displacement full, t |
|
|
Length, m |
76.2 pp 76.7 oa |
|
Breadth, m |
9.60 |
|
Draught, m |
2.95 trials |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 locomotive boilers |
|
Power, h. p. |
5000 |
|
Max speed, kts |
20.5 |
|
Fuel, t |
coal 288 |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 120/41 Armstrong T, 4 x 1 - 63/42 Nordenfelt, 2 x 1 - 47/42 Nordenfelt, 5 - 450 TT (1 bow, 4 beam) |
|
Complement |
100 |
Project history: Steel-hulled ship with flush deck. There were one fixed bow TT and four fixed main deck broadside TTs. On trials Patria made 20.55kts on 5074hp.
Modernizations: None.
Naval service: No significant events.

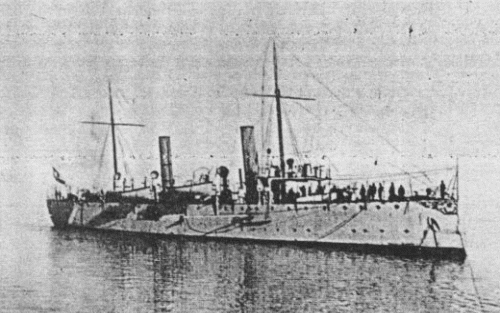

Patria
Many thanks to Wolfgang Stöhr for additional information on this page.
