Cervantes 1930
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Cervantes (ex-Churucca) | C, E1, 1940- T1, 1952- D1 | La Carraca, Cartagena, Spain | 26.6.1925 | 9.1927 | stricken 6.1961 | ||
| Juan de Garay (ex-Alcalá Galiano) | JG, E2, 1940- T2, 1952- D2 | La Carraca, Cartagena, Spain | 2.11.1925 | 9.1927 | stricken 3.1960 |
|
Displacement standard, t |
1536 |
|
Displacement full, t |
2087 |
|
Length, m |
97.5 pp 101.5 oa |
|
Breadth, m |
9.65 |
|
Draught, m |
3.65 full load |
|
No of shafts |
2 |
|
Machinery |
2 sets Parsons geared steam turbines, 4 Yarrow boilers |
|
Power, h. p. |
42000 |
|
Max speed, kts |
36 |
|
Fuel, t |
oil 540 |
|
Endurance, nm(kts) |
4500(12) |
|
Armament |
5 x 1 - 120/45 Vickers-Armstrong Mk D, 1 x 1 - 76/45 Vickers Mk SS, 4 x 1 - 7.7/87, 2 x 3 - 533 TT, 2 DCR(8) |
|
Complement |
175 |
Project history: Former Spanish destroyers Churucca and Alcalá Galiano, sold to Argentina 10.6.1926 under construction. As a compliment for the former mother country they received names in honour of eminent Spaniards. On 4hr trials Cervantes shown 37.64kts overage speed, and made maximally 39.76kts.
Since 1952 ships were rated as destroyer escorts.
Modernizations: late 1940s, both: - 1 x 1 - 120/45, 1 x 1 - 76/45, 4 x 1 - 7.7/87; + 3 x 2 - 40/60 Mk 1
Naval service: All ships were stricken 10.1.1956 and BU in 1959-1960. Juan de Garay was used for training in 1952-1959.

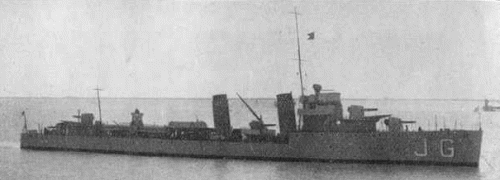

Juan de Garay 1928

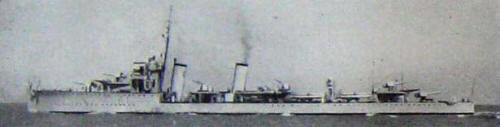

Cervantes 1952
