| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Mandume | P100 | Bazán, San Fernando, Spain | 11.1991 | 11.9.1992 | 28.1.1993 | in service (2020) | |
| Polar | P102 | Bazán, San Fernando, Spain | 11.1991 | 11.9.1992 | 28.1.1993 | in service (2020) | |
| Atlantico | P104 | Bazán, San Fernando, Spain | 2.1993 | 4.1993 | in service (2020) | ||
| Golfinho | P106 | Bazán, San Fernando, Spain | 2.1993 | 4.1993 | in service (2020) |
|
Displacement standard, t |
104 |
|
Displacement full, t |
112 |
|
Length, m |
26.5 pp 29.1 oa |
|
Breadth, m |
5.93 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
2 Paxman 16SET-CWM diesels |
|
Power, h. p. |
3560 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 800(15) |
|
Armament |
1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Decca radars |
|
Complement |
11 |
Project history: Ordered in 1990 for fisheries patrol duties. Steel hull, aluminium superstructure.
Modernizations: None.
Naval service: No significant events.

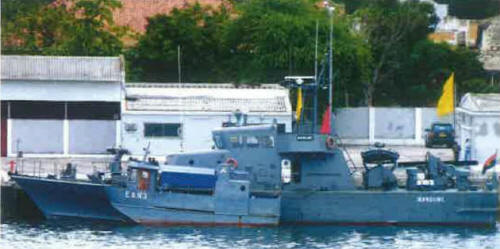

Mandume 2012
