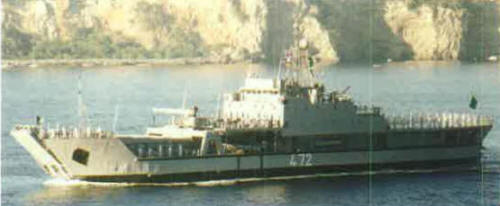

Kalaat Beni Hammed 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| كلات بني حامد [Kalaat Beni Hammed] | 472 | Brooke Marine, Lowestoft, UK | 10.1981 | 18.5.1983 | 4.1984 | in service (2019) | |
| كلات بني راشد [Kalaat Beni Rached] | 473 | Vosper-Thornycroft, Woolston, UK | 20.12.1982 | 15.5.1984 | 10.1984 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
2450 |
|
Length, m |
80.0 pp 93.0 oa |
|
Breadth, m |
15.5 |
|
Draught, m |
2.15 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V1163 TB92 diesels |
|
Power, h. p. |
8000 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(12) |
|
Armament |
1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 2 - 25/82 type 81, helicopter deck |
|
Military load |
550 t of cargo (450 t for beaching), 240 troops |
|
Electronic equipment |
Decca 1229, S800 radars, Naja e/o system, Cutlass, Cygnus ECM suites, 2x Barricade decoy RL |
|
Complement |
81 |
Project history: Brooke Marine design. 75x7.4m vehicle storage area is equipped by 18x4.5m fore and 5x4m aft ramps. There is 16t travelling crane.
Modernizations: None.
Naval service: No significant events.
