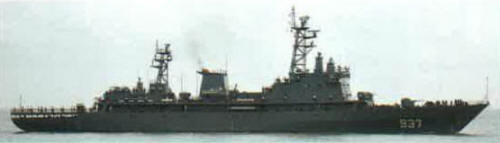

Soummam 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| صمم [Soummam] | 937 | Hudong, Shnghai, China | 11.3.2005 | 16.8.2006 | in service (2019) |
|
Displacement standard, t |
4500 |
|
Displacement full, t |
5500 |
|
Length, m |
119.0 pp 131.2 oa |
|
Breadth, m |
16.4 |
|
Draught, m |
5.40 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 6PC2.5L diesels |
|
Power, h. p. |
7800 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5000(15) |
|
Armament |
1 x 1 - 76/59 AK-176, 2 x 2 - 37/63 type 76A, 2 x 6 - 30/54 AK-630, helicopter deck |
|
Sensors |
type 360, type 354, type 756, Decca 1290, type 344, type 347 radars, e/o system, 2x NRJ-6A ECM suites, 4x PJ-46 decoy RL |
|
Complement |
170 + 30 instructors + 200 trainees |
Project history: Modified Chinese Daxin.
Modernizations: None.
Naval service: No significant events.

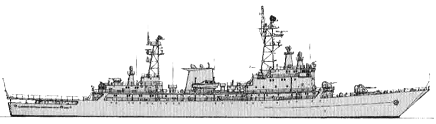

Soummam 2013
