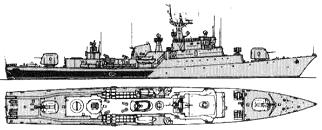

Mourad Rais 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| مراد رئس [Mourad Rais] (ex-ÑÊÐ-482 [SKR-482]) | 901 | 250 | Gorkiy Yd, Zelenodolsk, USSR | 10.6.1978 | 12.1.1980 | 30.9.1980 // 20.12.1980 | in service (2019) |
| رئس كلش [Rais Kellich] (ex-ÑÊÐ-35 [SKR-35]) | 902 | 252 | Gorkiy Yd, Zelenodolsk, USSR | 11.6.1980 | 30.4.1981 | 30.11.1981 // 24.3.1982 | in service (2019) |
| رئس قرف [Rais Korfu] (ex-ÑÊÐ-129 [SKR-129]) | 903 | 254 | Gorkiy Yd, Zelenodolsk, USSR | 7.7.1982 | 11.11.1983 | 30.8.1984 // 1.1985 | in service (2019) |
|
Displacement standard, t |
1520 |
|
Displacement full, t |
1900 |
|
Length, m |
96.5 |
|
Breadth, m |
12.6 |
|
Draught, m |
3.32 hull 5.74 max |
|
No of shafts |
3 |
|
Machinery |
1 M-8G gas turbine (central shaft) + 2 68B diesels (outer shafts) |
|
Power, h. p. |
20000 + 16000 = 36000 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(14) |
|
Armament |
1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines |
|
Sensors |
MR-320 Topaz-2V, Fut-N, 4R-33, MR-105 Turel', MR-104 Rys', Don radars, MG-311 Vychegda sonar, Bizan'-4B ECM suite |
|
Complement |
108 |
Project history: Soviet export project 1159T light frigates.
Modernizations: 2000, Rais Korfu: as project 1159TM: - 2 x 2 - 30/71, MR-320 Topaz-2V, MR-104 Rys' radars; + 2 x 6 - 30/54 AK-630M, 2 x 2 - 533 TT, Pozitiv-ME1, 2x MR-123 Vympel-A radars
2011, Mourad Rais; 2012, Rais Kellich: - NR-320Topaz-2V, MR-105 Turel', MR-104 Rys' radars; + Pozitiv-ME1 radar, 2x SP-521 Rakurs e/o systems, 2x PK-16 decoy RL
Naval service: Rais Korfu was damaged by explosion during refit and modernization at St. Petersburg, Russia, in December 2015 and returned to service in March 2017.

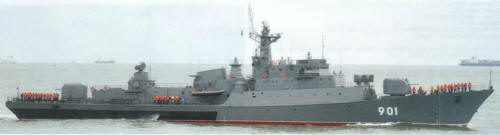

Mourad Rais 2011
