| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| أظافر [Adhafer] | 920 | Hudong, Shanghai, China | 15.8.2014 | 11/2015 | in service (2019) | ||
| الفتيه [El Fatih] | 921 | Hudong, Shanghai, China | 6.2.2015 | 10.3.2016 | in service (2019) | ||
| يزدجر [Ezzadjer] | 922 | Hudong, Shanghai, China | 2015 | 25.8.2016 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
2880 |
|
Length, m |
120.0 |
|
Breadth, m |
14.4 |
|
Draught, m |
3.90 |
|
No of shafts |
2 |
|
Machinery |
4 MTU 16V1163 TB93 diesels |
|
Power, h. p. |
32200 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3500(16) |
|
Armament |
2 x 4 C802 SSM (8 C802), 1 x 8 FM-90N SAM (8 HHQ-7), 1 x 1 - 76/59 PJ-26, 2 x 7 - 30/77 type 730, 2 x 3 - 324 B515 TT, 1 helicopter (Super Lynx) |
|
Sensors |
SMART-S Mk 2, type 364, 2x Kelvin Hughes nav., type 343G radars, sonar, ECM suite, 2x type 726-4 decoy RL, TACTICOS CCS |
|
Complement |
Project history: Chinese C28A project. Ordered in 2012. 3 more ships may be built later in Algeria.
Modernizations: None.
Naval service: No significant events.

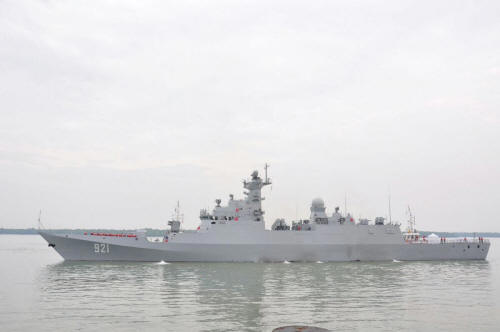

E Fatih 2016
© Ivan Gogin, 2019
