El Yadekh 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| ليدخ [El Yadekh] | 341 | Brooke Marine, Lowestoft, UK | 12.1982 | in service (2019) | |||
| المراقب [El Mourakeb] | 342 | Brooke Marine, Lowestoft, UK | 12.6.1983 | in service (2019) | |||
| الكشف [El Kechef] | 343 | ECRN, Mers-el-Kebir | 5.1984 | in service (2019) | |||
| المطاريد [El Moutarid] | 344 | ECRN, Mers-el-Kebir | 2.1985 | in service (2019) | |||
| الراصد [El Rassed] | 345 | ECRN, Mers-el-Kebir | 10.11.1985 | in service (2019) | |||
| الضجر [El Djari] | 346 | ECRN, Mers-el-Kebir | 10.11.1986 | in service (2019) | |||
| الساحر [El Saher] | 347 | ECRN, Mers-el-Kebir | 1993 | in service (2019) | |||
| المقدم [El Moukadem] | 348 | ECRN, Mers-el-Kebir | 1993 | in service (2019) | |||
| الطيني [El Tinai] | 349 | ECRN, Mers-el-Kebir | 1996 | in service (2019) | |||
| القناص [El Kanass] | 350 | ECRN, Mers-el-Kebir | 1997 | in service (2019) | |||
| المحير [El Mahir] | 354 | ECRN, Mers-el-Kebir | 1998 | in service (2019) | |||
| الوافي [El Wafi] | 355 | ECRN, Mers-el-Kebir | 2005 | in service (2019) | |||
| العزوم [El Azoum] | 356 | ECRN, Mers-el-Kebir | 2005 | in service (2019) | |||
| الدجاسر [El Djasur] | 357 | ECRN, Mers-el-Kebir | 2007 | in service (2019) | |||
| الهمس [El Hamis] | 358 | ECRN, Mers-el-Kebir | 2007 | in service (2019) | |||
| المنتصر [El Mountassir] | 360 | ECRN, Mers-el-Kebir | 2012 | in service (2019) | |||
| الثابت [El Thabit] | 361 | ECRN, Mers-el-Kebir | 2013 | in service (2019) | |||
| الصدر [El Sader] | 362 | ECRN, Mers-el-Kebir | 2013 | in service (2019) |
|
Displacement standard, t |
166 |
|
Displacement full, t |
250 |
|
Length, m |
34.7 pp 37.5 oa |
|
Breadth, m |
6.86 |
|
Draught, m |
1.78 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V538 TB92 diesels |
|
Power, h. p. |
6000 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(12) |
|
Armament |
341, 342: 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 14.5/93, 2 x 1 - 14.5/93 343: 1 x 2 - 25/82 type 81, 2 x 1 - 14.5/93 344-350, 354-358: 2 x 2 - 14.5/93 360-362: 1 x 1 - 37/63 type 76A |
|
Sensors |
341, 342: Decca 1226 radar, e/o system 343-350, 354-358, 360-362: Decca 1226 radar |
|
Complement |
27 |
Project history: Brooke Marine 37.5m design. Originally were used by Coast Guard.
Modernizations: None.
Naval service: No significant events.

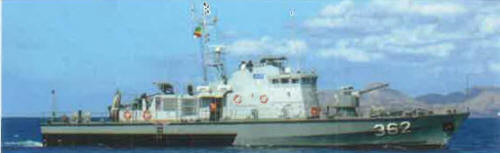

El Sader 2013
