ALGERIAN NAVY (ALGERIA)

COASTAL FORCES

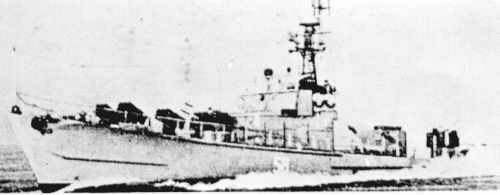

No651 large patrol craft (1958-1960/1965-1967)

651 1970

Name No Yard No Builder Laid down Launched Comp Fate
  651   532 Yd, Kerch', USSR     1958-60 // 10.1965 deleted 1984
  652   532 Yd, Kerch', USSR     1958-60 // 10.1965 deleted 1984
  653   532 Yd, Kerch', USSR     1958-60 // 10.1967 deleted 1984
  654   532 Yd, Kerch', USSR     1958-60 // 10.1967 deleted 1984
  655   532 Yd, Kerch', USSR     1958-60 // 10.1967 deleted 1984
  656   532 Yd, Kerch', USSR     1958-60 // 10.1967 deleted 1984



Displacement standard, t

190

Displacement full, t

216

Length, m

41.7

Breadth, m

6.18

Draught, m

1.85

No of shafts

3

Machinery

3 40DM diesels

Power, h. p.

6600

Max speed, kts

27

Fuel, t

diesel oil

Endurance, nm(kts)

1500(12)

Armament

2 x 2 - 25/82 2M-3M, 4 x 5 RBU-1200 Uragan ASWRL, 2 DCR (24), 18 mines

Sensors

Reya radar, Tamir-11 sonar

Complement

27

Project history: Former Soviet Project 201M submarine chasers.

Modernizations: None.

Naval service: No significant events.
