World navies yesterday

2015



United Kingdom 01 January 2015

SUBMARINES

SSBN Vanguard 4 S28 Vanguard 1993 14000/15850t, 149.3x12.8x10.1m, 1nr,2gst(1wj), 27500hp, /25kts, 143p, 230m; 16 Trident D-5 SLBM(16), 4-533TT; type 1007 radar, type 2054(type 2043, type 2044, type 2045)(31), type 2054(type 2043, type 2046, type 2081, type 2082)(28-30) sonar suite, UAC(3), UAP(3) ECM, 3x SSE Mk 10 dl, SAFS 3(31), DCC(BN)(31), SMCS NG(28-30), DCM4(28-30) CCS
S29 Victorious 1995
S30 Vigilant 1996
S31 Vengeance 1999
SSN Trafalgar 4 S90 Torbay 1987 4740/5208t, 85.4x9.8x8.3m, 1nr,2gst(1wj), 15000hp, 20/30kts, 97p, 300m;  5-533TT(inc Tomahawk CruM(4)); type 1007 radar, type 2076 sonar suite), type 2046, type 2082, BQS-15A(91) sonars, UAP(1) ECM, type 2071 dl, 2x SSE Mk8 dl, SMCS NG(90-93) CCS
S91 Trenchant 1989
S92 Talent 1990
S93 Triumph 1991
Astute 2 S119 Astute 2010 7000/7400t, 97.0x11.3x10.0m, 1nr,2gst(1wj), 27500hp, /29kts, 98p, 300m; 6-533TT(inc Tomahawk CruM(4)); 1 DDS, 11 commandos; type 1007 radar, type 2076 sonar suite, type 2077, type 2081, type 2082, type 2015 sonars, UAP-4, RESM, CESM/7415 ECM, SCAD 101/102 dl, SCAD200 jammer, ACMS CCS
S120 Ambush 2013

AIRCRAFT CARRIERS

CVS Invincible 1 R06 Illustrious 1982 20600t, 210.0x36.0x6.5m, 4gt(2), 112000hp, 28kts, 875p; 3x7-30/77, 2x1-20/90, 18ac (Sea King, Merlin, Lynx helicopters); 960troops; type 996, type 1022, 2x type 1007, type 1008, 3x Goalkeeper radars, type 2016 sonar, UAT(8), UAD/UAK, 4x DLH, 8x Sea Gnat dl, type 182 td, ADIMP CCS
CVH Contender Bezant 1 A135 Argus 1982 28480t, 173.0x30.6x8.2m, 2dg,2em, 23400hp, 22kts, 108+137p; 2x1-20/90, 12hel(Sea King, Lynx, Gazelle); type 1006, type 1007, type 994 radars, UAN(1) ECM, 2x Shield dl, type 182 td

PRINCIPAL SURFACE COMBATANTS

DD Sheffield Batch 3 3 D96 Gloucester 1985 4775t, 141.1x14.9x4.2m, COGOG:2gt/2gt(2), 54400/10680hp, 29.5kts, 253p; 1x2 Sea Dart SAM(22), 1x1-114/55, 2x6-20/76, 2x1-20/90, 2x3-324TT, 1hel(Lynx); type 1022, type 996, type 1007, type 1008, 2x type 909, 2x Mk 90 radars, 2x Rademac 2100 e/o detectors, type 162M, type 2050 sonars, UAT(5) ECM, 4x DLB dl, 4x DLJ(2) fd, 2x DEC laser dazzlers, type 2070 td, ADAWS-8 CCS
D97 Edinburgh 1985
D98 York 1985
Daring 6 D32 Daring 2009 7450t, 152.4x21.2x5.5m, 2gtg+2dg,2em, 68000hp, 30kts, 190+45p; 2x4 Harpoon SSM(8), 6x8 Sea Viper SAM VLS(32 Aster-30, 16 Aster-15), 1x1-114/55, 2x1-30/75, 2x6-20/76, 1hel(Merlin); type 1045, type 1046, type 1008, 2x type 1047 radars, 2x EOGS 2500 e/o directors, type 2100 sonar, EWCP ECM, 4x DLH dl, type 2170 SSTD td, 2x DLF(3) fd, CMS-1 CCS
D33 Dauntless 2010
D34 Diamond 2011
D35 Dragon 2012
D36 Defender 2013
D37 Duncan 2013
FF Norfolk 13 F231 Argyll 1991 4300t, 133.0x16.1x4.3m, CODLAG:2gt+4dg,2em, 41540(229,231,232,234-236)-56300(237-239,78,79,81-83)hp, 28(229,231,232,234-236)-30(237-239,78,79,81-83)kts, 169p; 2x4 Harpoon SSM(8), 1x32 Sea Wolf SAM VLS(32), 1x1-114/55, 2x1-30/75, 2x1-20/90, 4-324TT, 1hel(Lynx)(231), 1hel(Merlin)(78,79,81-83,229,234-239), Scan Eagle UAV(82,83,234); type 996(2)(78,79,81,229,231,235-239), type 997(82,83,234), 2x type 911(78,79,81,229,231,235-239), 2x type 911(1)(82,83,234), type 1007, type 1008 radars, type 2050NE, type 2031Z(229,231,234-238), type 2087(78,79,81-83,239) sonars, GSA8, SIGMA e/o directors, UAT(5/6), UAD/UAK, 2x type 675(229,231,234-236), 2x type 695(78,79,81-83,237-239), MIDAS(82,83,234) ECM, 4x DLB(229,231,234-236), 4x DLH(78,79,81-83,237-239) dl, 2x DEC laser-dazzlers, 4x DLF(2) fd, type 182(229,231,234-236), type 2070(237,238), type 2170 SSTDS(78,79,81-83,239) td, SSCS DNA(1)(81,82,234,235), CMS-1 DNA(2)(78,79,83,229,231,236-239) CCS
F229 Lancaster 1992
F234 Iron Duke 1993
F235 Monmouth 1993
F236 Montrose 1994
F237 Westminster 1994
F238 Northumberland 1994
F239 Richmond 1995
F82 Somerset 1996
F81 Sutherland 1997
F78 Kent 2000
F79 Portland 2001
F83 St. Albans 2002

PATROL AND COASTAL COMBATANTS

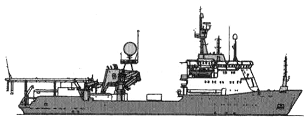

PSO Polarbjorn 1 A173 Protector 2001 4985t, 89.7x17.8x7.9m, 2d, 9500hp, 14.5kts, 88+84p; heldeck; 2x radars
PS Tyne 3 P281 Tyne 2003 1800t, 79.8x13.6x4.2m, 2d, 11280hp, 20kts, 45+3p; 1x1-20/85; 2x Nucleus-3 5000 radars
P282 Severn 2003
P283 Mersey 2004
Clyde 1 P257 Clyde 2007 1850t, 81.5x13.6x4.2m, 2d, 11280hp, 20kts, 36+20p; 1x1-30/75, heldeck; Terma-Scanter 4100 radar
PB Archer 16 P163 Express 1988 49t, 20.8x5.8x1.8m, 2d, 1590(exc274,275)-2000(274,275)hp, 22.5(exc274,275)-25(274,275)kts, 5+13p; Decca 1216 radar
P164 Example 1986
P165 Explorer 1985
P167 Exploit 1988
P264 Archer 1985
P270 Biter 1985
P272 Smiter 1986
P273 Pursuer 1988
P274 Tracker 1998
P275 Raider 1998
P279 Blazer 1988
P280 Dasher 1988
P291 Puncher 1988
P292 Charger 1988
P293 Ranger 1988
P294 Trumpeter 1988
Grey Fox 2 P284 Scimitar 1988 no picture 24t, 16.0x4.4x1.2m, 2d, 740hp, 32kts, 5+30p; Bridgemaster 360 radar
P285 Sabre 1988
Rona 2 1 Rona 2009 no picture 20t, 14.9x4.1x0.9m, 2d(2wj), 1430hp, 33kts, 3p; Furuno radar
2 Mull 2010

AMPHIBIOUS

LPH Ocean 1 L12 Ocean 1999 21758t, 203.4x36.1x6.7m, 2d, 23904hp, 19kts, 490p; 4x1-30/75, 3x6-20/76, 18ac(Sea King, Lynx helicopters); 4 LCVP Mk 5, 2 Griffon LCAC, 80vehicles, 500troops; type 1007, type 1008, type 997, 3x Mk 90 radars, UAT(4), 2x type 675 ECM, 8x DLJ(2) dl, 2x DLH dl, type 2170 td, CMS-1 CCS
LPD Albion 2 L14 Albion 2003 18500t, 176.0x28.9x7.2m, 4dg,2em, 16320hp, 18kts, 325p; 2x7-30/77, 2x1-20/85, 4hel(Merlin); 4 LCU Mk 10, 4 LCVP Mk 5, 70vehicles, 305troops; 2x type 1007, type 1008, type 996(2), 2x Goalkeeper radars, UAT(4) ECM, 8x DLJ(2) dl, type 2170 td, ADAWS 2000 Mod. 1 CCS
L15 Bulwark 2005
LSD Bay 3 L3007 Lyme Bay 2007 16160t, 176.6x26.4x5.8m, 4dg,2em(2az), 9000hp, 18kts, 67p; heldeck; 1 LCU Mk 10, 36tanks, 356troops, 200t cargo; 2x radars
L3008 Mounts Bay 2006
L3009 Cardigan Bay 2006
LCAC type 2400TD(M) 4 C21-24   2011 no picture 11t, 12.6x6.8x0m, 1d(1ap), 580hp, 45kts, 2p; 16troops; Raytheon radar
LC Arromanches 5 L107 Andalsnes 1984 no picture 290t, 33.3x8.3x1.5m, 2d, 660hp, 9.2kts, 6p; 100t cargo; Bridgemaster-E 180 radar
L110 Aachen 1987
L111 Arezzo 1987
L105 Arromanches 1987
L113 Audemer 1987
LCVP Mk 5 23 LCVP9473, 9673-9692, 9707, 9708   1996-2004 no picture 23t, 15.3x4.2x0.6m, 2d, 860hp, 25kts, 3p; 35troops; Raytheon 40 radar
LCU Mk 10 10 9730 LCU01 1999 no picture 240t, 29.8x7.4x1.5m, 2d, 1090hp, 12kts, 7p; 1tank; radar
9731 LCU02 1999
9732 LCU03 2003
9733 LCU04 2003
9734 LCU05 2004
9735 LCU06 2004
9736 LCU07 2004
9737 LCU08 2004
9738 LCU09 2005
9739 LCU10 2005
PACSCAT 1 T1   2010 no picture 175t, 30.0x7.7x0.5m, 2d(2wj), 25kts; 55t cargo; radar

MINE WARFARE

MSO Hunt 8 M30 Ledbury 1981 725t, 60.0x9.9x2.2m, 2d, 2000hp, 17kts, 45p; 1x1-30/75, 2x Seafox USV, mechanical, acoustic, magnetic minesweeping gear, 2x FAST minesweeping drones; type 1006(4) radar, type 2193, Mil Cross sonars, 2x DLJ(2) fd, 2x DLK dl, NAUTIS III CCS
M31 Cattistock 1982
M33 Brocklesby 1983
M34 Middleton 1984
M37 Chiddingfold 1984
M38 Atherstone 1987
M39 Hurworth 1985
M41 Quorn 1989
MSC Sandown 7 M106 Penzance 1998 484t, 52.5x10.5x2.3m, 2d(2vs), 2024hp, 15kts, 34p; 1x1-30/75, 1x Seafox C USV; type 1007 radar, type 2093 sonar, NAUTIS-3 CCS
M107 Pembroke 2000
M108 Grimsby 1999
M109 Bangor 2000
M110 Ramsey 2001
M111 Blyth 2001
M112 Shoreham 2002

AIRCRAFT



NAVY

Ship-based

 7 Wildcat HMA.2, 7 Lynx HAS.3, 33 Lynx HMA.8, 18 Merlin HM.1, 24 Merlin HM.2, 13 Sea King AEW.7, 16 Sea King HU.5

Land-based combat capable

 12 Hawk T.1

JOINT HELICOPTER COMMAND

Land-based combat capable

66 AH-64D Apache WAH.1, 5 AS365N3, 22 AW.159 Wildcat AH.1, 27 Lynx AH.7, 21 Lynx AH.9A, 34 SA341B Gazelle AH.1
Tri-Service Defence Helicopter School 11 Griffin HT.1

AIR FORCE

Combat capable

3 F-35B Lightning, 90 Tornado GR.4/4A, 113 Typhoon FGR.4/T.3, 5 Sentinel R.1, 6 Shadow R.1, 1 RC-135V Rivet Joint, 6 E-3D Sentry, 28 Hawk T.2, 32 Hawk T.1/1A/1W, 1 AW139, 4 Griffin HAR.2, 10 MQ-9A Reaper

MARINES

equipment 118 BvS-10 Viking, 24 BvS-10 Mk 2 Viking APC, 18 L118 105mm light guns, 32 81mm mortars, Javelin ATGW, HVM SP SAM, 4 MAMBA radars
