Netherlands 01 January 2015
SUBMARINES
| SS | Walrus | 4 | S802 | Walrus | 1992 | |
2450/2800t, 67.7x8.5x7.0m, 3dg,1em, 3950/5500hp, 13/21kts, 50p, 300m; 4-533TT(inc Sub-Harpoon SSM(4)); ZW-07 radar, Octopus, type 2026, DUUX-5 sonars, Argo 700 ecm, SEWACO VIII(802,803), SEWACO VII(808,810) CCS |
| S803 | Zeeleeuw | 1990 | |||||
| S808 | Dolfijn | 1993 | |||||
| S810 | Bruinvis | 1994 |
PRINCIPAL SURFACE COMBATANTS
| DD | De Zeven Provinciën | 4 | F802 | De Zeven Provinciën | 2002 |  |
6050t, 144.2x18.8x5.2m, CODOG:2gt/2d(2), 53040/13600hp, 28kts, 182(802,803)-171(804,805)p; 2x4 Harpoon SSM(8), 1x40 Standard SM-2MR SAM / 4x ESSM SAM(32+32), 1x1-127/54, 2x7-30/77, 2x1-12.7, 2x2-324TT, 1 helicopter (NH90); SMART-L, APAR, Scout, nav. radars, Mirador-FD, Sirius e/o, DSQS-24C, ALF sonars, Sabre ecm, 4x SRBOC dl, SLQ-25 td, SEWACO XI CCS |
| F803 | Tromp | 2003 | |||||
| F804 | De Ruyter | 2004 | |||||
| F805 | Evertsen | 2005 | |||||
| FF | Karel Doorman | 2 | F828 | Van Speijk | 1995 |  |
3320t, 122.3x14.4x4.3m, CODOG:2gt/2d(2), 48900/9800hp, 30kts, 154p; 2x4 Harpoon SSM(8), 1x16 Sea Sparrow SAM(VLS,16), 1x1-76/62, 1x7-30/77, 2x1-20/70, 4-324TT, 1 helicopter (NH90); type 1007, Scout, SMART-S, LW-08, 2x STIR-18, Goalkeeper radars, Gatekeeper e/o, PHS-36, IRFLAS sonars, AR700, 2x APECS II ecm, 2x SRBOC dl, SLQ-25 td, SEWACO XI CCS |
| F831 | Van Amstel | 1993 |
PATROL AND COASTAL COMBATANTS
| PSO | Holland | 4 | P840 | Holland | 2012 |  |
3750t, 108.4x16.0x4.6m, 2dg,2em, 14700hp, 22kts, 55+40p; 1x1-76/62, 1x1-30/82, 2x1-12.7, 1 helicopter (NH90); SMILE, Seastar, 2x Selesmar radars, Gatekeeper e/o, SEWACO CCS |
| P841 | Zeeland | 2013 | |||||
| P842 | Friesland | 2013 | |||||
| P843 | Groningen | 2013 |
AMPHIBIOUS

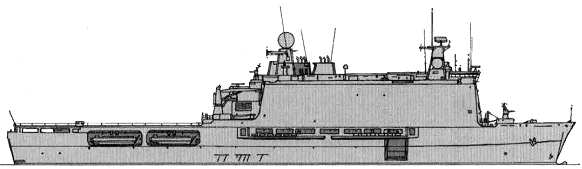

| LPD | Rotterdam | 1 | L800 | Rotterdam | 1998 |  |
12750t, 166.2x25.0x5.2m, 4dg,4em(2), 16320hp, 20kts, 128p; 2x7-30/77, 8x1-12.7, 6 helicopters (NH 90); 4 LCU, 30 tanks, 611 troops; DA-08, Scout, 2x Pilot, 2x Goalkeeper radars, IRSCAN e/o, AR-900 ecm, 4x SRBOC dl, SLQ-25A td, MCCIS CCS |
| Johan de Witt | 1 | L801 | Johan de Witt | 2007 |  |
16680t, 176.4x29.2x5.9m, 4dg,4em(2ap), 16320hp, 20kts, 146p; 2x7-30/77, 8x1-12.7, 6 helicopters (NH90); 2 LCU, 4 LCA, 33 tanks, 550 troops; Variant Mk 2, Kelvin Hughes, Selesmar, 2x Goalkeeper radars, IRSCAN e/o, AR-900 ecm, 4x SRBOC dl, SLQ-25A td, MCCIS CCS | |
| LC | LCU-1 | 5 | L9525 | 1998 | no picture | 260t, 36.1x6.8x1.6m, 2dg,2em(2s), 1400hp, 9kts, 5p; 2x1-12.7; 130troops or 2 AIFV; Furuno radar | |
| L9526 | 1999 | ||||||
| L9527 | 1999 | ||||||
| L9528 | 1999 | ||||||
| L9529 | 1999 | ||||||
| LCA(5) | 12 | L9565-9576 | 2008-2011 | no picture | 24t, 15.7x4.2x0.7m, 2d(2wj), 1150hp, 21kts, 3p; 35troops; Raymarine radar |
MINE WARFARE
| MSO | Alkmaar | 6 | M857 | Makkum | 1985 |  |
595t, 51.5x8.9x2.5m, 1d, 1900hp, 15kts, 42p; 3x1-12.7, 2xSea Fox USV, mechanical minesweeping gear; Decca 1229 radar, TSM2022 Mk 3, PVDS sonar, IMCMS CCS |
| M860 | Sciedam | 1986 | |||||
| M861 | Urk | 1986 | |||||
| M862 | Zierikzee | 1987 | |||||
| M863 | Vlaardingen | 1989 | |||||
| M864 | Willemstad | 1989 |
COAST GUARD
| PS | Barend Biesheuvel | 1 | 1 | Barend Biesheuvel | 2001 | no picture | 1240t, 61.4x11.0x3.8m, 2d, 4700hp, 17kts, 20p; 2x radars |
| PC | Visarend | 2 | 1 | Visarend | 2001 | no picture | 200t, 42.8x7.1x2.5m, 2d, 5400hp, 22.5kts, 12p; 2x nav. radars |
| 2 | Zeearend | 2002 |
COAST GUARD OF NETHERLANDS ANTILLES AND ARUBA
| PC | Jaguar | 3 | P810 | Jaguar | 1998 |  |
205t, 42.8x7.1x2.5m, 2d, 5600hp, 26kts, 11+6p; 1x1-12.7; type 1007, Scout radars, SEWACO CCS |
| P811 | Panter | 1999 | |||||
| P812 | Poema | 1999 |
GENDARMERIE
| PC | Glinder | 1 | RV180 | Glinder | 2008 | no picture | 34.3x7.2x1.6m, 2d, 2540hp, 16kts; 2x nav. radars, e/o |
| PB | RV165 | 1 | RV169 | 1975 | no picture | 17.3x5.0x1.3m, 2d, 700hp, 17.5kts; radar | |
| Drechtsteden | 1 | RV160 | Drechtsteden | 2005 | no picture | 18.0xxm, 2d, 1630hp, 24kts; radar | |
| Kattenburg | 2 | RV161 | Kattenburg | 2007 | no picture | 19.8x5.5x1.5m, 2d, 1750hp, 23kts, 2+10p; JMA 608T radar | |
| RV162 | Wycker Meer | 2007 |
CUSTOMS
| PC | Strommeeuw | 1 | 1 | Stormmeeuw | 2003 | no picture | 34.3x7.2x1.6m, 2d, 2540hp, 16kts; 2x radars |
| PB | Grote Stern | 1 | 1 | Grote Stern | 1995 | no picture | 25t, 18.5x4.8x1.3m, 2d, 25kts; radar |
| Jan van Gent | 1 | 1 | Jan van Gent | 2000 | no picture | 24.0xxm, 2d, 22kts; radar | |
| Kokmeeuw | 3 | 1 | Kokmeeuw | 2004 | no picture | 19.8x5.5x1.5m, 2d, 1640hp, 23kts, 2+10p: JMA 608T radar | |
| 2 | Mantelmeeuw | 2005 | |||||
| 3 | Zilvermeeuw | 2005 |
AIRCRAFT
AIR FORCE
|
Ship-based |
12 NH90 NFH |
|
Land-based Combat capable |
72 F-16AM/BM Fighting Falcon, 2 F-35A Lightning, 29 AH-64D Apache, 3 Bell-412 (AB-412SP Griffin), 4 SA316 Alouette III |
MARINES
|
Combat equipment |
73 BvS-10 Viking ATV, 87 Bv-206D ATV/S, 12 L16/M1 81mm mortars, Spike-MR (Gil) MANPATS, SRAT Pantserfaust III Dynarange 2000 84mm RL, FIM-92 Stinger MANPAD, 4 BvS-10, 4 Leopard-1 ARV, 4 BvS-10 MED |
