World navies yesterday

2015



Australia 01 January 2015

SUBMARINES

SS Collins 6 73 Collins 1996 3050/3350t, 77.8x7.8x6.8m, 3dg,1em, 6900/7000hp, 11/21kts, 42p, 300m; 6-533TT(inc Sub-Harpoon(4)); type 1007 radar, TSM2253 Scylla, Karrawarra(73-75), Narama(76-78) sonars, Condor CS5600 ECM, BYG-1(v)8 CCS
74 Farncomb 1998
75 Waller 1999
76 Dechaineux 2001
77 Sheean 2001
78 Rankin 2003

PRINCIPAL SURFACE COMBATANTS

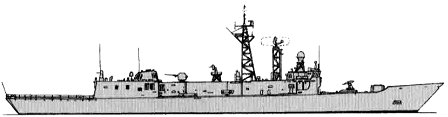

FF Oliver H. Perry 4 03 Sydney 1983 4200t, 138.8x13.7x4.5m, 2gt(1), 41000hp, 29kts, 201p; 1x1 Harpoon SSM(4) / Standard SM-2MR SAM(36), 1x8 ESSM SAM(32), 1x1-76/62, 1x6-20/76, 4x1-12.7, 2x3-324TT, 2 helicopters (S70B-2); SPS-55, SPS-49A(v)1, Mk 92 mod. 12, SPG-60 radars, 2x Toplite, 2x Mk 24, Rademac 2500 e/o, TSM4131 Spherion, TSM5424 Petrel, Sea Defender sonars, C-PEARL, EA2118 ECM, 2x SKWS, 2x Nulka dl, TMS4350 Albatros, SLQ-25 td, ADACS CCS
04 Darwin 1984
05 Melbourne 1992
06 Newcastle 1993
ANZAC 8 150 ANZAC 1996 3600t, 117.5x14.8x4.4m, CODOG:1gt/2d(2); 30000/8840hp, 27kts, 163p; 2x4 Harpoon SSM(8), 1x8 ESSM SAM(32), 1x1-127/54, 4x1-12.7, 2x3-324TT, 1 helicopter (SH-2G); SPS-49(v)8, 150HC Sea Giraffe(152-156), 9600M(152-156), Ceros 200, 2x Sharp Eye(150,151,157), CEAMOUNT(150,151,157), CEAFAR(150,151,157) radars, 2x Vampir-NG(150,151,157) e/o, Spherion-B, Petrel 5424(150,151,157) sonars, Sceptre-A(152-156), Centaur(150,151,157), PST1720(152-156), Telegon-10(150,151,157) ECM, 2x SRBOC dl, SLQ-25, LEAD(150,151,157) td, 9LV 53 Mk3(152-156), 9LV 453 Mk 3E(150,151,157) CCS
151 Arunta 1998
152 Warramunga 2001
153 Stuart 2002
154 Parramatta 2003
155 Ballarat 2004
156 Toowoomba 2005
157 Perth 2006

PATROL AND COASTAL COMBATANTS

PC Armidale 13 83 Armidale 2005 305t, 56.8x9.7x2.7m, 2d, 6310hp, 25kts, 29+20p; 1x1-25/75, 2x1-12.7; 2x Sperry radars, Vista 350 e/o, WARRLOCK, PRISM III ECM
84 Larrakia 2006
85 Bathurst 2006
86 Albany 2006
87 Pirie 2006
88 Maitland 2006
89 Ararat 2006
90 Broome 2007
92 Wollongong 2007
93 Childers 2007
94 Launceston 2007
95 Maryborough 2007
96 Glenelg 2008

AMPHIBIOUS

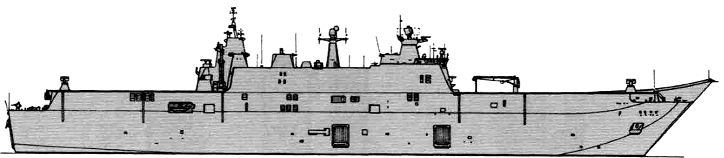

LHD Canberra 1 L02 Canberra 2014 27500t, 230.8x32.0x7.2m, 1gt+2dg,2em(2ap), 29920hp, 20.5kts, 300p; 4x1-25/75, 4x1-12.7, 12 helicopters (MRH-90, MH-60R, AS-350BA); 4 LCM, 150 vehicles, 1124troops; Sea Giraffe AMB, Sharp Eye radars, Vampir-NG e/o, 2x Nulka dl, SLQ-25 td, 9LV Mk4 CCS

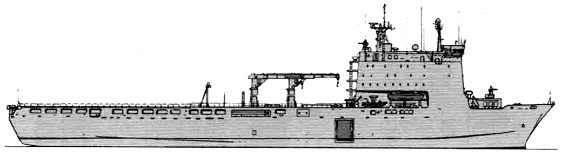

LSD Bay 1 L100 Choules 2006 16160t, 176.6x26.4x5.8m, 4dg,2em(2ap), 9000hp, 18kts, 158p; heldeck; 1 LCM, 32 tanks, 356 troops; 2x nav. radars
LST Tobruk 1 L50 Tobruk 1981 6000t, 129.5x19.6x4.3m, 2d, 9600hp, 17kts, 144p; 6x1-12.7, 2 heldecks; 2 LCM(8), 2 LCVP, 11 tanks, 520 troops; Decca RM916, type 1006 radars, Matilda ECM, 2x SRBOC dl

MINE WARFARE

MSO Huon 6 82 Huon 1999 720t, 52.5x9.9x3.0m, 1d, 2000hp, 14kts, 38p; 1x1-30/75, 2x1-12.7, 2x Double Eagle Mk 2 USV, mechanical, magnetic, acoustic minesweeping gear, decompression chamber; type 1007 radar, Radamec 1500 e/o, type 2093 sonar, PRISM III ECM, 2x Super Barricade dl, Mullauna CCS
83 Hawkesbury 2000
84 Norman 2000
85 Gascoyne 2001
86 Diamantina 2002
87 Yarra 2003

ARMY

LC LCM(8) 15 AB1050 Coconut Queen 1967 116t, 22.7x6.4x1.4m, 4d(2), 720hp, 12kts, 3p; 55t cargo
AB1051 Seahorse II 1967
AB1053 Sea Widow 1967
AB1055 Midnight Sun 1967
AB1056 Charlie Brown 1967
AB1058 ANZAC Code 1967
AB1059 Snoopy 1967
AB1060 The Wanderer 1967
AB1061 Northern Warrior 1967
AB1062 Ocean Marie 1972
AB1063 Ice Fire 1972
AB1064 Sea Trojan 1972
AB1065 Viking Sun 1972
AB1066 Hastings 1972
AB1067 Charisma 1972

POLICE

PB Alert 13 1 Alert 2000 No picture 16.0x4.9x1.3m, 2d, 1340hp, 28kts, 4p; radar
2 Falcon 2000
3 Fearless 2001
4 Intrepid 2001
WP21 Vigilant 2002
WP22 Vanguard 2002
WP23 Victor 2003
WP24   2003
WP25   2004
WP26   2004
WP27   2005
WP28   2005
WP29   2006
Nemesis 1 WP11 Nemesis 2007 no picture 22.0xxm; radar
Lyle M. Hoey 4 1 Lyle M. Hoey 2009 no picture 23.8x7.8x1.4m, 2d, 1360hp, 26kts, 8+6p; radar
2 W. Conroy 2009
3 Brett Irwin 2009
4 Brett T. Handran 2009

CUSTOMS

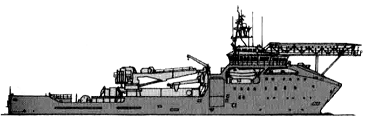

PSO Ocean Protector 1 1 Ocean Protector 2007 8500t, 105.9x21.0x6.6m, 4dg,2em(2ap), 6440hp, 16kts, 22+50p; 2x1-12.7, heldeck; 2x radars
Ocean Shield 1 1 Ocean Shield 2012 8500t, 110.9x22.1x6.6m, 4dg,2em(2ap), 6440hp, 16kts, 22+50p; 2x1-12.7, heldeck; 2x radars
PS Triton 1 ACV90 Triton 2000 1010t, 98.7x22.5x3.4m, 2dg,1em, 4760hp, 20kts, 14+28p; 2x1-12.7, heldeck; 2x Bridgemaster E340 radars
PC Cape 4 1 Cape Saint George 2013 57.8x10.3x3.0m, 2d, 6770hp, 25kts, 18p; 2x1-12.7; 2x radars
2 Cape Byron 2014
3 Cape Nelson 2014
4 Cape Sorell 2014
PB Bay 6 ACV01 Roebuck Bay 1999 No picture 134t, 38.0x7.3x2.2m, 2d, 2860hp, 24kts; 2x Nucleus 2 radars
ACV02 Holdfast Bay 1999
ACV03 Botany Bay 1999
ACV06 Storm Bay 2000
ACV07 Dame Roma Mitchell 2000
ACV08 Arnhem Bay 2000
Thayak 1 1 Thayak 2004 no picture 40.0x11.5x2.4m, 2d, 2030hp, 12kts, 17+26p; nav. radar



AIRCRAFT



NAVY

Ship-based

 4 MH-60R Seahawk, 13 S-70B-2 Sea Hawk, 6 NH90, 13 AS-350BA Ecureuil, 3 Bell 429

ARMY

Combat capable

22 EC665 Tiger, 10 RQ-7B Shadow

AIR FORCE

Combat capable

55 F/A-18A Hornet, 16 F/A-18B Hornet, 24 F?A-18F Super Hornet, 18 AP-3C Orion, 6 B-737-700 Wedgetail, 33 Hawk Mk.127, 4 Heron

BORDER PROTECTION COMMAND

Ship based 1 Bell 214, 1 AS350
