World navies yesterday

2010



United States of America 01 January 2010

SUBMARINES

SSBN Ohio 14 SSBN730 Henry M. Jackson 1984 16764/18750t, 170.7x12.8x11.1m, 1nr,2gst(1), 35000hp, /25kts, 163p, 300m; 24 Trident II D-5 SLBM, 4-533TT; BPS-15H radar, BQQ-5E(V)4/-6 sonar suite, BQS-13, BQS-15(with TB-23), BQR-19, BQQ-9 TASPE sonars, WLR-8(V)5, WLR-10 ECM, 8x CSA Mk1 dl, CCS Mk2 CCS
SSBN731 Alabama 1985
SSBN732 Alaska 1986
SSBN733 Nevada 1986
SSBN734 Tennessee 1988
SSBN735 Pennsylvania 1989
SSBN736 West Virginia 1990
SSBN737 Kentucky 1991
SSBN738 Maryland 1992
SSBN739 Nebraska 1993
SSBN740 Rhode Island 1994
SSBN741 Maine 1995
SSBN742 Wyoming 1996
SSBN743 Louisiana 1997
SSGN Ohio 4 SSGN726 Ohio 1981 16764/18750t, 170.7x12.8x11.1m, 1nr,2gst(1), 35000hp, /25kts, 140p, 300m; 1x22 Tomahawk CruM(VLS,154), 4-533TT; 2 ASDS or 2 DDS, 66troops; BPS-16(v)4 radar, BQQ-5E(V)4 sonar suite, BQS-13, BQS-15(with TB-23), BQR-19, BQQ-9 TASPE sonars, BLQ-10(v) ECM, 4x CSA Mk1 dl, CCS Mk2 Mod.3 CCS
SSGN727 Michigan 1982
SSGN728 Florida 1983
SSGN729 Georgia 1984
SSN Los Angeles 45 SSN688 Los Angeles 1976 6080/6927(688-699)-6130/6977(700-714)-6165/7012(715-718)-6255/7102(719-725,750)-6255/7102(751-773)t, 109.7x10.1x9.8m, 1nr,2gst(2), 35000hp, /33kts, 141p, 450m; 1x12 Tomahawk CruM(VLS,12)(719-725,750-773); BPS-15(688-725,750), 4-533TT(inc Tomahawk CruM(8), Sub-Harpoon SSM(4)), BPS-16(751-773) radar, BQQ-5A(V)1/C (BQS-15, BQR-15/TB-16D/-23/29)(688-709,711-715), BQQ-5D(BQS-15, BQR-15/TB-16D/-23/-29)(710,716-725,750), BSY-1(751-773) sonar suite, BQG-5D(710), BQQ-10 ARCI(710,724) sonar, BRD-7, WLR-8(V)2, WLR-10, WLR-9/12, WLR-1H ECM, Mk1 Mod.2 dl, Mk117, BSY-1(751-763,766,768-773), BYG-1(764,765,767) CCS
SSN690 Philadelphia 1977
SSN691 Memphis 1977
SSN698 Bremerton 1981
SSN699 Jacksonville 1981
SSN700 Dallas 1981
SSN701 La Jolla 1981
SSN705 City of Corpus Christi 1983
SSN706 Albuquerque 1983
SSN711 San Francisco 1981
SSN713 Houston 1982
SSN714 Norfolk 1983
SSN715 Buffalo 1983
SSN717 Olympia 1984
SSN719 Providence 1985
SSN720 Pittsburgh 1985
SSN721 Chicago 1986
SSN722 Key West 1987
SSN723 Oklahoma City 1988
SSN724 Louisville 1986
SSN725 Helena 1987
SSN750 Newport News 1989
SSN751 San Juan 1988
SSN752 Pasadena 1989
SSN753 Albany 1990
SSN754 Topeka 1989
SSN755 Miami 1990
SSN756 Scranton 1991
SSN757 Alexandria 1991
SSN758 Asheville 1991
SSN759 Jefferson City 1992
SSN760 Annapolis 1992
SSN761 Springfield 1993
SSN762 Columbus 1993
SSN763 Santa Fe 1994
SSN764 Boise 1992
SSN765 Montpelier 1993
SSN766 Charlotte 1994
SSN767 Hampton 1993
SSN768 Hartford 1994
SSN769 Toledo 1995
SSN770 Tucson 1995
SSN771 Columbia 1995
SSN772 Greenville 1996
SSN773 Cheyenne 1996
Seawolf 2 SSN21 Seawolf 1997 9138t, 107.6x12.8x11.0m, 1nr,2gst(wj), 45500hp, /39kts, 133p, 600m; 8-673TT (inc 12 Tomahawk CruM); BPS-16(V)3 radar, BSY(V) sonar suite, WLQ-4(V)1 ECM, BLQ-10 dl, BSY-2(V) CCS
SSN22 Connecticut 1998
Jimmy Carter 1 SSN23 Jimmy Carter 2005 8060/12139t, 115.8x12.8x11.0m, 1nr,2gst(1), 45500hp, /30kts, 133p, 595p; 8-673TT(inc Tomahawk CruM(12), 3 BLQ-11 USV; BPS-16(v)4 radar, BQQ-5D sonar suite, WLQ-4(v)1 ECM, BLQ-10 dl, BSY-2(v) CCS
Virginia Block I 4 SSN774 Virginia 2004 6930/7800t, 114.9x10.4x9.3m, 1nr,2gst(1), 40000hp, 25/34kts, 134p, 490m; 1x12 Tomahawk CruM(VLS,12), 4-533TT(inc Tomahawk CruM(16)); BPS-16(v)5 radar, BQQ-10(v)4 sonar suite, WLQ-4, WLY-1 ECM, BLQ-10 td, BLQ-11 md, 2x CSA Mk2 Mod.2 dl, BYG-1 CCS
SSN775 Texas 2006
SSN776 Hawaii 2007
SSN777 North Carolina 2008
Virginia Block II 1 SSN778 New Hampshire 2008 6930/7800t, 114.9x10.4x9.3m, 1nr,2gst(1), 40000hp, 25/34kts, 134p, 490m; 1x12 Tomahawk CruM(VLS,12), 4-533TT(inc Tomahawk CruM(16)); BPS-16(v)5 radar, BQQ-10(v)4 sonar suite, WLQ-4, WLY-1 ECM, BLQ-10 td, BLQ-11 md, 2x CSA Mk2 Mod.2 dl, BYG-1 CCS



AIRCRAFT CARRIERS

CVN Enterprise 1 CVN65 Enterprise 1961 89084t, 342.4x77.7x11.3m, 8nr,4gst, 280000hp, 32kts, 5287p; 150belt, 141decks; 3x8 Sea Sparrow SAM(24), 2x21 RAM SAM(42), 2x6-20/76, 90ac(55 F/A-18, 4 EA-6B, 4 E-2C, 6 S-3B, 4 SH-60F, 2 HH-60H); SPS-12, SPS-48E, SPS-49, SPS-65, SPS-64, SPS-67, SPN-35A, SPN-41, SPN-42, SPN-44á 2x SPN-46, Mk23 TAS, 6x Mk95, 2x Mk90 radars, SLQ-32 ECM, 6x Mk36 SRBOC dl, TFSS, NTDS, ASCAC CCS
Nimitz 3 CVN68 Nimitz 1975 101196(68)-101713(69)-101089(70)t, 331.7x78.5x11.2m, 2nr,4gst, 280000hp, 31.5kts, 5621p; 135belt, 151decks; 2x8 Sea Sparrow SAM, 2x21 RAM SAM(42), 2x6-20/76(70), 2x3-324TT(70), 90ac(55 F/A-18, 4 EA-6B, 4 E-2C, 6 S-3B, 4 SH-60F, 2 HH-60H); SPS-49A(v)1, SPS-48E, SPS-67(V)1, SPN-42A, SPN-43B, SPN-44A, SPS-73(v)12/17, 4x Mk95, 2x Mk90(70), SPQ-9B radars, SLQ-32(V)4, SSDS Mk2, SLQ-20B ECM, 8x Mk36 SRBOC dl, SLQ-25A, SLX-1 td, NTDS, ICDS(68), JSIPS-N, ACDS(69) CCS
CVN69 Dwight D. Eisenhower 1977
CVN70 Carl Vinson 1982
Theodore Roosevelt 5 CVN71 Theodore Roosevelt 1986 103658(71)-104242(72)-104208(73)t, 332.9x78.3x11.9m, 2nr,4gst, 280000hp, 31.5kts, 6072p; 135belt, 151decks; 3x8 Sea Sparrow SAM(24)(72,75), 2x8 Sea Sparrow SAM(16)(71,73,74), 2x21 RAM SAM(42), 3x6-20/76(72,74,75), 2x6-20/76(71,73), 90ac(55 F/A-18, 4 EA-6B, 4 E-2C, 6 S-3B, 4 SH-60F, 2 HH-60H); SPS-49(V)5, SPS-48E, SPS-67(V)1, SPN-43B, SPN-44, 2x SPN-46, SPS-64(V)9, Furuno-900(71,73-75), Raster(72), 6x Mk95(72,75), 4x Mk95(71,73,74), 3x Mk90(72,74,75), 2x Mk90(71,73), Mk23 TAS(72,75), SPQ-9B radars, SLQ-32(V)4, SLQ-20B(71,73,74) ECM, 8x Mk137 (Mk36 SRBOC) dl, SLQ-25A, SLX-1(71,73,74) td, NTDS, ACDS, JTDS, POST, CVIC, JSIPS-N(71,73) CCS
CVN72 Abraham Lincoln 1989
CVN73 George Washington 1992
CVN74 John C. Stennis 1995
CVN75 Harry S. Truman 1998
Ronald Reagan 2 CVN76 Ronald Reagan 2003 98235t, 334.7(76)-332.9(77)x78.3x12.5m, 2nr,4gst, 280000hp, 31kts, 5600p; 135belt, 151decks; 2x8 Sea Sparrow SAM(24), 2x21 RAM SAM(42), 3x6-20/76, 90ac(55 F/A-18, 4 EA-6B, 4 E-2C, 6 S-3B, 4 SH-60F, 2 HH-60H); SPS-49A(v)1, SPS-48E, SPS-67(v)1, SPN-43B, SPN-44, 2x SPN-46, SPS-64(v)9, Furuno-900, 4x Mk95, 3x Mk90, SPQ-9B radars, SLQ-32(v)4, SLQ-20B ECM, 8x Mk36 SRBOC dl, SLQ-25A td, ACDS, JDTS, POST, CVIC CCS
CVN77 George H. W. Bush 2009
CV Kitty Hawk 1 CV63 Kitty Hawk 1961 80945t, 319.4x76.7x11.4m, 8b,4gst, 280000hp, 33.6kts, 4685p; 150belt, 141decks; 2x21 RAM SAM(42), 3x6-20/76, 90ac(55 F/A-18, 4 EA-6B, 4 E-2C, 6 S-3B, 4 SH-60F, 2 HH-60H); SPS-10, SPS-43A, SPS-48, SPS-49, SPN-41, SPN-43, SPN-46, 3x Mk90, Mk23 TAS radars, SLQ-32 ECM, 8x Mk36 SRBOC dl, SLQ-25A td, upd. NTDS CCS

PRINCIPAL SURFACE COMBATANTS

CG Ticonderoga VLS 22 CG52 Bunker Hill 1986 10010t, 172.5x16.8x7.5m, 4gt(2), 86000hp, 31kts, 380p; 2x64 Tomahawk CruM/SM-2MR SAM/ SM-6 SAM/ 4x ESSM SAM/ ASROC ASuR (VLS,128)(552,53), 2x64 Tomahawk CruM/SM-2MR SAM/ ASROC ASuR (VLS,128)(54-60,62-66,68,69), 2x64 Tomahawk CruM/SM-2MR SAM/ SM-3 SAM/ ASROC ASuR (VLS,128)(61,67,70-73), 2x4 Harpoon SSM(8), 2x1-127/54(54-68), 2x1-127/62(52,53,69-73), 2x1-25/75, 2x6-20/76, 4x1-12.7, 2x3-324TT, 2hel(MH-60); SPS-64(V)9(52-71,73), Scout(72), SPS-55, SPS-49(V)6/7/8, SPY-1A(54-58), SPY-1B(59-64), SPY-1D(V)(52,53,65-73), 4x SPG-62, SPQ-9A(54-73), SPQ-9B(52,53), 2x Mk90 radars, L-3 Mk 20 E/O, SQS-53A(54-55), SQR-19(54,55), SQS-89(V)3 suite(52,53,56-67), SQS-89(V)4 suite(68-73) sonars, SLQ-32(V)3, SLQ-20B(52,53) ECM, 8x Mk36 SRBOC(54-58), (6x Mk36 SRBOC + 4x Mk53 Nulka)(52,53,59-73) dl, SLQ-25A Nixie td, SLQ-49 fd, Mk50 ds(65-73), Aegis Mk7 Baseline 5(54-55,60-64,67,70,72,73), Aegis Mk7 Baseline 6(59,65,66,68,69,71), Aegis Mk7 Baseline 8(52,53) CCS
CG53 Mobile Bay 1987
CG54 Antietam 1987
CG55 Leyte Gulf 1987
CG56 San Jacinto 1988
CG57 Lake Champlain 1988
CG58 Philippine Sea 1989
CG59 Princeton 1989
CG60 Normandy 1989
CG61 Monterey 1990
CG62 Chancellorsville 1989
CG63 Cowpens 1991
CG64 Gettysburg 1991
CG65 Chosin 1991
CG66 Hué City 1991
CG67 Shiloh 1992
CG68 Anzio 1992
CG69 Vicksburg 1992
CG70 Lake Erie 1993
CG71 Cape St. George 1993
CG72 Vella Gulf 1993
CG73 Port Royal 1994
DD Arleigh Burke Flight I 21 DDG51 Arleigh Burke 1991 8850t, 153.8x20.3x6.3m, 4gt(2), 105000hp, 32kts, 337p; (1x61+1x29) Tomahawk CruM/SM-2MR SAM/ASROC ASuR (VLS,90), 2x4 Harpoon SSM(8), 1x1-127/54, 2x1-25/75, 2x6-20/76, 4x1-12.7, 2x3-324TT, helodeck; SPS-64(V)9, SPS-67(V)3, SPY-1D, 3x SPG-62, 2x Mk90 radars, SQQ-89(V)4 sonar suite, Mk46 E/O, SLQ-32(V)5(51-67), SLQ-32(V)3(68-71) ECM, 4x Mk36 SRBOC dl, 4x Nulka dl(52), SLQ-25A td, SLQ-39 ds, Aegis Mk7 Baseline 5 CCS
DDG52 Barry 1992
DDG53 John Paul Jones 1993
DDG54 Curtis Wilbur 1994
DDG55 Stout 1994
DDG56 John S. McCain 1994
DDG57 Mitscher 1994
DDG58 Laboon 1995
DDG59 Russell 1995
DDG60 Paul Hamilton 1995
DDG61 Ramage 1995
DDG62 Fitzgerald 1995
DDG63 Stethem 1995
DDG64 Carney 1996
DDG65 Benfold 1996
DDG66 Gonzalez 1996
DDG67 Cole 1996
DDG68 The Sullivans 1997
DDG69 Milius 1996
DDG70 Hopper 1997
DDG71 Ross 1997
Arleigh Burke Flight II 7 DDG72 Mahan 1998 9033t, 153.8x20.3x6.6m, 4gt(2), 105000hp, 32kts, 337p; (1x61+1x29) Tomahawk CruM/SM-2MR SAM/ SM-2ER SAM/ASROC ASuR (VLS,90), 2x4 Harpoon SSM(8), 1x1-127/54, 2x1-25/75, 2x6-20/76, 4x1-12.7, 2x3-324TT, helodeck; SPS-64(V)9, SPS-67(V)3, SPY-1D, 3x SPG-62, 2x Mk90 radars, SQQ-89(V)4 sonar suite, Mk46 E/O, SLQ-32(V)3 ECM, 4x Mk36 SRBOC dl, SLQ-25A td, SLQ-39 ds, Aegis Mk7 Baseline 5 CCS
DDG73 Decatur 1998
DDG74 McFaul 1998
DDG75 Donald Cook 1998
DDG76 Higgins 1999
DDG77 O'Kane 1999
DDG78 Porter 1999
Oscar Austin Flight IIA 5''/54 2 DDG79 Oscar Austin 2000 9515t, 155.3x20.3x6.4m, 4gt(2), 105000hp, 32kts, 380p; (1x64+1x32) Tomahawk CruM/SM-2MR SAM/SM-2ER SAM/SM-6 SAM/4x ESSM SAM/ASROC ASuR(VLS,96), 1x1-127/54, 2x1-25/75, 2x6-20/76, 4x-12.7, 2x3-324TT, 2hel(MH-60); SPS-64(v)9, SPS-67(v)3, SPY-1D, 3x SPG-62, 2x Mk90 radars, Mk46 E/O, SQQ-89(v)10 sonar, SLQ-32A(v)3 ECM, 4x Mk36 SRBOC dl, SLQ-25 td, SLQ-39 fd, Aegis Mk7 Baseline 6 CCS
DDG80 Roosevelt 2000
Arleigh Burke Flight IIA 5''/62 4 DDG81 Winston S. Churchill 2001 9515t, 155.3x20.3x6.4m, 4gt(2), 105000hp, 32kts, 380p; (1x64+1x32) Tomahawk CruM/SM-2MR SAM/SM-2ER SAM/SM-6 SAM/4x ESSM SAM/ASROC ASuR(VLS,96), 1x1-127/62, 2x1-25/75, 2x6-20/76, 4x-12.7, 2x3-324TT, 2hel(MH-60); SPS-64(v)9, SPS-67(v)3, SPY-1D, 3x SPG-62, 2x Mk90 radars, Mk46 E/O, SQQ-89(v)10 sonar, SLQ-32A(v)3 ECM, 4x Mk36 SRBOC dl, SLQ-25 td, SLQ-39 fd, Aegis Mk7 Baseline 6 CCS
DDG82 Lassen 2001
DDG83 Howard 2001
DDG84 Bulkeley 2001
Arleigh Burke Flight IIA 5''/62 with 1 CIWS 22 DDG85 McCampbell 2002 9515t, 155.3x20.3x6.4m, 4gt(2), 105000hp, 32kts, 380p; (1x64+1x32) Tomahawk CruM/SM-2MR SAM/SM-2ER SAM/SM-6 SAM/4x ESSM SAM/ASROC ASuR(VLS,96), 1x1-127/62, 2x1-25/75, 1x6-20/76, 4x-12.7, 2x3-324TT, 2hel(MH-60); SPS-64(v)9, SPS-67(v)3(85,86), Bridgemaster E(87-108), SPY-1D(85-90), SPY-1D(v)(91-108), 3x SPG-62, Mk90 radars, Mk46 E/O, SQQ-89(v)14(85-90), SQQ-89(v)15(91-108) sonar, SLQ-32A(v)3 ECM, 4x Mk36 SRBOC dl, SLQ-25 td, SLQ-39 fd, Aegis Mk7 Baseline 6(85-90), Aegis Mk7 Baseline 7(91-108) CCS
DDG86 Shoup 2002
DDG87 Mason 2003
DDG88 Preble 2002
DDG89 Mustin 2003
DDG90 Chafee 2003
DDG91 Pinckney 2004
DDG92 Momsen 2004
DDG93 Chung-Hoon 2004
DDG94 Nitze 2005
DDG95 James E. Williams 2004
DDG96 Bainbridge 2005
DDG97 Halsey 2005
DDG98 Forrest Sherman 2006
DDG99 Farragut 2006
DDG100 Kidd 2007
DDG101 Gridley 2007
DDG102 Sampson 2007
DDG103 Truxtun 2009
DDG104 Sterett 2008
DDG106 Stockdale 2009
DDG108 Wayne E. Meyer 2009
FF Oliver H. Perry 30 FFG8 McInerney 1979 4108t, 138.8x13.7x5.8m, 2gt(1), 41000hp, 29kts, 217p; 1x1-76/62, 1x1-25/75, 1x6-20/76, 4x1-12.7, 2x3-324TT, 2hel(SH-60); SPS-55, SPS-49(V)5, Mk92 Mod.6, SPG-60, Mk90 radars, SQQ-89(V)2 sonar suite(8,28, 29,32,33, 36, 38-43,45-49, 53, 55-61), SQQ-89(V)10 sonar suite(34,37, 50-52,54), SLQ-32(V)2 ECM, 2x SRBOC, 4x Nulka dl, SLQ-25 Nixie torpedo decoy, SYS(V)2 CCS
FFG28 Boone 1982
FFG29 Stephen W. Groves 1982
FFG32 John L. Hall 1982
FFG33 Jarrett 1983
FFG36 Underwood 1983
FFG37 Crommelin 1983
FFG38 Curts 1983
FFG39 Doyle 1983
FFG40 Halyburton 1984
FFG41 McClusky 1983
FFG42 Klakring 1983
FFG43 Thatch 1984
FFG45 De Wert 1983
FFG46 Rentz 1984
FFG47 Nicholas 1984
FFG48 Vandegrift 1984
FFG49 Robert G. Bradley 1984
FFG50 Taylor 1984
FFG51 Gary 1984
FFG52 Carr 1985
FFG53 Hawes 1985
FFG54 Ford 1985
FFG55 Elrod 1985
FFG56 Simpson 1985
FFG57 Reuben James 1986
FFG58 Samuel B. Roberts 1986
FFG59 Kauffman 1987
FFG60 Rodney M. Davis 1987
FFG61 Ingraham 1989
Freedom 1 LCS1 Freedom 2008 2860t, 118.1x17.6x4.3m, 2d/2gt(4wj), 17400/98000hp, 45kts, 75p; 1x21 RAM SAM(21), 1x1-57/70, 4x1-12.7, 2hel(MH-60) or (1hel(MH-60)+3UAV(MQ-8)), (USSS minesweeping gear or Bluefin-1 USV) or (2x1-30/80, 2 USV(surface)) or (CAPTAS, TB-37 sonars, td); Bridgemaster, TRS-3D radars, Dorna E/O, WBR-2000, MFEW ECM, 2x Terma DLS Mk II dl, COMBATSS-21 CCS

PATROL AND COASTAL COMBATANTS

PC Cyclone 10 PC2 Tempest 1993 334t(5,6,9,10)-387(2-4,7,8,11-14), 51.6(5,6,9,10)-54.4(2-4,7,8,11-14)x7.6x2.4m, 4d, 13400hp, 35kts, 28p; 1x1 Stinger SAM(6), 1x(1-25/75+1-40/17gl), 1x1-25/75, (4x2+1x1)-12.7, 2x1-40/17gl; RIB, 9commandos; Rascar 3400C radar, Wesmar sonar, FLIR, Viper(2-4,7,8,11-14) E/O, APR-39(V)1 ECM, 2x Mk52(5,6,9,10), 2x Ultrabarricade(2-4,7,8,11-14) dl
PC3 Hurricane 1993
PC4 Monsoon 1994
PC5 Typhoon 1994
PC6 Sirocco 1994
PC7 Squall 1994
PC9 Chinook 1995
PC10 Firebolt 1995
PC11 Whirlwind 1995
PC12 Thunderbolt 1995
PB YP676 23 YP676   1984 173t, 32.9x7.4x1.8m, 2d, 874hp, 13.2kts, 30p; SPS-64(V)9 radar
YP677   1984
YP680   1985
YP681   1985
YP682   1985
YP683   1986
YP684   1986
YP685   1986
YP686   1986
YP687   1987
YP688   1987
YP689   1987
YP690   1987
YP691   1987
YP692   1987
YP694   1987
YP695   1987
YP696   1988
YP697   1988
YP698   1988
YP700   1988
YP701   1988
YP702   1988
LCW Mk V 22 25PN9401, 25MPB0001, 9501, 25PB0201-0212, 0301-0332, 0401-0403, 0501   1995-1999 68t, 24.7x5.3x1.3m, 2d(wj), 4570hp, 45kts, 5p; 4x2-12.7,1x1-40/17gl; 16commandos; Furuno radar
SeaArk 107 401-507   2002-2009 No picture 11t, 10.4x3.7x1.0m, 2d, 370hp, 36kts, 5p; 3x1-12.7; radar

COMMAND SHIPS

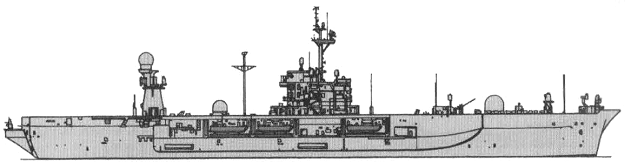

LCC Blue Ridge 2 LCC19 Blue Ridge 1970 19648(19)-19760(20)t, 194.0x32.9x8.2m, 2b,1gst, 22000hp, 21.5kts, 720p; 2x1-25/75, 2x6-20/76, 4x1-12.7, helodeck; 3 LCP, 2 LCVP, 700HQpersonnel; SPS-40C(19), SPS-67, SPS-73(20), LN-66, 2x Mk90 radars, SLQ-32(19) ECM, 4x Mk36 SRBOC dl, SLQ-25 td, NTDS, ACIS, NIPS, TBMCS CCS
LCC20 Mount Whitney 1971

AMPHIBIOUS

LHA Tarawa 3 LHA1 Tarawa 1976 40891t, 254.2x40.2x8.2m, 2b,2gst, 77000hp, 24kts, 1073p; 2x21 RAM SAM(42), 2x1-25/75, 2x6-20/76, 8x1-12.7, 46ac(6 AV-8, 12 CH-46, 9 CH-53); 4 LCU, 1903troops, tanks; SPS-64(V)9, SPS-67(V)3, SPS-48E, SPS-40E, SPN-35A, SPN-43B, Mk23 TAS, 2x Mk90 radars, SLQ-32(V)3 ECM, 4x Mk137 SRBOC dl, SLQ-25A td, ITAWDS CCS
LHA4 Nassau 1979
LHA5 Peleliu 1980
Wasp 8 LHD1 Wasp 1989 41133t, 257.3x42.7x8.5m, 2b,2gst(1-7)-4gt(2)(8), 77000(1-7)-72000(8)hp, 24kts, 1070p; 2x8 Sea Sparrow SAM(16), 2x21 RAM SAM(42), 3x1-25/75, 2x6-20/76, 4x1-12.7, 46ac(5 AV-8, 42 CH-46, 6 SH-60); 3 LCAC, 4 LCPL, 1893troops; SPS-67(V)3, SPS-49(V)5, SPS-48E, Mk23 TAS, 2x Mk90, SPS-64(V)9, SPN-35A, SPN-43B, SPN-47(1-7) radars, WSC-1(1-7) sonar, SLQ-32(V)3 ECM, 6x Mk36 SRBOC dl, SLQ-25A td, SYS-2(V)3(1), SYS-2(V)5(2-7), USQ-119(V)11 CCS
LHD2 Essex 1992
LHD3 Kearsarge 1993
LHD4 Boxer 1995
LHD5 Bataan 1997
LHD6 Bonhomme Richard 1998
LHD7 Iwo Jima 2001
LHD8 Makin Island 2009
LPD Austin 7 LPD7 Cleveland 1967 16900t, 173.8x25.6x7.0m, 2b,2gst, 24000hp, 20kts, 501p; 2x1-25/75, 2x6-20/76, 8x1-12.7, 6 hel(6 CH-46), 1 LCU, 4 LCM(8), 2 LCM(6), 840troops; SPS-10F, SPS-40B, SPS-64, 2x Mk90 radars, SLQ-32 ECM, 4x Mk36 SRBOC dl, SLQ-25 td
LPD8 Dubuque 1967
LPD9 Denver 1968
LPD10 Juneau 1969
LPD11 Coronado 1970
LPD13 Nashville 1970
LPD15 Ponce 1971

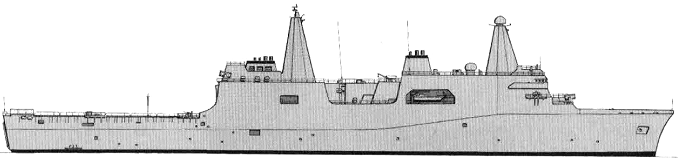

San Antonio 5 LPD17 San Antonio 2006 25300t, 208.5x31.9x7.0m, 4d(2), 41600hp, 22kts, 364p; 2x21 RAM SAM(42), 2x1-30/80, 4x1-12.7, 2hel/tr(2 MV-22 or 2 CH-53 or 4 CH-46); 2 LCAC, 2 LCPL, 1 LCVP, 700troops, vehicles; 2x SPS-73, SPS-48E, SPQ-9B radars, IRST, Mk46 E/O, SLQ-32(v)2 ECM, 2x SRBOC, 2x Nulka, SLQ-49 dl, SLQ-25, SLX-1 td, ICDS CCS
LPD18 New Orleans 2007
LPD19 Mesa Verde 2007
LPD20 Green Bay 2009
LPD21 New York 2009
LSD Whidbey Island 8 LSD41 Whidbey Island 1985 16568t, 185.8x25.6x6.3m, 4d(2), 41600hp, 22kts, 320p; 2x21 RAM SAM, 2x1-25/75, 2x1-20/80, 2x6-20/76, 6x1-12.7, helodeck; 4 LCAC, 2 LCPL, 1 LCVP, 402troops; SPS-67(V), SPS-49A(V)1(41-44), SPS-49(V)5(45-48), SPS-64(V)9, 2x Mk90 radars, SLQ-32(V)1 ECM, 4x Mk36 SRBOC dl, SLQ-25 td
LSD42 Germantown 1986
LSD43 Fort McHenry 1987
LSD44 Gunston Hall 1989
LSD45 Comstock 1990
LSD46 Tortuga 1990
LSD47 Rushmore 1991
LSD48 Ashland 1992
Harpers Ferry 4 LSD49 Harpers Ferry 1995 16601t, 185.8x25.6x6.0m, 4d(2), 41600hp, 22kts, 334p; 2x21 RAM SAM(42), 2x1-25/75, 2x6-20/76, 8x1-12.7, helodeck; 2 LCAC, 2 LCPL, 402troops, cargo, vehicles; SPS-67(V)1, SPS-49(V)5, SPS-64(V)9, 2x Mk90 radars, SLQ-32(V)1 ECM, 6x Mk36 SRBOC dl, SLQ-25 td
LSD50 Carter Hall 1995
LSD51 Oak Hill 1996
LSD52 Pearl Harbor 1998
LST Gen. Frank S. Besson, Jr. 6 LSV1 Gen. Frank S. Besson, Jr. 1988 4199t, 83.1x18.3x3.7m, 2d, 3900hp, 12kts, 30p; 1815t of vehicles; 2x BrdgeMaster-E radars
LSV2 CW3 Harold C. Clinger 1988
LSV3 Gen. Brehon B. Somervell 1988
LSV4 Lt. Gen. William B. Bunker 1988
LSV5 MGen. Charles P. Gross 1991
LSV6 Sp. 4 James A. Loux 1995
SSgt. Robert T. Kuroda 2 LSV7 SSgt. Robert T. Kuroda 2006 5400t, 97.2x18.3x4.0m, 2d, 4520hp, 15kts; 6x1-12.7; 12tanks; 2x Bridgemaster-E radars
LSV8 MGen. Robert Smalls 2007
LSM LCU2001 35 LCU2001 Runnymede 1990 1102t, 53.0x12.8x2.6m, 2d, 2500hp, 11.5kts, 13p; 5tanks; 2x SPS-64(V)2 radars
LCU2002 Kennesaw Mountain 1990
LCU2003 Macon 1990
LCU2004 Aldie 1990
LCU2005 Brandy Station 1990
LCU2006 Bristoe Station 1990
LCU2007 Broad Run 1990
LCU2008 Buena Vista 1990
LCU2009 Calaboza 1990
LCU2010 Cedar Run 1990
LCU2011 Chickahominy 1990
LCU2012 Chickasaw Bayou 1990
LCU2013 Churubusco 1990
LCU2014 Coamo 1991
LCU2015 Contreras 1991
LCU2016 Corinth 1991
LCU2017 El Caney 1991
LCU2018 Five Forks 1991
LCU2019 Fort Donelson 1991
LCU2020 Fort McHenry 1991
LCU2021 Great Bridge 1991
LCU2022 Harpers Ferry 1991
LCU2023 Hobkirk 1991
LCU2024 Hormigueros 1991
LCU2025 Malvern Hill 1992
LCU2026 Matamoros 1992
LCU2027 Mechanicsville 1992
LCU2028 Missionary Ridge 1992
LCU2029 Molino Del Rey 1992
LCU2030 Monterrey 1992
LCU2031 New Orleans 1992
LCU2032 Palo Alto 1992
LCU2033 Paulus Hook 1992
LCU2034 Perryville 1992
LCU2035 Port Hudson 1992
LKA Charleston 5 LKA113 Charleston 1968 20700t, 175.5x25.0x7.8m, 2b,1gst, 22000hp, 20kts, 334p; 3x2-76/50, 2x6-20/76, helodeck; 4 LCM(8), 5 LCM(6), 2 LCVP, 5280t of cargo, 226troops; SPS-10, SPS-67, 2x Mk90 radars, SLQ-32 ECM, 2x Mk36 SRBOC dl
LKA114 Durham 1969
LKA115 Mobile 1969
LKA116 St. Louis 1969
LKA117 El Paso 1970
LPR Westpac Express 1 HSV4676 Westpac Express 2001 2050t, 101.0x26.7x4.2m, 4d(4wj), 38600hp, 40kts; 960pers, 100veh; 2x radars
Swift 1 HSV2 Swift 2003 1875t, 97.2x26.6x3.4m, 4d(4wj), 37982hp, 35kts, 100p; 102pers, 500t cargo; 2x Kelvin Hughes radars
LSS LCU1610 3 LCU1616   1959 353t, 41.3x8.9x1.8m, 2d, 1000hp, 11kts, 10p; 2x1-12.7; 4tanks; LN-66 radar
LCU1617   1959
LCU1619   1959
LCU1627 11 LCU1627   1967 353t, 41.3x8.9x1.8m, 2d, 1000hp, 11kts, 10p; 2x1-20/70; 4tanks
LCU1629   1968
LCU1630   1968
LCU1631   1968
LCU1632   1968
LCU1633   1968
LCU1634   1968
LCU1635   1968
LCU1643   1969
LCU1644   1969
LCU1645   1969
LCU1646 20 LCU1646   1971 437t, 41.1x9.1x2.1m, 4d(2), 1200hp, 11kts, 10p; 2x1-12.7; 4tanks; Furuno radar
LCU1647   1971
LCU1648   1971
LCU1649   1971
LCU1650   1971
LCU1651   1971
LCU1653   1971
LCU1654   1971
LCU1655   1971
LCU1656   1971
LCU1657   1971
LCU1658   1971
LCU1659   1971
LCU1660   1971
LCU1661   1971
LCU1662   1971
LCU1663   1971
LCU1664   1971
LCU1665   1971
LCU1666   1971
LCU1680 2 LCU1680   1987 404t, 41.1x9.1x2.1m, 4d(2), 1700hp, 11kts, 14p; 2x1-12.7; 4tanks; Furuno radar
LCU1681   1987
LC LCM(8) 54 74CM833-839, 841-849, 851-856, 901-909, 8310-8326, 8410-8418, 9010-9012   1984-1991 107-121t, 22.4-22.7x6.4x1.3-1.4m, 2d, 1080hp, 9-12kts, 4-5p; 2x1-12.7; 150-200troops or 1-2tanks
LCPL 20 36PL901-908, 921-929, 9210-9212   1990-1994 13t, 11.0x4.0x1.1m, 1d, 450hp, 19kts, 3p; 17troops
LCA 91 LCAC1   1984 167t, 26.8x14.3x0m, 4gt(2prop+2lift), 7910+7910(1-90)-9490+9490(91)hp, 40kts, 5p; 180troops; CMR-91/Decca Bridge radar
LCAC2   1986
LCAC3   1986
LCAC4   1986
LCAC5   1986
LCAC6   1986
LCAC7   1987
LCAC8   1987
LCAC9   1987
LCAC10   1987
LCAC11   1987
LCAC12   1987
LCAC13   1988
LCAC14   1988
LCAC15   1988
LCAC16   1988
LCAC17   1989
LCAC18   1989
LCAC19   1990
LCAC20   1990
LCAC21   1990
LCAC22   1990
LCAC23   1991
LCAC24   1990
LCAC25   1990
LCAC26   1990
LCAC27   1990
LCAC28   1990
LCAC29   1990
LCAC30   1990
LCAC31   1991
LCAC32   1991
LCAC33   1991
LCAC34   1992
LCAC35   1992
LCAC36   1992
LCAC37   1991
LCAC38   1991
LCAC39   1991
LCAC40   1991
LCAC41   1991
LCAC42   1991
LCAC43   1992
LCAC44   1992
LCAC45   1992
LCAC46   1992
LCAC47   1992
LCAC48   1992
LCAC49   1992
LCAC50   1993
LCAC51   1993
LCAC52   1992
LCAC53   1992
LCAC54   1992
LCAC55   1992
LCAC56   1993
LCAC57   1993
LCAC58   1993
LCAC59   1993
LCAC60   1993
LCAC61   1993
LCAC62   1993
LCAC63   1993
LCAC64   1993
LCAC65   1993
LCAC66   1993
LCAC67   1994
LCAC68   1994
LCAC69   1994
LCAC70   1994
LCAC71   1994
LCAC72   1994
LCAC73   1994
LCAC74   1994
LCAC75   1995
LCAC76   1995
LCAC77   1995
LCAC78   1995
LCAC79   1995
LCAC80   1995
LCAC81   1995
LCAC82   1995
LCAC83   1996
LCAC84   1996
LCAC85   1996
LCAC86   1996
LCAC87   1996
LCAC88   1997
LCAC89   1997
LCAC90   1997
LCAC91   2001
SURC 100 1-100   2003-2005 No picture 10t, 12.0x3.9x0.6m, 2d(wj), 880hp, 35kts, 2p; 2x1-12.7; 16troops; Raymarine SL72 radar
LCVP MPF UB-40 26 1-26   2006 No picture 18t, 13.4x4.4x0.8m, 2d(wj), 660hp, 41kts, 3p; 30troops; Furuno radar
Repeated Mini-ATC 5 1-5   2006-2007 No picture 14t, 11.0x4.0x0.5m, 1d(wj), 30kts, 4p; 4x1-12.7; 10troops; radar
CB-90 7 1-7   2007-2008 No picture 18t, 15.1x3.9x0.8m, 2d(wj), 1700hp, 43kts, 4p; 3x1-12.7; 21troops; radar, Sea FLIR III E/O
RPB 18 1-18   2007-2009 No picture 10t, 12.0x3.0x0.6m, 2d(wj), 880hp, 38kts, 5p; 3x1-12.7; 13troops; radar

MINE WARFARE

MSO Avenger 14 MCM1 Avenger 1987 1312t, 68.4x11.9x3.4m, 4d, 2600(1,2)-2280(3-14)hp, 13.5kts, 83p; 2x1-12.7, 2 UUV, mechanical, acoustic, magnetic minesweeping gear, 2 RIB for divers; SPS-66(V)9, SPS-55 radars, SQQ-32, WQN-1 sonars, SYQ-13(1,2), SYQ-15(3-14) CCS
MCM2 Defender 1989
MCM3 Sentry 1989
MCM4 Champion 1991
MCM5 Guardian 1989
MCM6 Devastator 1990
MCM7 Patriot 1991
MCM8 Scout 1990
MCM9 Pioneer 1992
MCM10 Warrior 1993
MCM11 Gladiator 1993
MCM12 Ardent 1994
MCM13 Dextrous 1994
MCM14 Chief 1994
MSB SWATH 1 40MC9601 Swath 1 1998 No picture 10t, 12.2x5.5xm, 2d, 6p; radar, Klein 5500, SM2000 sonars

COAST GUARD

FF Hamilton 12 WHEC715 Hamilton 1967 3050t, 115.2x13.0x6.1m, CODOG(2gt/2d)(2), 28000/7200hp, 29kts, 164p; 1x1-76/62, 2x1-25/75, 1x6-20/76, 2x1-20/70, 1hel(HH-65); 2x SPS-64, SPS-40B, Mk90 radars, 2x Mk36 SRBOC dl
WHEC716 Dallas 1967
WHEC717 Mellon 1967
WHEC718 Chase 1968
WHEC719 Boutwell 1968
WHEC720 Sherman 1968
WHEC721 Gallatin 1968
WHEC722 Morgenthau 1969
WHEC723 Rush 1969
WHEC724 Munro 1971
WHEC725 Jarvis 1971
WHEC726 Midgett 1972
PSO Alex Hailey 1 WMEC39 Alex Hailey 1971 2929t, 88.0x15.3x4.6m, 4d(2), 6800hp, 16kts, 99p; 2x1-25/75, 2x1-12.7, helodeck; SPS-73, SPS-40 radars

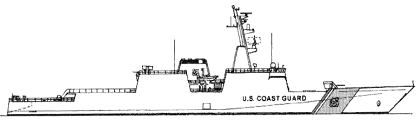

Bertholf 1 WHEC750 Bertholf 2008 4500t, 127.4x16.5x6.4m, 1gt+2d(2), 48810hp, 29kts, 116p; 1x1-57/70, 1x6-20/76, 4x1-12.7, 1-2hel(1 MH-60 or 2 MH-65 or 4 UAV); TRS-3D/15-ES, SPS-73, SPQ-9B, Furuno radars, EOSS Mk 20, FLIR Star Safire III E/O, SLQ-32(v)2 ECM, 2x SRBOC, 2x Nulka dl, SICS CCS
PS Reliance 14 WMEC615 Reliance 1964 1050t, 64.2x10.4x3.2m, 2d, 5000hp, 18kts, 86p; 1x1-25/75, 2x1-12.7, helodeck; 2x SPS-73 radars
WMEC616 Diligence 1964
WMEC617 Vigilant 1964
WMEC618 Active 1966
WMEC619 Confidence 1966
WMEC620 Resolute 1966
WMEC621 Valiant 1967
WMEC623 Steadfast 1968
WMEC624 Dauntless 1968
WMEC625 Venturous 1968
WMEC626 Dependable 1968
WMEC627 Vigorous 1969
WMEC629 Decisive 1968
WMEC630 Alert 1969
Yokona 1 WMEC167 Acushnet 1944 1745t, 64.9x12.5x4.6m, 4dg,2em, 3000hp, 15.5kts, 72p; 2x SPS-64(V)1 radars
Famous 13 WMEC901 Bear 1983 1780t, 82.3x11.6x4.1m, 2d, 7200hp, 19.5kts, 116p; 1x1-76/62, 2x1-12.7, 1hel(HH-65); SPS-64(V)1, SPS-64(V)6, Mk92 radars, SLQ-32(V)2 ECM; 2x Mk137 (Mk36 SRBOC) dl
WMEC902 Tampa 1984
WMEC903 Harriet Lane 1984
WMEC904 Northland 1984
WMEC905 Spencer 1986
WMEC906 Seneca 1987
WMEC907 Escanaba 1987
WMEC908 Tahoma 1988
WMEC909 Campbell 1988
WMEC910 Thetis 1989
WMEC911 Forward 1990
WMEC912 Legare 1990
WMEC913 Mohawk 1990
PC Cyclone 3 WPC8 Zephyr 1994 387t, 54.4x7.6x2.4m, 4d, 13400hp, 35kts, 28p; 1x1 Stinger SAM(6), 1x(1-25/75+1-40/17gl), 1x1-25/75, (4x2+1x1)-12.7, 2x1-40/17gl; RIB, 9commandos; Rascar 3400C radar, Wesmar sonar, FLIR, Viper E/O, APR-39(V)1 ECM, 2x Ultrabarricade dl
WPC13 Shamal 1996
WPC14 Tornado 2000
PB Island 41 WPB1301 Farallon 1986 165(1301-1317)-155(1318-1337)-153(1338-1349)t, 33.5x6.4x2.2m, 2d, 5820(1301-1337)-5460(1338-1349)hp, 29.7(1301-1337)-28(1338-1349)kts, 16p; 1x1-25/75, 2x1-12.7; SPS-73 radar
WPB1304 Maui 1986
WPB1307 Ocracoke 1986
WPB1309 Aquidneck 1986
WPB1310 Mustang 1986
WPB1311 Naushon 1986
WPB1312 Sanibel 1986
WPB1313 Edisto 1987
WPB1314 Sapelo 1987
WPB1315 Matinicus 1987
WPB1316 Nantucket 1987
WPB1318 Baranof 1988
WPB1319 Chandeleur 1988
WPB1320 Chincoteague 1988
WPB1321 Cushing 1988
WPB1322 Cuttyhunk 1988
WPB1323 Drummond 1988
WPB1324 Key Largo 1988
WPB1326 Monomoy 1988
WPB1327 Orcas 1989
WPB1329 Sitkinak 1989
WPB1330 Tybee 1989
WPB1331 Washington 1989
WPB1332 Wrangell 1989
WPB1333 Adak 1989
WPB1334 Liberty 1989
WPB1335 Anacapa 1990
WPB1336 Kiska 1989
WPB1337 Assateague 1990
WPB1338 Grand Isle 1990
WPB1339 Key Briscayne 1991
WPB1340 Jeffferson Island 1991
WPB1341 Kodiak Island 1991
WPB1342 Long Island 1991
WPB1343 Bainbridge Island 1991
WPB1344 Block Island 1991
WPB1345 Staten Island 1991
WPB1346 Roanoke Island 1991
WPB1347 Pea Island 1991
WPB1348 Knight Island 1991
WPB1349 Galveston Island 1992
Protector 73 WPB87301 Barracuda 1998 91t, 26.5x5.9x1.7m, 2d, 2950hp, 27kts, 10p; 2x1-12.7; SPS-73 radar
WPB87302 Hammerhead 1998
WPB87303 Mako 1998
WPB87304 Marlin 1999
WPB87305 Stingray 1999
WPB87306 Dorado 1999
WPB87307 Osprey 1999
WPB87308 Chinook 1999
WPB87309 Albacore 1999
WPB87310 Tarpon 1999
WPB87311 Cobia 1999
WPB87312 Hawksbill 2000
WPB87313 Cormorant 1999
WPB87314 Finback 2000
WPB87315 Amberjack 2000
WPB87316 Kittiwake 2000
WPB87317 Blackfin 2000
WPB87318 Bluefin 2000
WPB87319 Yellowfin 2000
WPB87320 Manta 2000
WPB87321 Coho 2000
WPB87322 Kimgfisher 2000
WPB87323 Seahawk 2000
WPB87324 Steelhead 2000
WPB87325 Beluga 2000
WPB87326 Blacktip 2001
WPB87327 Pelican 2001
WPB87328 Ridley 2001
WPB87329 Cochito 2001
WPB87330 Manowar 2001
WPB87331 Moray 2001
WPB87332 Razorbill 2001
WPB87333 Adelie 2001
WPB87334 Gannet 2001
WPB87335 Narwhal 2001
WPB87336 Sturgeon 2001
WPB87337 Sockeye 2002
WPB87338 Ibis 2001
WPB87339 Pompano 2001
WPB87340 Halibut 2002
WPB87341 Bonito 2002
WPB87342 Shrike 2002
WPB87343 Tern 2002
WPB87344 Heron 2002
WPB87345 Wahoo 2002
WPB87346 Flyingfish 2002
WPB87347 Haddock 2002
WPB87348 Brant 2002
WPB87349 Shearwater 2002
WPB87350 Petrel 2003
WPB87352 Sea Lion 2004
WPB87353 Skipjack 2003
WPB87354 Dolphin 2004
WPB87355 Hawk 2004
WPB87356 Sailfish 2004
WPB87357 Sawfish 2004
WPB87358 Swordfish 2005
WPB87359 Tiger Shark 2005
WPB87360 Blue Shark 2005
WPB87361 Sea Horse 2005
WPB87362 Sea Otter 2005
WPB87363 Manatee 2005
WPB87364 Ahi 2005
WPB87365 Pike 2005
WPB87366 Terrapin 2005
WPB87367 Sea Dragon 2008
WPB87368 Sea Devil 2008
WPB87369 Crocodile 2008
WPB87370 Diamondback 2009
WPB87371 Reef Shark 2009
WPB87372 Alligator 2009
WPB87373 Sea Dog 2009
WPB87374 Sea Fox 2009
Guardian 1 WPB85201   2002 No picture 105t, 25.9x7.0x1.7m, 2d, 5470hp, 40kts, 6p; 2x1-12.7; FR-8251 radar
64ft 4 WPB64101-64104   2009 No picture 60t, 22.0x6.5x1.0m, 2d(wj), 33kts; 1x1-12.7; 2x radars

AIRCRAFT



NAVY

Ship-based

 33 F/A-18A Hornet, 24 F/A-18B Hornet, 268 F/A-18C Hornet, 41 F/A-18D Hornet, 171 F/A-18E Super Hornet, 216 F/A-18F Super Hornet, 92 EA-6B Prowler, 7 EA-18G Growler, 66 E-2C Hawkeye, 35 C-2A Greyhound, 28 MH-53E Sea Dragon, 3 OH-58A Kiowa, 23 HH-1N Iroquois, 4 HH-46D Sea Knight, 36 HH-60H Seahawk, 148 SH-60B Seahawk, 72 SH-60F Seahawk, 35 MH-60R Strike Hawk, 123 MH-60S Knight Hawk, 9 CH-53D Sea Stallion, 9 CH-53E Sea Stallion, 1 UH-1N Iroquois, 4 UH-1Y Iroquois, 9 UH-46D Sea Knight, 3 UH-60L Black Hawk, 2 VH-3A Sea King, 5 MQ-8B Fire Scout

Land-based combat capable

 11 EP-3E Aries II, 147 P-3C Orion, 16 E-6B Mercury, 2 RC-12F Huron, 2 RC-12M Huron, 2 RQ-4A Global Hawk, 35 RQ-2B Pioneer
Reserve ship-based 12 F/A-18A+ Hornet, 12 F/A-18C Hornet, 4 EA-6B Prowler, 6 E-2C Hawkeye, 8 MH-53E Sea Stallion, 10 HH-60H Rescue Hawk, 6 SH-60B Seahawk, 8 MH-60S Knight Hawk
Reserve land-based combat capable 12 P-3C Orion, 34 F-5E/F/N Tiger
Marine Corps ship-based 44 F/A-18A/A+ Hornet, 2 F/A-18B Hornet, 83 F/A-18C Hornet, 94 F/A-18D Hornet, 131 AV-8B Harrier II, 29 EA-6B Prowler, 17 TAV-8B Harrier, 139 AH-1W Cobra, 6+ AH-1Z Viper, 5 HH-1N Iroquois, 4 HH-46E Sea Knight, 35 CH-53D Sea Stallion, 145 CH-53E Sea Stallion, 135 CH-46E Sea Knight, 8 VH-60N Presidential Hawk, 76 UH-1N Iroquois, 9 UH-1Y Iroquois, 11 VH-3D Sea King, 20 MV-22A Osprey, 62 MV-22B Osprey, 4 V-22 Osprey
Marine Corps land-based combat capable 972 3D Max Dragon Eye, 100 BQM-147 Exdrone, some RQ-11 Raven, 32 RQ-7B Shadow
Marine Corps reserve ship-based 14 F/A-18A/A+, 18 AH-1W Cobra, 27 CH-46E Sea Knight, 6 CH-53E Sea Stallion, 9 UH-1N Iroquois
Marine Corps reserve land-based combat capable 1 F-5F Tiger II, 12 F-5N Tiger II

ARMY

Land-based combat capable

2 O-2 Skymaster, 37 RC-12D/H/K Guardrail, 12 RC-12P/Q Guardrail, 3 RC-7 ARL-M Dash-7, 3 RC-7 ARL-I Dash-7, 3 RC-7 ARL-C Dash-7, 155 AH-64A Apache, 542 AH-64D Apache, 338 OH-58D Kiowa Warrior, 247 OH-58A/C Kiowa, 36 AH-6/MH-6 Little Bird, 6 MH-47E Chinook, 50 MH-47G Chinook, 60 MH-60K/L Black Hawk/Pave Hawk, 20 RQ-5A Hunter, 236 RQ-7A Shadow, 3 I-Gnat, 15 Warrior, 4 Sky Warrior, 3756 RQ-11 Raven

AIR FORCE

Combat capable

500 Minuteman III

64 B-1B Lancer, 19 B-2A Spirit, 80 B-52H Stratofortress, 139 F-22A Raptor, 396 F-15A/B/C/D Eagle, 217 F-15E Strike Eagle, 738 F-16C/D Fighting Falcon, 143 A-10A Thunderbolt II, 72 OA-10A Thunderbolt II, 8 AC-130H Spectre, 17 AC-130U Spectre, 14 EC-130H Compass Call, 16 MC-130E/H Combat Talon I/II, 23 MC-130P Combat Shadow, 12 MC-130W Combat Spear, 37 MC-12W, 5 TU-2S, 28 U-2S, 3 OC-135B Open Skies, 17 RC-135V/W Rivet Joint, 2 RC-135U Combat Sent, 2 WC-135 Constant Phoenix, 2 E-9A, 33 E-3B/C Sentry, 4 E-4B, 13 RQ-4A Global Hawk, 27 MQ-9 Reaper, 111 MQ-1 Predator
National Guard combat capable 126 F-15A/B/C/D Eagle, 473 F-16C/D Fighting Falcon, 84 A-10A Thunderbolt II, 18 OA-10A Thunderbolt II, 6 EC-130J Commando Solo, 4 MC-130P Combat Shadow, 11 RC-26B Metroliner, 17 E-8C J-STARS, 7 MQ-1 Predator
Reserve combat capable 9 B-52H Stratofortress, 69 F-16C/D Fighting Falcon, 46 A-10A Thunderbolt II, 6 OA-10A Thunderbolt II, 14 MC-130E/H Combat Talon I/II, 10 WC-130J Hercules

COAST GUARD

Ship-based 42 HH-60J Jayhawk, 102 HH-65C Dauphin II, 8 MH-68A Power

Land-based combat capable

9 HU-25A Guardian, 3 HU-25B Guardian, 8 HU-25C Guardian, 6 HU-25D Guardian, 6 HC-144A
Land-based combat capable in reserve 16 HU-25A Guardian, 4 HU-25B Guardian, 9 HU-25C Guardian

MARINE CORPS

equipment 403 M1A1 Abrams MBT, 252 LAV-25 Coyote, 189 LAV variants, 1311 AAV-7A1 APC, 331 M101A1 105mm towed howitzers, 595 M198, 356+ M777 155mm towed howitzers, 535 M252 81mm mortars, 50 LAV-M 81mm SP mortars, 1083 TOW, 1121 Predator, 95 LAV-TOW ATGW, 1650 SMAW 83mm RL, 1114 AT-4 84mm RL, FIM-92A Stinger SAM, 23 AN/TPQ-36 radars

© Ivan Gogin, 2017
