World navies yesterday

2010



Indonesia 01 January 2010

SUBMARINES

SS type 209/1300 2 401 Cakra 1981 1285/1390t, 59.5x6.2x5.5m, 4dg,1em, 2400/5000hp, 11/21kts, 34p, 250m; 8-533TT(inc. Sub-Harpoon SSM(4))(401), 8-533TT(402); Calypso II radar, LOPAS8300(401), CSU-3-2(402) sonar, DR-2000U ECM, MSI90U(401) CCS
402 Nanggala 1981

PRINCIPAL SURFACE COMBATANTS

FF Hajar Dewantara 1 364 Hajar Dewantara 1981 2050t, 96.7x11.2x3.6m, CODOG:1gt/2d(2), 25000/7500hp, 27kts, 91+114p; 4x1 MM38 Exocet SSM(4), 1x1-57/70, 2x1-20/85, 2-533TT, 1helicopter (NBO-105); 2 LCVP; Decca 1229, WM-28 radars, PHS-32 sonar, Susie I ECM, SEWACO CCS
Van Speijk 6 351 Ahmad Yani 1967 2850t, 113.4x12.5x5.8m, 2d, 12512-14617hp, 22kts, 251p; 2x4 Harpoon SSM(8), 2x4 Sea Cat SAM(16), 1x1-76/62, 4x1-12.7, 2x3-324TT, 1 helicopter (Lynx); LW-03, DA-05, M45, 2x M44, Decca 1229C radars, LIOD Mk 2(353,354,356) e/o, PHS-32 sonar, UA-8, UA-9, UA-13(351-354), FH-12(355,356) ECM, 2x Corvus dl, SEWACO V CCS
352 Slamet Riyadi 1967
353 Yos Sudarso 1967
354 Oswald Siahaan 1967
355 Abdul Halim Perdanakusuma 1967
356 Karel Satsuit Tubun 1968
FS Fatahillah 3 361 Fatahillah 1979 1450t, 83.9x11.1x3.3m, CODOG:1gt/2d(2), 25000/8000hp, 30kts, 82p; 2x2 MM38 Exocet SSM(4), 1x1-120/46, 1x1-40/70(361,362), 2x1-40/70(363), 2x1-20/85, 2x3-324TT(361,362), 1x2-375 Bofors ASWRL, 1 helicopter (NBO-105)(363); Decca 1229, DA-0/2, WM-28 radars, LIROD Mk 1 e/o, PHS-32 sonar, Susie I ECM, 2x Corvus dl, T-Mk 6 td, SEWACO CCS
362 Malahayati 1980
363 Nala 1980
Parchim 15 371 Kapitan Patimura 1983 900t, 75.2x9.8x2.7m, 3d, 9950-14250hp, 24-25kts, 80p; 2x4 Fasta SAM(16), 1x2-57/70, 1x2-30/71, 4-400TT, 2x12 RBU-6000 ASWRL, 2dcr; TSR-333, Rubka, Vympel radars, MG-332T, MG-349M sonars, 2x Baklan-B ECM, 2x PK-16 dl
372 Untung Suropati 1983
373 Nuku 1982
374 Lambung Mangkurat 1985
375 Cut Nyak Dien 1982
376 Sultan Thaha Syaifuddin 1982
377 Sutanto 1981
378 Sutedi Senoputra 1981
379 Wiratno 1981
381 Tjiptadi 1985
382 Hasan Basri 1982
383 Imam Bonjol 1984
384 Pati Unus 1983
385 Teuku Umar 1984
386 Silas Papare 1984
Diponegoro 4 365 Diponegoro 2007 1700t, 90.7x13.0x3.9m, 2d, 22030hp, 28kts, 80p; 2x2 MM40 Exoset SSM(4), 2x4 Tetral SAM(16), 1x1-76/62, 2x1-20/90, 2x3-324TT, heldeck; MW-08, Bridgemaster-E 3500, LIROD Mk 2 radars, Kingklip sonar, Scorpion, DR3000 ECM, 2x SKWS dl, TACTICOS CCS
366 Sultan Hasanuddin 2007
367 Sultan Iskandar Muda 2008
368 Frans Kaisiepo 2009

PATROL AND COASTAL COMBATANTS

PC PB57 var. I 4 811 Kakap 1988 425t, 58.1x7.6x2.7m, 2d, 8260hp, 28kts, 40p; 1x1-40/70, 2x1-20/85, 2x1-14.5(813), 2x1-12.7, heldeck; Decca 2459, type 1007(814) radars, DR-2000S3 ECM
812 Kerapu 1989
813 Tongkol 1989
814 Barakuda 1990
FPB57 var. IV 2 801 Pandrong 1992 428t, 58.1x7.6x2.8m, 2d, 8260hp, 53p; 1x1-57/70, 1x1-40/70, 2x1-20/85; Decca 2459 radar, LIOD Mk 2 e/o, DR-2000S3, Telegon-8 ECM, Dagaie dl
802 Sura 1993
PB57 var. V 4 803 Todak 2000 447t, 58.1x7.6x2.9m, 2d, 8260hp, 27kts, 53p; 2x1 C-802 SSM(804,805), 1x1-57/70, 1x1-40/70, 2x1-20/85; type 1007, Scout Variant, LIROD Mk 2 radars, LIOD Mk 2 e/o, DR-3000S1, Telegon-8 ECM, Dagaie dl, TACTICOS CCS
804 Hiu 2000
805 Layang 2002
806 Lemadang 2004
Kondor II 2 826 Kelabang 1972 470t, 56.8x7.7x2.4m, 2d, 5000hp, 18kts, 30p; (1-3)x2-25/80, 1x1-12.7; TSR-333 radar
828 Kala Hitam 1973
PM PSK Mk 5 4 621 Mandau 1979 290t, 53.7x8.0x1.6m, CODOG:1gt/2d(2), 25000/2240hp, 41kts, 43p; 2x2 MM38 Exocet SSM(4), 1x1-57/70, 1x1-40/70, 2x1-20/85; Decca 1229, WM28 radars, NA-18 e/o, DR2000(623,624) ECM
622 Rencong 1979
623 Badik 1980
624 Keris 1980
PT PB57 var. II 2 651 Singa 1988 423t, 58.1x7.6x2.7m, 2d, 8260hp, 27kts, 53p; 1x1-57/70, 1x1-40/70, 2x1-20/85, 2-533TT; Decca 1226, WM22 radars, LIOD e/o, PHS-32 sonar, DR-2000S3, Telegon-8 ECM, Dagaie dl
653 Ajak 1989
PB Attack 9 847 Sibarau 1968 146t, 32.8x6.2x1.9m, 2d, 3500hp, 21kts, 19p; 1x1-40/60, 2x1-12.7; 2x Decca 916 radars
848 Siliman 1968
857 Sigalu 1968
858 Silea 1968
859 Siribua 1968
862 Siada 1968
863 Sikuda 1967
864 Sigurot 1968
865 Tenggiri 1968
Jupiter 1 866 Cucut 1991 no picture 170t, 35.8x7.1x2.3m, 2d, 1360hp, 14kts, 33p; 1x1-20/90, 2x1-12.7; Decca 1226 radar
Kobra 4 867 Kobra 2003 no picture 90t, 36.0x7.0x1.4m, 3d, 3600hp, 31kts, 20p; 1x1-20/85, 1x1-12.7; Furuno radar
868 Anakonda 2003
869 Patola 2003
870 Taliwangsa 2004
Boa 9 807 Boa 2004 no picture 90t, 35.0x7.0x1.4m, 3d, 3300hp, 28kts, 20p; 1x1-20/85, 2x1-12.7; Furuno radar
808 Welang 2004
809 Sulh Pari 2005
810 Katon 2005
815 Sanca 2005
816 Warakas 2005
817 Panana 2005
818 Kalakae 2005
819 Tedong Naga 2005
Viper 8 820 Viper 2006 no picture 100t, 40.0x7.0x1.4m, 2d, 2500hp, 28kts, 25p; 1x2-25/82, 2x1-12.7; radar
821 Piton 2006
822 Weling 2006
823 Matacora 2008
824 Tedung Selar 2008
825 Boiga 2007
829 Tarihu 2009
830 Alkura 2009
Krait 1 827 Krait 2009 no picture 100t, 40.0x7.2x2.0m, 2d, 2500hp, 25kts; 1x2-25/82, 2x1-12.7; Furuno radar

AMPHIBIOUS

LPD Tanjung Dalpele 1 990 Dr. Soeharso 2003 11300t, 122.0x22.0x4.9m, 2d, 5250hp, 15kts, 126p; 1x1-40/70, 2x1-20/85, 2 helicopters (Super Puma); 2 LCM, 2 LCVP, 14 tanks, 218 troops; 2x nav. radars
Makassar 3 590 Makassar 2007 11580t, 125.0x22.0x4.9m, 2d, 5250hp, 15kts, 126p; 1x1-40/70, 2x1-12.7, 2 helicopters (Super Puma); 2 LCM 2 LCVP, 14 tanks, 218 troops; 2x nav. radars
591 Surabaya 2007
592 Banjarmasin 2009
LST LST(2) 7 501 Teluk Langsa 1945 4080t, 100.0x15.2x4.3m, 2d, 1800hp, 12kts, 125p; (1x2+5x1)-40/60(501), 4x2-37/70(502,504,508-511), 2x1-20/70(501); 4 LCVP, 20tanks, 163troops; SO(501,504), SPS-21(508,509), SPS-53(510,511) radar
502 Teluk Bajur 1944
504 Teluk Kau 1944
508 Teluk Tomini 1942
509 Teluk Ratai 1944
510 Teluk Saleh 1944
511 Teluk Bone 1944
Teluk Amboina 1 503 Teluk Amboina 1961 4145t, 99.9x15.2x4.6m, 2d, 3200hp, 13kts, 88p; 6x1-37/63; 4 LCVP, 20tanks, 212 troops; radar
Teluk Semangka 4 512 Teluk Semangka 1981 3770t, 100.0x15.4x3.0m, 2d, 6860hp, 15kts, 117p; 3x1-40/70, 2x1-20/85, 2x1-12.7, heldeck; 4 LCVP, 17tanks, 202troops; 2x Decca radars
513 Teluk Penyu 1981
514 Teluk Mandar 1981
515 Teluk Sampit 1981
Teluk Banten 2 516 Teluk Banten 1982 3770t, 100.0x15.4x3.0m, 2d, 6860hp, 15kts, 117p; 2x1-40/70, 2x1-20/85, 2x1-12.7, 3 helicopters (Super Puma); 4 LCVP, 17tanks, 202troops; ZW-06, 2x Decca radars
517 Teluk Ende 1982
LSM Frosch I 12 531 Teluk Gilimanuk 1976 1930t, 90.7x11.1x2.8m, 2d, 12000hp, 18kts, 55p; 1x1-40/70, 1x2-37/63, 3x2-25/80; 12tanks, 100troops; TSR-333, Rubka radars, 2x PK-16 dl
532 Teluk Celukan Bawang 1976
533 Teluk Cendrawasih 1977
534 Teluk Berau 1977
535 Teluk Peleng 1978
536 Teluk Sibolga 1977
537 Teluk Manado 1977
538 Teluk Hading 1978
539 Teluk Parigi 1978
540 Teluk Lampung 1979
541 Teluk Jakarta 1979
542 Teluk Sangkulirang 1979
LPA Dong Yang 6 1 971 Tanjung Kambani 1982 7250t, 114.5x19.8x6.0m, 2d, 8200hp, 18kts; 2x2-25/80, 2x1-20/85, heldeck; 4 LCVP, 600 troops; 2x nav. radars

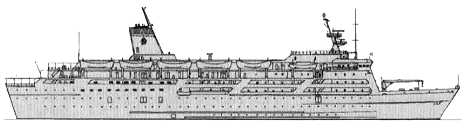

Kambuna 2 973 Tanjung Nusanive 1983 11700t, 140.0x23.4x5.9m, 2d, 17000hp, 20kts, 119p; 2x1-12.7; 1600troops; 2x nav. radars
974 Tanjung Fatagar 1983
Ambulu 4 981 Karang Pilang 1998 500t, 69.8x10.4x2.0m, 4d(4wj), 20700hp, 38kts, 30p; 600troops; 2x nav. radars
982 Karang Tekok 1998
983 Karang Banteng 1998
985 Karang Unarang 1998
LKA Frosch II 2 543 Teluk Cirebon 1979 1900t, 90.7x11.1x2.8m, 2d, 12000hp, 18kts, 35p; 2x2-37/63, 2x2-25/80, 650t cargo; TSR-333, Rubka radars, 2x PK-16 dl
544 Teluk Sabang 1980
LSS Dore 1 580 Dore 1968 no picture 275t, 38.3x10.0x1.8m, 2d, 420hp, 8kts, 17p; 1x1-12.7; 4tanks; radar
Kupang 3 582 Kupang 1978 400t, 42.9x9.1x1.8m, 4d(2), 1200hp, 11kts, 17p; 2x1-12.7; 200t cargo; radar
583 Dili 1979
584 Nusa Utara 1980
LC LCM(6) 20 1-20   1988 58t, 17.1x4.4x1.1m, 2d, 450hp, 13kts, 5p; 1tank
LCVP(7) 24 1-24   1943-82 13t, 10.9-11.2x3.2x0.9-1.0m, 1-2d, 220-225hp, 8-9kts, 3p; (0-2)x1-12.7; 36troops
Sekoci 6 1-6   1994 no picture 28.0xxm, 2d, 35kts; 30troops
LCM new 8 990-1   2003 no picture 120t, 23.0xxm, 2d
990-2   2003
590-1   2007
590-2   2007
591-1   2007
591-2   2007
592-1   2009
592-2   2009

MINE WARFARE

MSO Tripartite 2 711 Pulau Rengat 1988 588t, 51.5x8.9x2.5m, 2d, 2400hp, 15.5kts, 45p; 2x1-20/85, 2x PAP-104 Mk 5 USV, mechanical, magnetic, acoustic minesweeping gear; Deca 1229 radar, TSM2022 sonar, SEWACO-RI CCS
712 Pulau Rupat 1988
MSC Kondor II 7 721 Pulau Rote 1971 470t, 56.8x7.7x2.4m, 2d, 5000hp, 18kts, 30p; (1-3)x2-25/80, 1x1-12.7, mines, SDGR/L, MSG-1S/SP, MSG-2?SP USV(722-724,726,727), LMHS USV(721,729), magnetic, acoustic minesweeping gear(722-724,726,727), magnetic minesweeping gear(721,729); TSR-333 radar, M-69(722-724,726,727), AQS-17(721,729) sonar
722 Pulau Raas 1973
723 Pulau Romang 1971
724 Pulau Rimau 1972
726 Pulau Rusa 1972
727 Pulau Rangsang 1972
729 Pulau Rempang 1973

ARMY

LSM ADRI XLIV 1 ADRI XLIV   1984 no picture 1013brt, 57.5x13.5xm, 2d; radar
ADRI XLV 3 ADRI XLV   2004 no picture 580t, 42.0x10.7x1.8m, 2d, 680hp, 10kts, 15p; 122t vehicles, 120t liquid; radar
ADRI XLVI   2004
ADRI XLVII   2004
LSS ADRI XXXII 1 ADRI XXXII   1979 no picture 490t, 37.0x10.7x1.7m, 2d, 1050hp, 10kts; cargo; radar
ADRI XXXIII 5 ADRI XXXIII   1979 no picture 300t, 32.0x8.5x1.4m, 2d, 460hp; 150t cargo; radar
ADRI XXXIV   1979
ADRI XXXV   1979
ADRI XXXVI   1981
ADRI XXXVII   1981
ADRI XLI 3 ADRI XLI   1982 no picture 480t, 32.8x8.5x2.7m, 2d, 680hp; 171dwt; radar
ADRI XLII   1982
ADRI XLIII   1982

SEA COMMUNICATIONS AGENCY

PS Trisula 2 P111 Trisula 2004 no picture 878t, 61.8x9.7x3.2m, 2d, 6310hp, 18kts; radar
P112 Sarotama 2004
Arda Dedali 2 P113 Arda Dedali 2005 no picture 530t, 60.0x8.0x2.0m, 2d, 4400hp, 17kts, 51p; radar
P114 Alugara 2005
PB PAT01 15 PAT01-15   1978-95 No picture 12t, 12.2x4.3x1.0m, 1d, 260hp, 14kts; radar
Kujang 5 PAT201 Kujang 1981 no picture 156t, 38.3x6.0x1.8m, 2d, 4400hp, 28kts, 18p; 1x1-20/90; radar
PAT202 Parang 1981
PAT203 Celurit 1981
PAT204 Cundrik 1981
PAT205 Belati 1981
Golok 4 PAT206 Golok 1982 no picture 200t, 37.5x7.0x2.0m, 2d, 4200hp, 28kts, 18p; 1x1-20/85; radar
PAT207 Panan 1982
PAT208 Pedang 1982
PAT209 Kapak 1982
PAT325 1 PAT325   1987 no picture 69t, 28.0x5.4x1.6m, 2d, 2720hp, 30kts, 19p; radar
PAT329 4 PAT329-331, 345   1987-89 no picture 2d; radar

CUSTOMS

PC BC30001 1 BC30001   2009 no picture 240t, 42.0x7.3xm, 2d, 30kts; 1x1-12.7; 2x radars
PB BT401 20 BC501-504, 601-604, 701-704, 801-804, 901-904   1960-62 No picture 68t, 28.0x5.4x1.8m, 2d, 2700hp, 30kts, 19p; 1x1-12.7; radar
BC3001 7 BC3001-3007   1979-81 no picture 71t, 28.2x5.2x1.6m, 2d, 2700hp, 34kts, 18p; 1x1-12.7; radar
BC2001 7 BC2001-2007   1980-81 no picture 70t, 28.5x5.4x1.7m, 2d, 2440hp, 30kts; 1x1-12.7; radar
BC4001 36 BC4001-4006, 5001-5006, 6001-6006, 7001-7006, 8001-8006, 9001-9006   1981-86 no picture 69t, 28.0x5.4x1.6m, 2d, 2720(4001-4003, 6001-6005)-2620(4004-4006, 5001-5006, 6006, 7001-7006)hp, 30kts, 19p; 1x1-12.7; radar
BC1601 10 BC1601-1610   1999-00 no picture 11t, 16.0x2.8x1.0m, 2d, 600hp, 50kts, 5p; radar
BC10001 5 BC10001, 10002, 20001-20003   1999 no picture 85t, 28.2x6.6x1.3m, 2d, 3000hp, 40kts, 11p; FR8731 radar

MARITIME POLICE

PS Bisma 2 520 Bisma 2003 622t, 61.0x9.9x2.6m, 2d, 8700hp, 22kts; heldeck; 2x radars
521 Baladewa 2003
PC DKN504 10 DKN504   1963 no picture 444t, 48.1x7.5x2.9m, 2d, 1400hp, 15.3kts, 35p; 1x1-20/85, 2x1-12.7; radar
DKN505   1963
DKN506   1963
DKN507   1963
DKN508   1963
DKN509   1964
DKN510   1964
DKN511   1964
DKN512   1964
DKN513   1964
Kutilang 5 638 Kutilang 2006 200t, 36.4x6.8x1.9m, 2d, 5550hp, 26kts; 3x1-12.7; radar
639 Bangau 2006
640 Balibis 2007
641 Pelikan 2007
642 Punai 2007
PB DKN907 10 DKN907   1961 no picture 159t, 42.0x6.5x1.8m, 2d, 3000hp, 24.5kts, 22p; 4x1-20/85; radar
DKN908   1961
DKN909   1962
DKN910   1962
DKN911   1962
DKN912   1963
DKN913   1963
DKN914   1963
DKN915   1964
DKN916   1964
Carpentaria 6 KAL.II201-206   1976-77 no picture 27t, 15.7x4.8x1.3m, 2d, 1400hp, 25kts, 10p; 2x1-12.7; Decca 110 radar
619 7 619-625   1987 no picture 69t, 28.0x5.4x1.6m, 2d, 2720hp, 30kts, 19p, 1x1-12.7; radar
1101 18 1101-1118   1987-90 no picture 45t, 24.5x4.3x1.0m, 2d, 18kts; 1x2-25/80, 1x2-14.5; radar
Sepinggan 3 I-1-10 Sepinggan 2000 no picture 80t, 28.0x4.5x2.2m, 2d, 1600hp, 20kts; 1x1-12.7; JMA-2300 radar
II-10-01 Telaga Tujoh 2000
III-251-   2000
Enggang 8 1 Enggang 2003 no picture 165t, 36.4x7.1x2.2m, 2d, 5550hp, 30kts, 24p; 3x1-12.7; radar
2 Kolibri 2003
3 Murai 2003
4 Balam 2004
643 Tekukur 2004
6   2004
7   2004
8   2004
4016 1 4016   2004 no picture 80t; 1x1-12.7; radar
Hanoman 1 7011 Hanoman 2005 no picture 150t; 2x1-12.7; radar
Hayabusa 3 648 Hayabusa 2007 no picture 70t, 27.0x5.6x1.1m, 2d, 3500hp, 30kts, 12p; radar
649 Anis Madu 2007
650 Taka 2007



AIRCRAFT



NAVY

Ship-based

 9 Wasp HAS.1, 8 Mi-2, 4 Mi-17, 3 NAS-332L Super Puma, 4 Bell NB-412, 6 NBo-105, 3 EC-120B
Land-based combat capable  2 CN-235MPA, 16 N-22B Searchmaster B, 6 N-22SL Searchmaster L

ARMY

Combat capable

6 Mi-35, 16 Mi-17

AIR FORCE

Combat capable

3 Su-27SK, 7 F-16A Fighting Falcon, 3 F-16B Fighting Falcon, 8 F-5E Tiger II, 4 F-5F Tiger II, 3 Su-30MKI, 11 A-4E Skyhawk, 7 Hawk Mk.109, 28 Hawk Mk.209, 12 OV-10F Bronco, 1 SC.7 3M Skyvan (survey), 7 Hawk Mk.53, 1 TA-4H Skyhawk, 2 TA-4J Skyhawk, 5 NAS-332L Super Puma, 11 NAS-330 Puma

MARINES

equipment 55 PT-76 lt tks, 21 BRDM recce, 10 AMX-10 PAC-90 AIFV, 24 AMX-10P AIFV, 100 BTR-50P APC, 28 M-38 122mm howitzers, 22 LG-1 Mk II 105mm howitzers, 12 BM-14 140mm MRL, 81mm mortars, 5 L60/70 40mm, ~50 S-60 57mm AD guns
