World navies yesterday

2010



France 01 January 2010

SUBMARINES

SSBN Le Triomphant 3 S616 Le Triomphant 1997 12640/14335t, 138.0x12.5x10.7m, 1nr,2tg,1em(wj), 41500hp, 12/25kts, 111p, 400m; 16 M-45 SLBM(16), 4-533TT(inc SM39 Exocet SSM(4)); DRUA-33 radar, DMUX-80 sonar suite, DUUV-23, DUUX-5, DSUV-61B sonars, ARUR-13 ECM, Nemesis td, SEAO/OPSMER CCS
S617 Le Téméraire 1999
S618 Le Vigilant 2004
SSN Améthyste 6 S601 Rubis 1983 2410/2680hp, 73.6x7.6x6.5m, 1nr,2tg,1em(1), 9500hp, /26.5kts, 70p, 300m; 4-550TT(inc SM39 Exocet SSM(4)); DRUA-33 radar, DMUX-20 sonar suite, DALI ECM, TITLAC CCS
S602 Saphir 1984
S603 Casabianca 1987
S604 Émeraude 1988
S605 Améthyste 1992
S606 Perle 1993

AIRCRAFT CARRIERS

CVN Charles de Gaulle 1 R91 Charles de Gaulle 2001 42500t, 261.5x64.4x9.5m, 2nr,2gst, 83000hp, 27kts, 1950p; 2x16 Aster-15 SAM(32), 2x6 Sadral SAM(12), 4x1-12.7, 40ac(36 Rafale-M fighters, 3 E-2C AEW planes, 2 NH-90, 3 Dauphin helicopters); 2x DRBN-34, DRBJ-11B, DRBV-26D, DRBV-15C, Arabel radars, DIBV-2A, 2x DIBC-2A e/o, ARBR-21, 2x ARBB-33, ARBG-2 ECM, 4x Sagaie dl, SLAT td, SENIT-8/05 CCS

PRINCIPAL SURFACE COMBATANTS

CH Jeanne d'Arc 1 R97 Jeanne d'Arc 1964 12365t, 182.0x24.0x7.3m, 4b,2gst, 40000hp, 26.5kts, 627p; 6x1 Exocet MM38 SSM(6), 2x1-100/55, 8hel(Super Frelon); DRBV-22D, DRBV-51, 3x DRBC-32A radars, DUBV-24 sonar, ARBB-16, ARBX-10 ECM
DD Aconit 1 D609 Aconit 1973 3900t, 127.0x13.4x5.8m, 2b,1gst, 28650hp, 27kts, 228p; 2x4 MM40 Exocet SSM(8), 1x1 Malafon ASuM(13), 2x1-100/55, 2x1-20/90, 2x1-12.7, 4-550TC; DRBV-15A, DRBV-22A, DRBC-32D, DRBN-34A radars, DUBV-23, DUBV-43, DSBV-62C sonars, ARBR-16, ARBB-32 ECM, 2x Syllex dl, SLQ-25 td, SENIT-3 CCS
Tourville 2 D610 Tourville 1975 5885t, 152.8x15.8x5.7m, 4b,2gst, 54400hp, 32kts, 282p; 6x1 MM38 Exocet SSM(6), 1x8 Crotale EDIR SAM(26), 2x1-100/55, 2x1-20/70, 4x1-12.7(612), 2-550TC, 2hel(Lynx); DRBV-26A, DRBV-51B, DRBC-32D, DRBC-32, 2x DRBN-32 radars, DIBV-1A e/o, DSBX-1 SLASM, DUBV-23 sonars, ARBR-16, ARBB-32 ECM, 2x Syllex dl, SLQ-25 td, SENIT-3 CCS
D612 De Grasse 1977
Georges Leygues 7 D640 Georges Leygues 1979 4680(640)-4830(641-643)-4960(644-646)t, 139.0x14.0x5.5m, CODOG:2gt/2d(2), 52000/10720hp, 30kts, 216p; 4x1 MM38 Exocet SSM(4)(640,641), 2x4 MM40 Exocet SSM(8)(642,644-646), 4x2 MM40 Exocet SSM(8)(643), 1x8 Crotale EDIR SAM(26), 2x6 Sadral SAM(39)(641-643), 2x2 Simbad SAM(16)(640,644-646), 1x1-100/55, 2x1-30/70(641-643), 2x1-20/90(644-646), 2x1-20/70(640), 4x1-12.7, 2-550TC(640-643), 2-324TT(644-646), 2hel(Lynx)(641-644,646); 2x DRBN-34, DRBV-26(640,641,643), DRBV-15A(641-646), DRBV-51D(640), DRBC-32E(640,641,643), DRBC-33A(642,644-646) radars, Panda DMA-B(644-646)e/o, Piranha III(645,646), DIBV-2A(641,643), 2x DIBC-2A(641-643) e/o, DUBV-23(640,641), UMS-4110(642,643), DUBV-24C(644-646), DUBV-43B(640-642), DUBV-43C(643-646), DSBV-61A(644-646), DSBV-62C(640) sonars, ARBR-16(640,641,643), ARBR-17(642,644-646), ARBB-32B(640), 2x ARBB-36A(641-646), ARBX-10(640,641,643), ARBG-1A(644-646) ECM, 2x Dagaie Mk2 dl, 2x Replica fd, SLQ-25A td, SENIT-4 CCS
D641 Dupleix 1981
D642 Montcalm 1982
D643 Jean de Vienne 1984
D644 Primauguet 1986
D645 La Motte-Picquet 1988
D646 Latouche-Tréville 1990
Cassard 2 D614 Cassard 1988 4830t, 139.0x14.0x4.2m, 4d(2), 42300hp, 29.6kts, 225p; 2x4 MM40 Exocet SSM(8), 1x1 Standard SM-1MR SAM(40), 2x6 Sadral SAM(39), 1x1-100/55, 2x1-20/90, 4x1-12.7, 2-533/550TC, 1hel(Lynx); 2x DRBN-34A, DRBJ-11B, DRBV-26C, 2x SPG-51C, DRBC-33A radars, DIBV-2A, DIBC-1A e/o, DUBA-25A(614), DUBA-24C(615) sonar, ARBR-17, ARBB-33, ARBG-1A ECM, 2x Dagaie 2, 2x Sagaie dl, SLQ-25 td, SENIT-6/8 CCS
D615 Jean Bart 1991
FF Floréal 6 F730 Floréal 1992 2950t, 93.5x14.0x4.4m, 2d, 8800hp, 20kts, 89p; 2x1 MM38 Exocet SSM(2), 1x1-100/55, 2x1-20/90, 1hel(Panther); 25troops; 2x DRBN-34A, DRBV-21A radars, Najir e/o, Tayio, ARBR-16(735) ECM
F731 Prairial 1992
F732 Nivôse 1992
F733 Ventôse 1993
F734 Vendémiaire 1993
F735 Germinal 1994
La Fayette 5 F710 La Fayette 1996 3600t, 124.2x15.4x4.1m, 4d(2), 21000hp, 25kts, 153p; 2x4 MM40 Exocet SSM(8), 1x8 Crotale CN2 SAM(24), 1x1-100/55, 2x1-20/90, 4x1-12.7, 1hel(Panther); 25commandos; 2x DRBN-34, DRBV-15C, Castor-IIJ, CTM Crotale radars, TDS90 e/o, ARBR-21, ARBB-33, ARBG-1A(710-712), ARBG-2(713,714) ECM, Dagaie dl, SLQ-25 td, STI CCS
F711 Surcouf 1997
F712 Courbet 1997
F713 Aconit 1999
F714 Guépratte 2001
FS D'Estienne d'Orves 9 F789 Lieutenant de vaisseau Le Hénaff 1980 1250t, 80.0x10.3x5.3m, 2d, 12000hp, 23.5kts, 105+18p; 1x2 Simbad SAM(16)(792-797), 1x1-100/55, 2x1-20/90, 4x1-12.7, 1x4-375 Mod.72 ASWRL(789-791); DRBN-32, DRBV-51A, DRBC-32E radars, Panda DMA-B e/o, DUBA-25 sonar, ARBR-16 ECM, SLQ-25 td
F790 Lieutenant de vaisseau Lavallée 1980
F791 Commandant L'Herminier 1986
F792 Premier-Maître L'Her 1981
F793 Commandant Blaison 1982
F794 Enseigne de vaisseau Jacoubet 1982
F795 Commandant Ducuing 1983
F796 Commandant Birot 1984
F797 Commandant Bouan 1984

PATROL AND COASTAL COMBATANTS

PSO Névé 1 P681 Albatros 1967 2800t, 85.0x13.5x6.0m, 2dg,2em/2em(1), 2310/500hp, 15kts, 47p; 1x1-40/60, 2x1-12.7; 1 LCVP, 15passengers; 2x DRBN-38A radars, 2x ARBR-16 ECM
PS Jonathan 1 P740 Fulmar 1991 no picture 680t, 39.8x8.5x4.7m, 1d, 1200hp, 12kts, 9+2p; 1x1-12.7; 2x Furuno radars
Arago 1 P675 Arago 1991 no picture 1100t, 59.0x10.9x3.6m, 2d, 2500hp, 15kts, 30p; 2x1-12.7; DRBN-38A radar
PC Léopard 8 A748 Léopard 1982 460t, 43.0x8.3x3.2m, 2d, 2200hp, 15kts, 14+22p; 2x1-12.7; DRBN-32 radar
A749 Panthère 1982
A750 Jaguar 1982
A751 Lynx 1982
A752 Guépard 1983
A753 Chacal 1983
A754 Tigre 1983
A755 Lion 1983
L'Audacieuse 9 P682 L'Audacieuse 1986 480t, 54.5x8.0x2.5m, 2d, 8000hp, 23kts, 29+20p; 1x1-40/60, 1x1-20/90; DRBN-38 radar
P683 La Boudeuse 1986
P684 La Capricieuse 1986
P686 La Glorieuse 1987
P687 La Gracieuse 1987
P688 La Moqueuse 1987
P689 La Railleuse 1987
P690 La Rieuse 1987
P691 La Tapageuse 1988
Grèbe 1 P679 Grèbe 1991 no picture 410t, 52.0x9.8x2.3m, 2d/2em, 4800/250hp, 24kts, 19p; 2x1-12.7; Decca 2690 radar
Flamant 3 P676 Flamant 1997 390t, 54.0x9.8x2.6m, 2d+2d(2), 7960hp, 23kts, 20p; 2x1-12.7; Decca 250, Decca 20V90, 2x radars
P677 Cormoran 1997
P678 Pluvier 1997
PB P760 3 P778 Réséda 1987 no picture 20t, 14.6x4.6x1.2m, 2d, 800hp, 20kts, 7p; 1x1-12.7; radar
P789 Mélia 1987
P791 Hortensia 1990
Trident 1 P671 Glaive 1977 150t, 40.7x5.9x1.6m, 2d, 5000hp, 26kts, 19p; 1x1-40/60, 2x1-12.7; DRBN-32 radar
Stellis 1 P776 Sténia 1993 no picture 60t, 24.9x6.1x1.7m, 3d(2+1wj), 2520hp, 28kts, 2+2p; 1x1-12.7; DRBN-32 radar
Athos 2 A712 Athos 1980 no picture 108t, 32.1x6.5x2.1m, 2d, 4000hp, 28kts, 13p; 1x1-12.7; Racal-Decca(712), Furuno(713) radar
A713 Aramis 1981
Géranium 2 P720 Géranium 1996 no picture 100t, 32.2x6.1x1.8m, 3d(2ob+1wj), 3964hp, 30kts, 14p; 1x1-12.7; Bridgemaster II radar
P722 Violette 1997
Jonquille 2 P721 Jonquille 1996 no picture 98t, 32.0x6.5x1.1m, 3d(2ob+1wj), 3964hp, 30kts, 14p; 1x1-12.7; Bridgemaster II radar
P723 Jasmin 1997
Elorn 24 P601 Elorn 2003 no picture 43t, 20.0x5.3x1.5m, 2d, 2000hp, 28kts, 5+3p; M1932 radar
P602 Verdon 2003
P603 Adour 2003
P604 Scarpe 2003
P605 Vertonne 2004
P606 Dumbéa 2004
P607 Yser 2004
P608 Argens 2004
P609 Hérault 2005
P610 Gravona 2004
P611 Odet 2005
P612 Maury 2005
P613 Charente 2005
P614 Tech 2005
P615 Penfeld 2005
P616 Trieux 2005
P617 Vésubie 2006
P618 Escaut 2006
P619 Huveaune 2006
P620 Sèvre 2007
P621 Aber Wrach 2006
P622 Esteron 2007
P623 Mahury 2005
P624 Organabo 2005

AMPHIBIOUS

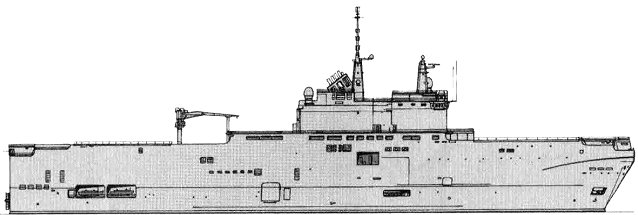

LHA Mistral 2 L9013 Mistral 2006 21500t, 199.0x32.0x6.4m, 4dg,2em(2azipods), 19040hp, 19kts, 177p; 2x2 Simbad SAM(16), 2x1-20/90, 4x1-12.7, 16hel(NH-90, Cougar, Tigre); 4 CTM or 2 EDAR, 13 tanks, 60 vehicles, 450troops; 2x DRBN-38, MRR-3D NG radars, 2x EOMS-NG, Vigiscan e/o, ARBB-36 ECM, SLAT td, SENIT 9 CCS
L9014 Tonnerre 2007
LPD Foudre 2 L9011 Foudre 1990 11880(9011)-12013(9012)t, 168.0x23.5x5.6m, 2d, 20760hp, 21kts, 218p; 3x2 Simbad SAM(24)(9011), 2x2 Simbad SAM(16)(9012), 3x1-30/82, 4x1-12.7, 4hel(Super Puma); 2 CDIC, 2 LCVP, 40tanks, 70trucks, 470troops; 2x DRBN-34A, DRBN-35, DRBV-21A radars, 2x DIBC-2A e/o, ARBB-36 ECM, SLQ-25 td, SENIT-8.01 CCS
L9012 Sciroco 1998
LSM Champlain 4 L9031 Francis Garnier 1974 1330(9031)-1385(9032-9034)t, 80.0x13.0x3.0m, 2d, 3600hp, 16kts, 44p; 2x1-40/60(9031), 2x1-20/90(9032-9034), 2x1-12.7; 2 LCVP(9032-9034), 350(9031)-330(9032-9034)t cargo, 12vehicles, 138(9031)-180(9032-9034)troops; DRBN-32 radar
L9032 Dumont d'Urville 1983
L9033 Jacques Cartier 1983
L9034 La Grandière 1987
LSS L9051 2 L9051 Sabre 1987 726t, 59.4x11.9x1.4m, 2d, 1400hp, 12kts, 17p; 1x1-20/90, 2x1-12.7; 340t cargo; DRBN-32 radar
L9052 Dague 1987
Gapeau 1 L9090 Gapeau 1987 no picture 1089t, 66.2x12.5x2.1m, 2d, 1600hp, 11kts, 8p; 460t cargo, 30passengers; RM914, FRS1000 radars
L9061 2 L9061 Rapière 1988 751t, 59.4x11.9x1.1m, 2d, 1080hp, 11kts, 18p; 2x1-12.7; 336t cargo; DRBN-32 radar
L9062 Hallebarde 1989
LC CTM1 1 CTM14   1967 no picture 150t, 23.8x6.4x1.2m, 2d, 480hp, 9.5kts, 6p; 2x1-12.7; 90t cargo; Koden radar
CTM17 15 CTM17   1982 no picture 150t, 23.8x6.4x1.6m, 2d, 470hp, 9kts, 4p; 2x1-12.7; 90t cargo; radar
CTM18   1982
CTM19 Do Ha 1983
CTM20 Néké Grav 1983
CTM21 Guéréro 1982
CTM22 Kien An 1982
CTM23 Song Can 1983
CTM24   1984
CTM25   1984
CTM26   1985
CTM27 Indochine 1986
CTM28 Tonkin 1988
CTM29 NuiDho 1988
CTM30 Khoan Bo 1989
CTM31 Phu Doan 1992

MINE WARFARE

MSO Éridan 12 M641 Éridan 1984 605t, 51.5x8.9x2.5m, 1d/2em, 1900/240hp, 15kts, 49p; 1x1-20/90, 2x1-12.7, 2 PAP-104, Double Eagle Mk 2 USV, mechanical, acoustic minesweeping gear, divers; DRBN-38 radar, DUBM-21E, SPIV sonars
M642 Cassiopée 1984
M643 Andromède 1984
M644 Pégase 1985
M645 Orion 1986
M646 Croix du Sud 1986
M647 L'Aigle 1987
M648 Lyre 1987
M650 Sagittaire 1996
M651 Verseau 1988
M652 Céphée 1988
M653 Capricorne 1987
MSC Vulcain 4 M611 Vulcain 1986 490t, 41.6x7.5x3.2m, 2d, 2200hp, 13.5kts, 15p; 1x1-12.7(611,613,614), 2x1-12.7(622), 12divers; DRBN-38
A613 Achéron 1987
M614 Styx 1987
M622 Pluton 1986
Antarès 3 M770 Antarès 1993 340t, 28.3x7.7x3.8m, 1d, 800hp, 11kts, 25p; 1x1-12.7; DRBN-34A radar, DUBM-44 sonar
M771 Altaïr 1994
M772 Aldébaran 1995



MARITIME POLICE

PS Lince 1 - Osiris 1968 no picture 1000t, 53.7x9.5x6.0m, 1d, 1450hp, 9kts, 10p; 2x radars
PC Iris 1 PM40 Iris 1989 no picture 230t, 47.0x8.5x2.3m, 2d, 4000hp, 23kts, 15p; 1x1-12.7; 2x Furuno radars
Thémis 1 PM41 Thémis 2004 409t, 52.5x9.0x2.3m, 2d, 6310hp, 21kts, 17+4p; 1x1-12.7; 2x radars
PB Mauve 1 PM29 Mauve 1984 no picture 71t, 30.5x5.7x1.8m, 2d, 2120hp, 26kts, 9p; 1x1-12.7; radar
Gabian 1 PM30 Gabian 1986 no picture 76t, 32.1x6.5x3.1m, 2d, 1800hp, 23kts, 8p; 1x1-12.7; radar
Origan 1 PM31 Origan 1993 no picture 84t, 31.2x5.5x1.2m, 2d, 2100hp, 22kts, 9p; 1x1-12.7; radar
Armoise 1 PM32 Armoise 1995 no picture 93t, 32.2x6.1x1.8m, 3x(2+1wj), 2545hp, 23kts, 9p; Racal-Decca C180/6, Raytheon R20XX radars

CUSTOMS

PC Jacques Oudart Fourmentin 2 DF P1 Jacques Oudart Fourmentin 2008 412t, 43.3x9.0x3.0m, 2d, 5070hp, 18kts, 16+6p; 2x1-12.7; 2x Furuno radars
DF P2 Kermorvan 2008
PB Marinda 3 DF30 Marinda 1965 no picture 45t, 26.8x5.0x1.5m, 2d, 956hp, 25kts; 1x1-12.7; radar
DF38 Mistral 1977
DF39 Aquilon 1978
Libeccio 2 DF26 Libeccio 1979 no picture 30t, 21x4.7x1.4m, 2d, 1400hp, 28kts, 8p; radar
DF27 Levant 1985
Mistral 4 DF50 Liane 1982 no picture 14t, 14.0x4.1x1.2m, 2d, 1000hp, 27kts, 5p
DF51 Yser 1983
DF56 Aigly 1984
DF57 Touloubre 1984
Vent d'Amont 1 DF40 Vent d'Amont 1983 no picture 71t, 29.0x5.7x1.7m, 2d, 2640hp, 25kts, 8p; 1x1-12.7; radar
Avel Gwalarn 1 DF42 Suroît 1988 no picture 67t, 30.4x5.8x1.8m, 2d, 2200hp, 28kts, 8p; 1x1-12.7; radar
Noroît 5 DF12 Noroît 1988 no picture 35t, 21.0x5.6x1.5m, 2d, 2000(12,14)-2190(20,21,25)hp, 28(12,14)-25(20,21,25)kts, 8p; 1x1-12.7; radar
DF14 Nordet 1988
DF20 Karina 1991
DF21 Macari 1991
DF25 Largade 1989
Gregau 1 DF16 Gregau 1990 no picture 41t, 23.0x5.6x1.7m, 3d(2+1wj), 2750hp, 28kts, 8p; radar
Haize Hegoa 8 DF31 Alizé 1993 no picture 75t, 28.7x6.4x1.6m, 3d(2+1wj), 2750hp, 28kts, 8p; 1x1-12.7; 2x Furuno radars
DF36 Kan Avel 2001
DF37 Vent d'Aval 1994
DF43 Haize Hegoa 1990
DF44 Mervent 1991
DF45 Vent d'Autan 1993
DF46 Avel Sterenn 1993
DF47 Lissero 1993
Tramontana 3 DF17 Tramontana 1992 no picture 34t, 19.3x5.5x1.5m, 2d, 1820hp, 27.5kts, 8p; radar
DF18 Umarinu 1992
DF19 Cers 1991
Arafenua 1 DF48 Arafenua 1992 no picture 105t, 32.3x6.5x2.0m, 2d, 2200hp, 25kts, 12p; 1x1-12.7; 2x Furuno radars
Rafale 3 DF24 Sua Luiga 1996 no picture 41t, 23.0x5.6x1.7m, 2d, 2800hp, 34kts, 8p; Furuno 841 radar
DF30 Marinada 1998
DF49 Rafale 1993

AIRCRAFT



NAVY

Ship-based

 9 Rafale-M F.1, 13 Rafale-M F.3, 2 Rafale-M F.2, 43 Super Étendard, 3 E-2C Hawkeye, 8 SA-321 Super Frelon, 16 AS-565SA Panther, 27 Lynx Mk.4, 27 SA-319B Alouette III, 9 AS-365 Dauphin 2

Land-based combat capable

 27 Atlantique 2, 4 Falcon 50M, 5 Falcon 200 Gardian, 9 Rallye MS-880

ARMY

Land-based combat capable

25 AS-665 Tiger, 272 SA-342M Gazelle, 4 AS-532UL Cougar Horizon, 21 AS-532UL Cougar, 35 CL-289, 15 SDTI/Sperwer

AIR FORCE

Combat capable

24 Rafale F.2B, 7 Rafale F.2C, 12 Rafale F.3B, 8 Rafale F.3C, 22 Mirage 2000-5, 52 Mirage 2000C, 66 Mirage 2000D, 22 Mirage F.1CT, 39 Mirage F.1CR, 2 C-160G Gabriel, 8 Mirage F.1B, 17 Mirage 2000B, 4 E-3F Sentry, 91 Alpha Jet

MARINES

equipment
