China 01 January 2010

SUBMARINES

SSBN type 092 1 406 Changzheng 406 1983 6500/8000t, 120.0x10.6x8.0m, 1nr,2gst(1), 14400hp, 20/22kts, 100p, 300m; 12 JL-1A SLBM(12), 6-533TT; Flag radar, SQ2-262B sonar, type 921A ECM, CCS
type 094 2 409 Changzheng 409 2007 9000/11000t, 137.0x12.5x7.5m, 2nr,2gst(1), /26kts, 140p, 300m; 12 JL-2 SLBM(12), 6-533TT; type 359 radar, SQG-4, SQC-207 sonars, type 921-A ECM, CCS
410 Changzheng 410 2009
SSB type 6631 1 200 Changcheng 200 1966 2350/2950t, 97.5x8.6x6.6m, 3d/em, 6000/5400hp, 14.5/13kts, 87p, 260m; 1 JL-2 SLBM, 10-533TT; Flag radar, Arktika-M sonar, Nakat ECM
SSN type 091 3 403 Changzheng 403 1984 4800/5550t, 98.0x9.0x7.4m, 1nr,2gst(1), 12000hp, 12/25kts, 75p, 300m; 6-533TT(inc YJ-82 SSM(4)); Flag radar, SQ2-262B sonar, type 921A ECM, CCS
404 Changzheng 404 1987
405 Changzheng 405 1990
type 093 2 407 Changzheng 407 2006 5000/6100t, 107.0x11.0x7.5m, 2nr,2gst(1), 20000hp, 20/30kts, 100p, 400m; 6-533TT(inc YJ-82 SSM(4)); type 359 radar, SQG-4, SQC-207 sonars, type 921-A ECM, CCS
408 Changzheng 408 2007
SS type 033 14 281 Changcheng 281 1984 1319/1712t, 76.6x6.7x5.0m, 2d/em, 4800/2700hp, 15.2/13kts, 58p, 240m; 8-533TT; Flag radar, type 801, SQZ-D, SQG-2 sonars, type 92-A ECM
282 Changcheng 282 1985
283 Changcheng 283 1985
290 Changcheng 290 1985
291 Changcheng 291 1985
292 Changcheng 292 1986
293 Changcheng 293 1986
294 Changcheng 294 1986
343 Changcheng 343 1986
344 Changcheng 344 1987
345 Changcheng 345 1987
346 Changcheng 346 1987
349 Changcheng 349 1987
777 Changcheng 777 1987
type 035A (ES5D) 1 342 Changcheng 342 1982 1584/2113t, 76.0x7.6x5.1m, 2d/2em, 5200/7000hp, 15/18kts, 57p, 300m; 8-533TT; type 353A radar, SQZ sonar suite, type 925 ECM
type 035A 3 352 Changcheng 352 1988 1584/2113t, 76.0x7.6x5.1m, 2d/2em, 5200/7000hp, 15/18kts, 57p, 300m; 8-533TT; type 353A radar, SQZ sonar suite, type 925 ECM
353 Changcheng 353 1989
354 Changcheng 354 1990
type 035G 12 356 Changcheng 356 1990 1584/2113t, 76.0x7.6x5.1m, 2d/2em, 5200/7000hp, 15/18kts, 57p, 300m; 8-533TT; type 353A radar, SQZ-D sonar suite, type 925 ECM, ZLT-4A CCS
357 Changcheng 357 1992
358 Changcheng 358 1993
359 Changcheng 359 1994
360 Changcheng 360 1995
361 Changcheng 361 1995
362 Changcheng 362 1996
363 Changcheng 363 1996
305 Changcheng 305 1998
306 Changcheng 306 1998
307 Changcheng 307 1999
308 Changcheng 308 1999
pr. 877EKM 2 364 Changcheng 364 1994 2325/3075t, 72.6x9.9x6.6m, 2dg,1em, 4080/5500hp, 10.7/18kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT; Kaskad radar, Rubikon-E, Arfa-E, Vint, MG-53, Shkert sonars, MRP-25E ECM, Uzel CCS
365 Changcheng 365 1995
pr. 636 2 366 Changcheng 366 1997 2350/3100t, 73.8x9.9x6.6m, 2dg,1em, 4080/5800hp, 12/19.8kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT; Kaskad radar, Rubikon, Arfa, Vint, MG-53, Shkert sonars, MRP-25 ECM, Uzel-EM CCS
367 Changcheng 367 1998
type 039 1 320 Changcheng 320 1999 1700/2250t, 76.6x8.4x5.3m, 4dg,1em, 6092hp, 15/22kts, 60p, 300m; 6-533TT (inc YJ-82 SSM(4)); Kaskad-E radar, SQG-4 sonar, type 921A ECM, CCS
type 035B 4 310 Changcheng 310 2000 1584/2113t, 76.0x7.6x5.1m, 2d/2em(2), 5200/7000hp, 15/18kts, 57p, 300m; 8-533TT; type 353A radar, SQZ-D sonar, type 925 ECM, ZLT-4A CCS
311 Changcheng 311 2001
312 Changcheng 312 2002
313 Changcheng 313 2003
pr. 636M 8 368 Changcheng 368 2004 2350/3100t, 73.8x9.9x6.6m, 2dg,1em, 4080/5800hp, 12/19.8kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT (inc Club-S SSM(4)); Kaskad radar, Rubikon, Arfa, Vint, MG-53, Shkert sonars, MRP-25 ECM, Uzel-EM CCS
369 Changcheng 369 2005
370 Changcheng 370 2005
371 Changcheng 371 2005
372 Changcheng 372 2006
373 Changcheng 373 2005
374 Changcheng 374 2005
375 Changcheng 375 2006
type 039G 5 321 Changcheng 321 2001 1700/2250t, 76.6x8.4x5.3m, 4dg,1em, 6092hp, 15/22kts, 60p, 300m; 6-533TT(inc YJ-82 SSM(4)); Kaskad-E radar, SQG-4 sonar, type 921-A ECM, CCS
322 Changcheng 322 2001
323 Changcheng 323 2003
324 Changcheng 324 2003
325 Changcheng 325 2004
type 039G1 8 314 Changcheng 314 2003 1700/2250t, 76.6x8.4x5.3m, 4dg,1em, 6092hp, 15/22kts, 60p, 300m; 6-533TT(inc YJ-82 SSM(4)); Kaskad-E radar, SQG-4 sonar, type 921-A ECM, CCS
315 Changcheng 315 2003
316 Changcheng 316 2005
317 Changcheng 317 2005
326 Changcheng 326 2006
327 Changcheng 327 2006
328 Changcheng 328 2006
329 Changchneg 329 2006
type 039A 3 330 Changcheng 330 2005 2725/3600t, 72.0x8.4x5.5m, 4dg/AIP,1em, 6092/220hp, 16/23kts, 58p, 300m; 6-533TT(inc YJ-82 SSM(4)); type 359 radar, SQG-4 sonar, type 921-A ECM, CCS
331 Changcheng 331 2009
332 Changcheng 332 2009

AIRCRAFT CARRYING SHIPS

AVT Shichang 1 82 Shichang 1996 9500t, 125.0x19.0x10.6m, 2d, 17.5kts, 170+200p; 4hel(Z-9); 300containers; 2x Decca radars

PRINCIPAL SURFACE COMBATANTS

DD type 051 8 107 Yinchuan 1976 3960t, 132.0x12.8x4.4m, 4b,2gst, 72000hp, 35kts, 302p; 2x3 HY-1 SSM(6), 2x2-130/58, 4x2-37/63, 2x2-25/80, 2x12 type 75 ASWRL, 4dct, 38mines; type 354, type 517, type 352, type 343, type 347, type 751, Sea Eagle(164), type 381(108) radars, SJD-1, SJD-N sonar, RW-23-1 ECM
108 Xining 1980
131 Nanjing 1977
133 Chongqing 1983
134 Zunyi 1984
162 Nanning 1979
163 Nanchang 1982
164 Guilin 1987
type 051Z 1 132 Hefei 1980 3960t, 132.0x12.8x4.4m, 4b,2gst, 72000hp, 35kts, 302p; 2x3 HY-1 SSM(6), 2x2-130/58, 4x2-37/63, 2x2-25/80, 2x12 type 75 ASWRL, 4dct, 38mines; type 354, type 517, type 381, type 352, type 343, type 347, type 751 radars, SJD-1, SJD-N sonar, RW-23-1 ECM, ZKJ-2 CCS
type 051DT 2 109 Kaifeng 1982 3960t, 132.0x12.8x4.4m, 4b,2gst, 72000hp, 35kts, 302p; 4x4 YJ-1 SSM(16), 1x8 HQ-7 SAM(16), 2x2-130/58, 3x2-37/63, 2x2-25/80, 2x12 type 75 ASWRL, 4dct, 38mines; type 354, type 517, type 360, type 342, type 345, 2x type 344, Sea Tiger, type 347, type 751 radars, SJD-1, SJD-N sonar, RW-23-1 ECM, ZKJ-4A-3 CCS
110 Dalian 1984
type 051G1 1 165 Zhanjiang 1989 3960t, 132.0x12.8x4.4m, 4b,2gst, 72000hp, 35kts, 302p; 4x4 YJ-1 SSM(16), 1x8 HQ-7 SAM(16), 2x2-100/56, 4x2-37/63, 2x3-324TT, 2x12 type 75 ASWRL, 38mines; type 362, type 381, type 517, type 344, type 345, 2x type 347G, type 756 radars, SJD-7 sonar, type 825, RW-23-1 ECM, 2x dl, ZKJ-4 CCS
type 051G2 1 166 Zhuhai 1991 3960t, 128.6x12.8x4.7m, 4b,2gst, 72000hp, 35kts, 280p; 4x4 YJ-83 SSM(16), 1x8 HQ-7 SAM(16), 2x2-100/56, 4x2-37/63, 2x3-324TT, 2x12 type 75 ASWRL, 38mines; type 362, type 381, type 517, type 344, type 345, 2x type 347G, type 756 radars, SJD-7 sonar, type 825, RW-23-1 ECM, 2x dl, ZKJ-3 CCS
type 052 2 112 Harbin 1994 5700t, 148.0x16.0x5.0m, CODOG:2d/2gt(2), 53600hp, 31.5kts, 230p; 4x4 YJ-83 SSM(16), 1x8 HQ-7 SAM(24), 1x2-100/56, 4x2-37/63, 2x3-324TT, 2x12 type 75 ASWRL, 2hel(Z-9A); type 363(112), type 360S(113), type 362, type 518, type 344, 2x type 347G, type 345, 2x type 756 radars, 2x type 630 e/o detectors, DE-1164(112), DUBV-23(113), DUBV-43(113) sonar, type 726, type 726-4A ECM, 2x type 726 dl, ZKJ-3(112), ZKJ-4(113) CCS
113 Qingdao 1996
type 051B 1 167 Shenzhen 1999 6600t, 153.0x16.5x6.0m, CODOG:2gt/2d(2), 48600hp, 29kts, 250p; 4x4 YJ-8A SSM(16), 1x8 HQ-7 SAM(16), 1x2-100/56, 4x2-37/63, 2x3-324TT; 2hel(Z-9C)' type 360S, type 362, type 381A, type 517H-1, type 344, 2x type 347G, type 345, 2x type 756 radars, 2x type 630 e/o directors, SJD-8/9 sonar, type 984, type 826, type 985 ECM, 2x type 946 dl, ZKJ-6 CCS
pr. 956E 2 136 Hangzhou 1999 8440t, 156.5x17.2x6.3m, 4b,2gst, 100000hp, 32.7kts, 343p; 2x4 Moskit-E SSM(8), 2x1 Shtil' SAM(48), 2x2-130/70, 4x6-30/54, 2x2-533TT, 2x6 RBU-1000 ASWRL, 2x7-55 gl, 22mines, 1hel(Ka-28); Fregat-M2EM, Mineral-E, 2x 3R91E, Lev-218, 2x Vympel-A, 2x Vaygach-U radars, Platina-MSE, SSN-137, 2x Braslet sonars, 2x Spektr-F laser detectors, e/o sensor, Start-E, Start-2E ECM, 8x PK-10, 2x PK-2M dl, Sapfir-U CCS
137 Fuzhou 2000
type 052B 2 168 Guangzhou 2004 7000t, 155.0x17.0x6.0m, CODG:2gt/2d(2), 36300hp, 29kts, 280p; 4x4 YJ-83 SSM(16), 2x1 HQ-16 SAM(48), 1x1-100/55, 2x7-30/77, 2x3-324TT, 2x12 type 75 ASWRL, 1hel(Ka-28); type 382, type 366, type 364, 4x MR90, type 344, 2x type 347G, 2x type 756 radars, MGK-335EMS, SJG-206 sonars, 2x OFC-3 e/o directors, type 984/985, SR-210 ECM, 4x type 726-4 dl, ZKJ-5 CCS
169 Wuhan 2004
type 052C 2 170 Lanzhou 2004 7100t, 155.0x17.0x6.0m, CODG:2gt/2d(2), 48600hp, 29kts, 280p; 4x4 YJ-62 SSM(16), (6x6+2x6) HQ-9 SAM(48), 1x1-100/55, 2x7-30/77, 2x3-324TT, 1hel(Ka-28); type 346, type 517H-1, type 364, 4x MR90, type 344, 2x type 347G, 2x type 756 radars, SJD-8/9 sonar, 2x OFC-3 e/o directors, type 984/985, HZ-100 ECM, 4x type 726-4 dl, ZKJ-5 CCS
171 Haikou 2005
pr. 956EM 2 138 Taizhou 2005 7940t, 156.5x17.2x5.1m, 4b,2gst, 100000hp, 33kts, 344p; 2x4 Moskit-MVE SSM(8), 2x1 Shtil' SAM(48), 2x(8 SAM+ 12-30/54) Kortik CADS, 1x2-130/70, 2x2-533TT, 2x6 RBU-1000 ASWRL, 2x7-55 gl, 22mines, 1hel(Ka-28); Fregat-M2EM, Mineral-E, 2x 3R91E, Lev-218, 2x Vaygach-U radars, Platine-MSE, SSN-137, 2x Braslet sonars, 2x Spektr-F laser detectors, e/o sensor, Start, Start-2 ECM, 8x PK-10, 2x PK-2M dl, Sigma-E CCS
139 Ningbo 2006
type 051C 2 115 Shenyang 2006 7100t, 155.0x17.0x6.0m, CODOG:2gt/2d, 48600hp, 30kts, 250p; 2x4 YJ-83 SSM(8), (4x8+2x8) S-300FM SAM(48), 1x1-100/55, 2x7-30/77, 2x3-324TT, helodeck; type 382, type 364, type 366, 30N6, type 344, 2x type 347G, 2x type 756 radars, 2x OFC-3 e/o detectors, SJD-8/9 sonar, type 984/985, HZ-100 ECM, 2x type 726-4, 2x10 dl, TAVITAC-2000 CCS
116 Shijiazhuang 2007
FF type 053H 11 511 Nantong 1977 1702t, 103.2x10.2x3.1m, 2d, 16000hp, 25.5kts, 190p; 2x2 HY-2 SSM(4)(exc516), 2x1-100/56(exc516), 2x2-100/56(516), 6x2-37/63, 2x5 type 81 ASWRL(509-514,517-520,551,552), 4x5 type 81 ASWRL(515,516), 5x50-300 rl(516), 4dct, 2dcr, mines; type 756, type 354, type 352C radars, EH-5 sonar, RWD-8 ECM
512 Wuxi 1978
513 Huai'an 1977
514 Zhenhjiang 1979
515 Xiamen 1975
516 Jiujiang 1975
517 Nanping 1977
518 Ji'an 1979
519 Changzhi 1979
551 Maoming 1980
552 Yibin 1980
type 053H1 8 533 Taizhou 1982 1702t, 103.2x10.2x3.1m, 2d, 16000hp, 25.5kts, 175p; 2x2 HY-2A SSM(4), 2x2-100/56, 4x2-37/63, 2x5 type 81 ASWRL, 4dct, 2dcr, mines; type 756, type 517, type 354, type 352C, type 343, type 341, type 756 radars, SJD-5, SJC-1B sonars, type 923 ECM, 2x SRBOC dl, ZKJ-3 CCS
534 Jinhua 1982
543 Dandong 1985
545 Linfen 1987
553 Shaoguan 1985
554 Anshun 1986
555 Zhaotong 1987
557 Jishou 1988
pr. 053H1Q 1 544 Siping 1985 1820t, 103.2x10.2x3.1m, 2d, 16000hp, 25.5kts, 185p; 1x2 HY-2A SSM, 1x1-100/55, 4x2-37/63, 2x3-324TT, 2x5 type 81 ASWRL, 1hel(Z-9A); type 756, type 354, type 348, type 341 radars, SJD-7 sonar, RWD-8 ECM, 2x SRBOC dl
type 053H2 3 535 Huangshi 1986 1960t, 103.2x10.8x3.1m, 2d, 16000hp, 28kts, 168p; 2x4 YJ-1 SSM(8)(535,536), 2x4 YJ-2 SSM(8)(537), 2x2-100/56, 4x2-37/63, 2x5 type 81 ASWRL, 2dct; type 756, type 354, type 352C, type 341, type 343, type 517A(537) radars, SJD-5, SJC-1B sonars, type 923, type 981, RWD-8 ECM, 2x type 945 dl, ZKJ-3A CCS
536 Wuhu 1987
537 Cangzhou 1990
type 053H2G 4 539 Anqing 1992 2180t, 114.5x12.4x3.5m, CODAD:4d(2), 22840hp, 27.2kts, 170p; 2x3 YJ-81 SSM(6), 1x6 HQ-61 SAM(6), 1x2-100/56, 4x2-37/63, 2x6 type 87 ASWRL, 1hel(Z-9C); type 756, type 360, type 517, 2x type 341, type 343 radars, SJD-7 sonar, NRJ-5 ECM, 2x type 946 dl, ZKJ-3A CCS
540 Huainan 1992
541 Huaibei 1993
542 Tongling 1994
type 053H1G 6 558 Zigong 1993 1702t, 103.2x10.2x3.1m, 2d, 16000hp, 25.5kts, 175p; 2x2 HY-2A SSM(4)(558,562,563), 2x4 YJ-82 SSM(8)(559-561), 2x2-100/56, 4x2-37/63, 2x6 type 87 ASWRL, 4dct, 2dcr, 24mines; RM1290A/D, type 360, type 517H(558,562,563), type 363(559-561), type 343, type 347G, type 352 radars, SJD-5, SJC-1B sonars, 2x type 211, type 318, type 521 ECM, 2x type 946 dl, ZKJ-3A CCS
559 Foshan 1994
560 Dongguan 1993
561 Shantou 1994
562 Jiangmen 1995
563 Zhaoqing 1996
type 053H3 10 521 Jiaxing 1998 2393t, 114.5x12.4x3.6m, CODAD:4d(2), 22840hp, 26kts, 168p; 2x4 YJ-82 SSM(8), 1x8 HQ-7 SAM(16), 1x2-100/56, 4x2-37/63, 2x6 type 87 ASWRL, 1hel(Z-9); 2x RM-1290, type 360, type 517, type 341, type 343(exc527,528), type 344(527,528), 2x type 347G, type 345 radars, GDG-775 e/o detector, SJD-7 sonar, NRJ-5 ECM, 2x SRBOC, 2x PJ-46 dl, ZKJ-4B/6 CCS
522 Lianyungang 1999
523 Putian 1999
524 Sanming 1999
527 Luoyang 2005
528 Mianyang 2004
564 Yichang 2000
565 Sanya 2000
566 Huaihua 2002
567 Xiangfan 2002
type 054 2 525 Ma'anshan 2005 3850t, 132.0x15.0x5.0m, 4d(2), 28200hp, 27kts, 168p; 2x4 YJ-83 SSM(8), 1x8 HQ-7 SAM(16), 1x1-100/56, 4x6-30/54, 2x3-324TT, 2x6 type 87 ASWRL, 1hel(Z-9); 2x RM-1290, type 360, type 364, type 344, type 345, 2x type 347G radars, OFD-630 e/o sensor, MGK-335, VDS sonars, HZ-100 ECM, 2x PJ-46 dl, ZKJ-4B/6 CCS
526 Wenzhou 2005
type 054A 4 529 Zhoushan 2008 3900t, 134.0x16.0x5.0m, 4d(2), 28200hp, 27kts, 190p; 2x4 YJ-83 SSM(8), 4x8 HQ-16 SAM(32), 1x1-76/59, 2x7-30/77, 2x1-14.5, 2x3-324TT, 2x6 type 87 AWSRL, 1hel(Z-9); 2x RM-1290, type 382, type 364, type 366, type 344, 4x MR90, 2x type 347G radars, OFD-630 e/o sensor, MGK-335EMS, VDS sonars, HZ-100 ECM, 2x24 dl, ZKJ-4B/6 CCS
530 Xuzhou 2008
568 Hengyang 2008
570 Huangshan 2008

PATROL AND COASTAL COMBATANTS

PM type 021 10 2304   1975 205t, 38.8x7.6x1.7m, 3d, 12000hp, 35kts, 28p; 4x1 HY-2 SSM(4), 2x2-25/80; type 352 radar
3114   1975
6107   1975
6119   1975
6120   1975
6122   1975
6123   1975
6124   1975
120   1975
121   1975
type 037IG 20 651 Laiyang 1998 478t, 62.0x7.2x2.2m, 4d, 13200hp, 32kts, 60p; 2x2 YJ-8A SSM(4), 2x2-37/63, 2x2-14.5; type 723, type 352C, type 341 radars, ECM
652 Laixi 1998
653 Qufu 1998
654 Chengwu 1999
655 Rushan 1999
656 Shouguang 1999
751 Jiusha 1991
752 Yuqing 1992
753 Dongan 1993
754 Linwu 1993
755 Chaoyang 1994
756 Chenghai 1994
757 Gutian 1995
758 Yongshun 1995
759 Fuqing 1996
760 Changle 1996
764 Longyan 1996
765 Hangtingdao 1997
766 Fuding 1997
767 Fuan 1997
type 037II 6 770 Yangjiang 1991 542t, 65.4x8.4x2.4m, 3d, 17280hp, 33.6kts, 47p; 2x3 YJ-8A SSM(6), 1x1-76/59(774), 1x2-37/63(770-773,775), 2x2-30/65(770-773,775), 1x6-30/54(774); type 348, type 765, type 347G(770-773,775), Vympel(774) radars, JM-83 e/o director, type 900 ECM, 2x type 945G dl, type 88C CCS
771 Shunde 1995
772 Nanhai 1995
773 Panyu 1995
774 Lianjiang 1999
775 Xinhui 1999
type 022 58 2101   2006 220t, 42.6x12.2x1.5m, 2d(4wj), 6900hp, 36kts, 14p; 2x4 YJ-83 SSM(8), 1x6-30/54; type 348, type 765 radars, HEOS-300 e/o director, type 826 ECM, 2x type 945 dl
2102   2006
2103   2006
2104   2007
2105   2007
2106   2007
2107   2007
2108   2008
2109   2008
2110   2008
2111   2008
2112   2009
2201   2009
2202   2009
2203   2009
2208   2004
2209   2005
2210   2005
2211   2005
2212   2006
2213   2006
2214   2006
2215   2006
2216   2006
2217   2006
2218   2006
2219   2006
2220   2006
2221   2007
2222   2007
2223   2007
2224   2007
2225   2007
2226   2007
2227   2007
2228   2007
2301   2007
2302   2007
2303   2008
2304   2008
2305   2008
2306   2008
2307   2008
2308   2008
2309   2008
2310   2008
2311   2008
2312   2008
2313   2009
2314   2009
2315   2009
2316   2009
2317   2009
2318   2009
2319   2009
2320   2009
2321   2009
2322   2009
PC pr. 037 103 278   1964 430t, 58.8x7.2x2.2m, 4d, 8800hp, 30.5kts, 78p; 2x2-57/62, 2x2-25/80, 4x5 RBU-1200 ASWRL, 2dct, 2dcr, mines; type 351 radar, Tamir-11 sonar
279   1965
280   1969
281   1971
282   1972
283   1972
664   1974
665   1975
666   1977
667   1977
668 Wenchuan 1979
669   1979
672   1982
673   1980
674 Pingnan 1980
675   1980
680   1982
721 Ningxiang 1982
722 Anhua 1982
723 Deqing 1984
724   1984
725   1984
726   1984
727 Wuchuan 1985
728 Zhenyuan 1985
729 Tianzhou 1985
730   1985
267   1969
268   1970
269   1970
295   1972
296   1971
297   1972
298   1972
270   1973
615   1975
616   1975
641   1976
1 Shanghai Jiuyuan 1 1976
642   1977
643 Fengxian 1977
644   1977
645   1977
646   1977
647   1978
648   1978
620 Qingyuan 1978
621 Boxing 1978
622 Penglai 1978
623   1978
624 Wendeng 1978
670   1978
671   1979
409 Matou 409 1978
625 Taikang 1979
626 Xinbin 1979
627 Rongcheng 1979
680 Wuping 1979
628 Kaiyuan 1980
676   1980
677 Tian'e 1981
678   1981
J505   1979
J303   1980
J125   1980
681 Yunxiao 1981
682 Ningde 1981
683 Xianju 1981
684 Wuyi 1981
685 Yinchang 1981
686 Jiangyin 1982
687 Yixing 1981
630 Huai'an 1982
629 Kanping 1982
700 Fusong 1982
701   1982
702   1984
706 Huinan 1984
707 Huaide 1984
692 Lianshui 1985
731 Hanshou 1985
732   1985
695 Xianfeng 1986
696 Anlu 1986
742 Xingguo 1987
259   1973
617   1976
618   1977
619   1978
610   1980
703   1982
704   1983
705 Wugong 1984
649 Songjiang 1981
650 Hai'an 1981
689 Yinghua 1982
690   1985
691   1985
708   1986
709   1986
699 Qingyuan 1987
740 Ningyuan 1988
741 Taishun 1987
type 037I 3 688 Nanhui 1987 450t, 62.0x7.2x2.2m, 4d, 8800hp, 28kts, 70p; 2x2-57/62(693), 1x2-57/62(688,697), 2x2-30/65, 4x5 type 87 ASWRL, 2dct, 2dcr, mines; type 351, type 342 radars, Tamir-11, SS-12(688,697) sonars
693 Yongjia 1987
697 Anji 1987
type 037IS 35 611 Haiyang 1996 478t, 62.8x7.2x2.4m, 4d, 8000hp, 28kts, 71p; 2x2-37/63, 2x2-14.5, 2x6 type 87 ASWRL; type 723 radars, Tamir-11 sonar
612 Zhangqiu 1996
613 Renqiu 1996
614 Changli 1996
631 Yongji 1997
632 Changhai 1997
633 Suizhong 1997
634 Baofeng 1997
635 Yichuan 1997
710 Jimo 1993
711 Jiaonan 1993
712 Jinjiang 1993
713 Longhai 1993
714   1993
715   1993
716   1994
717   1994
743 Huangyan 1994
744 Yunhe 1994
761 Fuyang 1994
762 Xiaoshan 1994
763 Shangyu 1995
764   1995
786 Wanning 1995
787 Ledong 1995
788 Dingan 1995
789 Lingao 1995
790   1996
791   1996
792   1996
793   1996
794   1997
795   1997
796   1997
797   1997
PB type 062 35 266   1978 135t, 38.8x5.4x1.6m, 4d, 4200hp, 28.5kts, 36p; 2x2-37/63, 2x2-25/80, 2x5 type 81 ASWRL, 2dcr; type 351 radar, Tamir-11 sonar
267   1978
268   1978
269   1978
270   1978
271   1978
272   1978
273   1978
274   1978
275   1978
276   1978
277   1978
278   1979
279   1979
280   1979
281   1979
282   1979
283   1979
284   1979
285   1979
286   1979
287   1979
288   1979
289   1979
290   1979
291   1979
292   1979
293   1979
294   1979
295   1979
296   1980
297   1980
298   1980
299   1981
300   1982
type 062I 27 1201   1992 170t, 41.0x5.4x1.8m, 4d, 4800hp, 29kts, 28p; 2x2-37/63, 2x2-25/80, 2x2-14.5; type 726UA radar
1202   1992
1203   1992
1204   1993
1205   1993
1206   1993
1207   1993
1208   1994
1236   1994
1239   1994
1240   1994
1271   1995
1272   1995
2326   1995
2327   1995
2328   1996
2329   1996
4339   1996
4340   1996
4341   1997
4342   1997
4343   1997
4344   1997
4345   1998
4346   1998
4347   1998
4348   1998
type 026H 5 7357-7361   1997 no picture 80t, 25.0x4.1x1.4m, 2d, 28kts; 1x2-14.5; radar

AMPHIBIOUS

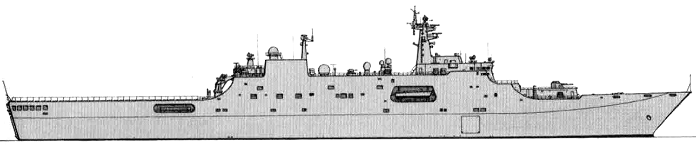

LPD type 071 1 998 Kunlunshan 2008 17600t, 210.0x28.0x7.0m, 2d, 48000hp, 20kts, 175p; 1x1-76/59, 4x6-30/54, 4x1-14.5, 2hel(Z-8); 4 LCAC, 2 LCVP, 20tanks, 500troops; type 360, type 364, 2x NR2000, type 344, 2x type 347G radars, 4x type 726 dl
LST type 072 3 927 Yuntaishan 1978 4170t, 120.0x15.3x2.9m, 2d, 9600hp, 18kts, 130p; 2x2-57/62, 2x2-25/80; 2 LCVP, 11tanks, 120troops; 2x type 756 radars
928 Wufengshan 1980
929 Zijinshan 1982
type 072III 10 991 Emeishan 1992 4800t, 119.5x16.4x2.8m, 2d, 9600hp, 18kts, 104p; 3x2-37/63, 2x40-122 rl, heldeck; 2 LCVP, 10tanks, 250troops: 2x type 756, JPT-4G radars
934 Danxiashan 1995
935 Xuefengshan 1995
936 Haiyangshan 1996
937 Qingchengshan 1996
908 Yandangshan 1997
909 Jihuashan 2000
910 Huanggangshan 2001
939 Putuoshan 2001
940 Tiantaishan 2002
type 072II 4 930 Lingyanshan 1993 4170t, 119.5x15.6x2.9m, 2d, 9600hp, 18kts, 109p; 1x2-57/62, 3x2-37/63; 2 LCVP, 10tanks, 200troops; 2x type 756 radars
931 Dongtingshan 1994
932 Helanshan 1994
933 Liupanshan 1995
type 072A 9 911 Tianzhushan 2003 5000t, 130.0x16.4x3.2m, 2d, 9600hp, 17kts, 120p; 1x2-37/63, heldeck; 2 LCVP, 10tanks, 250troops; 2x type 756 radars
912 Daqingshan 2004
913 Baxianshan 2003
992 Huadingshan 2004
993 Luoxiaoshan 2004
994 Dayunshan 2004
995 Wanyangshan 2004
996 Laotieshan 2005
997 Yunwushan 2005
LSM type 079I 1 965   1976 833t, 60.3x10.0x2.4m, 2d, 1200hp, 12kts, 36p; 2x2-25/80; 5tanks, 100troops; radar
type 079II 31 957   1979 1100t, 72.0x13.8x2.6m, 4d(2), 1680hp, 14kts, 109p; 2x2-25/80, 2x40-122 type 81H RL, 5tanks, 100troops; type 756 radar
958 Fenhe 1979
959   1979
960   1979
961 Quanhe 1979
962   1979
963   1980
964   1980
966   1980
967   1980
968   1980
969   1980
970   1981
971   1981
972   1981
973 Wuzhishan 1981
974 Lianhuashan 1981
975 Lanhe 1981
976   1982
977 Dingjunshan 1982
978   1982
979 Yihe 1982
980 Qinghe 1982
981   1982
982   1983
983   1983
984   1983
985   1983
986 Sihe 1983
987   1983
988   1983
type 073II 1 757 Dongyun 757 1980 1040t, 77.4x10.4x2.5m, 2d, 2200hp, 15kts, 60p; 2x2-37/63, 2x2-25/80; 3tanks, 100troops; type 756 radar
type 073IIY 2 937   1985 1100t, 79.0x10.5x2.5m, 2d, 2200hp, 16kts, 106p; 2x2-37/63; 4tanks; type 756 radar
938 Luliangshan 1985
type 073III 1 990 Wudangshan 1991 1850t, 90.0x12.6x2.3m, 2d, 4800hp, 17kts, 74p; 2x2-37/63, 2x40-122 rl, 6tanks, 180troops; type 756 radar
type 073A 10 941 Shengshan 2004 1850t, 90.0x12.6x2.3m, 2d, 4800hp, 17kts, 74p; 1x2-37/63; 6tanks, 180troops; type 756 radar
942 Lushan 2004
943 Mengshan 2004
944 Yushan 2004
945 Huashan 2003
946 Songshan 2004
947 Lushan 2004
948 Xueshan 2004
949 Hengshan 2004
950 Taishan 2004
type 074A 11 3128   2004 1200t, 64.0x11.0x2.7m, 2d, 18kts, 27p; 2x2-14.5; 6tanks, 70troops; type 756 radar
3129   2004
3232   2005
3233   2004
3234   2004
3235   2005
3302   2005
3315   2004
3316   2004
3317   2004
3318   2004
LPA Nanyun 830 3 830 Nanyun 830 1980 2150t, 86.0x13.4x3.9m, 3d, 3960hp, 16kts, 59p; 4x2-14.5/93; 400troops, 350t cargo; 2x type 753 radars
831 Nanyun 831 1982
836 Nanyun 836 1985
LSS type 271I 1 G703   1970 500t, 54.0x9.2x1.7m, 2d, 1200hp, 13kts, 36p; 2x2-14.5/93; 2tanks; radar
type 271II 1 G3806   1975 500t, 54.0x9.2x1.7m, 2d, 1200hp, 13kts, 36p; 2x2-14.5/93; 3tanks; radar
type 271IID 22 GD410   1979 507t, 54.0x9.2x1.7m, 2d, 1200hp, 13kts, 36p; 2x2-14.5/93; 3tanks; radar
GD411   1979
GD417   1979
JD200   1979
JD302   1980
K1740   1980
KD260   1980
KD261   1980
N1122   1981
N1123   1981
N1208   1981
N2102   1981
ND101   1981
ND312   1982
ND621   1982
ND737   1982
ND800   1982
ND801   1982
ND832   1983
ND833   1983
S2209   1983
S2226   1983
type 271III 1 G2323   1989 600t, 54.0x9.2x1.7m, 2d, 2284hp, 15kts, 36p; 2x2-14.5; 3tanks; type 756 radar
type 271IIIA 5 481   1989 800t, 56.5x10.4x2.3m, 2d, 2284hp, 15kts, 56p; 2x2-14.5; 3tanks, 70troops; type 756 radar
3703   1989
6562   1990
7559   1990
5   1990
type 074 12 3111   1995 800t, 58.4x10.4x2.7m, 2d, 4900hp, 14kts, 56p; 1x2-25/80, 2x2-14.5; 2tanks, 200troops; radar
3112   1995
3113   1996
3115   1996
3116   1997
3117   1997
3229   1998
3231   1998
3244   1999
7593   1999
7594   2000
7595   2000
LCAC type 722II 10 1-10   1989-1995 no picture 70t, 22.0x8.0x0m, 4pe(2ap), 5980hp, 50kts; 100troops
type 726 1 3320   2009 180t, 28.8x7.2x0m, 4gt(2ap), 10000hp, 40kts, 6p; 1x2-14.5; 80troops or 1 tank; radar
LC type 067 200 81   1969 133t, 27.5x5.4x1.4m, 2d, 600hp, 10.5kts, 6p; 2x2-25/80; 1tank; radar
82   1969
83   1969
84   1969
85   1969
86   1969
87   1969
88   1969
89   1969
90   1969
91   1969
92   1969
93   1969
94   1969
95   1969
96   1969
97   1969
98   1969
99   1969
100   1969
101   1969
102   1969
103   1969
104   1969
105   1969
106   1969
107   1969
108   1969
109   1969
110   1969
111   1969
112   1969
113   1970
114   1970
115   1970
116   1970
117   1970
118   1970
119   1970
120   1970
121   1970
122   1970
123   1970
124   1970
125   1970
126   1970
127   1970
128   1970
129   1970
130   1970
131   1970
132   1970
133   1970
134   1970
135   1970
136   1970
137   1970
138   1970
139   1970
140   1970
141   1970
142   1970
143   1970
144   1970
145   1970
146   1970
147   1970
148   1970
149   1970
150   1970
151   1970
152   1970
153   1970
154   1970
155   1970
156   1970
157   1970
158   1970
159   1970
160   1970
161   1970
162   1970
163   1970
164   1970
165   1970
166   1970
167   1970
168   1970
169   1971
170   1971
171   1971
172   1971
173   1971
174   1971
175   1971
176   1971
177   1971
178   1971
179   1971
180   1971
181   1971
182   1971
183   1971
184   1971
185   1971
186   1971
187   1971
188   1971
189   1971
190   1971
191   1971
192   1971
193   1971
194   1971
195   1971
196   1971
197   1971
198   1971
199   1971
200   1971
201   1971
202   1971
203   1971
204   1971
205   1971
206   1971
207   1971
208   1971
209   1971
210   1971
211   1971
212   1971
213   1971
214   1971
215   1971
216   1971
217   1971
218   1971
219   1971
220   1971
221   1971
222   1971
223   1971
224   1971
225   1972
226   1972
227   1972
228   1972
229   1972
230   1972
231   1972
232   1972
233   1972
234   1972
235   1972
236   1972
237   1972
238   1972
239   1972
240   1972
241   1972
242   1972
243   1972
244   1972
245   1972
246   1972
247   1972
248   1972
249   1972
250   1972
251   1972
252   1972
253   1972
254   1972
255   1972
256   1972
257   1972
258   1972
259   1972
260   1972
261   1972
262   1972
263   1972
264   1972
265   1972
266   1972
267   1972
268   1972
269   1972
270   1972
271   1972
272   1972
273   1972
274   1972
275   1972
276   1972
277   1972
278   1972
279   1972
280   1972
type 066 100 1-100   1959-1969 no picture 85t, 24.8x5.2x1.3m, 2d, 600hp, 11.5kts, 12p; 1x2-14.5/93; 150troops
type 068/069 40 1-40   1967-1997 85t, 24.8x5.2x1.3m, 2d, 600hp, 11.5kts, 12p; 2x2-14.5/93; 150troops

MINE WARFARE

ML type 918 1 814 Liaonyang 1988 2418t, 93.8x14.4x3.9m, 4d(2), 6400hp, 18kts, 200p; 4x2-37/63, 300mines; 2x type 756 radars
MSO type 010 14 830 Suzhou 1984 590t, 60.0x8.6x2.2m, 2d, 2200hp, 14kts, 80p; 1x1-85/52, 1x2-37/70, 4x2-25/80, 4x2-14.5, 2dct, 2dcr, 16mines, mechanical, magnetic, acoustic minesweeping gear; type 756 radar, Tamir-11 sonar
831 Taizhou 1985
832 Changzhou 1985
833 Quanzhou 1985
808 Yunzhou 1986
809 Changningjian 1986
834 Sizhou 1986
845 Zhuzhou 1986
849 Meizhou 1986
850 Chouzhou 1987
851 Huizhou 1987
852 Miluo 1987
853 Wuzhou 1987
854 Luizhou 1988
type 082II 1 804 Huoqiu 2005 700t, 55.0x9.3x2.6m, 2d, 2200hp, 15.5kts; 2x2-25/80, mines, 2 IJM-01 USV, mechanical, magnetic, acoustic minesweeping gear; radar, sonar
type 081 4 805 Zhangjiagang 2007 996t, 65.0x10.0xm, 2d, 16kts; 1x2-37/63, mines, 2 Pinguin B3 USV, mechanical, magnetic, acoustic minesweeping gear; radar, sonar
810 Jingjiang 2007
839 Liuyang 2007
840 Luxi 2007
MSC type 082 4 800 Chung'an 1987 310t, 44.8x6.2x2.3m, 2d, 2200hp, 15.5kts, 28p; 2x2-25/80, mines, mechanical minesweeping gear(800), mechanical, magnetic, acoustic minesweeping gear(801-803); type 753 radar, sonar
801 Xiangshan 1997
802 Chongming 2002
803 Fenghua 2003
type 082I 12 806 Zhuji 2004 310t, 44.8x6.2x2.3m, 2d, 2200hp, 15.5kts, 28p; 2x2-25/80, mechanical, magnetic, acoustic minesweeping gear; type 753 radar, sonar
807 Haiyan 2004
816 Haimen 2004
817 Wenling 2005
820   2005
821   2005
822   2006
823   2006
824   2006
825 Huarong 2007
826 Rongjian 2007
827 Qionghai 2007
MSI type 057K 1 1   1962 no picture 190t, 40.0x8.0x3.5m, 1d, 400hp, 12kts; 1x2-37/63, 1x2-14.5, mechanical, magnetic, acoustic minesweeping gear; radar
type 7102 1 1   1975 no picture 142t, 38.9x5.4x1.6m, 2d, 19kts; 1x2-25/80, mechanical, magnetic, acoustic minesweeping gear; radar
MSB type 312 46 1-46   1972-1984 no picture 47t, 20.9x4.2x1.3m, 1d, 300hp, 11.5kts, 0/3p; magnetic, acoustic minesweeping gear
type 529 3 8041-8043   2005 50t, 1d, 0/3p; magnetic, acoustic minesweeping gear; radar

COAST GUARD

PS type 053H 2 1002   1979 1702t, 103.2x10.2x3.1m, 2d, 16000hp, 25.5kts, 190p; 1x1-37/63, 2x2-14.5; 2x radars
1003   1979
Haijing 17 3 17   2005 1200t, 73.9x10.2x2.6m, 1d, 2325hp, 16kts; 2x radars
46   2005
71   2005
Haijing 44001 1 44001   2005 650t, 63.0xxm, 2d, 1x2-37/63; 2x radars
Pudong 1 1001 Pudong 2007 1618t, 93.0x12.0xm, 2d, 22kts; 1x2-37/63, heldeck; 2x radars
Haijing 44044 5 12001   2009 650t, 60.0xxm, 2d, 25kts; 1x2-37/63, 1x2-14.5; 2x radars
33001   2009
44044   2007
46001   2007
46002   2007
Haijing 21001 5 13001   2009 650t, 63.5x9.0xm, 4d(4wj), 12185hp, 24.5kts; 1x2-37/63, 2x JRC radars
21001   2009
32001 Taicang 2009
37001 Laoshan 2009
44015 Zhuhai 2009
PB Haijing 33012 8 33012, 33042, 33043, 33052, 35012, 44033, 44071, 45024   2005-2009 no picture 58t, 22.5x4.8x1.6m, 2d, 1600hp, 22kts, 13p; 1x1-14.5; radar

MARINE SURVEILLANCE

PSO Haijian 28 2 28   1978 4435t, 112.5x15.2x5.5m, 2d, 4500hp, 18.2kts, 150p; 2x radars
81   1981
Haijian 52 1 52   1967 3165t, 94.7x14.0x7.8m, 2d, 4000hp, 14.5kts, 106p; 2x radars
Haijian 19 1 19   1993 4900t, 91.0x14.7x7.6m, 13.5kts, 60p; 2x radars

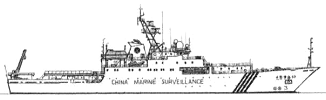

Haijian 83 1 83   2005 3980t, 98.0x15.2x7.8m, 2d, 5170hp, 18kts, 80p; heldeck; 2x radars
PS Haijian 18 4 18   1995 800t, 70.0x9.4x4.5m, 2d, 3600hp, 18kts, 33p; 2x radars
49   1995
72   1995
74   1995
Haijian 73 1 73   1968 no picture 1180t, 74.0x10.0x4.7m, 2d, 3700hp, 17.5kts; 2x radars
Haijian 53 1 53   1976 1500t, 71.4x10.5x5.2m, 2d, 2200hp, 14kts, 95p; type 753 radar
Haijian 11 4 11   1972 780t, 65.3x9.2x4.3m, 16kts; 2x radars
42   1973
47   1973
62   1973
Haijian 45 1 45   1990 no picture heldeck; 2x radars
Haijian 40 1 40   1969 no picture 1120t, 66.2x10.2x4.8m, 2d, 2095hp, 15kts; radar
Haijian 22 1 22   1974 no picture 1180t, 74.0x10.0x3.4m, 2d, 3700hp, 18kts, 30p; 2x radars
Haijian 8005 1 8005   1995 no picture 1295t, 63.0x9.0x3.2m; radar
Haijian 27 1 27   2004 1300t, 75.8x10.2x4.0m, 2d, 6480hp, 16kts; 2x radars
Haijian 51 1 51   2005 1900t, 88.0x12.0x3.6m, 2d, 4650hp, 14kts; 2x radars
Haijian 9012 1 9012   2009 631t, 66.5x8.8x4.5m, 2d, 6000hp, 20kts, 25p; 2x radars
PC Haijian 20 2 20   1989 400t, 58.8x7.3x2.4m, 4d, 8800hp, 30.5kts; 1x2-37/63, 2x2-14.5; type 351 radar
32   1989
Haijian 1003 1 1003   1992 no picture 253t, 42.0x7.2x2.6m, 2d, 1000hp, 13kts, 24p; radar
Haijian 1011 1 1011   1992 no picture 42.0xxm
Haijian 76 2 76   1992 no picture 300t, 40.0xxm
77   1992
Haijian 4006 1 4006   1992 no picture 38.0xxm
Haijian 4001 1 4001   1992 no picture 37.0xxm
Haijian 4075 1 4075   1992 no picture 37.0xxm
Haijian 2001 1 2001   1992 no picture 173t, 36.6x6.0x1.6m, 2d, 815hp, 13kts; radar
Haijian 59 1 59   1992 no picture 36.0xxm
Haijian 21 1 21   1978 no picture 36.0xxm
Haijian 7021 1 7021   1995 no picture 35.0xxm
Haijian 1042 1 1042   1995 no picture 32.0xxm
Haijian 82 1 82   1980 no picture 200t, 29.5x7.6x3.8m, 8kts; radar
Haijian 41 2 41   1978 no picture 202t, 36.2x6.6x3.9m, 11kts; radar
44   1978
PB Haijian 7652 4 7652, 8017, 8041, 8046   1992 no picture 24.0xxm
Haijian 4036 1 4036   1995 no picture 100t, 29.8x6.0xm, 13.5kts; radar
Haijian 901 2 901   2003 no picture 166t, 40.5x6.0x3.2m, 2d, 1185hp; radar
9001   2006
Haijian 10 26 10, 29, 48, 56, 58, 63, 79, 89, 91, 92, 2003, 4007, 4009, 4011, 4031, 5006, 5007, 7013, 7017, 7023, 7051, 7071, 8010, 8031, 8061, 9089   2004-2005 no picture 17t, 18.9x4.6x1.9m, 2d, 420hp, 16p; radar
Haijian 16 4 16, 36, 55, 80   2008 no picture 58t, 26.4x5.5x1.0m, 2d, 1770hp, 21.5kts; radar

MARITIME SAFETY ADMINISTRATION

PSO Haixun 31 1 31   2005 3000t, 112.8x13.8x5.0m, 2d, 15550hp, 22kts; 1hel(Z-9); 2x radars
Haixun 11 1 11   2009 3240t, 114.4x13.8x4.6m, 2d, 16200hp, 22kts, 56p; 1hel(Z-9); 2x radars
PS Haixun 21 1 21   2001 1500t, 93.2x12.2x5.4m, 2d, 10065hp, 22kts; heldeck; 2x radars
PC Haixiun 51 1 103   1986 400t, 60.1x7.4x2.6m, 2d, 2600hp, 18kts; 2x radars
Haiguan 901 7 901   1990 no picture 435t, 58.0x7.6x2.2m, 4d, 8720hp, 28kts, 50p; 1x2-37/63, 2x2-14.5; radar
902   1992
903   1993
904   1995
905   1996
906   1997
907   1998
Haixun 101 2 101   2003 55.0xxm, 2x radars
151   2003
PB type 206/611 63 1   1987 no picture 180t, 43.8x6.5x1.7m, 2d, 2448 or 4000hp, 17 or 28.5kts, 24p; 1x2-25/80, 2x2-14.5; radar
2   1987
3   1987
4   1988
5   1988
6   1988
7   1989
8   1989
9   1989
10   1990
11   1990
12   1990
13   1990
14   1990
15   1990
16   1990
17   1990
18   1990
19   1990
20   1990
21   1991
22   1991
23   1991
24   1991
25   1991
26   1991
27   1991
28   1991
29   1991
30   1991
31   1991
32   1992
33   1992
34   1992
35   1992
36   1992
37   1992
38   1992
39   1992
40   1992
41   1992
42   1992
43   1993
44   1993
45   1993
46   1993
47   1993
48   1993
49   1993
50   1993
51   1993
52   1993
53   1993
54   1994
55   1994
56   1994
57   1994
58   1994
59   1994
60   1994
61   1994
62   1994
63   1994
pr. 206mod 23 1   1989 no picture 165t, 28.0x4.2x1.6m, 2d, 2200hp, 13kts, 26p; 2x2-14.5; radar
2   1990
3   1991
4   1992
5   1993
6   1994
7   1995
8   1996
9   1997
10   1998
11   1999
12   2000
13   2000
14   2001
15   2002
16   2002
17   2003
18   2004
19   2005
20   2006
21   2007
22   2008
23   2009
Haiguan 801 42 801-842   1992-1999 no picture 98t, 31.0x4.7x1.7m, 2d, 2200hp, 32kts, 26p; 2x2-14.5; 2x Decca 1290 radars

FISHERIES LAW ENFORCEMENT COMMAND

PS Yuzheng 302 1 302   1992 no picture 2d; 2x2-14.5; 2x radars
Yuzheng 31001 1 31001   1992 66.0xxm, 2d; 2x radars
Yuzheng 203 1 203   1992 no picture 2d; 2x radars
Yuzheng 204 1 204   1992 no picture 2d; 2x radars
Yuzheng 306 1 306   1992 no picture 2d; 2x radars
Yuzheng 31 1 31   1992 1000t, 69.4x9.6x3.3m, 2d, 13kts, 25p; 2x2-14.5; 2x radars
Yuzheng 117 2 117   1992 500t, 50.0xxm, 2d; 2x radars
37016   1992
Yuzheng 118 6 118   1993 970t, 69.4x9.6x3.3m, 2d, 3550hp, 35p; 2x radars
201   1993
202   1993
301   1993
302   1993
303   1993
Yuzheng 31006 1 31006   2003 no picture 2d, 2x radars
Yuzheng 31008 1 31008   2005 no picture 2d, 2x radars
Yuzheng 311 1 311   1971 4450t, 113.5x15.5x4.0m, 2d, 4500hp, 20kts, 180p; 2x1-14.5; 2x type 756 radars
PC Yuzheng 44101 1 44101   2005 no picture 2d; 1x2-14.5; 2x radars

HONG KONG POLICE

PC PL3 1 PL3   1988 no picture 450t, 40.0x8.5x3.2m, 2d, 2350hp, 14kts, 27p; 2x1-12.7; 2 C342/8 radars
PB PL70 10 PL70-73, 75, 77, 79, 80, 82, 83   1984-1985 no picture 97t, 26.5x5.8x1.8m, 3d(2+1wj), 3000hp, 25kts, 17p; RM-1290 radar
PL46 4 PL46-49   1992 no picture 11t, 11.4x4.2x1.3m, 2d, 550hp, 30kts, 4p; radar
PL51 6 PL51   1992 no picture 170t, 31.5x8.1x1.6m, 2d, 4400hp, 26kts, 19p; 1x1-12.7; Decca radar
PL52   1993
PL53   1993
PL54   1993
PL55   1993
PL56   1993
PL40 6 PL40-45   2000 no picture 15t, 13.1x4.0x0.7m, 2d(2wj), 720hp, 35kts, 4p; radar
PL60 6 PL60   2002 no picture 120t, 30.1x6.3x1.7m, 2d, 3600hp, 25kts, 13p; SM5000 radar
PL61   2003
PL62   2003
PL63   2004
PL64   2004
PL65   2005
PL5 10 PL5-14   2007-2009 no picture 39t, 19.0x5.0x1.0m, 3d, 3300hp, 45kts, 8p; radar

HONG KONG CUSTOMS

PB Sea Reliance 2 CE8 Sea Reliance 2000 no picture 125t, 32.0xxm, 28kts; radar
CE9 Sea Fidelity 2000
Sea Leader II 3 CE2 Sea Leader II 2009 no picture 170t, 30.0xxm, 26kts; radar
CE5 Sea Guardian II 2009
CE6 Sea Glory II 2009

AIRCRAFT



NAVY

Ship-based 25 Z-9C, 15 SA-321, 20 Z-8/8A, 2 Z-8S, 3 Z-8JH, 13 Ka-28

Land-based combat capable

 20 H-5/F-5/F-5B, 30 H-6D, 48 J-8I/F/B/D, 36 J-7, 84 JH-7, 30 Q-5, 24 Su-30MK2, 4 PS-5, 7 HZ-5, 6 Y-8J/JB, 4 Y-8X, 14 JJ-6, 4 JJ-7

ARMY

Land-based combat capable

12 DF-31, 24 DF-31A, 10 DF-4, 20 DF-5A, 80 DF-21, 36 DF-21C, 2 DF-3A, 108 DF-11A, 96 DF-15, 54 CJ-10

100 Z-9WA, 26 Z-9W

AIR FORCE

Combat capable

82 H-6/E/F/H, 48 J-7, 192 J-7B, 48 J-7H, 48 J-7C, 24 J-7D, 144 J-7E, 48 J-7G, 24 J-8, 60 J-8A, 108 J-8B, 36 J-8D, 12 J-8E, 24 J-8F, 48 J-8H, 120+ J-10, 116 J-11, 73 Su-30MKK, 18+ J-11B, 72 JH-7/7A, 120 Q-5/D/E, 72 JZ-6, 24 JZ-8, 24 JZ-8F, 4 KJ-2000, 4 KJ-200, 10 Y-8D, 3 Y-8H1, 32 Su-27UBK

MARINES

equipment 100+ type 63/63A, 60 type 05 AAAV ZTD-05 LT TK, 180+ type 63C/type 77II/type 86, 200 type 05 AAAV ZBD-05 APC, some type 83 122mm howitzers, type 63 107mm RL, HJ-73, HJ-8, type 98 ATGW, HN-5 SAM

© Ivan Gogin, 2017
