World navies yesterday

2005



United Kingdom 01 January 2005

SUBMARINES

SSBN Vanguard 4 S28 Vanguard 1993 14000/15850t, 149.3x12.8x10.1m, 1nr,2gst(1wj), 27500hp, /25kts, 143p, 230m; 16 Trident D-5 SLBM(16), 4-533TT; type 1007 radar, type 2054 sonar suite, UAC(3), UAP(3) ECM, 3x SSE Mk 10 dl, SAFS 3, DCC(BN) CCS
S29 Victorious 1995
S30 Vigilant 1996
S31 Vengeance 1999
SSN Swiftsure 4 S108 Sovereign 1974 4200/4900t, 82.9x9.8x8.3m, 1nr,2gst(1), 15000hp, 20/28kts, 97p, 300m; 5-533TT(inc Sub-Harpoon SSM(4))(104,108,109); 5-533TT(inc Tomahawk CruM(4), Sub-Harpoon SSM(4))(105); type 1007 radar, type 2007, type 2046, type 2072, type 2074, type 2077, type 2082 sonars, UAP ECM, SAWCS dl, type 2066, type 2071 td, DCB/DCG CCS
S109 Superb 1976
S104 Sceptre 1978
S105 Spartan 1979
Trafalgar 7 S107 Trafalgar 1983 4740/5208t, 85.4x9.8x8.3m, 1nr,2gst(1)(107)-1nr,2gst(1wj)(exc107), 15000hp, 20/30kts, 97p, 300m;  5-533TT(inc Tomahawk CruM(4), Sub-Harpoon SSM(4))(87,91,93,107), 5-533TT(inc Sub-Harpoon SSM(4))(88,90,92); type 1007 radar, type 2076 sonar suite(90,91), type 2020 MODEX(92,93,107), type 2007(107,87,88,92), type 2072(93), type 2019 PARIS(87,88,92,93,107), type 2026(107,87-89), type 2046(90-93), type 2027(87,88,92,93,107), type 2074(87,88), type 2082(90,91) sonars, UAC(92,93), UAP(1)(87,88,90,91,107) ECM, type 2071 dl, 2x SSE Mk8 dl, DCB/DCG(92,93), SMCS(87,88,107), SMCS NG(90,91) CCS
S87 Turbulent 1984
S88 Tireless 1985
S90 Torbay 1987
S91 Trenchant 1989
S92 Talent 1990
S93 Triumph 1991

AIRCRAFT CARRIERS

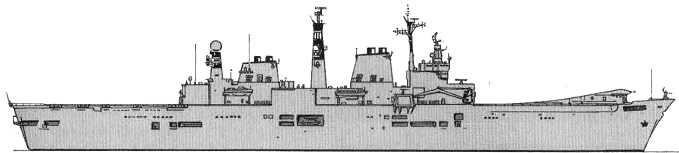

CVS Invincible 3 R05 Invincible 1980 20600t, 210.0x36.0x6.5m, 4gt(2), 112000hp, 28kts, 875p; 3x7-30/77(05,06), 3x6-20/76(07), 2x1-20/90(06,07), 18ac (Sea Harrier attackers, Sea King helicopters); type 996, type 1022, 2x type 1007, type 1008, 3x Goalkeeper(05,06), 3x Mk90(07) radars, type 2016 sonar, UAT(7)(05,07), UAT(8)(06), UAD/UAK(06), 4x DLH, 8x Sea Gnat dl, type 182 td, ADAWS 10 (05), ADIMP(06,07) CCS
R06 Illustrious 1982
R07 Ark Royal 1985

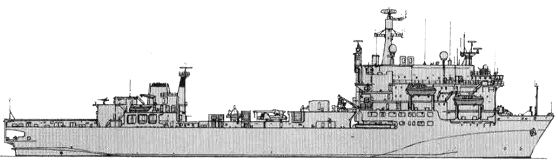

CVH Contender Bezant 1 A135 Argus 1982 28480t, 173.0x30.6x8.2m, 2dg,2em, 23400hp, 22kts, 108+137p; 2x1-20/90, 12hel(Sea King, Lynx, Gazelle); type 1006, type 1007, type 994 radars, UAN(1) ECM, 2x Shield dl, type 182 td

PRINCIPAL SURFACE COMBATANTS

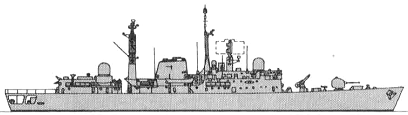

DD Sheffield batch 1 3 D87 Newcastle 1978 4250t, 125.0x14.3x4.3m, COGOG:2gt/2gt(2), 54400/8200hp, 28kts, 253p; 1x2 Sea Dart SAM(22), 1x1-114/55, 2x1-20/90, 2x6-20/76, 2x1-20/70(88,108), 1hel(Lynx); type 1022, type 996, type 1007, type 1008, 2x type 909, 2x Mk 90 radars, type 162M, type 2016 sonars, UAA(2) ECM, 2x DEC laser dazzlers, 4x DLD dl, 4x DLF(3) fd, type 2070 td, ADAWS-7 CCS
D88 Glasgow 1979
D108 Cardiff 1979
Sheffield Batch 2 4 D89 Exeter 1980 4250t, 125.0x14.3x4.3m, COGOG:2gt/2gt(2), 54400/8200hp, 28kts, 253p; 1x2 Sea Dart SAM(22), 1x1-114/55, 2x6-20/76, 2x1-20/90(89,90,92), 4x1-20/90(91), 1hel(Lynx); type 1022, type 996, type 1007, type 1008, 2x type 909, 2x Mk 90 radars, type 162M, type 2050 sonars, UAA(2)(91,92), UAT(5)(89,90) ECM, 4x DLD(91,92), 2x Corvus(89,90) dl, 2x DEC laser dazzlers, 4x DLF(2) fd, type 182 td, ADAWS-7(91,92), ADAWS-7 Mod.1(89,90) CCS
D90 Southampton 1981
D92 Liverpool 1982
D91 Nottingham 1983

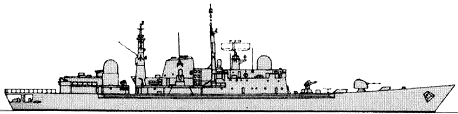

Sheffield Batch 3 4 D95 Manchester 1982 4775t, 141.1x14.9x4.2m, COGOG:2gt/2gt(2), 54400/10680hp, 29.5kts, 253p; 1x2 Sea Dart SAM(22), 1x1-114/55, 2x6-20/76, 2x1-20/90, 2x3-324TT, 1hel(Lynx); type 1022, type 996, type 1007, type 1008, 2x type 909, 2x Mk 90 radars, 2x Rademac 2100 e/o detectors, type 162M, type 2050 sonars, UAT(5) ECM, 4x DLB dl, 4x DLJ(2) fd, 2x DEC laser dazzlers, type 2070 td, ADAWS-8 CCS
D96 Gloucester 1985
D97 Edinburgh 1985
D98 York 1985
FF Cornwall 4 F99 Cornwall 1988 4850t, 148.1x14.8x5.4m, COGAG:2gt+2gt(2), 48220hp, 30kts, 232p; 2x4 Harpoon SSM(8), 2x6 Sea Wolf SAM(72), 1x1-114/55, 1x7-30/77, 2x1-30/75, 2x1-20/90(87), 2x3-324TT, 2hel(Lynx) or 1hel(Sea King); type 967M, type 968, 2x type 911, Goalkeeper, type 1006 radars, type 2016(99), type 2050(85-87), type 2031Z sonars, 2x GSA.8 e/o directors, UAT(5/6), UAD/UAK, ECM, 4x DLB dl, 4x DLF(2) fd, 2x DEC laser dazzlers, type 182 td, CACS5 CCS
F85 Cumberland 1989
F86 Campbeltown 1989
F87 Chatham 1990

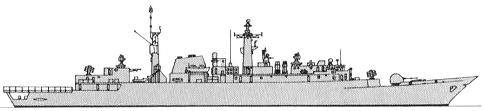

Norfolk 16 F230 Norfolk 1990 4300t, 133.0x16.1x4.3m, CODLAG:2gt+4dg,2em, 41540(229-236)-56300(237-239,78-83)hp, 28(229-236)-30(237-239,78-83)kts, 169p; 2x4 Harpoon SSM(8), 1x32 Sea Wolf SAM VLS(32), 1x1-114/55, 2x1-30/75, 2x1-20/90, 4-324TT, 1hel(Lynx)(78-83,230,231,233,235-239), 1hel(Merlin)(229,234); type 996(2), 2x type 911, type 1007, type 1008 radars, type 2050NE, type 2031Z sonars, GSA8 e/o director, UAT(5/6), UAD/UAK, 2x type 675(78-83,229-231,233-236,238,239), 2x type 695(237) ECM, 4x DLB(78-83,229-231,233-236,238,239), 4x DLH(237) dl, 2x DEC laser-dazzlers, 4x DLF(2) fd, type 182(78-83,229-231,233-236,238,239), type 2070(237) td, SSCS DNA(1) CCS
F233 Marlborough 1991
F231 Argyll 1991
F229 Lancaster 1992
F234 Iron Duke 1993
F235 Monmouth 1993
F236 Montrose 1994
F237 Westminster 1994
F238 Northumberland 1994
F239 Richmond 1995
F82 Somerset 1996
F80 Grafton 1997
F81 Sutherland 1997
F78 Kent 2000
F79 Portland 2001
F83 St. Albans 2002

PATROL AND COASTAL COMBATANTS

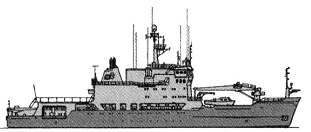

PSO Polar Circle 1 A171 Endurance 1990 6500t, 91.0x17.9x6.5m, 2d(1), 8152hp, 16kts, 112+14p; 2hel(Lynx); type 1007, R84, M34ARG radars
PS Jura 1 - Westra 1975 1285t, 59.4x11.0x4.3m, 2d(1), 4200hp, 16.5kts, 43p; radar
Castle 2 P258 Leeds Castle 1981 1550t, 81.0x11.5x3.4m, 2d, 5640hp, 20kts, 45p; 1x1-30/75, heldeck; type 994, type 1006 radars, UAN-1 ECM, 4x DLE dl, 2x DLF fd
P265 Dumbarton Castle 1982
Tyne 3 P281 Tyne 2003 1800t, 79.8x13.6x4.2m, 2d, 11280hp, 20kts, 45+3p; 1x1-20/85; 2x Nucleus-3 5000 radars
P282 Severn 2003
P283 Mersey 2004
PB Archer 16 P163 Express 1988 49t, 20.8x5.8x1.8m, 2d, 1590(exc274,275)-2000(274,275)hp, 22.5(exc274,275)-25(274,275)kts, 5+13p; Decca 1216 radar
P164 Example 1986
P165 Explorer 1985
P167 Exploit 1988
P264 Archer 1985
P270 Biter 1985
P272 Smiter 1986
P273 Pursuer 1988
P274 Tracker 1998
P275 Raider 1998
P279 Blazer 1988
P280 Dasher 1988
P291 Puncher 1988
P292 Charger 1988
P293 Ranger 1988
P294 Trumpeter 1988
Grey Fox 2 P284 Scimitar 1988 no picture 24t, 16.0x4.4x1.2m, 2d, 740hp, 32kts, 5+30p; Bridgemaster 360 radar
P285 Sabre 1988

AMPHIBIOUS

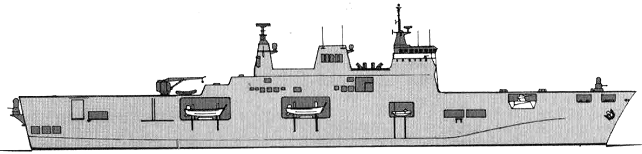

LPH Ocean 1 L12 Ocean 1999 21758t, 203.4x36.1x6.7m, 2d, 23904hp, 19kts, 490p; 4x2-20/85, 3x6-20/76, 18ac(Sea King, Lynx helicopters); 4 LCVP Mk 5, 2 Griffon LCAC, 80vehicles, 500troops; 2x type 1007, type 996(2), 3x Mk 90 radars, UAT(4), 2x type 675 ECM, 8x DLJ(2) dl, 2x DLH dl, ADAWS 2000 Mod. 1 CCS

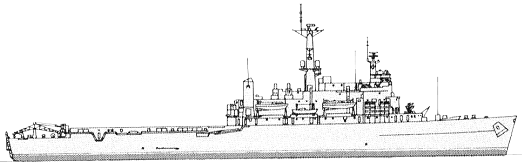

LPD Fearless 2 L10 Fearless 1965 12120t, 158.5x24.4x6.3m, 2b,2gst, 22000hp, 21kts, 580p; 2x2-30/75, 2x6-20/76(10), 2x1-20/90, heldeck; 4 LCM, 4 LCVP, 400troops, 15tanks, 27vehicles; type 1006, type 994, 2x Mk 90(10) radars, 2x Corvus dl, CAAIS CCS
L11 Intrepid 1967

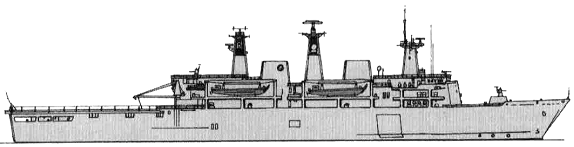

Albion 1 L14 Albion 2003 18500t, 176.0x28.9x7.2m, 4dg,2em, 16320hp, 18kts, 325p; 2x7-30/77, 2x1-20/85, 4hel(Merlin); 4 LCU Mk 10, 4 LCVP Mk 5, 70vehicles, 305troops; 2x type 1007, type 1008, type 996(2), 2x Goalkeeper radars, UAT(4) ECM, 8x DLJ(2) dl, type 2170 td, ADAWS 2000 Mod. 1 CCS

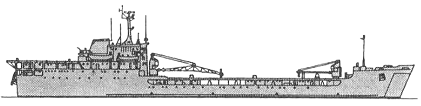

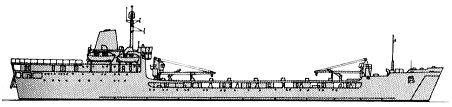

LST Sir Lancelot 2 L3027 Sir Geraint 1967 5674t, 125.1x19.6x4.3m, 2d, 9400hp, 17kts, 68p; heldeck; 4 LCVP, 16tanks, 34vehicles, 534troops; type 1007 radar, 4x Shield dl
L3036 Sir Percivale 1968

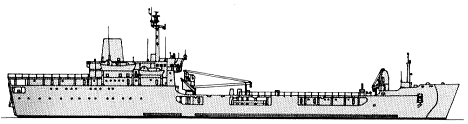

Sir Lancelot mod. 1 L3505 Sir Tristram 1967 5794t, 134.7x19.6x4.3m, 2d, 9400hp, 17kts, 68p; heldeck; 4 LCVP, 16tanks, 34vehicles, 534troops; type 1007 radar, 4x Shield dl
Sir Lancelot mod. 2 1 L3004 Sir Bedivere 1967 6700t, 139.0x19.6x4.3m, 2d, 9840hp, 17kts, 68p; heldeck; 4 LCVP, 16tanks, 34vehicles, 534troops; type 1007 radar, 4x Shield dl

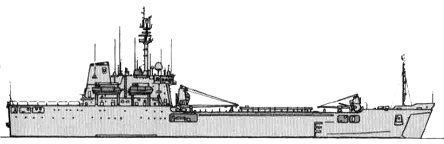

Sir Galahad 1 L3005 Sir Galahad 1987 8585t, 140.5x20.0x4.6m, 2d, 13310hp, 18kts, 49p; 1hel(Sea King); 18tanks, 20vehicles, 340troops; type 1007 radar, 4x DLE dl, type 182 td
LC LCM(9) 3 L705   1965 no picture 176t, 27.5x6.8x1.6m, 2d, 624hp, 10kts, 6p; 2tanks
L709   1966
L711   1965
Arromanches 6 L107 Andalsnes 1984 no picture 290t, 33.3x8.3x1.5m, 2d, 660hp, 9.2kts, 6p; 100t cargo; Bridgemaster-E 180 radar
L109 Akyab 1984
L110 Aachen 1987
L111 Arezzo 1987
L105 Arromanches 1987
L113 Audemer 1987
LCVP Mk 4 25 LCVP8301, 8401, 8403-8408, 8410-8418, 8619-8622   1982-1987 no picture 16t, 13.0x3.2x0.8m, 2d, 440hp, 20kts, 3p; 35troops; Raytheon radar
LCVP Mk 5 23 LCVP9473, 9673-9692, 9707, 9708   1996-2004 no picture 23t, 15.3x4.2x0.6m, 2d, 860hp, 25kts, 3p; 35troops; Raytheon 40 radar
LCU Mk 10 8 L1001 LCU01 1999 no picture 240t, 29.8x7.4x1.5m, 2d, 1090hp, 12kts, 7p; 1tank; radar
L1002 LCU02 1999
L1003 LCU03 2003
L1004 LCU04 2003
L1005 LCU05 2004
L1006 LCU06 2004
L1007 LCU07 2004
L1008 LCU08 2004

MINE WARFARE

MSO Hunt 11 M29 Brecon 1980 725t, 60.0x9.9x2.2m, 2d, 1900hp, 17kts, 45p; 1x1-30/75, 2x PAP-104 Mk 3 USV(30,34,38,41), 2x Seafox USV(31,33,37,39), mechanical, acoustic, magnetic minesweeping gear(30,31,33,34,37-39,41); type 1006(4) radar, type 193M Mod. 1(29,30,32,34,35,38,41), type 2193(31,33,37,39), Mil Cross(31,33,37,39) sonars, 2x DLJ(2) fd, 2x DLK dl, DBA(4) CAAIS(29,30,32,34,35,38,41), NAUTIS III(31,33,37,39) CCS
M30 Ledbury 1981
M31 Cattistock 1982
M32 Cottesmore 1983
M33 Brocklesby 1983
M34 Middleton 1984
M35 Dulverton 1983
M37 Chiddingfold 1984
M38 Atherstone 1987
M39 Hurworth 1985
M41 Quorn 1989
MSC Sandown 11 M101 Sandown 1989 484t, 52.5x10.5x2.3m, 2d(2vs), 2024hp, 15kts, 34p; 1x1-30/75, 1x PAP-104 USV; type 1007 radar, type 2093 sonar, NAUTIS-M CCS
M102 Inverness 1991
M104 Walney 1993
M105 Bridport 1993
M106 Penzance 1998
M107 Pembroke 2000
M108 Grimsby 1999
M109 Bangor 2000
M110 Ramsey 2001
M111 Blyth 2001
M112 Shoreham 2002

AIRCRAFT



NAVY

Ship-based

 48 Sea Harrier FA.2, 7 Sea Harrier T.4/8, 42 Sea King HAS.5/6, 33 Sea King HC.4, 2 Sea King AEW.7, 11 Sea King AEW.2, 36 Lynx HAS.3, 23 Lynx HMA.8, 38 Merlin HMA.1

Land-based combat capable

 14 Hawk T.1
Royal Marines ship-based 12 Gazelle AH.1, 6 Lynx AH.17

ARMY

Combat capable

17 Apache WAH.1, 109 Lynx AH.1/7/9, 133 SA-341 Gazelle, 15 Scout, 8 Phoenix

AIR FORCE

Combat capable

117 Tornado GR.4, 24 Tornado GR.4A, 113 Tornado F.3, 56 Jaguar GR.3/3A, 6 Jaguar T.10, 71 Harrier GR.7, 8 Harrier T.10, 115 Hawk T.1/1A/1W, 6 Canberra PR.9, 1 Canberra T.4, 3 Nimrod R.1, 21 Nimrod MR.2, 7 E-3D Sentry

MARINES

equipment 24 BvS10 Viking ATTC, 81mm mortars, Milan ATGW, MAMBA radars, HVM SAM
