Netherlands 01 January 2005
SUBMARINES
| SS | Walrus | 4 | S802 | Walrus | 1992 | |
2450/2800t, 67.7x8.5x7.0m, 3dg,1em, 3950/5500hp, 13/21kts, 50p, 300m; 4-533TT(inc Sub-Harpoon SSM(4)); ZW-07 radar, Octopus, type 2026, DUUX-5 sonars, Argo 700 ecm, SEWACO VIII(802,803), SEWACO VII(808,810) CCS |
| S803 | Zeeleeuw | 1990 | |||||
| S808 | Dolfijn | 1993 | |||||
| S810 | Bruinvis | 1994 |
PRINCIPAL SURFACE COMBATANTS

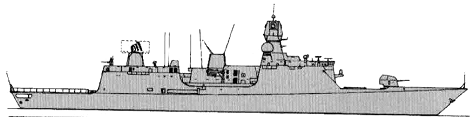

| DD | De Zeven Provinciën | 3 | F802 | De Zeven Provinciën | 2002 |  |
6050t, 144.2x18.8x5.2m, CODOG:2gt/2d(2), 53040/13600hp, 28kts, 182(802,803)-171(804,805)p; 2x4 Harpoon SSM(8), 1x40 Standard SM-2MR SAM / 4x ESSM SAM(32+32), 1x1-127/54, 2x7-30/77, 2x1-12.7, 2x2-324TT, 1 helicopter (Sea Lynx); SMART-L, APAR, Scout, nav. radars, Mirador-FD, Sirius e/o, DSQS-24C, ALF sonars, Sabre ecm, 4x SRBOC dl, SLQ-25 td, SEWACO XI CCS |
| F803 | Tromp | 2003 | |||||
| F804 | De Ruyter | 2004 | |||||

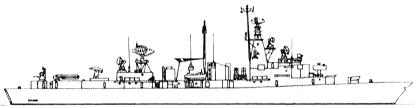

| FF | Jacob van Heemskerck | 2 | F812 | Jacob van Heemskerck | 1986 |  |
3750t, 130.2x14.4x4.2m, COGOG:2gt/2gt(2), 51600/9800hp, 30kts, 197p; 2x4 Harpoon SSM(8), 1x1 Standard SM-1MR SAM(40), 1x8 Sea Sparrow SAM(24), 1x7-30/77, 2x1-20/70, 4-324TT; ZW-06, SMART-S, Scout, LW-08, STIR-18, 2x STIR-24, Goalkeeper radars, PHS-36 sonar, Sphinx, Ramses ECM, 2x SRBOC dl, SLQ-25 td, SEWACO II CCS |
| F813 | Witte de With | 1986 | |||||

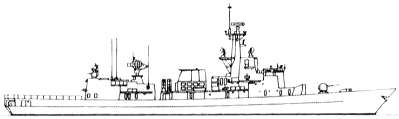

| Karel Doorman | 6 | F827 | Karel Doorman | 1991 |  |
3320t, 122.3x14.4x4.3m, CODOG:2gt/2d(2), 37530/9800(827)-48900/9800(828-834)hp, 29(827)-30(828-834)kts, 154p; 2x4 Harpoon SSM(8), 1x16 Sea Sparrow SAM(VLS,16), 1x1-76/62, 1x7-30/77, 2x1-20/70, 4-324TT, 1 helicopter (Sea Lynx); type 1007, Scout, SMART-S, LW-08, 2x STIR-18, Goalkeeper radars, PHS-36, DSBV-61 Anaconda(828,832-834) sonars, AR700, 2x APECS II ecm, 2x SRBOC dl, SLQ-25 td, SEWACO VIIA(827), SEWACO VIIB(828-834) CCS | |
| F828 | Van Speijk | 1995 | |||||
| F829 | Willem van der Zaan | 1991 | |||||
| F831 | Van Amstel | 1993 | |||||
| F833 | Van Nes | 1994 | |||||
| F834 | Van Galen | 1994 |
AMPHIBIOUS

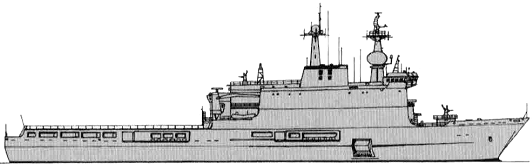

| LPD | Rotterdam | 1 | L800 | Rotterdam | 1998 |  |
12750t, 166.2x25.0x5.2m, 4dg,4em(2), 16320hp, 20kts, 128p; 2x7-30/77, 8x1-12.7, 6 helicopters (NH 90); 4 LCU, 30 tanks, 611 troops; DA-08, Scout, 2x Pilot, 2x Goalkeeper radars, IRSCAN e/o, AR-900 ecm, 4x SRBOC dl, SLQ-25A td, MCCIS CCS |
| LC | LCA(2) | 6 | L9530-9535 | 1984-1986 | no picture | 14t, 16.0x4.4x1.3m, 1d(1s), 260hp, 11kts, 3p; 25troops; Furuno radar | |
| LCA(3) | 6 | L9536-9541 | 1990-1992 | no picture | 29t, 16.9x4.8x1.1m, 2d(2s), 520hp, 13kts, 3p; 34troops; Furuno radar | ||
| LCU-1 | 5 | L9525 | 1998 | no picture | 260(9525)-200(9526-9529)t, 36.1(9525)-27.3(9526-9529)x6.8x1.6m, 2dg,2em(2s), 1400hp, 9kts, 5p; 2x1-12.7; 130troops or 2 AIFV; Furuno radar | ||
| L9526 | 1999 | ||||||
| L9527 | 1999 | ||||||
| L9528 | 1999 | ||||||
| L9529 | 1999 |
MINE WARFARE
| MSO | Alkmaar | 10 | M853 | Haarlem | 1984 |  |
595t, 51.5x8.9x2.5m, 1d, 1900hp, 15kts, 42p; 1x1-20/90, 2x PAP-104 USV, mechanical minesweeping gear; Decca 1229 radar, DUBM-21B sonar |
| M856 | Maasluis | 1984 | |||||
| M857 | Makkum | 1985 | |||||
| M858 | Middelburg | 1986 | |||||
| M859 | Hellevoetsluis | 1987 | |||||
| M860 | Sciedam | 1986 | |||||
| M861 | Urk | 1986 | |||||
| M862 | Zierikzee | 1987 | |||||
| M863 | Vlaardingen | 1989 | |||||
| M864 | Willemstad | 1989 |
COAST GUARD
| PS | Barend Biesheuvel | 1 | 1 | Barend Biesheuvel | 2001 | no picture | 1240t, 61.4x11.0x3.8m, 2d, 4700hp, 17kts, 20p; 2x radars |
| PC | Visarend | 2 | 1 | Visarend | 2001 | no picture | 200t, 42.8x7.1x2.5m, 2d, 5400hp, 22.5kts, 12p; 2x nav. radars |
| 2 | Zeearend | 2002 |
COAST GUARD OF NETHERLANDS ANTILLES AND ARUBA
| PC | Jaguar | 3 | P810 | Jaguar | 1998 |  |
205t, 42.8x7.1x2.5m, 2d, 5600hp, 26kts, 11+6p; 1x1-12.7; type 1007, Scout radars, SEWACO CCS |
| P811 | Panter | 1999 | |||||
| P812 | Poema | 1999 | |||||
| PB | P1 | 4 | PB1-4 | 1975 | no picture | 50t, 17.5x4.8x1.6m, 2d, 1190hp, 18kts, 6p; 1x1-12.7; Decca radar |
GENDARMERIE
| PB | RV165 | 2 | RV165, 169 | 1975 | no picture | 17.3x5.0x1.3m, 2d, 700hp, 17.5kts; radar |
CUSTOMS
| PC | Strommeeuw | 1 | 1 | Stormmeeuw | 2003 | no picture | 34.3x7.2x1.6m, 2d, 2540hp, 16kts; 2x radars |
| PB | Grote Stern | 1 | 1 | Grote Stern | 1995 | no picture | 25t, 18.5x4.8x1.3m, 2d, 25kts; radar |
| Jan van Gent | 1 | 1 | Jan van Gent | 2000 | no picture | 24.0xxm, 2d, 22kts; radar | |
| Kokmeeuw | 1 | 1 | Kokmeeuw | 2004 | no picture | 19.8x5.5x1.5m, 2d, 1640hp, 23kts, 2+10p: JMA 608T radar |
AIRCRAFT
NAVY
|
Ship-based |
21 SH-14B Lynx |
| Land-based combat capable | 10 P-3C |
AIR FORCE
|
Combat capable |
112 F-16A, 25 F-16B, 30 AH-64D |
MARINES
|
Combat equipment |
22 YPR-765, 17 XA-188 Sisu APC, 14 Brandt 120mm mortars, 18 81mm mortars, Dragon ATGW, AT-4 RL, Carl Gustav 84mm RCL, Stinger SAM |
