Argentina 01 January 2005
SUBMARINES
| SS | type 209 | 1 | S31 | Salta | 1974 | |
1140/1248t, 55.9x6.3x5.5m, 4dg,1em, 2400/4500hp, 11.5/22kts, 31p, 250m; 8-533TT; Calypso radar, CSU-3, DUUX-2CN, DUUG-1D sonars, DR-2000U ECM, M8 CCS |
| TR-1700 | 2 | S41 | Santa Cruz | 1984 | |
2150/2356t, 65.9x7.3x6.5m, 4dg,1em, 6720/8980hp, 15/25kts, 30p, 300m; 6-533TT; Calypso IV radar, CSU-3/4, DUUX-5 sonars, Sea Sentry III ECM, SINBADS CCS | |
| S42 | San Juan | 1985 |
PRINCIPAL SURFACE COMBATANTS

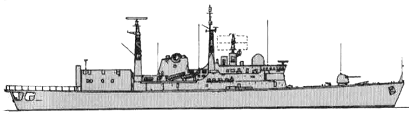

| DD | type 42 | 1 | D2 | Santísima Trinidad | 1981 |  |
4100t, 125.0x14.3x4.2m, COGOG:2gt/2gt(2), 54400/8200hp, 28kts, 270p; 4x1 MM38 Exocet SSM(4), 1x2 Sea Dart SAM(20), 1x1-114/55, 2x1-20/70, 2x3-324TT, 1dcr, 1helicopter(Fennec); type 1006, type 965P (AKE-2), type 992Q, 2x type 909 radars, type 184M, type 162M sonars, RDL-2, RCM-2 ECM, 2x Corvus dl, type 738 td, ADAWS-4 CCS |
| MEKO A360 | 4 | D10 | Almirante Brown | 1983 |  |
3360t, 125.9x15.0x4.3m, COGOG:2gt/2gt(2), 51600/10200hp, 30.5kts, 200p; 2x4 MM40 Exocet SSM(8), 1x8 Albatros SAM(24), 1x1-127/54, 42-40/70, 2x3-324TT(18), 1dcr, 1helicopter (Fennec); Decca 1226, ZW-06, DA-08A, WM-25, STIR, 2x LIROD radars, KAE80 sonar, Sphinx, Scimitar ECM, 2x SCLAR dl, G1738 td, SEWACO CCS | |
| D11 | La Argentina | 1983 | |||||
| D12 | Heroína | 1983 | |||||
| D13 | Sarandí | 1984 | |||||
| FS | A69 | 3 | P31 | Drummond | 1978 |  |
1250t, 80.5x10.3x3.6m, 2d, 12000hp, 24kts, 95p; 4x1 MM38 Exocet SSM(4), 1x1-100/55, 1x2-40/70, 2x1-20/70, 2x1-12.7, 2x3-324TT; DRBV-51A, Decca 1226, DRBC-32E radars, Panda Mk 2, Naja Mk 2 e/o, Diodon sonar, DR-2000S3, Alligator 51 ECM, 2x Syllex dl, MINIACO C31 CCS |
| P32 | Guerrico | 1978 | |||||
| P33 | Granville | 1981 | |||||
| A140 | 6 | P41 | Espora | 1985 |  |
1790t, 91.2x11.1x3.3m, 2d, 20400hp, 27kts, 93p; 2x2 MM38 Exocet SSM(4), 1x1-76/62, 2x2-40/70, 2x1-12.7, 2x3-324TT, heldeck(41-43), 1 helicopter (Alouette III)(44-46); Decca 1226(41-44), NavBat(45,46), DA-05/2, WM-28, LIROD radars, ASO-4 sonar, RQN-3B, TQN-2X ECM, 2x Dagaie dl, SEWACO CCS | |
| P42 | Rosales | 1986 | |||||
| P43 | Spiro | 1987 | |||||
| P44 | Parker | 1990 | |||||
| P45 | Robinson | 2000 | |||||
| P46 | Gómez Roca | 2004 |
PATROL AND COASTAL COMBATANTS
| PS | King | 2 | P20 | Murature | 1945 |  |
1032t, 76.8x8.8x2.3m, 2d, 2500hp, 18kts, 130p; 3x1-105/41, (1x2+2x1)-40/60, 3x1-12.7, 4dct; Decca 1226 radar |
| P21 | King | 1946 | |||||
| Sotoyomo | 1 | A9 | Alférez Sobral | 1944 |  |
835t, 43.6x10.3x4.0m, 2dg,2em, 1500hp, 13kts, 49p; 1x1-40/60, 2x1-20/70; Decca 1226 radar | |
| Abnaki | 3 | A1 | Comandante General Irigoyen | 1945 |  |
1731t, 62.5x11.7x5.2m, 4dg,1em, 3000hp, 16kts, 85p; 3x1-40/60(1), 1x2-40/60(3), 1x1-40/60(6), 2x1-20/70(1), 4x1-20/70(3,6); Decca 626, Decca 1230 radars | |
| A3 | Francisco de Gurruchaga | 1945 | |||||
| A6 | Suboficial Castillo | 1944 | |||||
| Marsea | 1 | A2 | Teniente Olivieri | 1981 |  |
1640t, 56.3x12.3x4.3m, 2d, 3230hp, 12kts, 16p; 2x1-12.7; 2x radars | |
| PM | Intrépida | 1 | P85 | Intrépida | 1974 |  |
268t, 44.9x7.4x.2.3m, 4d, 14400hp, 37kts, 42p; 2x1 MM38 Exocet SSM(2), 1x1-76/62, 1x1-40/70, 2-533TT; Decca 626, WM-22, M-11 radars, Cutlass ECM |
| PT | Intrépida | 1 | P86 | Indómita | 1975 | |
268t, 44.9x7.4x.2.3m, 4d, 14400hp, 37kts, 42p; 1x1-76/62, 2x1-40/70, 2-533TT; Decca 626, WM-22, M-11 radars, Cutlass ECM |
| PB | Dabur | 4 | P61 | Baradero | 1979 |  |
39t, 19.8x5.5x1.8m, 2d, 840hp, 22kts, 8p; 2x1-20/70, 2x2-12.7; Decca 101 radar |
| P62 | Barranqueras | 1978 | |||||
| P63 | Clorinda | 1979 | |||||
| P64 | Concepción del Uruguay | 1979 | |||||
| Point | 2 | P65 | Punta Mogotes | 1970 |  |
69t, 25.3x5.2x1.8m, 2d, 1600hp, 22.6kts, 10p; 2x1-12.7; SPS-64(v)1 radar | |
| P66 | Río Santiago | 1970 |
AMPHIBIOUS
| LPA | type 42 | 1 | B52 | Hércules | 1976 |  |
4100t, 125.0x14.3x4.2m, COGOG:2gt/2gt(2), 54400/8200hp, 28kts, 270p; 4x1 MM38 Exocet SSM(4), 1x1-114/55, 2x1-20/70, 2x3-324TT, 1dcr, 1helicopter(Sea King); 100troops; type 1006, type 965P (AKE-2), type 992Q, type 909 radars, type 184M, type 162M sonars, RDL-2, RCM-2 ECM, 2x Corvus dl, type 738 td, ADAWS-4 CCS |
| Canal Beagle | 3 | B3 | Canal Beagle | 1978 |  |
10894t, 119.9x17.5x7.5m, 2d, 6400hp, 16kts, 40p; 8 LCVP(4), 6300t cargo,130 troops(4); 2x nav. radars | |
| B4 | Bahía San Blas | 1978 | |||||
| B5 | Cabo de Hornos | 1979 | |||||
| LCVP | LCM(6) | 4 | EDM1-4 | 1943-1945 |  |
56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank | |
| EDVP30 | 8 | EDVP30-37 | 1971-1975 |  |
13t, 10.9x3.2x1.0m, 1d, 200hp, 9kts, 2p; 36troops |
COAST GUARD
| WPS | R1 | 1 | GC13 | Delfín | 1957 | no picture | 1280t, 56.9x9.4x4.3m, 2d(1), 2965hp, 15kts, 27p; 1x1-20/70, 2x1-12.7; 2x Decca radars |
| Mantilla | 5 | GC24 | Doctor Manuel Mantilla | 1982 |  |
900t, 67.0x10.5x3.3m, 2d, 9000hp, 21kts, 37p; 1x1-40/70, 2x1-12.7, 1 helicopter (Esquilo); 2x Decca 1226 radars | |
| GC25 | Azopardo | 1983 | |||||
| GC26 | Thompson | 1983 | |||||
| GC27 | Prefecto Pique | 1983 | |||||
| GC28 | Prefecto Derbes | 1983 | |||||
| WPC | Mandubi | 1 | GC43 | Mandubi | 1940 | no picture | 270t, 33.2x4.0x1.9m, 2d, 880hp, 11kts, 12p; 2x1-12.7; radar |
| WPB | Dorado | 1 | GC101 | Dorado | 1939 | no picture | 43t, 21.2x4.3x1.5m, 2d, 360hp, 12kts, 7p |
| Lynch | 2 | GC21 | Lynch | 1964 |  |
117t, 27.4x5.8x1.9m, 2d, 2700hp, 22kts, 16p; 1x1-20/70; Decca radar | |
| GC22 | Toll | 1966 | |||||
| Tonina | 1 | GC47 | Tonina | 1977 | no picture | 153t, 25.5x5.3x2.1m, 2d, 1500hp, 11kts, 11p; 1x1-20/70, 2x1-12.7; Decca 1226 radar | |
| Estrellamar | 22 | GC48 | Estrellamar | 1977 | no picture | 15t, 12.5x3.6x1.1m, 2d, 560hp, 20kts, 3p; 1x1-12.7; radar | |
| GC49 | Remora | 1977 | |||||
| GC50 | Congrio | 1977 | |||||
| GC51 | Mero | 1977 | |||||
| GC52 | Marsopa | 1977 | |||||
| GC53 | Petrel | 1977 | |||||
| GC54 | Salmón | 1977 | |||||
| GC55 | Biguá | 1977 | |||||
| GC56 | Foca | 1981 | |||||
| GC57 | Tiburón | 1979 | |||||
| GC58 | Melba | 1979 | |||||
| GC59 | Lenguado | 1979 | |||||
| GC60 | Orca | 1979 | |||||
| GC61 | Pinguino | 1979 | |||||
| GC88 | El Chalten | 1981 | |||||
| GC89 | Perca | 1981 | |||||
| GC90 | Calamar | 1981 | |||||
| GC91 | Hipocampo | 1981 | |||||
| GC92 | Robalo | 1981 | |||||
| GC93 | Camarón | 1981 | |||||
| GC94 | Gaviota | 1981 | |||||
| GC95 | Trucha | 1981 | |||||
| Mar del Plata | 18 | GC64 | Mar del Plata | 1979 |  |
81t, 27.7x5.3x1.7m, 2d, 2100hp, 22kts, 15p; 1x1-20/90, 2x1-12.7; Decca 1226 radar | |
| GC65 | Martin García | 1979 | |||||
| GC66 | Río Luján | 1979 | |||||
| GC67 | Río Uruguay | 1979 | |||||
| GC68 | Río Paraguay | 1979 | |||||
| GC69 | Río Paraná | 1979 | |||||
| GC70 | Río de la Plata | 1979 | |||||
| GC71 | La Plata | 1979 | |||||
| GC72 | Buenos Aires | 1979 | |||||
| GC73 | Cabo Corrientes | 1980 | |||||
| GC74 | Quequén | 1980 | |||||
| GC75 | Bahía Blanca | 1980 | |||||
| GC76 | Ingeniero White | 1980 | |||||
| GC77 | Golfo San Matías | 1980 | |||||
| GC78 | Madryn | 1980 | |||||
| GC79 | Río Deseado | 1980 | |||||
| GC80 | Ushuaia | 1980 | |||||
| GC81 | Canal Beagle | 1980 | |||||
| Surel | 1 | GC142 | Surel | 1997 | no picture | 15t, 11.9x3.8x0.7m, 2d(2wj), 1360hp, 38kts, 4p; 1x1-12.7; Furuno radar |
AIRCRAFT
NAVY
|
Ship-based |
7 ASH-3H Sea King, 4 AS-555 Fennec, 5 SA-316B, 7 UH-1H |
| Land-based combat capable | 6 Super Étendard, 5 S-2T, 4 P-3B, 5 Be-200M/G, 2 Be-200F, 1 PL-6A |
ARMY
|
Combat capable |
21 OV-1D, 4 A-109 |
AIR FORCE
|
Combat capable |
19 Dagger Nesher, 7 Mirage V Mara, 36 A-4AR Fightinghawk, 13 Mirage IIIEA, 29 IA-58 Pucará, 1 Boeing 707 (MR), 5 Learjet 35A, 2 IA-50, 9 UH-1H, 15 Hughes 369, 4 Hughes MD-500, 13 IA-63 Pampa, 11 MS-760 |
PREFECTURA NAVAL
|
Ship-based |
1 AS-330L, 2 AS-365, 1 AS-565MA, 2 Schweizer 300C |
MARINES
| equipment | 12 ERC-90 Lynx. some HMMWV, 10 LVTP-7, 15 LARC-5, 6 Mowag Grenadier, 36 Panhard VCR, 6 M101 105mm howitzers, 12 model 56 105mm howitzers, 70 81mm, 12 120mm mortars, 60 M20 89mm RL, 50 Bantam ATGW, some Mamba ATGW, 30 1874F Mk 1 105mm RCL, 10 HS0816 30mm AA guns, some GDF-001 35mm AA guns, 6 RBS-70 SAM |
