World navies yesterday

2000



United States of America 01 January 2000

SUBMARINES

SSBN Ohio 18 SSBN726 Ohio 1981 16764/18750t, 170.7x12.8x11.1m, 1nr,2gst(1), 35000hp, /25kts, 163p, 300m; 24 Trident I C-4 SLBM(726-733), 24 Trident II D-5 SLBM(734-743), 4-533TT; BPS-15H radar, BQQ-5E(V)4/-6 sonar suite, BQS-13, BQS-15(with TB-23), BQR-19, BQQ-9 TASPE sonars, WLR-8(V)5, WLR-10 ECM, 8x CSA Mk1 dl, CCS Mk2 CCS
SSBN727 Michigan 1982
SSBN728 Florida 1983
SSBN729 Georgia 1984
SSBN730 Henry M. Jackson 1984
SSBN731 Alabama 1985
SSBN732 Alaska 1986
SSBN733 Nevada 1986
SSBN734 Tennessee 1988
SSBN735 Pennsylvania 1989
SSBN736 West Virginia 1990
SSBN737 Kentucky 1991
SSBN738 Maryland 1992
SSBN739 Nebraska 1993
SSBN740 Rhode Island 1994
SSBN741 Maine 1995
SSBN742 Wyoming 1996
SSBN743 Louisiana 1997
SSN Sturgeon 3 SSN666 Hawkbill 1971 4246/4777t, 89.1(666)-92.1(680,686)x9.7x7.8m, 1nr,2gst(1), 15000hp, 15/26kts, 99p, 400m; 4-533TT(inc Tomahawk CruM(8), Sub-Harpoon SSM(4)); 1 DSRV(666,680), 1 DDS(16 SEALS)(680,686); BPS-14, BPS-15 radars, BQQ-5, BQR-7 sonars, WLQ-4 ECM, Mk117 CCS
SSN680 William H. Bates 1973
SSN686 L. Mendel Rivers 1975
Lafayette 1 SSN642 Kamehameha 1965 7325/8251t, 129.6x10.1x8.5m, 1nr,2gst(1), 15000hp, 16/21kts, 140p, 400m; 4-533TT; 2 DDS, 66commandos, SDV; BPS-11, BPS-15 radars, BQS-4, BQR-7, BQR-15, BQR-19 sonars, ELR-8 ECM
Los Angeles 51 SSN688 Los Angeles 1976 6080/6927(688-699)-6130/6977(700-714)-6165/7012(715-718)-6255/7102(719-725,750)-6255/7102(751-773)t, 109.7x10.1x9.8m, 1nr,2gst(2), 35000hp, /33kts, 141p, 450m; 1x12 Tomahawk CruM(VLS,12)(719-725,750-773); BPS-15(688-725,750), 4-533TT(inc Tomahawk CruM(8), Sub-Harpoon SSM(4)), BPS-16(751-773) radar, BQQ-5A(V)1/C (BQS-15, BQR-15/TB-16D/-23/29)(688-709,711-715), BQQ-5D(BQS-15, BQR-15/TB-16D/-23/-29)(710,716-725,750), BSY-1(751-773) sonar suite, BQG-5D(710), BQQ-10 ARCI(710,724) sonar, BRD-7, WLR-8(V)2, WLR-10, WLR-9/12, WLR-1H ECM, Mk1 Mod.2 dl, Mk117, BSY-1(751-773) CCS
SSN690 Philadelphia 1977
SSN691 Memphis 1977
SSN698 Bremerton 1981
SSN699 Jacksonville 1981
SSN700 Dallas 1981
SSN701 La Jolla 1981
SSN705 City of Corpus Christi 1983
SSN706 Albuquerque 1983
SSN707 Portsmouth 1983
SSN708 Minneapolis-Saint Paul 1984
SSN709 Hyman G. Rickover 1984
SSN710 Augusta 1985
SSN711 San Francisco 1981
SSN713 Houston 1982
SSN714 Norfolk 1983
SSN715 Buffalo 1983
SSN716 Salt Lake City 1984
SSN717 Olympia 1984
SSN718 Honolulu 1985
SSN719 Providence 1985
SSN720 Pittsburgh 1985
SSN721 Chicago 1986
SSN722 Key West 1987
SSN723 Oklahoma City 1988
SSN724 Louisville 1986
SSN725 Helena 1987
SSN750 Newport News 1989
SSN751 San Juan 1988
SSN752 Pasadena 1989
SSN753 Albany 1990
SSN754 Topeka 1989
SSN755 Miami 1990
SSN756 Scranton 1991
SSN757 Alexandria 1991
SSN758 Asheville 1991
SSN759 Jefferson City 1992
SSN760 Annapolis 1992
SSN761 Springfield 1993
SSN762 Columbus 1993
SSN763 Santa Fe 1994
SSN764 Boise 1992
SSN765 Montpelier 1993
SSN766 Charlotte 1994
SSN767 Hampton 1993
SSN768 Hartford 1994
SSN769 Toledo 1995
SSN770 Tucson 1995
SSN771 Columbia 1995
SSN772 Greenville 1996
SSN773 Cheyenne 1996
Seawolf 2 SSN21 Seawolf 1997 9138t, 107.6x12.8x11.0m, 1nr,2gst(wj), 45500hp, /39kts, 133p, 600m; 8-673TT (inc 12 Tomahawk CruM); BPS-16(V)3 radar, BSY(V) sonar suite, WLQ-4(V)1 ECM, BLQ-10 dl, BSY-2(V) CCS
SSN22 Connecticut 1998
SSNX Parche 1 SSN683 Parche 1974 4246/4777t, 122.4x9.7x10.7m, 1nr,2gst(1), 20000hp, 15/30kts, 147p, 400m; 4-533TT(inc Tomahawk CruM(8), Sub-Harpoon SSM(4)); BPS-14, BPS-15 radars, BQQ-5, BQR-7 sonars, WLQ-4 ECM, Mk117 CCS

AIRCRAFT CARRIERS

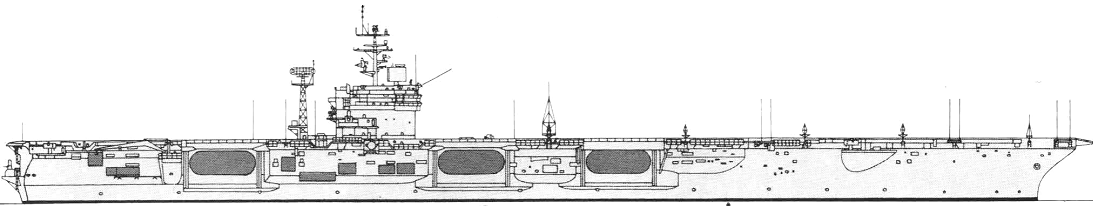

CVN Enterprise 1 CVN65 Enterprise 1961 89084t, 342.4x77.7x11.3m, 8nr,4gst, 280000hp, 32kts, 5287p; 150belt, 141decks; 3x8 Sea Sparrow SAM(24), 3x6-20/76, 90ac(24 F-14, 24 F/A-18, 10 A-6, 4 EA-6, 4 E-2, 4 KA-6, 10 S-3, 8 SH-3); SPS-12, SPS-48E, SPS-49, SPS-65, SPS-64, SPS-67, SPN-35A, SPN-41, SPN-42, SPN-44á 2x SPN-46, Mk23 TAS, 6x Mk95, 3x Mk90 radars, SLQ-32 ECM, 6x Mk36 SRBOC dl, TFSS, NTDS, ASCAC CCS
Nimitz 3 CVN68 Nimitz 1975 94217(68)-95359(69)-94982(70)t, 331.7x78.5x11.2m, 2nr,4gst, 280000hp, 31.5kts, 5621p; 135belt, 151decks; 3x8 Sea Sparrow SAM(24), 3x6-20/76(68,69), 4x6-20/76(70), 2x3-324TT(70), 90ac(24 F-14, 24 F/A-18, 10 A-6, 10 S-3, 4 EA-6, 4 E-2, 4 KA-6, 8 SH-3); SPS-49(V)5, SPS-48E, SPS-67(V)1, SPN-42A, SPN-43B, SPN-44A, Furuno 900, SPS-64(V)9, 6x Mk95, 3x Mk90(68,69), 4x Mk90(70), Mk23 TAS radars, SLQ-29(68), SLQ-32(V)4(69,70) ECM, 8x Mk36 SRBOC dl, SLQ-25A td, NTDS, JSIPS-N(70), ACDS(69) CCS
CVN69 Dwight D. Eisenhower 1977
CVN70 Carl Vinson 1982
Theodore Roosevelt 5 CVN71 Theodore Roosevelt 1986 103658(71)-104242(72)-104208(73)t, 332.9x78.3x11.9m, 2nr,4gst, 280000hp, 31.5kts, 6072p; 135belt, 151decks; 3x8 Sea Sparrow SAM(24), 3x6-20/76(71), 4x6-20/76(72-75), 90ac(48 F/A-18, 10 A-6, 10 S-3, 4 EA-6, 4 E-2, 4 KA-6, 8 SH-60); SPS-49(V)5, SPS-48E, SPS-67(V)1, SPN-43B, SPN-44, 2x SPN-46, SPS-64(V)9, Furuno-900(71,73-75), Raster(72), 6x Mk95, 3x Mk90(71), 4x Mk90(72-75), Mk23 TAS radars, SLQ-32(V)4 ECM, 8x Mk137 (Mk36 SRBOC) dl, SLQ-25A td, NTDS, ACDS, JTDS, POST, CVIC, JSIPS-N(71,73) CCS
CVN72 Abraham Lincoln 1989
CVN73 George Washington 1992
CVN74 John C. Stennis 1995
CVN75 Harry S. Truman 1998
CV Forrestal 2 CV61 Ranger 1957 78509t, 316.7x76.2x10.3m, 8b,4gst, 280000hp, 33kts, 4676p; 150belt, 141decks; 2x8 Sea Sparrow SAM(16)(61), 3x8 Sea Sparrow SAM(24)(62), 3x6-20/76, 90ac(20 F-14, 36 F/A-18, 4 E-2, 4 EA-6, 8 S-3, 4 SH-60); SPS-30(61), SPS-58, SPS-48C(62), SPS-49(62), SPS-37A(61), SPS-43A(62), SPS-64, SPS-67, SPN-41, SPN-43A, SPN-44, 2x SPN-42, 6x Mk95, Mk23 TAS(62), 3x Mk90 radars, SLQ-29 ECM(62), 8x Mk36 SRBOC dl, SLQ-25A SSTDS(62), NTDS(62), TFCC(62) CCS
CV62 Independence 1959

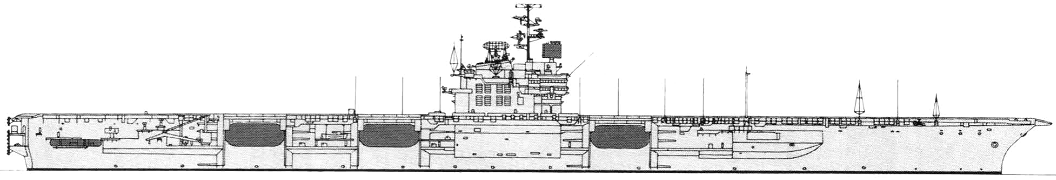

Kitty Hawk 2 CV63 Kitty Hawk 1961 80945t, 319.4x76.7x11.4m, 8b,4gst, 280000hp, 33.6kts, 4685p; 150(63,64)-135(66)belt, 141(63,64)-151(66)decks; 3x8 Sea Sparrow SAM(24), 3x6-20/76, 90ac(20 F-14, 24 F/A-18, 12 A-6, 4 EA-6, 4 E-2, 4 KA-6, 10 S-3, 8 SH-3); SPS-37A(64), SPS-10(66), SPS-43A(63,66), SPS-48(63,66), SPS-48C(64), SPS-49, SPN-41, SPN-43, SPN-46(63,64), 4x Mk95, 3x Mk90, Mk23 TAS radars, SQS-23(66) sonar, SLQ-32 ECM(63,64), 8x Mk36 SRBOC(63,64) dl, SLQ-25A td, upd. NTDS CCS
CV64 Constellation 1961
John F. Kennedy 1 CV67 John F. Kennedy 1968 80945t, 319.4x76.7x11.4m, 8b,4gst, 280000hp, 33.6kts, 4685p; 135belt, 151decks; 3x8 Sea Sparrow SAM(24), 3x6-20/76, 90ac(20 F-14, 24 F/A-18, 12 A-6, 4 EA-6, 4 E-2, 4 KA-6, 8 S-3, 8 SH-3); SPS-65, SPS-49, SPS-48E, SPS-64, SPS-67, SPN-41, SPN-43, SPN-44, SPN-46, 6x Mk95, 3x Mk90, Mk23 TAS radars, SLQ-32 ECM, 8x Mk36 SRBOC dl, SLQ-25A SSTDS td, NTDS upd. CCS

PRINCIPAL SURFACE COMBATANTS

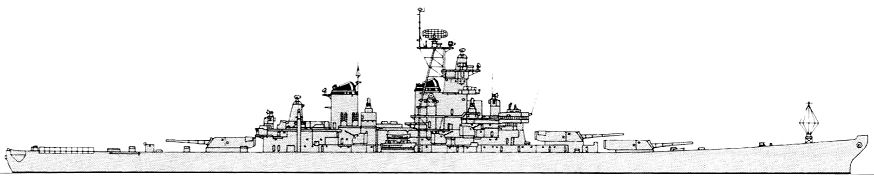

BB Iowa 2 BB61 Iowa 1943 59065t, 270.4x33.0x11.3m, 8b,4gst, 212000hp, 32.5kts, 1518p; 329belt, 241decks, 495turrets, 440CT; 8x4 Tomahawk CruM(32), 4x4 Harpoon SSM(16), 3x3-406/50, 6x2-127/38, 4x6-20/76, helodeck; SPS-49, SPS-67(V), 2x Mk13, 4x SPG-51 radars, SLQ-32(V) ECM, 8x Mk36 SRBOC dl, SLQ-25 td
BB64 Wisconsin 1944
CG Ticonderoga 5 CG47 Ticonderoga 1983 9589(47,48)-9047(49-51)t, 172.5x16.8x6.6m, 4gt(2), 86000hp, 31kts, 380p; 2x4 Harpoon SSM(8), 2x2 SM-2MR SAM(88), 2x1-127/54, 2x6-20/76, 4x1-12.7, 2x3-324TT, 2hel(SH-60); SPS-64(V)9, SPS-55, SPS-49(V)6/7/8, SPY-1A, 4x SPG-62, SPQ-9A, 2x Mk90 radars, SQS-53A sonar, SLQ-32(V)3 ECM, 4x Mk36 SRBOC dl, SLQ-25A Nixie td, Aegis Mk7 Baseline 5 CCS
CG48 Yorktown 1984
CG49 Vincennes 1985
CG50 Valley Forge 1986
CG51 Thomas S. Gates 1987
Ticonderoga VLS 22 CG52 Bunker Hill 1986 10010t, 172.5x16.8x7.5m, 4gt(2), 86000hp, 31kts, 380p; 2x64 Tomahawk CruM/SM-2MR SAM/ ASROC ASuR (VLS,128), 2x4 Harpoon SSM(8), 2x1-127/54(52-68), 2x1-127/62(69-73), 2x1-25/75, 2x6-20/76, 4x1-12.7, 2x3-324TT, 2hel(SH-60); SPS-64(V)9, SPS-55, SPS-49(V)6/7/8, SPY-1A(52-58), SPY-1B(59-64), SPY-1D(V)(65-73), 4x SPG-62, SPQ-9A, 2x Mk90 radars, SQS-53A(52-55), SQR-19(54,55), SQS-89(V)3 suite(56-67), SQS-89(V)4 suite(68-73) sonars, SLQ-32(V)3 ECM, 4x Mk36 SRBOC dl, SLQ-25A Nixie td, SLQ-49 fd, Mk50 ds(65-73), Aegis Mk7 Baseline 5 CCS
CG53 Mobile Bay 1987
CG54 Antietam 1987
CG55 Leyte Gulf 1987
CG56 San Jacinto 1988
CG57 Lake Champlain 1988
CG58 Philippine Sea 1989
CG59 Princeton 1989
CG60 Normandy 1989
CG61 Monterey 1990
CG62 Chancellorsville 1989
CG63 Cowpens 1991
CG64 Gettysburg 1991
CG65 Chosin 1991
CG66 Hué City 1991
CG67 Shiloh 1992
CG68 Anzio 1992
CG69 Vicksburg 1992
CG70 Lake Erie 1993
CG71 Cape St. George 1993
CG72 Vella Gulf 1993
CG73 Port Royal 1994
DD Spruance Tomahawk 1 DD985 Cushing 1979 8280t, 171.7x16.8x5.8m, 4gt(2), 86000hp, 32.5kts, 353p; 2x4 Tomahawk CruM(8), 2x4 Harpoon SSM(8), 1x8 Sea Sparrow SAM(24), 1x8 ASROC ASuR(24), 2x1-127/54, (0-2)x1-25/75, 2x6-20/76, 4x1-12.7, 2x3-324TT, 2hel(SH-60); SPS-64(V)9, SPS-55, SPS-40B/C/D/E, SPQ-9A, SPG-60, Mk91, 2x Mk90, Mk23 TAS radars, SSQ-89(V)5/6/8 sonar suite, SLQ-32(V)3 ECM, 4x Mk36 SRBOC dl, SLQ-25A td, SLQ-49 fd

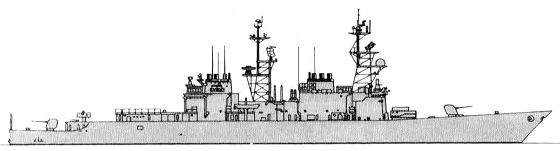

Spruance VLS 23 DD963 Spruance 1975 8280t, 171.7x16.8x5.8m, 4gt(2), 86000hp, 32.5kts, 353p; 1x61 Tomahawk CruM/ASROC ASuR(VLS, 61), 2x4 Harpoon SSM(8), 1x8 Sea Sparrow SAM(24), 1x21 RAM SAM(21)(972,973977, 982,987,992), 2x1-127/54, (0-2)x1-25/75, 2x6-20/76, 4x1-12.7, 2x3-324TT, 2hel(SH-60); SPS-64(V)9, SPS-55, SPS-40B/C/D/E(963-985,987-989,991,992), SPS-49(V)2(997), SPQ-9A, SPG-60, Mk91, 2x Mk90, Mk23 TAS(963-973,975,977, 978,980-982,987, 988,989, 991,992,997) radars, SSQ-89(V)5/6/8 sonar suite, SLQ-32(V)2(966,968, 970,971, 975, 981, 991), SLQ-32(V)3(963,964,965, 967,969,972, 973,977, 978,980,982, 987-989,992,997) ECM, 4x Mk36 SRBOC dl, SLQ-25A td, SLQ-49 fd
DD964 Paul F. Foster 1976
DD965 Kinkaid 1976
DD966 Hewitt 1976
DD967 Elliot 1977
DD968 Arthur W. Radford 1977
DD969 Peterson 1977
DD970 Caron 1977
DD971 David R. Ray 1977
DD972 Oldendorf 1978
DD973 John Young 1978
DD975 O'Brien 1977
DD977 Briscoe 1978
DD978 Stump 1978
DD980 Moosbrugger 1978
DD981 John Hancock 1979
DD982 Nicholson 1979
DD987 O'Bannon 1979
DD988 Thorn 1980
DD989 Deyo 1980
DD991 Fife 1980
DD992 Fletcher 1980
DD997 Hayler 1983
Arleigh Burke Flight I 21 DDG51 Arleigh Burke 1991 8850t, 153.8x20.3x6.3m, 4gt(2), 105000hp, 32kts, 337p; (1x61+1x29) Tomahawk CruM/SM-2MR SAM/ASROC ASuR (VLS,90), 2x4 Harpoon SSM(8), 1x1-127/54, 2x1-25/75, 2x6-20/76, 4x1-12.7, 2x3-324TT, helodeck; SPS-64(V)9, SPS-67(V)3, SPY-1D, 3x SPG-62, 2x Mk90 radars, SQQ-89(V)4 sonar suite, Mk46 E/O, SLQ-32(V)5(51-67), SLQ-32(V)3(68-71) ECM, 4x Mk36 SRBOC dl, 4x Nulka dl(52), SLQ-25A td, SLQ-39 ds, Aegis Mk7 Baseline 5 CCS
DDG52 Barry 1992
DDG53 John Paul Jones 1993
DDG54 Curtis Wilbur 1994
DDG55 Stout 1994
DDG56 John S. McCain 1994
DDG57 Mitscher 1994
DDG58 Laboon 1995
DDG59 Russell 1995
DDG60 Paul Hamilton 1995
DDG61 Ramage 1995
DDG62 Fitzgerald 1995
DDG63 Stethem 1995
DDG64 Carney 1996
DDG65 Benfold 1996
DDG66 Gonzalez 1996
DDG67 Cole 1996
DDG68 The Sullivans 1997
DDG69 Milius 1996
DDG70 Hopper 1997
DDG71 Ross 1997
Arleigh Burke Flight II 7 DDG72 Mahan 1998 9033t, 153.8x20.3x6.6m, 4gt(2), 105000hp, 32kts, 337p; (1x61+1x29) Tomahawk CruM/SM-2MR SAM/ SM-2ER SAM/ASROC ASuR (VLS,90), 2x4 Harpoon SSM(8), 1x1-127/54, 2x1-25/75, 2x6-20/76, 4x1-12.7, 2x3-324TT, helodeck; SPS-64(V)9, SPS-67(V)3, SPY-1D, 3x SPG-62, 2x Mk90 radars, SQQ-89(V)4 sonar suite, Mk46 E/O, SLQ-32(V)3 ECM, 4x Mk36 SRBOC dl, SLQ-25A td, SLQ-39 ds, Aegis Mk7 Baseline 5 CCS
DDG73 Decatur 1998
DDG74 McFaul 1998
DDG75 Donald Cook 1998
DDG76 Higgins 1999
DDG77 O'Kane 1999
DDG78 Porter 1999

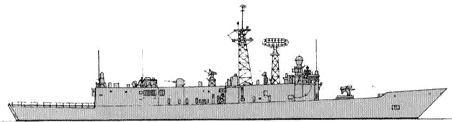

FF Oliver H. Perry 37 FFG8 McInerney 1979 4082(9,11-15,17-19)-4108(8,28,29,32,33,36-61)t, 135.6(9,11-15,17-19)-138.8(8,28,29,32,33,36-61)x13.7x5.8m, 2gt(1), 41000hp, 29kts, 217p; 1x1 Harpoon SSM(4)/ SM-1MR SAM(36), 1x1-76/62, 1x6-20/76, 4x1-12.7, 2x3-324TT, 2hel(SH-2)(9,11-15,17-19), 2hel(SH-60)(8,28,29,32,33,36-61); SPS-55, SPS-49(V)5, Mk92 Mod.6, SPG-60, Mk90 radars, SQQ-89(V)2 sonar suite(8,9,11-13, 15,19,28, 29,32,33, 36, 38-43,45-49, 53, 55-61), SQQ-89(V)10 sonar suite(14,34,37, 50-52,54), SLQ-32(V)2 ECM, 2x Mk137 SRBOC dl, SLQ-25 Nixie torpedo decoy, SYS(V)2 CCS
FFG9 Wadsworth 1980
FFG11 Clark 1980
FFG12 George Philip 1980
FFG13 Samuel Eliot Morison 1980
FFG14 Sides 1981
FFG15 Estocin 1981
FFG19 John A. Moore 1981
FFG28 Boone 1982
FFG29 Stephen W. Groves 1982
FFG32 John L. Hall 1982
FFG33 Jarrett 1983
FFG36 Underwood 1983
FFG37 Crommelin 1983
FFG38 Curts 1983
FFG39 Doyle 1983
FFG40 Halyburton 1984
FFG41 McClusky 1983
FFG42 Klakring 1983
FFG43 Thatch 1984
FFG45 De Wert 1983
FFG46 Rentz 1984
FFG47 Nicholas 1984
FFG48 Vandegrift 1984
FFG49 Robert G. Bradley 1984
FFG50 Taylor 1984
FFG51 Gary 1984
FFG52 Carr 1985
FFG53 Hawes 1985
FFG54 Ford 1985
FFG55 Elrod 1985
FFG56 Simpson 1985
FFG57 Reuben James 1986
FFG58 Samuel B. Roberts 1986
FFG59 Kauffman 1987
FFG60 Rodney M. Davis 1987
FFG61 Ingraham 1989

PATROL AND COASTAL COMBATANTS

PC Cyclone 13 PC1 Cyclone 1993 334t, 51.6x7.6x2.4m, 4d, 13400hp, 35kts, 28p; 1x1 Stinger SAM(6), 1x(1-25/75+1-40/17gl), 1x1-25/75, (4x2+1x1)-12.7, 2x1-40/17gl; RIB, 9commandos; Rascar 3400C radar, Wesmar sonar, FLIR E/O, APR-39(V)1 ECM, 2x Mk52 dl
PC2 Tempest 1993
PC3 Hurricane 1993
PC4 Monsoon 1994
PC5 Typhoon 1994
PC6 Sirocco 1994
PC7 Squall 1994
PC8 Zephyr 1994
PC9 Chinook 1995
PC10 Firebolt 1995
PC11 Whirlwind 1995
PC12 Thunderbolt 1995
PC13 Shamal 1996
PB YP676 26 YP676   1984 173t, 32.9x7.4x1.8m, 2d, 874hp, 13.2kts, 30p; SPS-64(V)9 radar
YP677   1984
YP679   1985
YP680   1985
YP681   1985
YP682   1985
YP683   1986
YP684   1986
YP685   1986
YP686   1986
YP687   1987
YP688   1987
YP689   1987
YP690   1987
YP691   1987
YP692   1987
YP693   1987
YP694   1987
YP695   1987
YP696   1988
YP697   1988
YP698   1988
YP699   1988
YP700   1988
YP701   1988
YP702   1988
LCW Mk V 22 25PN9401, 25MPB0001, 9501, 25PB0201-0212, 0301-0332, 0401-0403, 0501   1995-1999 68t, 24.7x5.3x1.3m, 2d(wj), 4570hp, 45kts, 5p; 4x2-12.7,1x1-40/17gl; 16commandos; Furuno radar

COMMAND SHIPS

CC Raleigh 1 AGF3 La Salle 1964 13745t, 156.4x25.6x6.3m, 2b,2gst, 24000hp, 21kts, 501p; 2x1-25/75, 2x6-20/76, 2x1-12.7, helodeck; HQpersonnel; SPS-10, SPS-40, SPS-64, 2x Mk90 radars, SLQ-32 ECM, 4x SRBOC Mk36 dl, SLQ-25 td
Austin 1 AGF11 Coronado 1970 16900t, 173.8x25.6x7.0m, 2b,2gst, 24000hp, 20kts, 501p; 2x1-25/75, 2x6-20/76, 2x1-12.7, 6 hel(6 CH-46); HQpersonnel; SPS-10F, SPS-64, 2x Mk90 radars, SLQ-32 ECM, 4x Mk36 SRBOC dl

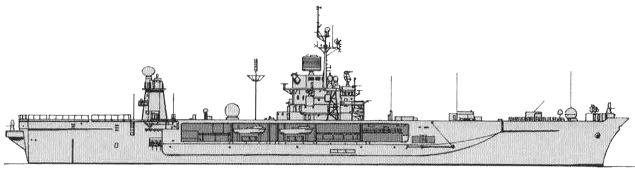

LCC Blue Ridge 2 LCC19 Blue Ridge 1970 19648(19)-19760(20)t, 194.0x32.9x8.2m, 2b,1gst, 22000hp, 21.5kts, 720p; 2x1-25/75, 2x6-20/76, 4x1-12.7, helodeck; 3 LCP, 2 LCVP, 700HQpersonnel; SPS-40C, SPS-48C, SPS-65, SPS-64, LN-66, 2x Mk90 radars, SLQ-32(19) ECM, 4x Mk36 SRBOC dl, SLQ-25 td, NTDS, ACIS, NIPS, TBMCS CCS
LCC20 Mount Whitney 1971

AMPHIBIOUS

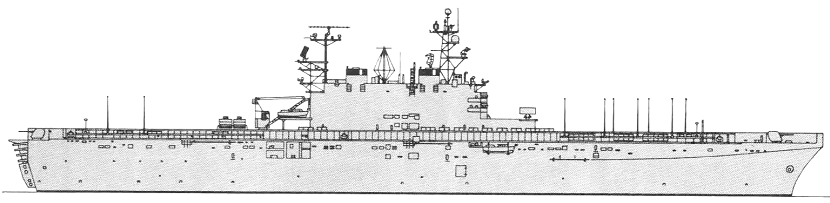

LHA Tarawa 5 LHA1 Tarawa 1976 40891t, 254.2x40.2x8.2m, 2b,2gst, 77000hp, 24kts, 1073p; 2x21 RAM SAM(42), 2x6-20/76, 8x1-12.7, 46ac(6 AV-8, 12 CH-46, 6 CH-53, 6 AH-1, 4 UH-1); 4 LCU, 1903troops, tanks; SPS-64(V)9, SPS-67(V)3, SPS-48E, SPS-40E, SPN-35A, SPN-43B, Mk23 TAS, 2x Mk90 radars, SLQ-32(V)3 ECM, 4x Mk137 SRBOC dl, SLQ-25A td, ITAWDS CCS
LHA2 Saipan 1977
LHA3 Belleau Wood 1978
LHA4 Nassau 1979
LHA5 Peleliu 1980
Wasp 6 LHD1 Wasp 1989 41133t, 257.3x42.7x8.5m, 2b,2gst, 77000hp, 24kts, 1070p; 2x8 Sea Sparrow SAM(16), 2x21 RAM SAM(42), 2x1-25/75, 2x6-20/76, 4x1-12.7, 46ac(6 AV-8, 14 CH-46, 6 CH-53, 6 AH-1, 4 UH-1); 3 LCAC, 4 LCPL, 1893troops; SPS-67(V)3, SPS-49(V)5, SPS-48E, Mk23 TAS, 2x Mk90(, SPS-64(V)9, SPN-35A, SPN-43B, SPN-47 radars, WSC-1 sonar, SLQ-32(V)3 ECM, 6x Mk36 SRBOC dl, SLQ-25A td, SYS-2(V)3(1), SYS-2(V)5(2-6), USQ-119(V)11 CCS
LHD2 Essex 1992
LHD3 Kearsarge 1993
LHD4 Boxer 1995
LHD5 Bataan 1997
LHD6 Bonhomme Richard 1998

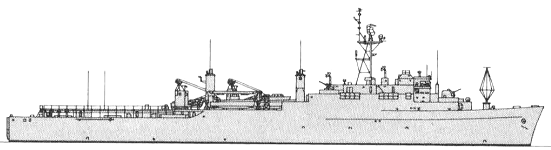

LPD Austin 12 LPD4 Austin 1965 16900t, 173.8x25.6x7.0m, 2b,2gst, 24000hp, 20kts, 501p; 2x1-25/75, 2x6-20/76, 8x1-12.7, 6 hel(6 CH-46), 1 LCU, 4 LCM(8), 2 LCM(6), 930(4-6)-840(7-15)troops; SPS-10F, SPS-40B, SPS-64, 2x Mk90 radars, SLQ-32 ECM, 4x Mk36 SRBOC dl, SLQ-25(5-15)td
LPD5 Ogden 1965
LPD6 Duluth 1965
LPD7 Cleveland 1967
LPD8 Dubuque 1967
LPD9 Denver 1968
LPD10 Juneau 1969
LPD11 Coronado 1970
LPD12 Shreveport 1970
LPD13 Nashville 1970
LPD14 Trenton 1971
LPD15 Ponce 1971
LSD Anchorage 3 LSD36 Anchorage 1969 13700t, 168.7x25.6x5.6m, 2b,2gst, 24000hp, 20kts, 397p; 2x1-25/75, 2x6-20/76, 6x1-12.7, helodeck; 3 LCU, 1 LCVP, 1 LCPL, 376troops; SPS-67, SPS-64(36,39), SPS-73(37), SPS-40, 2x Mk90 radars, SLQ-32 ECM, 4x Mk36 SRBOC(36,39) dl, SLQ-25 td
LSD37 Portland 1970
LSD39 Mount Vernon 1972

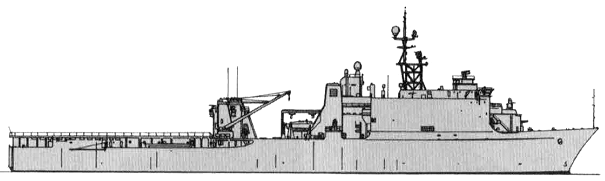

Whidbey Island 8 LSD41 Whidbey Island 1985 16568t, 185.8x25.6x6.3m, 4d(2), 41600hp, 22kts, 320p; 2x21 RAM SAM, 2x1-25/75, 2x1-20/80, 2x6-20/76, 6x1-12.7, helodeck; 4 LCAC, 2 LCPL, 1 LCVP, 402troops; SPS-67(V), SPS-49(V)1(41-44), SPS-49(V)5(45-48), SPS-64(V)9, 2x Mk90 radars, SLQ-32(V)1 ECM, 4x Mk36 SRBOC dl, SLQ-25 td
LSD42 Germantown 1986
LSD43 Fort McHenry 1987
LSD44 Gunston Hall 1989
LSD45 Comstock 1990
LSD46 Tortuga 1990
LSD47 Rushmore 1991
LSD48 Ashland 1992
Harpers Ferry 4 LSD49 Harpers Ferry 1995 16601t, 185.8x25.6x6.0m, 4d(2), 41600hp, 22kts, 334p; 2x21 RAM SAM(42), 2x1-25/75, 2x6-20/76, 8x1-12.7, helodeck; 2 LCAC, 2 LCPL, 402troops, cargo, vehicles; SPS-67(V)1, SPS-49(V)5, SPS-64(V)9, 2x Mk90 radars, SLQ-32(V)1 ECM, 6x Mk36 SRBOC dl, SLQ-25 td
LSD50 Carter Hall 1995
LSD51 Oak Hill 1996
LSD52 Pearl Harbor 1998
LST Newport 10 LST1179 Newport 1969 8342t, 171.3x21.2x5.3m, 6d(2), 16500hp, 20kts, 218p; 2x2-76/50(1195), 1x6-20/76, helodeck; 3 LCVP, 1 LCP, 29tanks, 385troops; SPS-10F, SPS-64 radars, 4x Mk36 SRBOC dl
LST1182 Fresno 1969
LST1183 Peoria 1970
LST1184 Frederick 1970
LST1185 Schenectady 1970
LST1187 Tuscaloosa 1970
LST1190 Boulder 1971
LST1191 Racine 1971
LST1194 La Moure County 1971
LST1195 Barbour County 1972
Gen. Frank S. Besson, Jr. 6 LSV1 Gen. Frank S. Besson, Jr. 1988 4199t, 83.1x18.3x3.7m, 2d, 3900hp, 12kts, 30p; 1815t of vehicles; 2x SPS-64(V)2 radars
LSV2 CW3 Harold C. Clinger 1988
LSV3 Gen. Brehon B. Somervell 1988
LSV4 Lt. Gen. William B. Bunker 1988
LSV5 MGen. Charles P. Gross 1991
LSV6 Sp. 4 James A. Loux 1995
LSM LCU2001 35 LCU2001 Runnymede 1990 1102t, 53.0x12.8x2.6m, 2d, 2500hp, 11.5kts, 13p; 5tanks; 2x SPS-64(V)2 radars
LCU2002 Kennesaw Mountain 1990
LCU2003 Macon 1990
LCU2004 Aldie 1990
LCU2005 Brandy Station 1990
LCU2006 Bristoe Station 1990
LCU2007 Broad Run 1990
LCU2008 Buena Vista 1990
LCU2009 Calaboza 1990
LCU2010 Cedar Run 1990
LCU2011 Chickahominy 1990
LCU2012 Chickasaw Bayou 1990
LCU2013 Churubusco 1990
LCU2014 Coamo 1991
LCU2015 Contreras 1991
LCU2016 Corinth 1991
LCU2017 El Caney 1991
LCU2018 Five Forks 1991
LCU2019 Fort Donelson 1991
LCU2020 Fort McHenry 1991
LCU2021 Great Bridge 1991
LCU2022 Harpers Ferry 1991
LCU2023 Hobkirk 1991
LCU2024 Hormigueros 1991
LCU2025 Malvern Hill 1992
LCU2026 Matamoros 1992
LCU2027 Mechanicsville 1992
LCU2028 Missionary Ridge 1992
LCU2029 Molino Del Rey 1992
LCU2030 Monterrey 1992
LCU2031 New Orleans 1992
LCU2032 Palo Alto 1992
LCU2033 Paulus Hook 1992
LCU2034 Perryville 1992
LCU2035 Port Hudson 1992
LKA Charleston 5 LKA113 Charleston 1968 20700t, 175.5x25.0x7.8m, 2b,1gst, 22000hp, 20kts, 334p; 3x2-76/50, 2x6-20/76, helodeck; 4 LCM(8), 5 LCM(6), 2 LCVP, 5280t of cargo, 226troops; SPS-10, SPS-67, 2x Mk90 radars, SLQ-32 ECM, 2x Mk36 SRBOC dl
LKA114 Durham 1969
LKA115 Mobile 1969
LKA116 St. Louis 1969
LKA117 El Paso 1970
LSS LCU1466 1 LCU1467   1953 347t, 35.1x10.4x1.6m, 3d, 675hp, 8kts, 14p; 2x1-12.7; 4tanks
LCU1610 6 LCU1614   1957 353t, 41.3x8.9x1.8m, 2d, 1000hp, 11kts, 10p; 2x1-12.7; 4tanks; LN-66 radar
LCU1617   1959
LCU1619   1959
LCU1621   1959
LCU1623   1960
LCU1624   1960
LCU1627 14 LCU1627   1967 353t, 41.3x8.9x1.8m, 2d, 1000hp, 11kts, 10p; 2x1-20/70; 4tanks
LCU1628   1968
LCU1629   1968
LCU1630   1968
LCU1631   1968
LCU1632   1968
LCU1633   1968
LCU1634   1968
LCU1635   1968
LCU1637   1968
LCU1641   1969
LCU1643   1969
LCU1644   1969
LCU1645   1969
LCU1646 33 LCU1646   1971 437t, 41.1x9.1x2.1m, 4d(2), 1200hp, 11kts, 10p; 2x1-12.7; 4tanks; Furuno radar
LCU1647   1971
LCU1648   1971
LCU1649   1971
LCU1650   1971
LCU1651   1971
LCU1653   1971
LCU1654   1971
LCU1655   1971
LCU1656   1971
LCU1657   1971
LCU1658   1971
LCU1659   1971
LCU1660   1971
LCU1661   1971
LCU1662   1971
LCU1663   1971
LCU1664   1971
LCU1665   1971
LCU1666   1971
LCU1667 Manassas 1974
LCU1668 Belleau Wood 1974
LCU1669 Marseilles 1974
LCU1670 San Isidro 1974
LCU1671 Catawba Wood 1975
LCU1672 Bush Master 1975
LCU1673 Double Eagle 1975
LCU1674 St. Mihiel 1975
LCU1675 Commando 1975
LCU1676 Birmingham 1975
LCU1677 Brandywine 1975
LCU1678 Naha 1975
LCU1679 Chateau Thierry 1975
LCU1680 2 LCU1680   1987 404t, 41.1x9.1x2.1m, 4d(2), 1700hp, 11kts, 14p; 2x1-12.7; 4tanks; Furuno radar
LCU1681   1987
LC LCVP 3 36VP6830-6832   1966-1969 13t, 11.2x3.2x0.9m, 2d, 220hp, 220kts, 3p; 2x1-12.7; 36troops
LCM(6) 92 56CM751-759, 771-779, 781-789, 861, 862, 7510-7515, 7710-7725, 7810-7850   1977-1987 56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank
LCM(8) 222 LCM(8)8500-8619, 74CM701-709, 831-839, 841-849, 851-856, 901-909, 7010-7040, 8310-8326, 8410-8418, 9010-9012   1970-1991 107-121t, 22.4-22.7x6.4x1.3-1.4m, 2d, 1080hp, 9-12kts, 4-5p; 2x1-12.7; 150-200troops or 1-2tanks
LCPL 20 36PL901-908, 921-929, 9210-9212   1990-1994 13t, 11.0x4.0x1.1m, 1d, 450hp, 19kts, 3p; 17troops
LCAC LCAC 90 LCAC1   1984 167t, 26.8x14.3x0m, 4gt(2prop+2lift), 7910+7910hp, 40kts, 5p; 180troops; CMR-91/Decca Bridge radar
LCAC2   1986
LCAC3   1986
LCAC4   1986
LCAC5   1986
LCAC6   1986
LCAC7   1987
LCAC8   1987
LCAC9   1987
LCAC10   1987
LCAC11   1987
LCAC12   1987
LCAC13   1988
LCAC14   1988
LCAC15   1988
LCAC16   1988
LCAC17   1989
LCAC18   1989
LCAC19   1990
LCAC20   1990
LCAC21   1990
LCAC22   1990
LCAC23   1991
LCAC24   1990
LCAC25   1990
LCAC26   1990
LCAC27   1990
LCAC28   1990
LCAC29   1990
LCAC30   1990
LCAC31   1991
LCAC32   1991
LCAC33   1991
LCAC34   1992
LCAC35   1992
LCAC36   1992
LCAC37   1991
LCAC38   1991
LCAC39   1991
LCAC40   1991
LCAC41   1991
LCAC42   1991
LCAC43   1992
LCAC44   1992
LCAC45   1992
LCAC46   1992
LCAC47   1992
LCAC48   1992
LCAC49   1992
LCAC50   1993
LCAC51   1993
LCAC52   1992
LCAC53   1992
LCAC54   1992
LCAC55   1992
LCAC56   1993
LCAC57   1993
LCAC58   1993
LCAC59   1993
LCAC60   1993
LCAC61   1993
LCAC62   1993
LCAC63   1993
LCAC64   1993
LCAC65   1993
LCAC66   1993
LCAC67   1994
LCAC68   1994
LCAC69   1994
LCAC70   1994
LCAC71   1994
LCAC72   1994
LCAC73   1994
LCAC74   1994
LCAC75   1995
LCAC76   1995
LCAC77   1995
LCAC78   1995
LCAC79   1995
LCAC80   1995
LCAC81   1995
LCAC82   1995
LCAC83   1996
LCAC84   1996
LCAC85   1996
LCAC86   1996
LCAC87   1996
LCAC88   1997
LCAC89   1997
LCAC90   1997

MINE WARFARE

MCS Iwo Jima 1 MCS12 Inchon 1970 18004t, 183.6x25.7x8.0m, 2b,1gst, 22000hp, 23.5kts, 667p; 4x1-25/75, 1x6-20/76, 11hel(MH-53); 2 LCVP(12); SPS-10, SPS-40, SPS-58(9,10,12), SPN-35, SPN-43, 2x Mk115, Mk90 radars, SLQ-32 ECM, 4x Mk36 SRBOC dl
MSO Avenger 14 MCM1 Avenger 1987 1312t, 68.4x11.9x3.4m, 4d, 2600(1,2)-2280(3-14)hp, 13.5kts, 83p; 2x1-12.7, 2 UUV, mechanical, acoustic, magnetic minesweeping gear, 2 RIB for divers; SPS-66(V)9, SPS-55 radars, SQQ-32, WQN-1 sonars, SYQ-13(1,2), SYQ-15(3-14) CCS
MCM2 Defender 1989
MCM3 Sentry 1989
MCM4 Champion 1991
MCM5 Guardian 1989
MCM6 Devastator 1990
MCM7 Patriot 1991
MCM8 Scout 1990
MCM9 Pioneer 1992
MCM10 Warrior 1993
MCM11 Gladiator 1993
MCM12 Ardent 1994
MCM13 Dextrous 1994
MCM14 Chief 1994
Osprey 12 MHC51 Osprey 1993 918t, 57.3x11.0x2.8m, 2d(vs), 1160hp, 12kts, 51p; 2x1-12.7, SLQ-48(V)2 MNS UUV, mechanical minesweeping gear; SPS-64(V)9 radar, SQQ-32 sonar, SYQ-13 CCS
MHC52 Heron 1994
MHC53 Pelican 1995
MHC54 Robin 1996
MHC55 Oriole 1995
MHC56 Kingfisher 1996
MHC57 Cormorant 1997
MHC58 Black Hawk 1996
MHC59 Falcon 1997
MHC60 Cardinal 1997
MHC61 Raven 1998
MHC62 Shrike 1999
MSB SWATH 1 40MC9601 Swath 1 1998 No picture 10t, 12.2x5.5xm, 2d, 6p; radar, Klein 5500, SM2000 sonars

COAST GUARD

FF Hamilton 12 WHEC715 Hamilton 1967 3050t, 115.2x13.0x6.1m, CODOG(2gt/2d)(2), 28000/7200hp, 29kts, 164p; 1x1-76/62, 2x1-25/75, 1x6-20/76, 2x1-20/70, 1hel(HH-65); 2x SPS-64, SPS-40B, Mk90 radars, 2x Mk36 SRBOC dl
WHEC716 Dallas 1967
WHEC717 Mellon 1967
WHEC718 Chase 1968
WHEC719 Boutwell 1968
WHEC720 Sherman 1968
WHEC721 Gallatin 1968
WHEC722 Morgenthau 1969
WHEC723 Rush 1969
WHEC724 Munro 1971
WHEC725 Jarvis 1971
WHEC726 Midgett 1972
PSO Alex Hailey 1 WMEC39 Alex Hailey 1971 2929t, 88.0x15.3x4.6m, 4d(2), 6800hp, 16kts, 99p; 2x1-25/75, 2x1-12.7, helodeck; SPS-73, SPS-40 radars
PS Reliance 16 WMEC615 Reliance 1964 1050t, 64.2x10.4x3.2m, 2d, 5000hp, 18kts, 86p; 1x1-25/75, 2x1-12.7, helodeck; 2x SPS-73 radars
WMEC616 Diligence 1964
WMEC617 Vigilant 1964
WMEC618 Active 1966
WMEC619 Confidence 1966
WMEC620 Resolute 1966
WMEC621 Valiant 1967
WMEC622 Courageous 1968
WMEC623 Steadfast 1968
WMEC624 Dauntless 1968
WMEC625 Venturous 1968
WMEC626 Dependable 1968
WMEC627 Vigorous 1969
WMEC628 Durable 1967
WMEC629 Decisive 1968
WMEC630 Alert 1969
Storis 1 WMEC38 Storis 1942 1916t, 70.1x13.1x4.6m, 3dg,1em, 3000hp, 14kts, 106p; 1x1-25/75, 4x1-12.7; 2x SPS-73 radars
Yokona 1 WMEC167 Acushnet 1944 1745t, 64.9x12.5x4.6m, 4dg,2em, 3000hp, 15.5kts, 72p; 2x SPS-64(V)1 radars
Famous 13 WMEC901 Bear 1983 1780t, 82.3x11.6x4.1m, 2d, 7200hp, 19.5kts, 116p; 1x1-76/62, 2x1-12.7, 1hel(HH-65); SPS-64(V)1, SPS-64(V)6, Mk92 radars, SLQ-32(V)2 ECM; 2x Mk137 (Mk36 SRBOC) dl
WMEC902 Tampa 1984
WMEC903 Harriet Lane 1984
WMEC904 Northland 1984
WMEC905 Spencer 1986
WMEC906 Seneca 1987
WMEC907 Escanaba 1987
WMEC908 Tahoma 1988
WMEC909 Campbell 1988
WMEC910 Thetis 1989
WMEC911 Forward 1990
WMEC912 Legare 1990
WMEC913 Mohawk 1990
PB Point 22 WPB82333 Point Highland 1962 66-69t, 25.3x5.2x1.8m, 2d, 1600hp, 22.6-23.5kts, 10p; 2x1-12.7; SPS-64 radar
WPB82335 Point Countess 1962
WPB82336 Point Glass 1962
WPB82338 Point Bridge 1962
WPB82339 Point Chico 1962
WPB82342 Point Baker 1963
WPB82343 Point Wells 1963
WPB82344 Point Estero 1963
WPB82347 Point Bonita 1966
WPB82349 Point Spencer 1966
WPB82352 Point Sal 1966
WPB82353 Point Monroe 1966
WPB82355 Point Hannon 1967
WPB82358 Point Stuart 1967
WPB82360 Point Winslow 1967
WPB82366 Point Lobos 1967
WPB82368 Point Warde 1967
WPB82371 Point Barnes 1970
WPB82372 Point Brower 1970
WPB82374 Point Carrew 1970
WPB82375 Point Doran 1970
WPB82378 Point Jackson 1970
Island 49 WPB1301 Farallon 1986 165(1301-1317)-155(1318-1337)-153(1338-1349)t, 33.5x6.4x2.2m, 2d, 5820(1301-1337)-5460(1338-1349)hp, 29.7(1301-1337)-28(1338-1349)kts, 16p; 1x1-25/75, 2x1-12.7; SPS-73 radar
WPB1302 Manitou 1986
WPB1303 Matagorda 1986
WPB1304 Maui 1986
WPB1305 Monhegan 1986
WPB1306 Nunivak 1986
WPB1307 Ocracoke 1986
WPB1308 Vashon 1986
WPB1309 Aquidneck 1986
WPB1310 Mustang 1986
WPB1311 Naushon 1986
WPB1312 Sanibel 1986
WPB1313 Edisto 1987
WPB1314 Sapelo 1987
WPB1315 Matinicus 1987
WPB1316 Nantucket 1987
WPB1317 Attu 1988
WPB1318 Baranof 1988
WPB1319 Chandeleur 1988
WPB1320 Chincoteague 1988
WPB1321 Cushing 1988
WPB1322 Cuttyhunk 1988
WPB1323 Drummond 1988
WPB1324 Key Largo 1988
WPB1325 Metompkin 1989
WPB1326 Monomoy 1988
WPB1327 Orcas 1989
WPB1328 Padre 1989
WPB1329 Sitkinak 1989
WPB1330 Tybee 1989
WPB1331 Washington 1989
WPB1332 Wrangell 1989
WPB1333 Adak 1989
WPB1334 Liberty 1989
WPB1335 Anacapa 1990
WPB1336 Kiska 1989
WPB1337 Assateague 1990
WPB1338 Grand Isle 1990
WPB1339 Key Briscayne 1991
WPB1340 Jeffferson Island 1991
WPB1341 Kodiak Island 1991
WPB1342 Long Island 1991
WPB1343 Bainbridge Island 1991
WPB1344 Block Island 1991
WPB1345 Staten Island 1991
WPB1346 Roanoke Island 1991
WPB1347 Pea Island 1991
WPB1348 Knight Island 1991
WPB1349 Galveston Island 1992
Protector 12 WPB87301 Barracuda 1998 91t, 26.5x5.9x1.7m, 2d, 2950hp, 27kts, 10p; 2x1-12.7; SPS-73 radar
WPB87302 Hammerhead 1998
WPB87303 Mako 1998
WPB87304 Marlin 1999
WPB87305 Stingray 1999
WPB87306 Dorado 1999
WPB87307 Osprey 1999
WPB87308 Chinook 1999
WPB87309 Albacore 1999
WPB87310 Tarpon 1999
WPB87311 Cobia 1999
WPB87313 Cormorant 1999



AIRCRAFT



NAVY

Ship-based

74 F-14A, 75 F-14B, 46 F-14D, 112 F/A-18A, 27 F/A-18B, 326 F/A-18C, 57 F/A-18D, 32 F/A-18E, 34 F/A-18F, 37 TA-4J, 89 A-6E, 21 TA-8B, 114 S-3B, 88 EA-6B, 61 E-2C, 2 TE-2C, 38 C-2A, 4 UH-1N, 27 HH-1H, 4 CH-53E, 27 MH-53E, 159 SH-60B, 75 SH-60F, 25 HH-60H, 42 UH-3H, 18 CH-46D, 39 UH/HH-46D, 8 AH-1W

Land-based combat capable

8 F-5E/F, 27 P-3B, 169 P-3C, 12 EP-3, 12 NP-3D
Reserve ship-based 14 F-14A, 34 F/A-18A, 2 F/A-18B, 4 EA-6B, 11 E-2C, 12 MH-53E, 16 HH-60H, 10 UH-3H
Reserve land-based combat capable 22 F-5E/F, 8 P-3A, 70 P-3C
Marine Corps ship-based 33 F/A-18A, 4 F/A-18B, 79 F/A-18C, 85 F/A-18D, 141 AV-8B, 14 TAV-8B, 20 EA-6B, 21 V-22, 78 UH-1N, 7 HH-1H, 145 CH-53E, 58 CH-53D, 5 MH-53E, 8 VH-60, 205 CH-46E, 9 UH/HH-46D, 11 VH-3A/D, 151 AH-1W
Marine Corps reserve ship-based 47 F/A-18A, 20 UH-1N, 16 CH-53E, 25 CH-46E, 37 AH-1W
Marine Corps reserve land-based combat capable 2 F-5E/F

ARMY

Land-based combat capable

2 O-2, 23 RC-12D/H/K, 26 RC-12P/Q/N, 370 AH-1S, 740 AH-64A/D, 36 AH-6/MH-6, 64 EH-60A, 387 OH-58A/C, 385 OH-58D, 2 RAH-66, 12 Hunter UAV

AIR FORCE

Combat capable

500 Minuteman III, 50 Peacekeeper

94 B-52H, 93 B-1B, 21 B-2A, 32 U-2S, 4 TU-2R/S, 9 E-8C, 2 E-9A, 3 RC-135S, 2 RC-135U, 16 RC-135V/W, 162 RF-4C, 4 E-4B, 32 EC-135, 261 F-4D/E/G, 424 F-15A/B/C/D, 217 F-15E, 385 F-16A/B, 615 F-16C, 138 F-16D, 3 F-22A, 213 F-111, 33 EF-111A, 52 F-117, 234 A-10A, 84OA-10A, 5 EC-18B/D, 21 AC-130H/U, 22 EC-130E/H, 21 MC-130E/H/P, 14 WC-130H/J, 4 WC-135B/C/W, 3 OC-135, 1 EC-137D, 38 MH-53M/J, 3 MH-60G, 1 RQ-4A, 8 RQ-1A/B

National Guard combat capable 100 F-15A/B/C/D, 95 F-16A, 27 F-16B, 408 F-16C, 39 F-16D, 76 A-10A, 26 OA-10A, 8 EC-130E/H, 45 MC-130E/H/P
Reserve combat capable 65 F-16C, 5 F-16D, 44 A-10A, 8 OA-10A

COAST GUARD

Ship-based 42 HH-60J, 93 HH-65A

Combat capable

41 HU-25A, 2 RU-38A

MARINE CORPS

units

3 divisions, 3 Force Service Support Groups, 1 battalion Marine corps Security Force, 1 Marine Security Guard battalion; reserve: 1 division, 1 Force Service Support Group
equipment 403 M1A1 MBT, 400 LAV-25 AIFV, 1321 AAV-7A1, 331 105mm M101A1, 596 155mm M198 towed howitzers, 50 LAV-M 81mm SP mortars, 536 81mm mortars, 1083 TOW, 1121 Dragon, 95 LAV-TOW ATGW, 1650 SMAW 83mm RCL, 1300 AT-4 84mm RCL, Stinger, Avenger SAM

© Ivan Gogin, 2017
