World navies yesterday

2000



Russia 01 January 2000

SUBMARINES

SSBN pr. 667B 2 311 K-447 1973 8900/11000t, 139.0x11.7x8.4m, 2nr,2gst, 40000hp, 16/25kts, 120p, 320m; 12 R-29 SLBM(12)(311), 12 R-29D SLBM(12)(225), 4-533TT, 2-400TT; Kaskad radar, Kerch' sonar, Zaliv-P ECM, Korund-1 dl, Almaz-B CCS
225 K-500 1976
pr. 667BDR 11 367 K-449 1976 10600/13700t, 157.0x11.9x8.7m, 2nr,2gst, 40000hp, 14/24kts, 130p, 320m; 16 R-29R/RK SLBM(16), 1x1 Strela-2M SAM(8), 4-533TT(inc Vodopad-PL SSM/ASuM), 2-400TT; Kaskad radar, Rubikon sonar, Zaliv-P ECM, Korund-1 dl, Almaz-BDR CCS
368 K-455 1976
372 K-490 1977
392 K-496 Borisoglebsk 1977
393 K-506 Zelenograd 1978
394 K-211 Petropavlovsk-Kamchatskiy 1979
395 K-223 Podolsk 1979
396 K-180 1980
397 K-433 Sviatoy Georgiy Pobedonosets 1980
398 KS-129 1981
376 K-44 Riazan' 1982
pr. 941 4 711 TK-208 1981 23200/30460t, 170.0x23.3x11.5m, 2nr,2gst, 100000hp, 13/27kts, 163p, 380m; 20x1 R-39 SLBM(20), 1x1 Igla-1 SAM(48), 6-533TT(inc Vodopad-PL SSM/ASuM, Vyuga ASuM)' Radian(711), Radian-U(712-727) radar, Skat-KS(711), Skat-3(712-727), Arfa, Vint sonars, MRP-21A ECM, Korund-2 dl, Omnibus CCS
713 TK-12 1984
725 TK-17 1987
727 TK-20 1989
pr. 667BDRM 7 379 K-51 Verkhoturye 1984 11740/18200t, 166.3x11.7x10.5m, 2nr,2gst, 40000hp, 15.3/24kts, 135p, 320m; 16x1 R-29RM SLBM(16), 1x1 Igla SAM(8), 4-533TT(inc Vodopad-PL SSM/ASuM); Kaskad radar, Skat-BDRM sonar, MRP-21A ECM, Korund-2 dl, Omnibus-BDRM CCS
380 K-84 Yekaterinburg 1985
381 KS-64 1986
382 K-114 Tula 1987
383 K-117 Briansk 1988
384 K-18 Kareliya 1989
385 K-407 Novomoskovsk 1990
SSGN pr. 667AT 1 415 K-395 1969 8888/11400t, 141.7x12.8x7.8m, 2nr,2gst, 40000hp, 15.3/25kts, 115p, 320m; 1x1 Strela-3M SAM(8), 14-533TT(inc Granat CruM, Vodopad-PL SSM/ASuM); Albatros radar, Rubikon, Arfa, Vint sonars, Zaliv-P ECM, Omnibus-AT CC
pr. 949A 10 618 K-173 Krasnoyarsk 1986 14820/19254t, 154.8x18.2x9.3m, 2nr,2gst, 100000hp, 14.6/33.4kts, 109p, 420m; 24x1 Granit SSM(24), 1x1 Igla SAM(16), 2-650TT(inc Veter SSM/ASuM), 4-533TT(inc Vodopad-PL SSM/ASuM); Radian(618), Radian-U(others) radars, Skat-KS(618), Skat-3(others), Arfa-M, Vint-M sonars, MRP-21A ECM, Omnibus-949 CCS
619 K-132 Irkutsk 1988
636 K-119 Voronezh 1989
637 K-410 Smolensk 1990
638 K-442 Cheliabinsk 1990
649 K-456 Viliuchinsk 1992
650 K-266 Oriol 1992
651 K-186 Omsk 1993
662 K-141 Kursk 1994
663 K-150 Tomsk 1996
SSN pr. 671RTM 5 01636 B-524 1977 4600/5890t, 106.1(01636,01638,271,282,295,296)-107.1(others)x10.8x7.8m, 1nr,1gst, 31000hp, 11.6/31kts, 92p, 320m; 1x1 Strela-3M SAM(6), 2-650TT, 4-533TT(inc Vodopad-PL SSM/ASuM, Vyuga ASuM, mines)(exc01641), 4-533TT(inc Kalibr-PL CruM/SSM, Vodopad-PL SSM/ASuM, Vyuga-ASuM)(01641); Kaskad radar, Skat-KS sonar suite, Arfa-M, Vint-M sonar, Zaliv-P ECM, Korund-2 dl, Omnibus-RTM CCS
01641 B-502 Volgograd 1980
01649 B-299 1984
297 B-324 1980
333 B-264 1984
pr. 671RTMK 5 01655 B-292 1987 4600/5890t, 107.1x10.8x7.8m, 1nr,1gst, 31000hp, 11.6/31kts, 92p, 320m; 1x1 Strela-3M SAM(6), 2-650TT, 4-533TT(inc Granat CruM, Vodopad-PL ASuM, Vyuga ASuM, mines); Kaskad radar, Skat-2M sonar suite, Arfa-M, Vint-M sonar, Zaliv-P ECM, Korund-2 dl, Omnibus-RTM CCS
01657 B-388 1988
01659 B-138 1990
01695 B-414 Daniil Moskovskiy 1990
01696 B-448 Tambov 1992
pr. 945 2 3001 B-239 Karp 1984 6170/8200t, 107.2x12.3x9.6m, 1nr,1gst, 50000hp, 12.2/35kts, 61p, 480m; 11 Strela-3 SAM(12), 4-650TT(inc Veter SSM/ASuM), 4-533TT(inc Vodopad-PL SSM/ASuM); Radian radar, Skat-KS, Arfa-M, Vint-M sonars, MRP-21 ECM, Korund-2 dl, Omnibus-5 CCS
3002 B-276 Kostroma 1987
pr. 971 11 821 K-480 Ak Bars 1988 8167/10500t, 110.3x13.8x9.9m, 1nr,1gst, 50000hp, 11.2/33.3kts, 73p, 480m; 1x1 Strela-3 SAM(16), 4-650TT(inc Veter SSM/ASuM), 4-533TT(inc Granat CruM, Vodopad-PL SSM/ASuM); Radian radar, Skat-3, Arfa, Vint-M sonars, MRP-21A ECM, Korund-2(821-837,502-513), 6x Shlagbaum(514-516) dl, Omnibus CCS
822 K-317 Pantera 1990
831 K-461 Volk 1991
832 K-328 Leopard 1992
833 K-154 Tigr 1993
502 K-263 Delfin 1987
513 K-322 Kashalot 1988
514 K-391 Bratsk 1989
515 K-331 Narval 1990
516 K-419 Kuzbass 1992
517 K-295 Samara 1995
pr. 09711 1 834 K-157 Vepr' 1995 8167/10500t, 110.3x13.8x9.9m, 1nr,1gst, 50000hp, 11.2/33.3kts, 73p, 480m; 1x1 Strela-3 SAM(16), 4-650TT(inc Veter SSM/ASuM), 4-533TT(inc Granat CruM, Vodopad-PL SSM/ASuM); Radian-U radar, Skat-3, Arfa, Vint-M sonars, MRP-21A ECM, 6x Shlagbaum dl, Omnibus CCS
pr. 945A 2 3003 B-534 Nizhniy Novgorod 1990 6466/8500t, 110.6x12.3x9.5m, 1nr,1gst, 50000hp, 14/32.8kts, 65p, 480m; 1x1 Igla SAM(12), 6-533TT(inc Granat CruM, Vodopad-PL SSM/ASuM); Radian(3003), Radian-U(3004) radar, Skat-3, Arfa, Vint-M sonars, MRP-23 ECM, Korund-2 dl, Omnibus-5 CCS
3004 B-336 Pskov 1993
SS pr. 641 1 235 B-413 1968 1952/2475t, 91.3x7.5x5.1m, 3d/em, 5700/5400hp, 16.8/16kts, 77p, 250m; 10-533TT; Albatros radar, Arktika-M, Tuloma, Kola, Svet-M sonars, Nakat ECM
pr. 641B 6 103 B-437 1975 2640/3546t, 90.2x8.6x5.7m, 3d/em, 5700/5400hp, 14/15.5kts, 81p, 240m; 6-533TT; Kaskad radar, MGK-400 Rubikon sonar suite, MRP-25 ECM, Uzel CCS
105 B-515 1976
115 B-546 1978
121 B-30 1979
124 B-307 1980
133 B-380 1982
pr. 877 22 451 B-248 1980 2325/3075t, 72.6x9.9x6.6m, 2dg,1em(1), 2720/5500(451,452)-4080/5500(others), 10.7/18kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT; Kaskad radar, Rubikon, Arfa, Vint, MG-53, Shkert sonars, MRP-25 ECM, Uzel CCS
452 B-260 1981
453 B-227 1983
464 B-229 1983
465 B-404 1983
466 B-405 1984
467 B-470 1985
468 B-439 1986
469 B-445 1988
470 B-394 1988
471 B-464 1990
472 B-494 1990
473 B-187 1991
474 B-190 1992
475 B-345 1994
601 B-401 Novosibirsk 1984
602 B-402 Vologda 1984
605 B-808 Yaroslavl' 1988
606 B-800 1989
608 B-459 Vladikavkaz 1990
609 B-471 1990
610 B-177 1991
pr. 877V 1 607 B-871 1990 2325/3075t, 72.6x9.9x6.6m, 2dg,1em(1wj), 4080/5500, 10.7/18kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT; Kaskad radar, Rubikon, Arfa, Vint, MG-53, Shkert sonars, MRP-25 ECM, Uzel CCS
pr. 877EKM 1 403 B-806 1986 2325/3075t, 72.6x9.9x6.6m, 2dg,1em(1), 4080/5500, 10.7/18kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT; Kaskad-E radar, Rubikon-E, Arfa-E, Vint, MG-53, Shkert sonars, MRP-25E ECM, Uzel CCS

AIRCRAFT CARRIERS

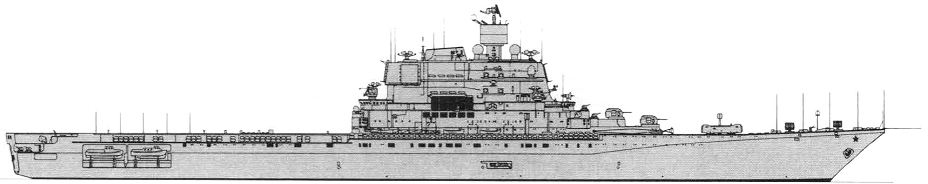

CV pr. 11434 1 104 Admiral Flota Sovetskogo Soyuza Gorshkov 1987 44490t, 273.1x51.9x9.4m, 8b,4gst, 180000hp, 30.7kts, 2045p; 6x2 Bazalt SSM(12), 4x6 Kinzhal SAM(VLS,192), 2x1-100/59, 8x6-30/54, 2x10 RBU-12000 ASWRL, 34ac(12 Yak-38M, 16 Ka-27, 2 Ka-27PS, 2 Ka-25Ts); Mars-Passat, Fregat-M1, 2x Podkat, Volga, Vaygach-1143, Argon-1143, 4x 3R-95, Lev-218-100, 4x Vympel-A, Rezistor-K4, Tur, Gazon radars, Polinom sonar, Kantata-M, Start-2 ECM, 4x PK-2 dl, Lesorub-434 CCS

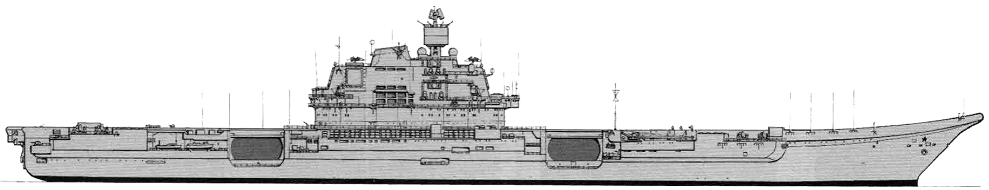

pr. 11435 1 105 Admiral Flota Sovetskogo Soyuza Kuznetsov 1990 59100t, 306.5x72.0x9.8m, 8b,4gst, 200000hp, 29kts, 2586p; 1x12 Granit SSM(VLS,12), 4x6 Kinzhal SAM(VLS,192), 8x(8 SAM+12-30/54) Kortik CADS(256), 6x6-30/54, 2x10 RBU-12000 ASWRL, 50ac(24 Su-33, 10 Ka-27, 1 Ka-29, 1 Ka-31); Mars-Passat, Fregat-MA, 2x Podkat, 2x Vaygach-U, Nayada-M, 4x 3R-95, 3x Vympel-A, Rezistor-K42, 2x Gazon radars, Polinom-T, Zvezda-M1, Amulet-1, Altyn sonars, Sozvezdie-BR, Start-2 ECM, 8x PK-2M, 4x PK-10 dl, Lesorub-4342 CCS

PRINCIPAL SURFACE COMBATANTS

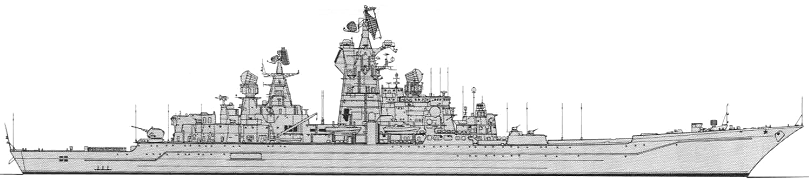

BBGN pr. 1144 1 800 Admiral Ushakov 1980 25860t, 250.1x28.5x7.8m, CONAS: 2nr,2b,2gst, 140000hp, 31kts, 759p; 100sides, 70deck; 1x20 Granit SSM(VLS, 20), 1x12 Fort SAM(VLS,96), 2x8 Kinzhal SAM(VLS, 128), 2x2 Osa-M SAM(40), 1x2 Metel' ASuM(10), 2x1-100/59, 8x6-30/54, 2x5-533TT, 1x12 RBU-6000 ASWRL, 2x6 RBU-1000 ASWRL, 2x7-55gl, 2-3hel(2 Ka-27 or 3 Ka-25); Flag(Voskhod+Fregat-M), 2x Volna, 2x 3R-95, 2x 4R-33, Lev-218-100, 4x Vympel-A, 2x Vaygach radars, Polinom, 2x Braslet sonars, Gurzuf-A, Gurzuf-B, Ograda, Koltso ECM, 2x PK-2M, 10x PK-10 dl, Alleya-2 CCS
pr. 11442 3 801 Admiral Lazarev 1984 26396t, 250.1x28.5x7.8m, CONAS: 2nr,2b,2gst, 140000hp, 31kts, 760p; 100sides, 70deck; 1x20 Granit SSM(VLS, 20), 1x12 Fort SAM(VLS,96)(801,802), 1x6 Fort SAM(VLS,48)(803), 1x6 Fort-M SAM(VLS,48)(803), 1x8 Kinzhal SAM(VLS, 64)(801), 2x8 Kinzhal SAM(VLS,128)(802,803), 2x2 Osa-MA SAM(40), 6x(8 SAM+12-30/54) Kortik CADS(192)(802,803), 10x1 Vodopad-NK ASuM(30), 1x2-130/70, 8x6-30/54(801), 1x12 RBU-6000 ASWRL(801), 1x10 RBU-12000 ASWRL(802,803), 2x6 RBU-1000 ASWRL, 2x7-55gl, 2-3hel(2 Ka-27 or 3 Ka-25); Flag(Voskhod+Fregat-M)(801), Flag(Voskhod+Fregat-MA)(802,803), 2x Podkat(803), 2x Volna, 3R-95(801), 2x 3R-95(802,803), 2x 4R-33A, Lev-218, 4x Vympel(801), 2x Vaygach-U radars, Polinom, 2x Braslet sonars, Kantata-M, Start-2 ECM, 2x PK-2M(801,802), 10x PK-10(801,802), 12x PK-10(803) dl, Lesorub-44 CCS
802 Admiral Nakhimov 1988
803 Piotr Velikiy 1998
CG pr. 58 1 782 Admiral Golovko 1964 5400t, 142.7x16.0x5.0m, 4b,2gst, 90000hp, 34.5kts, 304p; 2x4 Progress SSM(16), 1x2 Volna-N SAM(16), 2x2-76/59, 4x6-30/54, 2x3-533TT, 2x12 RBU-6000 ASWRL, hel deck; 2x Angara, 2x Don, Yatagan, 2x Turel', 2x Vympel-A radars, Gerkules-2M sonar, Bizan'-4D, MRP-11-12, 2x MRP-13-14, 2x MRP-15-16, 2x Krab-11, 2x Krab-12 Ograda-1 ECM
pr. 1134B 2 2002 Ochakov 1973 8530t, 173.4x18.5x5.7m, 2gt+2gt(2), 92000hp, 33kts, 425p; 2x4 Rastrub-A SSM/ASuM(8)(2003), 2x2 Shtorm SAM(80)(2002), 2x2 Shtorm-N SAM(2003), 2x2 Osa-M SAM(40), 2x4 Metel' ASuM(8)(2002), 2x2-76/59, 4x6-30/54, 2x5-533TT, 2x12 RBU-6000 ASWRL, 2x6 RBU-1000 ASWRL(2002,2003), 1hel(Ka-25); Voskhod(2002), Podberiozovik-ET2(2003), Angara-A, 2x Grom-M, Grom-R(2003), 2x 4R-33, Turel', 2x Vympel-A, 2x Volga, Don radars, Titan-2(2002), Titan-2T(2003), Vega, MG-409K sonars, MI-110KM wake detector, 2x Gurzuf, 2x Gurzuf-1, Ograda, Start, MRP-15-16M(2002), MRP-11-14M(2002), Koltso(2003) ECM, 2x PK-2 dl, BOKA-DU td, Koren'-1134B CCS
2003 Kerch' 1974

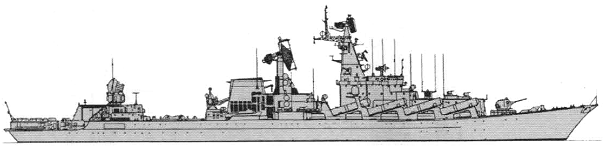

pr. 1164 3 2008 Moskva 1982 11280t, 186.0x20.8x6.3m, COGAG:2gt+2gt(2), 142000hp, 32.5kts, 485p; 8x2 Vulkan SSM(16), 1x8 Fort SAM(VLS,64), 2x2 Osa-M SAM(40), 1x2-130/70, 6x6-30/54, 2x5-533TT, 2x12 RBU-6000 ASWRL, 1hel(Ka-25Ts); Flag(Voskhod+Fregat-M)(2008,2009), Flag(Voskhod+Fregat-MA)(2010), Argon-1164, Volna, 2x 4R-33, Lev-218,, 2x Vympel-A, 2x Vaygach radars, Platina sonar, 2x Gurzuf-A, 2x Gurzuf-B, Ograda, Start, Start-2, Koltso ECM; 12x PK-10, 2x PK-2M dl, Lesorub-1164 CCS
2009 Marshal Ustinov 1986
2010 Variag 1989

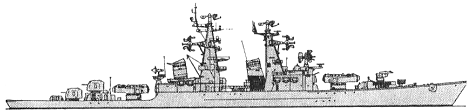

DD pr. 01090 1 1710 Smetlivyy 1969 4510t, 144.0x15.8x4.5m, 4gt(2), 72000hp, 35.5kts, 266p; 2x2 Volna-M SAM(32), 1x2-76/59, 1x5-533TT, 2x12 RBU-6000 ASWRL, 22mines, helodeck; Kliver, Angara, 2x Don, 2x Yatagan II, 2x Turel', Vaygach radars, Titan, Vychegda, Braslet sonar, Kayra non-acoustic submarine detector, MI-110KM wake detector, Krab-11, Krab-12, Bizan'-4B, MRP-13-14 ECM, 4x PK-16, 4x PK-10 dl dl, Planshet-61 CCS
pr. 61M 1 1715 Sderzhannyy 1973 4975t, 146.2x15.8x4.9m, 4gt(2), 72000hp, 32kts, 320p; 4x1 Termit SSM(4), 2x2 Volna-M SAM(32), 2x2-76/59, 4x6-30/54, 1x5-533T, 2x12 RBU-6000 ASWRL, 22mines, helodeck; Kliver, Angara-A, 2x Volga, 2x Yatagan II, 2x Turel', 2x Vympel radars, Platina, MG-409P, Braslet sonars, MI-110KM wake detector, Krab-11, Krab-12, Start, Bizan'-4B, Zaliv ECM, 4x PK-16, 4x PK-10 dl, Planshet-61 CCS
pr. 956 11 865 Bezuprechnyy 1985 7940t, 156.5x17.2x6.0m, 4b,2gst, 100000hp, 32.7kts, 296p; 2x4 Moskit SSM(8)(865,866,869-874), 2x4 Moskit-M SSM(8)(875-877), 2x1 Uragan SAM(48), 2x2-130/70, 4x6-30/54, 2x2-533TT, 2x6 RBU-1000 ASWRL, 2x7-55gl, 22mines, 1hel(Ka-27); Fregat-M1(865), Fregat-M2(866,869-877), Mineral, 2x 3R91, Lev-218, 2x Vympel-A, Vaygach-U, Volga radars, Platina-S, 2x Braslet sonars, Start, Start-2 ECM, 4x PK-10, 2x PK-2M dl, Sapfir-U CCS
866 Boevoy 1986
869 Burnyy 1988
870 Gremiashchiy 1988
871 Bystryy 1989
872 Rastoropnyy 1989
873 Bezboyaznennyy 1990
874 Bezuderzhnyy 1991
875 Bespokoynyy 1991
876 Nastoychivyy 1992
877 Besstrashnyy 1993

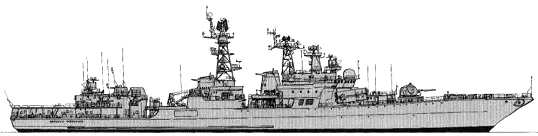

pr. 1155 10 113 Admiral Spiridonov 1984 7570t, 163.0x19.0x5.2m, COGAG:2gt+2gt(2), 62000hp, 29.5kts, 293p; 2x4 Rastrub-B SSM/ASuM(8)(115-117,734), 1x8 Kinzhal SAM(VLS,64)(115-118,733,734), 1x4 Kinzhal SAM(VLS,32)(113,114,732), 2x4 Metel' ASuM(8)(113,114,731-733), 2x1-100/59, 4x6-30/54, 2x4-533TT, 2x12 RBU-6000 ASWRL, 26mines, 2hel(Ka-27); Topaz(731), Topaz-V(731), Fregat-MA(113-118,732-734), 2x 3R-95(115-118,733,734), Podkat(115-118,733,734), Musson-U-1155(115-118,734), 3R-95(113,114,732), Lev-218-100, 2x Vympel-A, Volga(731), 2x Vaygach-U(113-118,732,734), Vaygach-U(733), Nayada-5(733) radars, Polinom, 2x Braslet sonars, 2x Start, 2x Start-2 ECM, 2x PK-2M, 8x PK-10(115-117,734) dl, Lesorub-1155 CCS
114 Marshal Shaposhnikov 1985
115 Severomorsk 1987
116 Admiral Vinogradov 1988
117 Admiral Kharlamov 1989
118 Admiral Panteleev 1991
731 Vitse-admiral Kulakov 1981
732 Marshal Vasilevskiy 1983
733 Admiral Tributs 1985
734 Admiral Levchenko 1988
pr. 11551 1 121 Admiral Chabanenko 1999 8320t, 162.9x19.0x5.1m, COGAG:2gt+2gt(4), 72000hp, 30.1kts, 405p; 2x4 Moskit-M SSM(8), 1x8 Kinzhal SAM(VLS,64), 2x(8 SAM+12-30/54) Kortik CADS(64), 2x4 Vodopad-NK ASuM(18), 1x2-130/70, 2x10 RBU-12000 ASWRL, 26mines, 2hel(Ka-27); Fregat-MA, Podkat, 2x 3R-95, Lev-218, 2x Vyagach-U radars, Zvezda-M2 sonar, 2x Start, 2x Start-2 ECM, 2x PK-2M, 10x PK-10 dl, Lesorub-11551 CCS
FF pr. 1135 5 155 Storozhevoy 1973 3190t, 123.0x14.2x4.5m, COGAG:2gt+2gt(2), 46000hp, 32kts, 192p; 1x4 Rastrub-B SSM/ASuM(4)(16,714,716), 1x4 Metel' ASuM(4)(155,158), 2x2 Osa-M SAM(40)(155,158,714), 2x2 Osa-MA SAM(40)(16,716), 2x2-76/59, 2x4-533TT, 2x12 RBU-6000 ASWRL, 2x7-55gl(16,716), 18mines; Angara-A, Volga(714), Don(158,16,716), Vaygach(155), Musson(155,158), Musson-U(16,714,716), Turel'(714,716), Lev-214(155,158), 4R-33(155,158,714), 4R-33A(16,716) radars, Titan-2(155), Titan-2T(158,16,714,716), Vega, Sheksna(some), Braslet, MGS-400K sonars, MI-110R, MI-110K wake detector, Start-S ECM, 4x PK-16, 8x PK-10(158,714,716) dl
158 Druzhnyy 1975
16 Ladnyy 1980
714 Letuchiy 1978
716 Zadornyy 1979
pr. 11352 2 713 Liogkiy 1977 3750t, 125.2x14.2x4.9m, COGAG:2gt+2gt(2), 46000hp, 32kts, 192p; 1x4 Rastrub-B SSM/ASuM(4), 2x2 Osa-MA2 SAM(40), 2x2-76/59, 2x4-533TT, 2x7-55gl, 18mines; Fregat-MA, Volga(713), Vaygach(715), Musson-U, Turel', 4R-33AM radars, Zvezda-M1, Sheksna, Braslet, MGS-400K sonars, MI-110R, MI-110K wake detector, Start-S ECM, 4x PK-16, 8x PK-10 dl
715 Pylkiy 1978
pr. 11353 1 711 Zharkiy 1976 3590t, 123.0x14.2x4.7m, COGAG:2gt+2gt(2), 46000hp, 32kts, 192p; 1x4 Metel' ASuM(4), 2x2 Osa-M SAM(40), 2x2-76/59, 2x4-533TT, 2x12 RBU-6000 ASWRL, 2x7-55gl, 18mines; Angara-A, Volga, Musson, Turel', 4R-33 radars, Zvezda-M1 sonar, Braslet, MGS-407K, MGS-400K sonars, MI-110R, MI-110K wake detector, Start-S ECM, 4x PK-16, 8x PK-10 dl
pr. 1135M 4 159 Rezvyy 1975 3305t, 123.0x14.2x4.5m, COGAG:2gt+2gt(2), 46000hp, 32kts, 196p; 1x4 Metel' ASuM(4)(159), 1x4 Rastrub-B SSM(4)(160,168,169), 2x2 Osa-M SAM(40)(159), 2x2 Osa-MA SAM(40)(163,168,169), 2x1-100/59, 2x4-533TT, 2x12 RBU-6000 ASWRL, 2x7-55gl(168,169), 18mines; Angara-A, Don(159,168,169), Vaygach(163), Musson(159), Musson-U(163,168,169), Lev-214, 4R-33(159), 4R-33A(163,168,169) radars, Titan-2T, Vega, Sheksna(some), Braslet, MGS-409K(163), MGS-400K sonars, MI-110T, MI-110K wake detectors, Start-S ECM, 4x PK-16 dl
163 Neukrotimyy 1977
168 Revnostnyy 1980
169 Pytlivyy 1981
pr. 11540 1 401 Neustrashimyy 1990 4350t, 129.8x15.6x4.8m, COGAG:2gt+2gt(2), 57000hp, 29kts, 210p; 1x4 Kinzhal SAM(VLS,32), 2x(8 SAM+12-30/54) Kortik CADS(64), 6x1 Vodopad-NK SSM/ASuM(6), 1x1-100/59, 1x12 RBU-6000 ASWRL, 20mines, 1hel(Ka-27); Fregat-M2, K-12-1, Lev-218-100, Vaygach radars, Zvezda-M1 sonar, MP-405-1 ECM, 2x PK-16, 8x PK-10 dl, Tron-11540 CCS
FSAC pr. 1239 2 208/501 Bora 1989 1083t, 65.6x17.2x3.6m, 2gt+2d(4)=2d, 60000+9500hp, 52.7kts, 68p; 2x4 Moskit SSM(8), 1x2 Osa-MA2 SAM(20), 2x1 Strela-3 SAM(8), 1x1-76/59, 2x6-30/54; Monolit, Pozitiv, 4R-33AM, Vympel-A, Ekran-1 radars, Vympel-R2, MP-405-1 ECM, 2x PK-16, 4x PK-10 dl
502 Samum 1992
FS pr. 1124 4 723 MPK-49 1982 990t, 71.1x10.2x3.5m, 1gt+2d(3), 38000hp, 32kts, 83p; 1x2 Osa-M SAM(20), 1x4 Igla-1 SAM(8)(some), 1x2-57/50, 1x6-30/54, 2x2-533TT, 2x12 RBU-6000 ASWRL, 2dcr, 18mines; Rubka, 4R-33, Bars, Vympel-A, Don radars, Amgun'-T, Shelon'-T, MGS-407K sonars, MI-110K, MI-110R wake detectors, Bizan'-4B ECM
102 MPK-127 1976
27 MPK-178 1984
28 MPK-191 1985
pr. 1124M 31 001 Muromets 1982 1055t, 71.1x10.2x3.7m, 1gt+2d(3), 38000hp, 31.6kts, 90p; 1x2 Osa-MA2 SAM(20), 1x4 Strela-3 SAM(8), 1x1-76/59, 1x6-30/54, 2x2-533TT, 1x12 RBU-6000 ASWRL, 2dcr, 18mines; Topaz-2V(001-005), Fregat-MA1(006-011,101-113,80-86), 4R-33A, Vympel-A, Vaygach radars, Platina(001-004), Platina-MS(005-011,101-113,80-86), Shelon'-T, MGS-407K sonars, MI-110KM, MI-110R wake detectors, Vympel-R2 ECM, 2x PK-16, 4x PK-10 dl
002 Suzdalets 1983
003 MPK-139 1984
005 MPK-199 1986
007 MPK-113 1988
008 MPK-207 1989
009 Eysk 1989
010 MPK-125 1990
011 MPK-82 1991
104 MPK-194 1988
105 MPK-196 1988
106 MPK-197 1989
107 Yunga 1989
108 MPK-130 1990
109 MPK-56 1990
110 MPK-7 1990
111 MPK-10 1991
112 Monchegorsk 1993
113 MPK-59 1994
80 MPK-221 1987
82 MPK-222 1989
83 MPK-28 1989
84 MPK-107 1990
85 MPK-64 1990
86 MPK-17 1991
pr. 1234 2 58 Zarnitsa 1973 684t, 59.3x11.8x3.0m, 3d, 30000hp, 35kts, 60p; 2x3 Malakhit SSM(6), 1x2 Osa-M SAM(20), 1x2-57/50; Titanit, 4R-33, Bars radars, Zaliv ECM, 4x PK-10 dl
59 Molniya 1973
pr. 12341 18 68 Burun 1977 730t, 59.3x11.8x3.1m, 3d, 30000hp, 34kts, 64p; 2x3 Malakhit SSM(6), 1x2 Osa-MA SAM(20), 1x1-76/59, 1x6-30/54; Titanit, 2x Pechora, 4R-33A, Vympel-A radars, Zaliv ECM, 6x PK-10 dl
70 Shtil' 1978
71 Aysberg 1979
72 Tucha 1980
73 Uragan 1983
74 Priboy 1984
75 Priliv 1985
77 Mirazh 1986
78 Meteor 1987
79 Rassvet 1988
80 Zyb' 1989
81 Geyzer 1989
82 Passat 1990
83 Liven' 1991
1004 Smerch 1984
1005 Iney 1987
1006 Moroz 1989
1007 Razliv 1991
pr. 12347 1 76 Nakat 1987 730t, 59.3x11.8x3.1m, 3d, 30000hp, 34kts, 65p; 2x6 Oniks SSM(12), 1x2 Osa-MA SAM(20), 1x1-76/59, 1x6-30/54; Monolit, Don-2, 4R-33A, Vympel-A radars, 2x PK-16 dl
pr. 1331M 12 373 MPK-192 1986 935t, 75.2x9.8x2.7m, 3d, 14250hp, 24.5kts, 80p; 2x4 Strela-3 SAM(16), 1x1-76/59, 1x6-30/54, 2x2-533TT, 2x12 RBU-6000 ASWRL, 2dcr; Pozitiv, Vympel radars, Platina-MS, Uzh sonars
374 Kazanets 1986
375 MPK-67 1987
376 MPK-99 1987
377 MPK-105 1988
378 MPK-213 1988
379 MPK-216 1988
380 MPK-219 1988
381 MPK-224 1989
382 MPK-227 1989
383 Bashkortostan 1989
384 Kalmykiya 1990

PATROL AND COASTAL COMBATANTS

PMSE pr. 902 1 31 S-31 1989 370t, 73.5x44.0x2.5(0)m, 8tj, 104000kgf, 270kts, 9p; 3x2 Moskit SSM(6), 1x2-23/60; Poluchas, Don-2 radars, Hipper ECM
PHM pr. 206MR 4 241 R-27 1977 257t, 39.5x7.6x2.0m, 3d, 15000hp, 43kts, 29p; 2x1 Termit SSM(2), 1x4 Strela-3M SAM(16), 1x1-76/59, 1x6-30/54; Rangout(241-245), Garpun(246), Vympel-A, Omega radars, Pchela(246) ECM, 2x PK-16 dl
243 R-50 1978
251 R-25 1983
252 R-30 1983
pr. 02066 1 242 R-44 1978 265t, 39.5x7.6x2.0m, 3d, 15000hp, 42kts, 29p; 2x4 Uran SSM(8), 1x4 Strela-3M SAM(16), 1x1-76/59, 1x12-30/54; Rangout, Vympel-M, Omega radars, Rakurs e/o director, 2x PK-16 dl
PM pr. 12411T 8 401 R-49 1979 469t, 56.1x10.2x2.3m, COGAG:2gt+2gt(2), 34000hp, 42kts, 41p; 2x2 Termit SSM(4), 1x4 Strela-3M SAM(16), 1x1-76/59, 2x6-30/54; Garpun, Rangout, Vympel-A, MR-405, Don radars, Vympel-R2 ECM, 2x PK-16 dl
403 R-255 1980
405 R-6 1983
203 R-101 1985
204 R-129 1985
205 R-257 1986
901 R-42 1983
904 R-79 1984
pr. 12417 1 201 R-71 1985 495t, 56.1x10.2x2.3m, COGAG:2gt+2gt(2), 34000hp, 42kts, 41p; 2x2 Termit SSM(4), 1x(8 SAM+12-30/54) Kortik CADS(16), 1x1-76/59; Monolit, Pozitiv, Don radars, 2x PK-16 dl
pr. 12411 22 206 R-47 1987 493t, 56.1x10.2x2.5m, CODAG:2d+2gt(2), 32000hp, 41kts, 40p; 2x2 Moskit SSM(4)(206-213,905-919), 2x2 Moskit-M SSM(4)(others), 1x4 Strela-3M SAM(16), 1x1-76/59, 2x6-30/54; Monolit, Vympel-A, Don radars, Vympel-R2 ECM, 2x PK-16 dl
207 R-60 1987
209 R-187 1989
210 R-239 1989
211 Ivanovets 1989
212 R-109 1990
213 R-291 1991
214 R-293 1992
911 R-83 1986
912 R-229 1987
914 R-240 1988
915 R-261 1988
916 R-271 1989
917 R-442 1989
918 R-297 1990
919 R-298 1990
920 R-11 1991
921 R-14 1991
922 R-18 1992
923 R-19 1992
924 R-20 1993
925 R-24 1994
pr. 1241RE 1 01710 R-26 1981 455t, 56.1x10.2x2.2m, COGAG:2gt+2gt(2), 34000hp, 43kts, 37p; 2x2 Termit SSM(4), 1x4 Strela-3M SAM(16), 1x1-76/59, 2x6-30/54; Garpun-E, Vympel-A, Kivach-2 radars
PGH pr. 206M 3 402 AK-75 1974 250t, 39.5x7.5(13.6)x1.6(3.2)m, 3d, 15000hp, 44kts, 25p; 1x2-57/50, 1x2-25/82, 2dcr; Baklan, Bars, SRN-207N(402,901), SRN-206S(01302) radars, Sheksna sonar, 2x PK-16(01302), 2x UB-16-57UM(01302) dl, Dozor-1 CCS
901 AK-118 1972
01302 AK-72 1975
PG pr. 205P 1 131 AK-232 1972 245t, 40.0x7.9x2.0m, 3d, 15000hp, 36kts, 31p; 2x2-30/71, 4-400TT, 2dcr; 4Ts-30-125(131,137,139), Reyd(15), Ksenon radars, Sheksna sonar
pr. 02065 1 307 T-299 1989 266t, 41.0x7.6x2.0m, 3d, 14400hp, 36kts, 32p; 1x4 Strela-3 SAM(16), 1x1-76/59, 1x6-30/54, 2dcr; Rangout, Vympel-AME, Liman radars, Nakat, SPO-3 ECM
pr. 12411 1 208 MAK-160 1988 493t, 56.1x10.2x2.5m, CODAG:2d+2gt(2), 32000hp, 41kts, 40p; 1x4 Strela-3M SAM(16), 1x1-76/59, 2x6-30/54, 4x17-140 BM-14-17 rl; Vympel-A, Don radars, Vympel-R2 ECM, 2x PK-16, 4x PK-10 dl
PHC pr. 11451 2 501 MPK-215 1987 470t, 50.0x9.9(21.1)x2.2(7.3)m, 3gt(3)/2d(2ap), 46500/2200(501)-48500/2200(502)hp, 60.5kts, 39p; 1x8 Strela-3 SAM, 1x1-76/59, 1x6-30/54, 2x4-400TT; Vympel-A, Reyd, Zvezda-M1-01, MGS-407K sonars, 2x PK-16 dl
502 Vladimirets 1990
PC pr. 12412 3 502 MPK-144 1980 455t, 56.4x10.2x2.1m, 2d, 20000hp, 32.9kts, 36p; 1x4 Strela-3 SAM(16), 1x1-76/59, 1x6-30/54, 1x7-55gl, 4-400TT, 2x5 RBU-1200M ASWRL, 2dcr; Vympel-A, Reyd, Pechora radars, Bronza sonar, 2x PK-16 dl
503 MPK-60 1980
505 MPK-76 1981
PB pr. 1400M 2 1-2 AK-326, 388 1980-1990 40t, 23.8x5.2x1.0m, 2d, 2000hp, 29kts, 9p; 1x2-14.5, 1x2-12.7; Lotsiya radar
PBR pr. 1204 8 1-8 AK-201, 202, 209, 223, 224, 248, 582, 599 1968-1972 77t, 27.4x4.3x1.0m, 2d, 2400hp, 24kts, 14p; 8belt, 4deck, 15turret, 10CT; 1x1-76/48, 1x2-25/82, 1x17-140 BM-14-17 rl, 4x1-30gl, 10mines; Donets-2 radar

AMPHIBIOUS

LPD pr. 1174 2 102 Aleksandr Nikolaev 1982 13880t, 157.0x23.8x5.0m, 2gt, 36000hp, 21kts, 250p; 1x2 Osa-MA SAM(20), 4x4 Strela-3 SAM(16), 1x2-76/59, 4x6-30/54, 1x40-122 Grad-M rl, 1x7-55gl, 4hel(Ka-29); 6 pr.1176 LCM or 6 pr.1785 LCM or 3 pr. 1206 LCAC, 23tanks, 440troops; Angara(102), Fregat-M2(103), 4R-33A, Turel', 2x Vympel-A, Volga(102), 2x Vaygach-U(103) radars, Braslet sonar, Start ECM
103 Mitrofan Moskalenko 1990

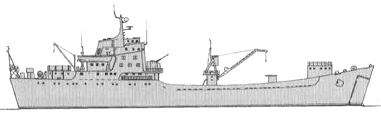

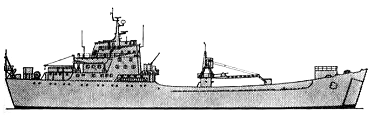

LST pr. 1171 group 1 1 291 BDK-65 1966 4650t, 113.1x15.6x4.5m, 2d, 9000hp, 16.5kts, 69p; 3x2 Strela-3 SAM(24), 1x2-57/75; 20tanks, 313troops; 2x Don, Pal radars
pr. 1171 group 2 1 296 BDK-69 1968 4650t, 113.1x15.6x4.5m, 2d, 9000hp, 16.5kts, 69p; 3x2 Strela-3 SAM(24), 1x2-57/75; 20tanks, 313troops; 2x Don radars
pr. 1171 group 3 1 298 Donetskiy Shakhtyor 1969 4650t, 113.1x15.6x4.5m, 2d, 9000hp, 16.5kts, 69p; 3x2 Strela-3 SAM(24), 1x2-57/75, 2x40-122 MS-73 Grad rl; 20tanks, 440troops; 2x Don radars
pr. 1171 group 4 2 303 Nikolay Vilkov 1974 4650t, 113.1x15.6x4.5m, 2d, 9000hp, 16.5kts, 69p; 3x2 Strela-3 SAM(24), 1x2-57/75, 2x2-25/82, 2x40-122 MS-73 Grad rl, 2x7-55gl(303); 20tanks, 440troops; 2x Don radars
304 Nikolay Filchenkov 1975
pr. 775 4 775/5 BDK-91 1976 4012t, 112.5x15.0x4.3m, 2d, 19200hp, 17.6kts, 98p; 2x2-57/50; 10tanks, 340troops; Rubka, Don, Bars radars
775/7 Kondopoga 1976
775/8 BDK-183 1977
775/11 BDK-55 1978
pr. 775/II 13 775/13 BDK-14 1981 4012t, 112.5x15.0x4.3m, 2d, 19200hp, 17.6kts, 98p; 2x4 Igla SAM(16), 2x2-57/50, 2x40-122 Grad-M rl, mine clearance line charges(775/14,775/23); 10tanks, 340troops; Rubka, Reyd, Bars radars
775/14 BDK-101 1981
775/15 BDK-105 1982
775/16 BDK-98 1982
775/17 BDK-32 1982
775/18 BDK-43 1983
775/19 Kaliningrad 1984
775/20 BDK-45 1985
775/22 Aleksandr Shabalin 1985
775/23 Tsezar' Kunikov 1986
775/24 BDK-46 1987
775/25 BDK-67 1988
pr. 775/III 3 775/26 Azov 1990 4012t, 112.6x15.0x4.3m, 2d, 19200hp, 17.6kts, 98p; 4x4 Igla SAM(16), 1x1-76/59, 2x6-30/54, 2x40-122 Grad-M rl; 10tanks, 340troops; Pozitiv-E, Don(26,27), Vaygach(28), Vympel-A radars, 2x PK-16 dl
775/27 BDK-11 1991
775/28 BDK-61 1991
LSM pr. 773 1 773/6 MDK-82 1972 1192t, 81.3x9.2x2.3m, 2d, 4400hp, 16.3kts, 45p; 4x4 Strela-3M SAM(16), 2x2-30/71, 2x18-140 WM-18 rl; 6tanks, 180troops; Donets, Rys' radars
LSS pr. 106K 1 35 MDK-499 1968 610t, 54.5x8.0x2.0m, 2d, 600hp, 10.5kts, 13p; 3tanks or 176troops; Don radar
LSAC pr. 12321 6 77 MDK-184 1978 360t, 45.5x17.4x0m, 2gt(4ap), 32000hp, 49kts, 21p; 2x2-30/71; 2tanks or 80troops; Mius, Rys' radars
82 MDK-88 1981
85 MDK-113 1983
87 MDK-15 1984
88 MDK-18 1984
89 MDK-17 1985
pr. 12322 4 101 MDK-122 1990 550t, 57.3x25.6x1.6/0m, 3gt+2gt(3ap), 30000+20000hp, 63kts, 27p; 1x2 Igla-1M SAM(32), 2x6-30/54, 2x22-140 MS-227 Ogon' rl; 3tanks or 360troops or 78mines; Lazur', Vympel, Ekran-1 radars, MP-411 ECM
102 MDK-50 1990
103 MDK-94 1991
104 MDK-118 1994
LC pr. 1785 10 1-10 D-... 1973-1974 80t, 19.7x4.9x1.4m, 2d, 300hp, 7.8kts, 4p; 1tank or 20troops; radar
pr. 1176 14 4008 D-704 1976 119t, 24.0x5.2x1.6m, 2d, 600hp, 11kts, 4p; 1tank or 20troops; Mius radar
4012 D-444 1977
4013 D-448 1977
4015 D-282 1978
4020 D-70 1981
4024 D-464 1985
4025 D-465 1986
4026 D-263 1987
4027 D-295 1989
4028 D-460 1989
4029 D-325 1991
4030 D-148 1993
4031 D-365 1994
4032 D-182 1996
pr. 11770 2 801 D-67 1994 100t, 25.7x5.7x1.5m, 2d, 6600hp, 30kts, 5p; 1tank or 92troops; Pal-N-3 radar
802 D-156 1999
LCAC pr. 1205 3 1-3 D-338, 357, 732 1974-1976 27t, 21.4x7.3x0m, 2gt+1gt(2ap), 2340hp, 49kts, 4p; 4x1-30gl, 40troops; Kivach-1 radar
pr. 1206 4 112 D-154 1981 114t, 24.6x10.8x1.3m, 2gt(2ap), 20000hp, 55kts, 6p; 1x2-12.7; 1tank or 120troops; Kivach-2 radar
113 D-141 1982
114 D-145 1982
118 D-457 1985
LCSE pr. 904 1 26 DES-26 1983 122t, 58.1x31.5x1.5(0)m, 1gt(1ap)+2tj, 15400+21000kgf, 216kts, 9p; 1x2-12.7; 1 APC or 150troops; Ekran, Splav radars

MINE WARFARE

MSO pr. 266M 10 910 Kontr-admiral Vlasov 1972 800t, 61.0x10.2x3.0m, 2d, 5000hp, 16.5kts, 68p; 2x4 Strela-2 SAM(16), 2x2-30/71, 2x2-25/82, 2x1-12.7(950), 2x5 RBU-1200 ASWRL, 2dcr, KIU-1 USV, mechanical, magnetic, acoustic minesweeping gear, mine-clearing line charges; Rubka, Rys', 2x Don-D radars, Lan', Mezen' sonars
920 Radist 1973
926 Komendor 1974
929 Kovrovets 1974
938 Pulemiotchik 1975
939 Turbinist 1975
946 Mashinist 1975
947 Novouralsk 1976
951 Vitse-admiral Zhukov 1978
952 Sviazist 1978
pr. 02666 1 953 Strelok 1980 800t, 61.0x10.2x3.0m, 2d, 5000hp, 16.5kts, 68p; 2x4 Strela-2 SAM(16), 2x2-30/71, 2x2-25/82, 2x5 RBU-1200M ASWRL, 2dcr, KIU-1, Trepang, Delfin-TM USV, mechanical, magnetic, acoustic minesweeping gear, mine-clearing line charges; Rubka, Rys', 2x Don-D radars, Lan', Mezen' sonars
pr. 266ME 2 872 MT-264 1989 804t, 61.0x10.2x2.3m, 2d, 5000hp, 16kts, 69p; 2x1 Igla-1 SAM(20), 2x6-30/54, 2x2-25/82, 2x5 RBU-1200M ASWRL, 2dcr, mechanical, magnetic, acoustic minesweeping gear, mine-clearing line charges; Vaygach radar, Lan', MG-89 sonars
873 MT-265 1989
pr. 1332 1 301 MT-434 1973 No picture 1940t, 58.8x13.0x4.8m, 1d, 2200hp, 13.3kts, 39p; 2x2-25/82, 2x7-55gl, minesweeping gear; radar
pr. 12660 1 561 Zheleznyakov 1988 1150t, 67.8x11.0x3.1m, 2d, 5000hp, 15.7kts, 68p; 2x4 Strela-3 SAM, 1x1-76/59, 1x6-30/54, 16mines, 2x4-400 Giurza mine countermeasures system launchers, Ketmen', Paltus USVs, mechanical, acoustic, magnetic minesweeping gear, mine clearance line charges; Vympel-A, 2x Vaygach-U radars, Kabarga-A3, Braslet sonars, 2x PK-16 dl
MSC pr. 1265 35 123 BT-21 1980 460t, 49.0x8.8x2.5m, 2d, 2200(109,901-904)-2000(others)hp, 14kts, 45p; 1x4 Strela-3 SAM(16), 1x2-30/71(109-147,149,901-919), 2x6-30/54(148,150-164,920-922), 1x2-25/82(109-147,149,901-919), 6mines, KIU-1 USV(109-138,901-916), KIU-2M USV(139-164,917-922), mechanical, acoustic, magnetic minesweeping gear, mine-clearing line charges; Mius, Vaygach-U radars, Lan'(109-155,901-922), Mezen'(109-155,901-922), MG-89(156-164), Braslet sonars
124 BT-31 1981
126 BT-22 1982
127 BT-40 1982
132 BT-94 1983
133 BT-97 1984
135 BT-109 1984
136 BT-15 1985
138 BT-44 1985
139 BT-48 1986
141 BT-50 1986
142 BT-152 1987
144 BT-88 1987
145 BT-111 1988
147 BT-244 1988
148 Aleksey Lebedev 1989
150 BT-241 1989
151 Kolomna 1990
153 Leonid Sobolev 1990
154 BT-211 1991
156 BT-212 1991
157 Sergey Kolbasyev 1992
159 BT-115 1993
160 BT-116 1997
909 BT-78 1979
911 BT-132 1981
914 BT-96 1983
915 BT-100 1984
916 BT-325 1985
917 BT-51 1986
918 BT-114 1987
919 BT-232 1988
920 BT-245 1989
921 BT-256 1990
922 BT-215 1991
MSI pr. 12531 1 503 RT-168 1980 120t, 26.4x5.6x1.7m, 1d(wj), 550hp, 10.5kts, 7/0p; mine-clearing line charges; Mius radar
pr. 1258 8 123 RT-348 1975 91t, 26.1x5.4x1.4m, 2d, 600hp, 12kts, 10p; 1x2-25/82(128-153), 1x2-14.5(119-127), 1x7-55gl, 2dcr, IT-1 or IU-2 USV or mechanical or magnetic or acoustic minesweeping gear or mine-clearing line charges; Kivach radar, Braslet sonar
133 RT-402 1978
137 RT-471 1979
140 RT-36 1980
144 RT-71 1981
147 RT-195 1982
148 RT-210 1983
149 RT-135 1983
pr. 1258E 2 154 RT-46 1985 97t, 26.1x5.4x1.4m, 2d, 600hp, 12kts, 10p; 1x2-25/82, 1x7-55gl, 2dcr, IT-1 or mechanical or magnetic or acoustic minesweeping gear or mine-clearing line charges; Kivach radar, Braslet sonar
155 RT-236 1985
pr. 697TB 2 1 RT-59 1976 No picture 157t, 27.1x5.7x1.9m, 1d, 225hp, 10kts, 9p; 1x2-25/82, minesweeping gear; radar
2 RT-181 1980
pr. 1330 1 1 RT-42 1982 No picture 183t, 26.5x6.6x2.3m, 1d, 225hp, 9.3kts, 11p; minesweeping gear; Gals radar
pr. 10750 9 350 RT-57 1989 135t, 31.5x6.5x1.5m, 3d, 900hp, 12kts, 14p; 1x8 Igla-1 SAM(32), 1x6-30/54, 4mines, KIU-2M SUV or mechanical minesweeping gear, acoustic, magnetic minesweeping gear, mine clearance line charges; Pechora-1 radar, Kabarga-A1 sonar
351 RT-341 1989
352 RT-248 1990
353 RT-249 1990
354 RT-252 1991
355 RT-273 1992
356 RT-231 1993
357 RT-233 1994
358 RT-234 1996
MSB pr. 1259 4 1-4 RT-139, 141, 254, 278 1990-1991 62t, 24.4x4.4x0.9m, 2d(wj), 470hp, 12kts, 10p; 1x2-25/82, mechanical or magnetic or acoustic minesweeping gear; Kivach radar
pr. 13000 5 315 RT-702 1985 100t, 26.2x4.1x1.9m, 2em(2azipods), 244hp, 8.5kts, 5/0p; acoustic minesweeping gear; Kozhimit remote control system
316 RT-276 1987
317 RT-171 1986
318 RT-344 1989
319 RT-61 1991
pr. 12255 1 301 RT-343 1990 80t, 27.0x3.9x2.1m, 1d, 235hp, 9kts, 16p; 1x1 Strela-3 SAM(4), 1x2-12.7, mechanical minesweeping gear; Vaygach radar, Kozhimit-K remote control equipment

BORDER GUARD

PSO pr. 97P 6 02651 Aysberg 1974 3525t, 69.9x18.0x6.5m, 3dg,2em, 5000hp, 15kts, 126p; 2x4 Strela-2 SAM(16)(02654,02655), 1x2-76/59, 2x6-30/54, helodeck; Rubka, Turel', 2x Nayada-5 radars
02653 Anadyr' 1976
02654 Dunay 1977
02655 Neva 1978
02656 Volga 1980
02657 Murmansk 1981
pr. 11351 6 202 Dzerzhinskiy 1984 3642t, 123.0x14.2x4.8m, COGAG:2gt+2gt(2), 46000hp, 31kts, 193p; 1x2 Osa-MA2 SAM(20), 1x1-100/59, 2x6-30/54, 2x4-533TT, 2x12 RBU-6000 ASWRL, 1hel(Ka-27PS); Angara-A(202), Fregat-M2(203-207), Lev-218-100, 4K-33, Reyd(202-204), Reyd-M(205-207), 2x Vaygach-U radars, Platina-MS, Bronza, MGS-407 sonars, MI-110KM wake detector, Start-S ECM
203 Oriol 1986
204 Pskov 1987
205 Imeni 70-letiya Pogranvoysk 1988
206 Kedrov 1989
207 Vorovskiy 1990
pr. 850285 4 01695 Komandor 1989 2553-2695t, 89.0x13.6x4.7m, 1d, 7000hp, 19.2kts, 42p; 2x1-12.7, 1hel(Ka-32); Nayada-5, Furuno 2030S, Furuno 810DS radars
01696 Shkiper Gek 1989
01697 Kherluf Bidstrup 1990
01698 Manchzhur 1990
PS pr. 1124P 4 713 Izumrud 1974 960t, 71.2x10.2x3.6m, 1gt+2d(3), 38000hp, 36.1kts, 79p; 2x2-57/50, 2x2-533TT, 2x12 RBU-6000 ASWRL, 2dcr, 18mines; Rubka, Bars, Don radars, Amgun', Shelon'-T, MGS-407K sonars, MI-110K, MI-110R wake detectors, Bizan'-4B ECM
779 Predannyy 1983
780 Nadyozhnyy 1984
781 Dozornyy 1985
pr. P1124 3 41 Bezuprechnyy 1981 990t, 71.1x10.2x3.5m, 1gt+2d(3), 38000hp, 32kts, 83p; 1x2 Osa-M SAM(20), 1x2-57/50, 1x6-30/54, 2x2-533TT, 2x12 RBU-6000 ASWRL, 2dcr, 18mines; Rubka, 4R-33, Vympel-A, Don radars, Amgun'-T, Shelon'-T, MGS-407K sonars, MI-110KM wake detector, Bizan'-4B ECM
42 Zorkiy 1982
44 Smelyy 1983
pr. 745P 17 405 Sakhalin 1974 1620t, 56.5x12.6x4.6m, 2dg,1em, 3000hp, 13kts, 47p; 2x2-30/71(405-428), 2x6-30/54(431-441); 2x Don radars
406 Kamchatka 1975
408 Amur 1977
410 Brest 1978
412 Ladoga 1978
413 Primorye 1978
415 Zabaykalye 1981
416 Baykal 1980
419 Chukotka 1982
420 Zapoliarye 1982
423 Kareliya 1983
427 Bug 1985
428 Ural 1986
431 Tver' 1987
432 Viktor Kingisepp 1988
439 Taymyr 1992
440 Don 1997
pr. 502M 1 269 Diana 1978 952t, 54.1x9.3x3.7m, 1d, 800hp, 11.7kts, 75p; Don radar
pr. 502R 3 18 Afalina 1970 965t, 54.1x9.3x4.1m, 1d, 800hp, 11.7kts, 75p; Don radar
33 Paliya 1972
36 Antur 1972
pr. 503 3 277 Askold Pynko 1993 1137t, 53.7x10.7x4.3m, 1d, 1320hp, 12.6kts, 25p; Don radar
281 Skat 1993
282 Pagella 1994
pr. 503N/ROS 1 386/702 Bars 1996 1137t, 53.7x10.7x4.3m, 1d, 1320hp, 12.6kts, 25p; Don radar
pr. 503M/RR 2 395/703 Antias 1996 1238t, 53.7x10.7x4.3m, 1d, 1320hp, 12.6kts, 25p; Don radar
396/704 Argal 1997
PCH pr. 133 2 910 PSKR-109 1991 221t, 40.2x8.0(15.9)x1.6(4.9)m, 2gt, 20000hp, 61kts, 24p; 1x1-76/59, 1x6-30/54, 2-400TT, 1x7-55gl, 1dcr; Rangout, Vympel-A radars, Ros'-K sonar
911 Tuapse 1992
PC pr. 205P 17 134 PSKR-631 1973 245t, 40.0x7.9x2.0m, 3d, 15000hp, 36kts, 31p; 2x2-30/71, 4-400TT, 2dcr; 4Ts-30-125(134-143,601-623), Reyd(144-213), Ksenon radars, Sheksna sonars, MI-110K(151,183-213,606) wake detector
146 PSKR-641 1975
171 PSKR-665 1978
181 PSKR-700 1980
184 PSKR-703 1981
189 PSKR-708 1983
191 PSKR-710 1983
193 PSKR-712 1984
197 PSKR-714 1985
200 PSKR-715 1985
202 PSKR-717 1986
203 PSKR-718 1986
209 PSKR-721 1987
211 PSKR-723 1988
213 PSKR-725 1989
614 PSKR-683 1972
621 PSKR-690 1974
pr. 12412 18 101 Berkut 1980 455t, 56.4x10.2x2.1m, 2d, 20000hp, 32.9kts, 36p; 1x4 Strela-3 SAM(16), 1x1-76/59, 1x6-30/54, 1x7-55gl, 4-400TT, 2x5 RBU-1200M ASWRL, 2dcr; Vympel-A, Reyd, Pechora radars, Bronza sonar, 2x PK-16 dl
102 Voron 1981
103 Kondor 1982
104 Korshun 1983
105 Kobchik 1984
106 Krechet 1985
107 Sokol 1986
108 Yastreb 1987
109 Nakhodka 1988
504 Yaroslavl 1981
506 Tolyatti 1982
508 Kaliningrad 1983
511 Grif 1984
514 Nikolay Kaplunov 1986
515 Orlan 1986
517 Sarych 1987
519 Cheboksary 1988
520 Yaguar 1988
pr. 1241PE 2 906 Novorossiysk 1991 495t, 56.1x10.2x2.1m, 2d, 18000hp, 30.5kts, 36p; 1x4 Igla-1M SAM(16), 1x1-76/59, 1x6-30/54, 1x7-55gl, 2x2-533TT, 2x5 RBU-1200M ASWRL, 2dcr; Vympel-A, Reyd, Pozitiv-E, Liman radars, Bronza sonar, 2x PK-16 dl
907 Kuban' 1991
pr. 10410 21 401 PSKR-900 1988 375t, 49.5x9.2x2.6m, 3d, 16200hp, 32kts, 28p; 1x2 Igla-1M SAM(16), 1x1-76/59(401-409,301-306,308), 1x6-30/54(401-409,301-306,308), 2x6-30/54(307), 2x7-55gl, 2-400TT, 2dcr; Mius, Vaygach-U, Vympel-A radars, Uzh-M, Braslet sonars, Sliabing ECM, 2x PK-16 dl
403 PSKR-903 1989
404 PSKR-904 1989
405 PSKR-907 1990
406 PSKR-908 1991
407 PSKR-914 1991
408 PSKR-915 1992
409 PSKR-918 1994
801 Stavropol 1990
802 PSKR-905 1991
803 Sochi 1992
804 Briz 1992
805 Rubin 1993
806 PSKR-916 1994
301 Vyborg 1992
302 PSKR-912 1992
303 Almaz 1993
304 Neptun 1994
305 PSKR-919 1995
306 Syktyvkar 1995
307 PSKR-921 1997
pr. 02065 2 308 PSKR-726 1990 266t, 41.0x7.6x2.0m, 3d, 14400hp, 36kts, 32p; 1x4 Strela-3 SAM(16), 1x1-76/59, 1x6-30/54, 2dcr; Rangout, Vympel-AME, Liman radars, Nakat, SPO-3 ECM
309 PSKR-727 1990
pr. 1265E 1 155 Astrakhanets 1991 427t, 49.1x8.8x2.4m, 2d, 2000hp, 14kts, 45p; 1x4 Strela-3 SAM(16), 1x2-30/71, 1x2-25/82; Mius, Vaygach-U radars, Braslet sonar
PCR pr. 1208 10 201 Groza 1975 450t, 55.1x9.1x1.4m, 3d, 11400hp, 23kts, 32p; 20belt, 35turrets, 35CT; 1x4 Strela-2 SAM(16), 2x1-100/54, 2x6-30/54, 2x2-12.7, 2x1-30gl, 1x2-140 Sneg rl; Vympel-A(201-208,210), Mius radars
202 Smerch 1976
203 Tayfun 1977
204 Khabarovsk 1977
205 Blagoveshchensk 1979
206 Shtorm 1978
207 Imeni 60-letiya Pogranvoysk 1979
208 Vikhr' 1980
209 Shkval 1981
210 Uragan 1982
pr. 12081 1 211 Vyuga 1984 450t, 55.1x9.1x1.4m, 3d, 11400hp, 23kts, 32p; 20belt, 35turrets, 35CT; 1x4 Strela-2 SAM(16), 2x1-100/54, 1x6-30/54, 2x2-12.7, 2x1-30gl, 1x2-140 Sneg rl, 1 Akvilon laser gun; Volna, Mius radars
pr. 1248 23 301 PSKR-300 1979 214t, 38.9x6.1x1.2m, 3d, 3300hp, 17.5kts, 21p; 8side, 35turret; 1x1-100/54, 1x6-30/54, 1x2-12.7, 1x1-30gl, 1x2-140 Sneg rl; Mius radar
302 PSKR-301 1980
303 PSKR-302 1981
304 PSKR-303 1981
305 PSKR-304 1981
306 PSKR-305 1982
307 PSKR-306 1982
308 PSKR-307 1983
309 PSKR-308 1983
1310 PSKR-309 1984
1311 PSKR-310 1984
1312 PSKR-311 1985
1313 PSKR-312 1985
1314 PSKR-313 1986
1315 PSKR-314 1986
1316 PSKR-315 1987
1317 PSKR-316 1987
1318 PSKR-317 1988
1319 PSKR-318 1988
1320 PSKR-319 1989
1321 PSKR-320 1989
1322 PSKR-321 1990
1323 Vasiliy Poyarkov 1991
pr. 1249 8 401 PSKR-52 1979 225t, 42.9x6.1x1.3m, 3d, 3300hp, 17.4kts, 28+12p; 1x1 Strela-2M SAM(8), 1x6-30/54, 1x1-30gl; Mius radar
402 PSKR-53 1980
403 PSKR-54 1981
404 PSKR-55 1981
405 Kazak Ussuriyskiy 1982
406 PSKR-57 1983
407 PSKR-58 1983
408 PSKR-59 1984
PBAC pr. 12061 7 310 PSKR-... 1985 149t, 31.3x12.9x1.0/0m, 2gt(2ap), 20000hp, 55kts, 12p; 1x4 Igla-1 SAM(16), 2x6-30/54, 2x1-30gl; 1MBT or 130troops or 24 mines; Lazur', Ekran-1 radars
311 PSKR-... 1987
312 PSKR-... 1987
313 PSKR-... 1988
314 PSKR-... 1989
315 PSKR-... 1990
317 PSKR-... 1992
PB pr. 1400M 6 1-6 PSKA-545-549, 551 1991-1992 40t, 23.8x5.2x1.0m, 2d, 2000hp, 29kts, 9p; 1x2-14.5, 1x2-12.7; Lotsiya radar
pr. 1400ME 5 1-5 PSKA-500, 501, 503, 571,572 1978-1983 40t, 23.8x5.2x1.0m, 2d, 2000hp, 29kts, 9p; 2x2-14.5; Lotsiya radar
pr. 14081 25 1-25 PSKA-400-424 1989-1999 No picture 13t, 14.1x3.5x0.7m, 1d(wj), 1000hp, 38kts, 2p; Liman radar
pr. 18623 1 1 PSKA-816 1999 No picture 36t, 20.0x4.5x1.1m, 2d, 3000hp, 45kts, 6+4p; 1x1-14.5, 1x1-30gl; Gals radar
PBR pr. 12130 1 1 Admiral Kazakevich 1998 98t, 33.4x4.2x0.8m, 2d, 2200hp, 25.2kts, 17p; 1x1 Igla-M SAM(4), 2x6-30/54; Liman radar



AIRCRAFT



NAVY

Ship-based

 34 Su-33, 10 Su-25, 72 Ka-27, 12 Ka-29

Land-based combat capable

 45 Tu-22M, 52 Su-24, 18 Su-27, 20 Tu-142, 26 Il-38, 4 Be-12, 18 An-12RT, 3 Mi-14, 8 Mi-8RT, 15 Mi-24

ARMY

Land-based combat capable

180 R-36M, 140 UR-100N, 36 RT-23, 360 RT-2PM Topol, 24 RT-2UTTH Topol-M

700 Mi-24, 8 Ka-50, 140 Mi-24R

AIR FORCE

Combat capable

74 Tu-95, 15 Tu-160, 125 Tu-22M/MR, 409 Su-24, 252 Su-25, 22 MiG-25, 277 MiG-29, 373 Su-27, 340 MiG-31, 70 MiG-25R, 156 Su-24R, 20 A-50/U, 60 Mi-8PP

NAVAL INFANTRY

units

 1 division, 3 independent brigades, 3 fleet Special Forces brigades; 1 coastal defence division, 1 coastal defence brigade, 1 artillery regiment, 2 SAMregiments
equipment 160 T-55/72/80, 350 MBT, 60 BRDM-2/Maliutka ATGW recce, 150 BMP-2, some BRM-1K AIFV, 750 BTR-60PB/-70/-80, 250 MTLB APC, 10 D-30 122mm towed howitzers, 70 2S9, 11 2S23 120mm SP mortar-howitzers, 1020 122mm 2S1, 18 152mm 2S3 SP howitzers, 96 122mm 9P138 MRL, 14 2B16 120mm mortars, some MT-12 100mm guns, 72 Maliutka/Fagot ATGW, 60 ZSU-23-4 23mm SP AA guns, 250 Strela-2, 20 Osa, 50 Strela-1/10 SAM
coastal defence troops 350 T-64 MBT, 450 BMP-2 AIFV, 280 BTR-60PB/-70/-80, 400 MT-LB APC, 140 D-30 122mm towed howitzers, 40 D-20, 50 2A65, 50 2A36 152mm towed howitzers, 48 2S5 152mm SP guns, 36 BM-21 122mm MRL

© Ivan Gogin, 2017
