Australia 01 January 2000
SUBMARINES
| SS | Oberon | 1 | 62 | Otama | 1978 | |
2030/2410t, 88.5x8.1x5.6m, 2d/em, 3680/6000hp, 12/17kts, 64p, 230m; 6-533TT(inc Sub-Harpoon SSM(4)); type 1006 radar, CSU3-41, type 2007, BQQ-4 sonars |
| Collins | 3 | 73 | Collins | 1996 | |
3050/3350t, 77.8x7.8x6.8m, 3dg,1em, 6900/7000hp, 11/21kts, 42p, 300m; 6-533TT(inc Sub-Harpoon(4)); type 1007 radar, TSM2253 Scylla, Karrawarra sonars, AR-740-US ECM | |
| 74 | Farncomb | 1998 | |||||
| 75 | Waller | 1999 |
PRINCIPAL SURFACE COMBATANTS

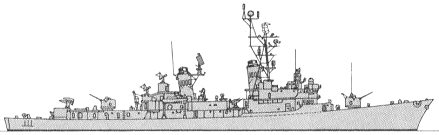

| DD | Charles F. Adams | 2 | 39 | Hobart | 1965 |  |
4526t, 133.2x14.3x4.6m, 4b,2gst, 70000hp, 33kts, 350p; 1x1 Harpoon SSM(4) / Standard SM-1MR SAM(36), 2x1-127/54, 2x3-324TT; SPS-40D, SPS-52B, SPS-10F, 2x SPG-51C, SPG-53F, type 975 radars, SQS-23KL sonar, WLR-1H, ULQ-6 ECM, 2x SRBOC dl, SLQ-25 td, NTDS CCS |
| 41 | Brisbane | 1967 | |||||

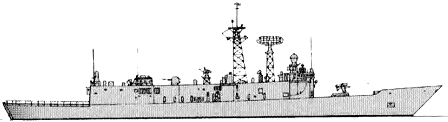

| FF | Oliver H. Perry | 6 | 01 | Adelaide | 1980 |  |
4200t, 138.8x13.7x4.5m, 2gt(1), 41000hp, 29kts, 201p; 1x1 Harpoon SSM(4) / Standard SM-1MR SAM(36), 1x1-76/62, 1x6-20/76, 2x1-12.7, 2x3-324TT, 2 helicopters (S70B-2); SPS-55, SPS-49(v)2, Mk 92 mod. 2, SPG-60 radars, 2x Mk 24, Rademac 2500 e/o, SQS-56(01-04), Mulloka(05,06) sonar, SLQ-32(v)2, EA2118 ECM, 4x mod. SRBOC dl, SLQ-25 td, NTDS CCS |
| 02 | Canberra | 1981 | |||||
| 03 | Sydney | 1983 | |||||
| 04 | Darwin | 1984 | |||||
| 05 | Melbourne | 1992 | |||||
| 06 | Newcastle | 1993 | |||||

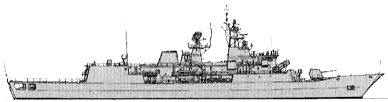

| ANZAC | 2 | 150 | ANZAC | 1996 |  |
3600t, 117.5x14.8x4.4m, CODOG:1gt/2d(2); 30000/8840hp, 27kts, 163p; 1x8 Sea Sparrow SAM(8), 1x1-127/54, 4x1-12.7, 2x3-324TT, 1 helicopter (SH-2G); SPS-49(v)8, 150HC Sea Giraffe, Ceros 200, 9600-M radars, Spherion-B sonar, Sceptre-A, PST1720 ECM, 2x SRBOC dl, SLQ-25 td, 9LV 453 Mk 3 CCS | |
| 151 | Arunta | 1998 |
PATROL AND COASTAL COMBATANTS
| PC | Fremantle | 15 | 203 | Fremantle | 1980 |  |
230t, 42.0x7.2x1.8m, 2d, 7200hp, 30kts, 23p; 1x1-40/60, 2x1-12.7, 1x1-81/12mortar; Bridgemaster-E radar, type 133 PRISM ECM |
| 204 | Warrnambool | 1981 | |||||
| 205 | Townsville | 1981 | |||||
| 206 | Wollongong | 1981 | |||||
| 207 | Launceston | 1982 | |||||
| 208 | Whyalla | 1982 | |||||
| 209 | Ipswich | 1982 | |||||
| 210 | Cessnock | 1983 | |||||
| 211 | Bendigo | 1983 | |||||
| 212 | Gawler | 1983 | |||||
| 213 | Geraldton | 1983 | |||||
| 214 | Dubbo | 1984 | |||||
| 215 | Geelong | 1984 | |||||
| 216 | Gladstone | 1984 | |||||
| 217 | Bunbury | 1984 | |||||
| PB | Malu Baizam | 1 | 2003 | Malu Baizam | 1996 | no picture | 85t, 20.0x5.6x1.5m, 2d, 1300hp, 25kts, 2p; 18troops; JMA-3610 radar |
AMPHIBIOUS

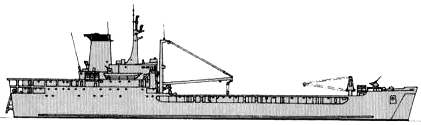

| LST | Tobruk | 1 | L50 | Tobruk | 1981 |  |
6000t, 129.5x19.6x4.3m, 2d, 9600hp, 17kts, 144p; 2x1-40/60, 4x1-12.7, 2 heldecks; 2 LCM(8), 2 LCVP, 11 tanks, 520 troops; Decca RM916, type 1006 radars, Matilda ECM, 2x SRBOC dl |

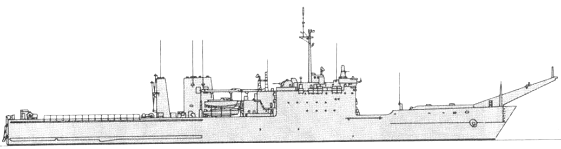

| Newport | 2 | L51 | Kanimbla | 1971 |  |
8342t, 171.3x21.2x5.3m, 6d(2), 16500hp, 21kts, 218p; 1x6-20/76, heldeck; 3 LCVP, 1 LCP, 29 tanks, 385 troops; SPS-10F, SPS-64, 2x Mk 90 radars, 4x SRBOC dl | |
| L52 | Manoora | 1971 | |||||
| LSS | Balikpapan | 6 | L126 | Balikpapan | 1971 |  |
503t, 44.5x10.1x1.9m, 2d, 675p, 10kts, 14p; 3 tanks; Decca RM916 radar |
| L127 | Brunei | 1973 | |||||
| L128 | Labuan | 1973 | |||||
| L129 | Tarakan | 1973 | |||||
| L130 | Wewak | 1973 | |||||
| L133 | Betano | 1974 |
MINE WARFARE
| MSO | Bandicoot | 2 | Y298 | Bandicoot | 1982 | no picture | 520t, 29.3x8.5x3.4m, 2d, 2160hp, 11kts, 12p; magnetic minesweeping gear; Furuno 7040D radar |
| Y299 | Wallaroo | 1982 | |||||
| Huon | 1 | 82 | Huon | 1999 |  |
720t, 52.5x9.9x3.0m, 1d, 2000hp, 14kts, 38p; 1x1-30/75, 2x1-12.7, 2x Double Eagle Mk 2 USV, mechanical, magnetic, acoustic minesweeping gear, decompression chamber; type 1007 radar, Radamec 1500 e/o, type 2093 sonar, PRISM III ECM, 2x Super Barricade dl, Mullauna CCS | |
| MSC | Brolga | 1 | 1102 | Brolga | 1978 | no picture | 268t, 28.4x8.6x3.1m, 2d, 1080hp, 11kts, 8p; magnetic minesweeping gear; 2x nav. radars, Klein 590 sonar |
| MSI | Rushcutter | 2 | 80 | Rushcutter | 1986 |  |
170t, 31.0x9.0x1.9m, 2dp,2hm(2az), 340hp, 10kts, 13p; 2x1-12.7, 2x PAP-104 USV, magnetic minesweeping gear; type 1006 radar, MWS-80-5 sonar |
| 81 | Shoalwater | 1987 | |||||
| Koraaga | 1 | 1185 | Koraaga | 1974 | no picture | 119t, 21.9x6.4x3.0m, 1d, 470hp, 10.5kts, 9p; magnetic minesweeping gear; Furuno 7040D radar, Klein 590 sonar | |
| Bermagui | 1 | 1121 | Bermagui | 1973 | no picture | 110t, 19.9xxm, 1d, 359hp, 10.5kts, 8p; magnetic minesweeping gear; Furuno 7040D radar, Klein 590 sonar |
ARMY
| LC | LCM(8) | 15 | AB1050 | Coconut Queen | 1967 |  |
116t, 22.7x6.4x1.4m, 4d(2), 720hp, 12kts, 3p; 55t cargo |
| AB1051 | Seahorse II | 1967 | |||||
| AB1053 | Sea Widow | 1967 | |||||
| AB1055 | Midnight Sun | 1967 | |||||
| AB1056 | Charlie Brown | 1967 | |||||
| AB1058 | ANZAC Code | 1967 | |||||
| AB1059 | Snoopy | 1967 | |||||
| AB1060 | The Wanderer | 1967 | |||||
| AB1061 | Northern Warrior | 1967 | |||||
| AB1062 | Ocean Marie | 1972 | |||||
| AB1063 | Ice Fire | 1972 | |||||
| AB1064 | Sea Trojan | 1972 | |||||
| AB1065 | Viking Sun | 1972 | |||||
| AB1066 | Hastings | 1972 | |||||
| AB1067 | Charisma | 1972 |
CUSTOMS
| PB | Bay | 3 | ACV01 | Roebuck Bay | 1999 | No picture | 134t, 38.0x7.3x2.2m, 2d, 2860hp, 24kts; 2x Nucleus 2 radars |
| ACV02 | Holdfast Bay | 1999 | |||||
| ACV03 | Botany Bay | 1999 |
AIRCRAFT
NAVY
|
Ship-based |
16 S-70B-2 Sea Hawk, 6 AS-350B, 3 Bell 206B, 7 Sea King Mk.50A |
| Land-based combat capable | 2 BAe-748 ECM |
ARMY
|
Combat capable |
38 Bell 206B-1 Kiowa, 25 UH-1H |
AIR FORCE
|
Combat capable |
13 F-111C, 4 RF-111A(C), 14 F-111G, 4 RF-111C, 2 EP-3C, 55 F/A-18A, 16 F/A-18B, 33 Hawk 127, 17 P-3C Orion |
CUSTOMS
|
Combat capable |
3 DHC-8, 3 F406, 6 BN-2B-20, 1 Strike Aerocommander 500, 1 Bell 206L-4 |
