Taiwan 01 January 1990
SUBMARINES
| SS | Tench GUPPY II | 2 | 791 | Hai Shih | 1945 | |
1870/2440t, 93.6x8.3x5.2m, 4dg/4em(2), 4610/5400hp, 18/15kts, 81p, 135(791)-120(792)m; 10-533TT; SS-2 radar, BQR-2B, BQS-4C, DUUG-1B sonars, WLR-1, WLR-3 ECM |
| 792 | Hai Pao | 1946 | |||||
| Hai Lung | 2 | 793 | Hai Lung | 1987 | |
2375/2660t, 66.9x8.4x6.7m, 3dg,1em, 5100hp, 11/20kts, 67p, 240m; 6-533TT; ZW-06 radar, SIASS Z sonar suite, Timnex 4 CH(v)2, AR-700 ECM, Gipsy CCS | |
| 794 | Hai Hu | 1988 |
PRINCIPAL SURFACE COMBATANTS

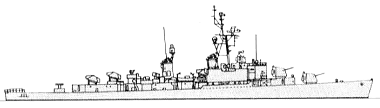

| DD | Fletcher | 4 | 908 | Kwei Yang | 1943 |  |
3050t, 114.7x12.1x4.4m, 4b,2gst, 60000hp, 35kts, 275p; 1x3 Hsiung Feng I SSM(3), 1x4 Sea Chaparral SAM(16), 2x1-127/38(908,909), 3x1-127/38(918,919), 1x1-76/62(908,909), 1x2-40/60, 2x3-324TT, 2x24 Hedgehog ASWRL, 1dcr; SPS-6, SPS-10, 2x R-76C5 radars, DSQS-21CZ sonar, AR680/681 ECM, 4x King Fen dl, T Mk 6 td, H930 CCS |
| 909 | Chiang Yang | 1943 | |||||
| 918 | An Yang | 1943 | |||||
| 919 | Kuen Yang | 1943 | |||||

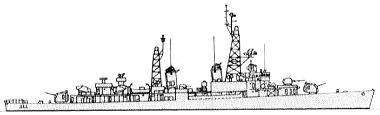

| Allen M. Sumner | 4 | 902 | Heng Yang | 1944 |  |
3218t, 114.8x12.5x4.3m, 4b,2gst, 60000hp, 36.5kts, 336p; 2x3 Hsiung Feng I SSM(6)(902,903,905), (1x3+2x1) Hsiung Feng I SSM(5)(906), 1x4 Sea Chaparral SAM(16), 3x2-127/38(902,903,905), 2x2-127/38(906), 1x1-76/62(906), 2x2-40/60(902,903,905), 1x2-40/60(906), 2x3-324TT, 2x24 Hedgehog ASWRL, 2dcr(902,903,905), 1dcr(906); SPS-6, SPS-10(906), SPS-58(902,903,905), SPG-25(902,903,905), 2x HR-76C5(906), RTN-10X(902,903,905) radars, DSQS-21CZ(902,903,905), SQS-29(906) sonar, AR-680/681 ECM, 4x King Fen dl, T Mk 6(902,903,905) td, H930(906) CCS | |
| 903 | Hua Yang | 1945 | |||||
| 905 | Yuen Yang | 1944 | |||||
| 906 | Huei Yang | 1944 | |||||

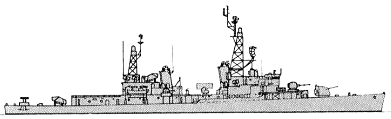

| Allen M. Sumner FRAM-II | 2 | 914 | Lo Yang | 1944 |  |
3210t, 114.8x12.5x4.3m, 4b,2gst, 60000hp, 33.4kts, 302p; (1x3+2x1) Hsiung Feng I SSM(5), 1x4 Sea Chaparral SAM(16), 1x2-127/38, 1x1-76/62, 1x2-40/60, 2x3-324TT, 2x24 Hedgehog ASWRL, 1 helicopter(Hughes 500MD); SPS-10, SPS-29(914), SPS-37(917), 2x HR-76C5 radars, SQS-29 sonar, AR-680/681 ECM, 4x King Fen dl, H930 CCS | |
| 917 | Nan Yang | 1945 | |||||
| Gearing radar picket | 1 | 907 | Fu Yang | 1945 |  |
3493t, 119.0x12.5x4.4m, 4b,2gst, 60000hp, 32kts, 302p; (1x3+2x1) Hsiung Feng I SSM(5), 1x4 Sea Chaparral SAM(16), 1x2-127/38, 1x1-76/62, 2x1-40/70, 2x3-324TT, 2x24 Hedgehog ASWRL; SPS-37, SPS-58A, SPG-25, 2x HR-76 radars, DE1191 sonar, AR-680/681 ECM, 4x King Fen dl, T Mk 6 td, H930 CCS | |
| Gearing FRAM-II | 1 | 911 | Dang Yang | 1947 |  |
3493t, 119.0x12.5x4.4m, 4b,2gst, 60000hp, 32kts, 302p; (1x3+2x1) Hsiung Feng I SSM(5), 1x2-127/38, 1x1-76/62, 2x1-40/70, 2x3-324TT, 1 helicopter (Hughes 500MD); SPS-6C, SPG-25, EL/M-2208, RTN-10X radars, OGR7/2 e/o, DE1191 sonar, WLR-1, WLR-3, ULQ-6 ECM, 4x King Fen dl, T Mk 6 td, H930 CCS | |

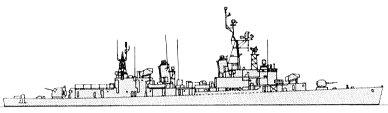

| Gearing FRAM-I | 12 | 912 | Chien Yang | 1946 | |
3493t, 119.0x12.5x4.4m, 4b,2gst, 60000hp, 32kts, 310p; 1x3 Hsiung Feng I SSM(3)(912,921,923,925,927-930), (1x3+2x1) Hsiung Feng I SSM(5)(915,920,924,926), 1x4 Sea Chaparral SAM(16)(915,920,924,926), 1x8 ASROC ASuR(17)(912,921,923,925,927-930), 1x8 ASROC ASuR(8)(926), 2x2-127/38(912,921,923,925,927-930), 1x2-127/38(915,920,924,926), 1x1-76/62(915,920,924,926), 2x1-40/70(915,920,924,926), 4x1-12.7(912,921,923,925,927-930), 2x3-324TT, 1helicopter (Hughes 500MD); SPS-29(912,921,923,925-930), SPS-37(912,921,923,925,927-930), SPS-40(915,920,924), SPS-58A(926), SPG-25, EL/M-2208(915,920,924), RTN-10X(915,920,924), 2x HR-76(926) radars, SQS-23(912,921,923,925,927-930), DE1191(915,920,924,926) sonar, BLR-1(912,920,921,923-930), WLR-1(915,920,924,926), ULQ-6(915,920,924,926) ECM, 4x King Fen(915,920,924,926) dl, T Mk 6(915,924,926) td, H930(915,920,924,926) CCS | |
| 915 | Han Yang | 1945 | |||||
| 920 | Lao Yang | 1946 | |||||
| 921 | Liao Yang | 1945 | |||||
| 923 | Shen Yang | 1945 | |||||
| 924 | Kai Yang | 1945 | |||||
| 925 | Te Yang | 1945 | |||||
| 926 | Sui Yang | 1946 | |||||
| 927 | Yun Yang | 1946 | |||||
| 928 | Zheng Yang | 1946 | |||||
| 929 | Shao Yang | 1946 | |||||
| 930 | Tsu Yang | 1945 | |||||

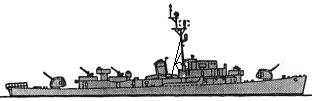

| FF | APD | 9 | 815 | Tien Shan | 1945 |  |
2130t, 93.3x11.3x3.8m, 2b,2stg,2em, 12000hp, 23.6kts, 203p; 2x1-127/38, 3x2-40/60, 4x1-20/70, 2x3-324TT or 2x24 Hedgehog ASWRL, 2dcr; 2 LCVP, 162troops; SPS-5 radar, sonar |
| 832 | Yu Shan | 1944 | |||||
| 833 | Hua Shan | 1945 | |||||
| 834 | Wen Shan | 1943 | |||||
| 835 | Fu Shan | 1945 | |||||
| 836 | Lu Shan | 1943 | |||||
| 837 | Shou Shan | 1944 | |||||
| 838 | Tai Shan | 1945 | |||||
| 843 | Chung Shan | 1943 | |||||
| Rudderow | 1 | 827 | Tai Yuan | 1944 |  |
1811t, 93.3x11.3x3.4m, 2b,2stg,2em, 12000hp, 23kts, 200p; 2x1-127/38, 2x2-40/60, 4x1-20/70, 2x3-324TT, 1x24 Hedgehog ASWRL, 2dcr; SPS-6, SPS-10 radars, sonar |
PATROL AND COASTAL COMBATANTS
| PS | Auk | 3 | 866 | Wu Sheng | 1945 |  |
1250t, 67.4x9.8x3.3m, 2dg,2em, 2880hp, 18kts, 80p; 2x1-76/50, 2x2-40/60, 2x2-20/70, 2x3-324TT, 1x24 Hedgehog ASWRL, 2dcr; SPS-5 radar, SQS-17 sonar |
| 867 | Ju Yong | 1945 | |||||
| 870 | Ping Jing | 1942 | |||||
| PM | Lung Chiang | 2 | 601 | Lung Chiang | 1978 |  |
240t, 50.1x7.3x1.7m, CODOG: 3d/3gt(3), 5400/15000hp, 36.2kts, 38p; 4x1 Hsiung Feng SSM(4), 1x1-76/62, 1x2-30/75, 2x1-12.7; RAN-11, SPS-58C, RAN IIL/X(601), HR-76(602) radars, WD-2A ECM, 2x AV-2(601), 2x SMOC-4(602) dl |
| 602 | Sui Chiang | 1983 | |||||
| FABG1 | 52 | 1-3, 7-12, 14-21, 23-30, 32-39, 41-59 | 1979-1981 |  |
56t, 22.9x5.5x1.0m, 2d, 2605hp, 40kts, 10p; 2x1 Hsiung Feng SSM(2), 1x1-20/68, 2x1-12.7; CS/UPS-60X, HR-76C5 radars, WD-2A ECM, 2x AV-2 dl | ||
| FABG5 | 2 | 5, 6 | 1980 | no picture | 56t, 21.6x5.5x0.9m, 2d, 2860hp, 36kts, 10p; 2x1 Gabriel II SSM(2), 1x1-20/68, 2x1-12.7; Decca 926, EL/M-2221 radars, Elop e/o | ||
| PB | PB60 | 22 | 60-81 | 1971-1973 | no picture | 11t, 12.8xxm, 2d, 1300hp, 32kts; 1x1-40/60; radar | |
| Chie Kuo | 2 | 35 | Chie Kuo | 1969 | no picture | 32t, 19.3x5.7x1.4m, 2d, 1300hp, 22kts, 8p; 4x1-12.7; radar | |
| 36 | 1969 | ||||||
| Ning Hai | 4 | 1 | Ning Hai | 1987 | no picture | 143t, 32.1x9.0x1.8m, 3d, 5760hp, 40kts, 16p; 1x1-40/60, 1x1-20/68, 2x1-12.7, 2dcr; Decca radar, sonar | |
| 2 | An Hai | 1988 | |||||
| 3 | 1988 | ||||||
| 5 | 1989 |
AMPHIBIOUS
| LCC | LST | 1 | 1 | Kao Hsiung | 1944 |  |
4080t, 100.0x15.2x4.3m, 2d, 1800hp, 12.1kts, 125p; (2x2+2x1)-40/60, 2x1-20/70, 4x1-12.7; SPS-10, SPS-12 radars |
| LSD | Cabildo | 2 | 191 | Chung Cheng | 1945 |  |
9375t, 139.5x22.0x5.5m, 2b,2gst, 9000hp, 15.6kts, 247p; (2x4+2x2)-40/60, helodeck; 3 LCU(6), 1200troops; SPS-5, LN-66 radars |
| 192 | Zhen Hai | 1946 | |||||
| LST | LST(2) | 21 | 201 | Chung Hai | 1944 | |
4080t, 100.0x15.2x4.3m, 2d, 1800hp, 12.1kts, 125p; (2x2+6x1)-40/60, 12x1-20/70; 6 LCVP, 20tanks, 163troops; SO radar |
| 203 | Chung Ting | 1944 | |||||
| 204 | Chung Hsing | 1944 | |||||
| 205 | Chung Chien | 1944 | |||||
| 206 | Chung Chi | 1944 | |||||
| 208 | Chung Shun | 1944 | |||||
| 209 | Chung Lien | 1945 | |||||
| 210 | Chung Yung | 1944 | |||||
| 216 | Chung Kuang | 1943 | |||||
| 217 | Chung Suo | 1943 | |||||
| 218 | Chung Chi | 1943 | |||||
| 221 | Chung Chuan | 1944 | |||||
| 222 | Chung Sheng | 1944 | |||||
| 223 | Chung Fu | 1944 | |||||
| 225 | Chung Chiang | 1945 | |||||
| 226 | Chung Chih | 1945 | |||||
| 227 | Chung Ming | 1945 | |||||
| 228 | Chung Shu | 1944 | |||||
| 229 | Chung Wan | 1944 | |||||
| 230 | Chung Pang | 1944 | |||||
| 231 | Chung Yeh | 1945 | |||||
| LSM | LSM | 4 | 341 | Mei Chin | 1944 |  |
1095t, 62.0x10.5x2.1m, 2d, 2800hp, 13kts, 60p; 1x2-40/60, 4x1-20/70; 5tanks, 54troops; SO radar |
| 347 | Mei Song | 1945 | |||||
| 353 | Mei Ping | 1945 | |||||
| 356 | Mei Le | 1945 | |||||
| LSS | LCT(6) | 14 | 481 | He Qin | 1944 |  |
320t, 36.3x10.0x1.2m, 3d, 675hp, 8kts, 13p; 2x1-20/70; 4tanks |
| 482 | He Zhong | 1944 | |||||
| 483 | He Cheng | 1944 | |||||
| 484 | He Zhong | 1944 | |||||
| 485 | He Zhang | 1943 | |||||
| 494 | He Chun | 1944 | |||||
| 495 | He Yong | 1944 | |||||
| 496 | He Jian | 1944 | |||||
| 401 | He Qi | 1944 | |||||
| 402 | He Hui | 1944 | |||||
| 403 | He Yao | 1944 | |||||
| 405 | He Feng | 1944 | |||||
| 406 | He Chao | 1944 | |||||
| 407 | He Teng | 1944 | |||||
| Ho Shan | 6 | 488 | Ho Shan | 1955 | |
350t, 36.3x10.4x1.6m, 3d, 675hp, 10kts, 15p; 2x2-20/70; 3tanks; radar | |
| 489 | Ho Chuan | 1955 | |||||
| 490 | Ho Seng | 1955 | |||||
| 491 | Ho Meng | 1955 | |||||
| 492 | Ho Mou | 1955 | |||||
| 493 | Ho Shou | 1955 | |||||
| Ho Fong | 2 | 497 | Ho Fong | 1979 |  |
390t, 41.3x9.0x2.0m, 4d(2), 1200hp, 11kts, 10p; 2x1-12.7; 3tanks; CS/UPS-60X radar | |
| 498 | Ho Hu | 1979 | |||||
| LC | LCVP | 120 | 1-120 | 1943-1945 |  |
13t, 11.2x3.2x0.9m, 2d, 220hp, 8kts, 3p; 2x1-12.7; 36troops | |
| LCM(3) | 8 | 1-8 | 1942-1944 |  |
52t, 15.3x4.3x1.4m, 2d, 330hp, 8kts, 4p; 2x1-12.7; 1tank | ||
| LCM(6) | 250 | 1-250 | 1955-1974 |  |
62t, 17.1x4.4x1.5m, 2d, 450hp, 9kts, 9p; 2x1-12.7; 1tank | ||
| type 272 | 30 | 1-30 | 1970-1974 | |
13t, 11.2x3.2x0.9m, 2d, 450hp, 15kts, 3p; 2x1-12.7; 36troops |
MINE WARFARE
| MSC | Bluebird | 14 | 156 | Yung An | 1954 |  |
400(156)-390(157-168)t, 44.3x8.1x2.1m, 2d, 1200(156)-880(157-168)hp, 13kts, 39p; 1x2-20/70, magnetic, acoustic, mechanical minesweeping gear; Decca 707 radar, SA950 sonar |
| 157 | Yung Nien | 1959 | |||||
| 158 | Yung Chou | 1959 | |||||
| 159 | Yung Hsin | 1965 | |||||
| 160 | Yung Ju | 1965 | |||||
| 161 | Yung Lo | 1966 | |||||
| 162 | Yung Fu | 1953 | |||||
| 163 | Yung Ching | 1953 | |||||
| 164 | Yung Shan | 1953 | |||||
| 165 | Yung Cheng | 1953 | |||||
| 166 | Yung Chi | 1954 | |||||
| 167 | Yung Jen | 1954 | |||||
| 168 | Yung Sui | 1954 | |||||
| MSB | MSML1 | 12 | 1-12 | 1943-1945 | no picture | 24t, 15.3x4.0x1.3m, 1d, 60hp, 8kts, 4p; mechanical minesweeping gear | |
| MSB1 | 1 | 12 | 1945 |  |
42t, 17.5x4.8x1.3m, 2d, 300hp, 12kts, 6p; mechanical minesweeping gear |
MARITIME POLICE
| PB | 35t | 12 | PP3501-3503, 3505-3513 | 1987-1989 | no picture | 35t, 21.0x5.0x1.5m, 2d, 2300hp, 28kts, 8p; 1x1-12.7; 2x Furuno radars | |
| 55t | 3 | PP5501-5503 | 1989 | no picture | 82t, 26.9x5.4xm, 2d, 2600hp, 15kts; 1x1-12.7; 2x radars |
CUSTOMS
| PS | Pao Hsing | 3 | 1 | Pao Hsing | 1980 | no picture | 694t, 60.8x7.8x2.1m, 2d, 7200hp, 24kts, 40p; 1x1-40/60, 2x1-20/68; 2x JRC radars |
| 2 | Chin Hsing | 1985 | |||||
| 3 | Teh Hsing | 1986 | |||||
| Yun Hsing | 1 | 1 | Yun Hsing | 1987 | no picture | 964t, 65.0x10.0x2.9m, 2d, 7200hp, 18kts, 67p; 2x1-12.7; 2x JRC radars | |
| Mou Hsing | 2 | 1 | Mou Hsing | 1988 | no picture | 850t, 65.4x9.6x3.2m, 3d, 13200hp, 28kts, 54p; 2x1-12.7; 2x Decca radars | |
| 2 | Fu Hsing | 1988 | |||||
| PC | Hsun Hsing | 1 | 1 | Hsun Hsing | 1986 | no picture | 264t, 44.5x7.5x1.7m, 3d, 8160hp, 28kts, 41p; 3x1-12.7; 2x JRC radars |
| PB | Hai Wei | 2 | 1 | Hai Wei | 1977 | no picture | 70t, 23.8x5.6x1.5m, 2d, 1350hp, 19kts; 1x1-12.7 |
| 2 | Hai... | 1977 | |||||
| Hai Ping | 3 | 1 | Hai An | 1979 | no picture | 63t, 26.0x5.6x2.7m, 2d, 28kts, 18p; 1x1-20/90 | |
| 2 | Hai Cheng | 1979 | |||||
| 3 | Hai Ping | 1979 |
AIRCRAFT
NAVY
|
Ship-based |
12 Hughes 500MD |
| Land-based combat capable | 25 S-2E, 7 S-2G |
ARMY
|
Land-based combat capable |
20 O-1, 118 UH-1H |
AIR FORCE
|
Combat capable |
8 F-5B, 220 F-5E, 55 F-5F, 8 F-104D/DJ, 120 F-104G, 33 TF-104G, 3 RF-104G, 60 AT-3 |
MARINES
|
units |
2 divisions, support |
| equipment | LVT-4, LVT-5 APC, 105mm, 155mm howitzers, 106mm RCL |
