Spain 01 January 1990
SUBMARINES
| SS | Delfín | 4 | S61 | Delfín | 1973 | |
869/1069t, 57.8x6.8x5.3m, 2dg,2em, 1300/1600hp, 13.2/15.5kts, 47p, 300m; 12-533TT; DRUA-33 radar, DUUA-2A, DSUV-22 sonars, ARUR-10B ECM |
| S62 | Tonina | 1973 | |||||
| S63 | Marsopa | 1975 | |||||
| S64 | Narval | 1975 | |||||
| Galerna | 4 | S71 | Galerna | 1983 | |
1490/1750t, 67.9x6.8x5.4m, 2dg,1em, 3600/4600hp, 12/20.5kts, 54p, 300m; 4-533TT; DRUA-33C radar, DUUA-2A/B, DSUV-22, DUUX-2A sonars, ECM | |
| S72 | Siroco | 1983 | |||||
| S73 | Mistral | 1985 | |||||
| S74 | Tramontana | 1986 |
AIRCRAFT CARRIERS
| CVL | Príncipe de Asturias | 1 | R11 | Príncipe de Asturias | 1988 |  |
17188t, 195.1x30.0x6.7m, 2gt(1), 46400hp, 26kts, 763p; 4x12-20/120, 17aircraft(8 AV-8B, 8 SH-3D, 4 AB-212, 1 SH-3D AEW); Raycass 5, SPS-55, SPS-52C, SPN-35A, RAN-12L/X, 4x VPS-2 radars, Nettunel, Deneb ECM, 6x Mk 36 SRBOC dl, SLQ-25 td, NTDS CCS |
PRINCIPAL SURFACE COMBATANTS

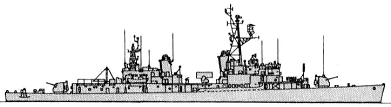

| DD | Gearing | 5 | D61 | Churucca | 1945 |  |
3493t, 119.0x12.5x4.4m, 4b,2gst, 60000hp, 32kts, 274p; 1x8 ASROC ASuR(17), 2x2-127/38, 2x3-324TT, 1 helicopter (Hughes 369HM); SPS-10, SPS-40(61,62), SPS-37(63-65), Mk 25 or Mk 28 radars, SQS-23 sonar, WLR-1, ULQ-6 ECM |
| D62 | Gravina | 1945 | |||||
| D63 | Méndez Núñez | 1945 | |||||
| D64 | Lángara | 1945 | |||||
| D65 | Blas de Lezo | 1945 | |||||
| FF | Baleares | 5 | F71 | Baleares | 1973 |  |
4177t, 133.6x14.3x4.6m, 2b,1gst, 35000hp, 28kts, 256p; 2x4 Harpoon SSM(8)(73-75), 1x1 Standard SM-1MR SAM(16), 1x8 ASROC ASuR(16), 1x1-127/54, 2x12-20/120(73-75), 2x1-12.7(73-75), 2-483TT, 4-324TT; SPS-10, SPS-52A(71,72), SPS-52B(73-75), SPG-51C, SPG-53B, Pathfinder(71,72), Decca 1226(73-75), RAN-12L/X(73-75), 2x VPS-2(73-75) radars, SQS-23(71,72), DE1160C(73-75), SQS-35A sonars, WLR-1(71,72), Deneb Mk 1500/1600(73-75) ECM, 4x Mk 36 SRBOC(73-75) dl, SLQ-25(73-75) td, Tritan-1(73-75) CCS |
| F72 | Andalucía | 1974 | |||||
| F73 | Cataluña | 1975 | |||||
| F74 | Asturias | 1975 | |||||
| F75 | Extremadura | 1976 | |||||
| O. H. Perry | 3 | F81 | Santa María | 1986 |  |
4017t, 138.8x14.3x4.5m, 2gt(1), 41000hp, 29kts, 223p; 1x1 Harpoon SSM(8)/Standard SM-1MR SAM(32), 1x1-76/62, 1x12-20/120, 2x3-324TT, 2helicopters (SH-60B); Raytheon 1650/9xR, SPS-55, SPS-49(v)4, SPS-67, Mk 92 mod.2, STIR Mk 54 mod.0, RAN-12L/X, VPS-2 radars, DE1160B, SQR-19(v) TASS sonars, Elnath, Rigel ECM, 4x Mk 36 SRBOC dl, SLQ-25 td, NTDS CCS | |
| F82 | Victoria | 1987 | |||||
| F83 | Numancia | 1988 | |||||
| FS | Atrevida | 4 | P61 | Atrevida | 1954 |  |
1135t, 75.5x10.2x2.7m, 2d, 3000hp, 18.5kts, 132p; 1x1-76/50, 3x1-40/70, 1x2-20/70, 20mines; SPS-5B radar, QHBa sonar |
| P62 | Princesa | 1959 | |||||
| P64 | Nautilus | 1959 | |||||
| P65 | Villa de Bilbao | 1960 | |||||
| Descubierta | 6 | F31 | Descubierta | 1978 |  |
1640t, 88.9x10.4x4.0m, 4d(2), 18000hp, 26kts, 118+30p; 2x4 Harpoon SSM(8), 1x8 Albatros SAM(24), 1x1-76/62, 2x1-40/70, 2x3-324TT, 1x2-375 Bofors ASWRL; DA-05/2, ZW-06/2, WM22/41(31,32), WM25(33-36), Furuno radars, DE1160C sonar, Deneb Mk Mk 1600, Canopus Mk 1600 ECM, 2x Mk 36 dl, SLQ-25 td, Tritan IV CCS | |
| F32 | Diana | 1979 | |||||
| F33 | Infanta Elena | 1980 | |||||
| F34 | Infanta Cristina | 1980 | |||||
| F35 | Cazadora | 1981 | |||||
| F36 | Vencedora | 1982 |
PATROL AND COASTAL COMBATANTS
| PC | Lazaga | 6 | P01 | Lazaga | 1975 |  |
393t, 58.1x7.6x2.6m, 2d, 8000hp, 28kts, 30p; 1x1-76/62, 1x1-40/70, 2x1-20/90; WM22/41, TM626 radars, CSEE e/o, ECM |
| P02 | Alsedo | 1977 | |||||
| P03 | Cadarso | 1976 | |||||
| P04 | Villaamil | 1977 | |||||
| P05 | Bonifaz | 1977 | |||||
| P06 | Recalde | 1977 | |||||
| Anaga | 10 | P21 | Anaga | 1980 |  |
350t, 44.4x6.6x2.6m, 1d, 4500hp, 20kts, 25p; 1x1-76/50, 1x1-20/70; 2x Decca 1226 radars | |
| P22 | Tagomago | 1981 | |||||
| P23 | Marola | 1981 | |||||
| P24 | Mouro | 1981 | |||||
| P25 | Grosa | 1981 | |||||
| P26 | Medas | 1981 | |||||
| P27 | Ízaro | 1981 | |||||
| P28 | Tabarca | 1981 | |||||
| P29 | Deva | 1982 | |||||
| P30 | Bergantín | 1982 | |||||
| Adjutant | 3 | P51 | Nalón | 1954 |  |
400t, 44.3x8.1x2.1m, 2d, 880hp, 12kts, 39p; 1x2-20/70; RM914 radar, UQS-1 sonar | |
| P52 | Ulla | 1956 | |||||
| P54 | Turia | 1955 | |||||
| Cormorán | 1 | P41 | Cormorán | 1989 | no picture | 374t, 55.6x7.6x2.0m, 3d, 13500hp, 33kts, 32p; 1x1-40/70, 1x1-20/90; Raytheon 1620 radar, Alcor-C e/o | |
| PB | Cabo Fradera | 1 | P201 | Cabo Fradera | 1963 | no picture | 28t, 17.8x4.2x0.8m, 2d, 280hp, 10kts, 9p |
| LAS1 | 3 | P311-313 | 1965 | no picture | 62t, 25.4x4.5x2.0m, 2d, 800hp, 15kts, 10p; 1x1-20/70, 2x4 Mousetrap ASWRL, Decca 978 radar, QCU2 sonar | ||
| LPI1 | 5 | P231-235 | 1965 | no picture | 18t, 14.0x4.7x1.0m, 2d, 450hp, 13kts, 8p | ||
| Barceló | 6 | P11 | Barceló | 1976 |  |
134t, 43.2x5.8x1.8m, 2d, 7320hp, 36.5kts, 19p; 1x1-40/70, 1x1-20/90, 2x1-12.7; Raytheon 1620 radar, CSEE e/o | |
| P12 | Laya | 1976 | |||||
| P13 | Javier Quiroga | 1977 | |||||
| P14 | Ordóñez | 1977 | |||||
| P15 | Acevedo | 1977 | |||||
| P16 | Cándido Pérez | 1977 | |||||
| V33 | 1 | P124 | 1977 | no picture | 23t, 16.0x4.3x1.0m, 2d, 1100hp, 24kts, 6p; 1x1-12.7; Decca 110 radar | ||
| PVC11 | 23 | P101-123 | 1978-1983 | no picture | 22t, 15.9x4.4x1.3m, 2d, 1024hp, 27kts, 7p; 1x1-12.7; Decca 110 radar | ||
| Conejera | 4 | P31 | Conejera | 1981 |  |
85t, 32.2x5.3x1.4m, 2d, 2800hp, 25kts, 12p; 1x1-20/70; Furuno radar | |
| P32 | Dragonera | 1981 | |||||
| P33 | Espalmador | 1982 | |||||
| P34 | Alcanada | 1982 | |||||
| Toralla | 2 | P81 | Toralla | 1987 | no picture | 78t, 28.5x6.5x1.5m, 2d, 2200hp, 20kts, 13p; 1x1-12.7; Decca 1070, Koden radars | |
| P82 | Formentor | 1989 |
AMPHIBIOUS
| LST | Terrebonne Parish | 3 | L11 | Velasco | 1952 |  |
5777t, 117.1x17.1x4.9m, 4d(2), 6000hp, 15.5kts, 205p; 3x2-76/50, 5x1-20/70, heldeck; 3 LCVP, 1 LCPL, 10tanks, 395troops; SPS-10, 2x SPG-34, nav. radars |
| L12 | Martín Álvarez | 1954 | |||||
| L13 | Conde de Venadito | 1953 | |||||
| LPA | Paul Revere | 2 | L21 | Castilla | 1953 |  |
16838t, 172.0x23.2x7.9m, 2b,1gst, 22000hp, 22kts, 307p; 4x2-76/50, heldeck; 1657troops, 1900t cargo, 7 LCM(6), 5 LCVP, 3 LCP(L); SPS-12(21), SPS-40(22), SPS-10, 4x SPG-34 radars, WLR-1, ULQ-6 ECM, 4x Mk 36 SRBOC dl |
| L22 | Aragón | 1954 | |||||
| LSS | LCU1466 | 2 | L71 | 1953 |  |
347t, 35.1x10.4x1.6m, 3d, 675hp, 8kts, 6p; 2x1-20/70; 4tanks | |
| L72 | 1953 | ||||||
| LCAC | VCA36 | 1 | VCA36 | 1985 | no picture | 36t, 25.2x11.0x0m, 2gt(2ap), 5000hp, 60kts, 3p; 70troops; AOS-13 sonar | |
| LC | LCM(6) | 22 | L61-82 | 1944-1945 |  |
56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank | |
| LCVP | 43 | 1-43 | 1943-1945 |  |
13t, 11.2x3.2x0.9m, 2d, 220hp, 8kts, 3p; 2x1-12.7; 36troops | ||
| E81 | 8 | L81 | 1975 |  |
116t, 22.4x6.4x1.8m, 2d, 600hp, 10kts, 5p; 54t cargo | ||
| L82 | 1975 | ||||||
| L83 | 1975 | ||||||
| L84 | 1975 | ||||||
| L85 | 1975 | ||||||
| L86 | 1975 | ||||||
| L87 | 1988 | ||||||
| L88 | 1988 | ||||||
| L601 | 16 | L161-167, 261-267, 601, 602 | 1984-1989 | |
56t, 17.1x4.4x1.5m, 2d, 330hp, 10.2kts, 3p; 80troops | ||
| LCVP Mk 7(E) | 4 | 1-4 | 1987 | |
12t |
MINE WARFARE
| MSO | Aggressive | 4 | M41 | Guadalete | 1953 |  |
735t, 52.3x10.4x4.0m, 4d(2), 2280hp, 14kts, 70p; 1x1-20/70(41-43), 2x1-12.7, Pluto USV, acoustic, magnetic, mechanical minesweeping gear; RM1226, TM626 radars, SQQ-14 sonar |
| M42 | Guadalmedina | 1954 | |||||
| M43 | Guadalquivir | 1956 | |||||
| M44 | Guadiana | 1954 | |||||
| MSC | Adjutant | 8 | M21 | Júcar | 1956 | |
400t, 44.3x8.1x2.1m, 2d, 880(21-23,27,28)-1000(24-26)hp, 12(21-23,27,28)-12.5(24-26)kts, 39p; 1x2-20/70, acoustic, magnetic, mechanical minesweeping gear; RM914 radar, UQS-1 sonar |
| M22 | Ebro | 1958 | |||||
| M23 | Duero | 1955 | |||||
| M24 | Tajo | 1959 | |||||
| M25 | Genil | 1959 | |||||
| M26 | Odiel | 1959 | |||||
| M27 | Sil | 1955 | |||||
| M28 | Miño | 1956 |
CUSTOMS
| PB | VC1 | 3 | 1 | Albatros | 1958 |  |
80t, 31.8x4.7x1.7m, 2d, 2700hp, 28kts, 15p; 1x1-20/70; radar |
| 2 | Albatros II | 1958 | |||||
| 3 | Albatros III | 1958 | |||||
| Aguilcho | 5 | 1 | Aguilcho | 1973 | no picture | 65t, 28.0x5.2x1.3m, 2d, 2750(1,2)-3920(3-5)hp, 30(1,2)-24(3-5)kts, 14p; 1x1-20/70(1,2), 1x1-12.7(3-5); radar(1,2), MRD38(3-5), BX-3532R(3-5) radars | |
| 2 | Gavilán I | 1975 | |||||
| 3 | Gavilán II | 1976 | |||||
| 4 | Gavilán III | 1983 | |||||
| 5 | Gavilán IV | 1987 | |||||
| Águila | 1 | 1 | Águila | 1974 | no picture | 80t, 32.0x5.8x1.6m, 2d, 2750hp, 29kts, 16p; 1x1-20/70; RM926 radar | |
| Cárabo | 1 | 1 | Cárabo | 1978 | no picture | 60t, 24.4x5.2xm, 2d, 1350hp, 17kts | |
| Halcón II | 2 | 1 | Halcón II | 1980 | no picture | 70t, 25.2x6.1xm, 2d, 3200hp, 28kts; 1x1-12.7; MRD38, BX-3532R radars | |
| 2 | Halcón III | 1983 | |||||
| Alcaraván I | 5 | 1 | Alcaraván I | 1984 | no picture | 85t, 28.5x6.5x1.8m, 2d, 3750(1)-3920(2-5)hp, 28kts, 14p; 1x1-12.7; MRD38, BX-3532R radars | |
| 2 | Alcaraván II | 1984 | |||||
| 3 | Alcaraván III | 1985 | |||||
| 4 | Alcaraván IV | 1986 | |||||
| 5 | Alcaraván V | 1987 | |||||
| VA II | 4 | 1 | VA II | 1985 | no picture | 24t, 15.7x4.1x1.2m, 2d, 1400hp, 23kts; radar | |
| 2 | VA III | 1985 | |||||
| 3 | VA IV | 1985 | |||||
| 4 | VA V | 1985 | |||||
| HJ I | 10 | 1 | HJ I | 1986 | no picture | 20t, 14.0x3.8x0.7m, 2d(2wj), 2000hp, 50kts, 5p; MTR-114 radar | |
| 2 | HJ II | 1986 | |||||
| 3 | HJ III | 1986 | |||||
| 4 | HJ IV | 1986 | |||||
| 5 | HJ V | 1986 | |||||
| 6 | HJ VI | 1986 | |||||
| 7 | HJ VII | 1986 | |||||
| 8 | HK VIII | 1987 | |||||
| 9 | HK IX | 1987 | |||||
| 10 | HK X | 1987 | |||||
| Alca I | 2 | 1 | Alca I | 1989 | no picture | 24t, 17.0x4.7x0.8m, 2000hp, 35kts | |
| 2 | Alca III | 1989 |
DEPARTMENT OF FISHERIES
| PC | Cíes | 1 | PVZ11 | Salvora | 1948 | no picture | 267t, 32.6x6.2x3.8m, 1d, 400hp, 11kts, 29p; 1x1-20/70; RM914 radar |
AIRCRAFT
NAVY
|
Ship-based |
8 AV-8A, 12 AV-8B, 2 TAV-8A, 10 SH-3D, 3 SH-3D AEW, 10 AB-212, 10 Hughes 369HM, 6 SH-60B |
ARMY
|
Land-based combat capable |
60 HA-15 |
AIR FORCE
|
Combat capable |
66 EF-18A/B, 16 F-5A, 19 F-5B, 12 RF-5A, 36 Mirage F-1CE, 4 Mirage F-1BE, 19 Mirage F-1EE, 18 Mirage IIIEE, 5 Mirage IIIDE, 32 F-4C, 12 RF-4C, 1 P-3A, 5 P-3B, 6 C-212 recce, 2 C-212EW |
MARINES
| equipment | 18 M-48E MBT, 17 Scorpion lt tk, 27 LVTP-7 amph, 36 BLR AFV, 12 M-56 105mm howitzers, 12 M52A1 105mm SP howitzers, 6 M109A 155mm SP howitzers, 12 TOW, 18 Dragon ATGW, M65 88mm RL, C-90C 90mm RL, 68 106mm RCL |
