Netherlands 01 January 1990
SUBMARINES
| SS | Dolfijn | 3 | S809 | Zeehond | 1961 | |
1520/1830(809)-1509/1831(804,805)t, 78.3(809)-79.5(804,805)x7.9x5.0m, 2d/2em, 2800/4000(809)-3100/4400(804,805)hp, 14.5/17kts, 64p, 300m; 8-533TT; type 1001 radar, sonars, ECM, M8 CCS |
| S804 | Potvis | 1965 | |||||
| S805 | Tonijn | 1966 | |||||
| Zwaardvis | 2 | S806 | Zwaardvis | 1972 | |
2408/2640t, 66.9x8.4x7.1m, 3dg,1em, 4200/5100hp, 13/20kts, 67p, 220m; 6-533TT; ZW-06 radar, Octopus, type 2026, DUUX-5 sonars, ECM, M8 CCS | |
| S807 | Tijgerhaai | 1972 |
PRINCIPAL SURFACE COMBATANTS

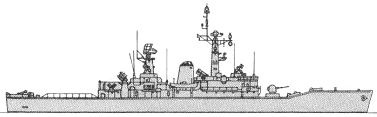

| FF | Van Speijk | 1 | F814 | Isaac Sweers | 1968 |  |
2850t, 113.4x12.5x5.8m, 2b,2gst, 30000hp, 28.5kts, 251p; 2x4 Harpoon SSM(8), 2x4 Seacat SAM(16), 1x1-76/62, 2x3-324TT, 1 helicopter (Sea Lynx); LW-03, DA-05, M45, 2x M44, Decca 1229C radars, CWE-610, PDE-700 sonars, 2x UA-13/FH-12 ECM, 2x Corvus dl, SEWACO V CCS |
| Tromp | 2 | F801 | Tromp | 1975 |  |
4308t, 138.2x14.2x4.6m, COGOG:2gt/2gt(2), 54000/8200hp, 30kts, 305p; 2x4 Harpoon SSM(8), 1x1 Standard SM-1MR SAM(40), 1x8 Sea Sparrow SAM(16), 1x2-120/50, 2x3-324TT, 1 helicopter (Sea Lynx); 2x Decca 1226, SPS-01, WM-25, 2x SPG-51C radars, PHS-36 sonar, Ramses ECM, 4x SRBOC dl, SLQ-25 td, SEWACO I CCS | |
| F806 | De Ruyter | 1976 | |||||
| Kortenaer | 10 | F807 | Kortenaer | 1978 |  |
3800t, 130.2x14.4x4.4m, COGOG:2gt/2gt(2), 51600/9800hp, 30kts, 200p; 2x4 Harpoon SSM(8), 1x8 Sea Sparrow SAM(24), 1x1-76/62, 1x7-30/77, 4-324TT, 2 helicopters (Sea Lynx)(807-811,816,823,824); ZW-06, LW-08, WM-25, STIR-18, Goalkeeper radars, SQS-505(807-811,816), PHS-36(823-826), SQR-18A(825,826) sonar, Sphinx, Ramses ECM, 2x SRBOC dl, SLQ-25A td, SEWACO II CCS | |
| F808 | Callenburgh | 1979 | |||||
| F809 | Van Kinsbergen | 1980 | |||||
| F810 | Banckert | 1980 | |||||
| F811 | Piet Hein | 1981 | |||||
| F816 | Abraham Crijnssen | 1983 | |||||
| F823 | Philips van Almonde | 1981 | |||||
| F824 | Bloys van Treslong | 1982 | |||||
| F825 | Jan van Brakel | 1983 | |||||
| F826 | Pieter Florisz | 1983 | |||||
| Jacob van Heemskerck | 2 | F812 | Jacob van Heemskerck | 1986 |  |
3750t, 130.2x14.4x4.2m, COGOG:2gt/2gt(2), 51600/9800hp, 30kts, 197p; 2x4 Harpoon SSM(8), 1x1 Standard SM-1MR SAM(40), 1x8 Sea Sparrow SAM(24), 1x7-30/77, 4-324TT; Decca 1226, ZW-06, DA-08, LW-08, STIR-18, 2x STIR-24, Goalkeeper radars, PHS-36 sonar, Sphinx, Ramses ECM, 2x SRBOC dl, SLQ-25 td, SEWACO II CCS | |
| F813 | Witte de With | 1986 |
AMPHIBIOUS
| LC | LCA(1) | 6 | L9512-9515, 9518, 9520 | 1963-1964 | no picture | 13t, 14.2x3.6x1.9m, 1d(1s), 200hp, 11.6kts, 6p; 1truck; Decca 110 radar | |
| LCA(2) | 6 | L9530-9535 | 1984-1986 | no picture | 14t, 16.0x4.4x1.3m, 1d(1s), 260hp, 11kts, 3p; 25troops; Furuno radar |
MINE WARFARE
| MSO | Alkmaar | 15 | M850 | Alkmaar | 1983 |  |
595t, 51.5x8.9x2.5m, 1d, 1900hp, 15kts, 42p; 1x1-20/90, 2x PAP-104 USV, mechanical minesweeping gear; Decca 1229 radar, DUBM-21B sonar |
| M851 | Delfzijl | 1983 | |||||
| M852 | Dordrecht | 1983 | |||||
| M853 | Haarlem | 1984 | |||||
| M854 | Harlingen | 1984 | |||||
| M855 | Scheveningen | 1984 | |||||
| M856 | Maasluis | 1984 | |||||
| M857 | Makkum | 1985 | |||||
| M858 | Middelburg | 1986 | |||||
| M859 | Hellevoetsluis | 1987 | |||||
| M860 | Sciedam | 1986 | |||||
| M861 | Urk | 1986 | |||||
| M862 | Zierikzee | 1987 | |||||
| M863 | Vlaardingen | 1989 | |||||
| M864 | Willemstad | 1989 | |||||
| MSC | Dokkum | 11 | Y8001 | Van Speijk | 1955 |  |
453t, 46.6x8.8x2.3m, 2d, 2500hp, 14kts, 38p; 2x1-40/60, acoustic, magnetic, mechanical minesweeping gear; Decca 1229C radar |
| M802 | Hoogezand | 1956 | |||||
| M809 | Naaldwijk | 1955 | |||||
| M810 | Abcoude | 1956 | |||||
| M812 | Drachten | 1956 | |||||
| M813 | Ommen | 1956 | |||||
| M815 | Giethorn | 1956 | |||||
| M817 | Venlo | 1956 | |||||
| M823 | Naarden | 1956 | |||||
| M827 | Hoogeveen | 1956 | |||||
| M841 | Gemert | 1956 |
ARMY
| LSS | RV40 | 1 | RV40 | 1979 | no picture | 815t, 45.8x9.5x2.2m, 2d, 654hp, 9.4kts, 4p; deck cargo |
COAST GUARD OF NETHERLANDS ANTILLES AND ARUBA
| PB | P1 | 4 | P1-4 | 1975 | no picture | 50t, 17.5x4.8x1.6m, 2d, 1190hp, 18kts, 6p; 1x1-12.7; Decca radar |
GENDARMERIE
| PB | RV165 | 3 | RV165, 166, 169 | 1975-1984 | no picture | 17.3x5.0x1.3m, 2d, 700hp, 17.5kts; radar |
AIRCRAFT
NAVY
|
Ship-based |
22 SH-14B Lynx |
| Land-based combat capable | 13 P-3C |
AIR FORCE
|
Combat capable |
46 NF-5A, 14 NF-5B, 139 F-16A, 35 F-16B, 14 F-27 (MR) |
MARINES
|
Combat equipment |
