Australia 01 January 1990
SUBMARINES
| SS | Oberon | 6 | 57 | Oxley | 1967 | |
2030/2410t, 88.5x8.1x5.6m, 2d/em, 3680/6000hp, 12/17kts, 64p, 230m; 6-533TT(inc Sub-Harpoon SSM(4)); type 1006 radar, CSU3-41, type 2007, BQQ-4 sonars |
| 59 | Otway | 1968 | |||||
| 70 | Ovens | 1969 | |||||
| 60 | Onslow | 1969 | |||||
| 61 | Orion | 1977 | |||||
| 62 | Otama | 1978 |
PRINCIPAL SURFACE COMBATANTS

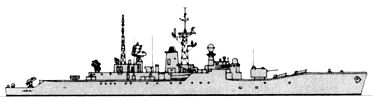

| DD | Charles F. Adams | 3 | 38 | Perth | 1965 |  |
4526t, 133.2x14.3x4.6m, 4b,2gst, 70000hp, 33kts, 350p; 1x1 Harpoon SSM(4) / Standard SM-1MR SAM(36)(38,41), 1x1 Standard SM-1MR SAM(40)(39), 2x1 Ikara ASuM(26)(39), 2x1-127/54, 2x3-324TT; SPS-40C(39), SPS-40D(38,41), SPS-52B, SPS-10F, 2x SPG-51C, SPG-53A(39), SPG-53F(38,41), type 975 radars, SQQ-23F(39), SQS-23KL(38,41) sonar, ERD-4(39), WLR-1H(38,41), ULQ-6(38,41) ECM, 2x SRBOC(38,41) dl, SLQ-25(38,41) td, NCDS(39), NTDS(38,41) CCS |
| 39 | Hobart | 1965 | |||||
| 41 | Brisbane | 1967 | |||||
| FF | Rothesay | 1 | 46 | Parramatta | 1961 |  |
2560t, 112.7x12.5x3.9m, 2b,2gst, 30000hp, 29kts, 231p; 1x4 Seacat SAM(24), 1x1 Ikara ASuM(30), 1x2-120/45, 2x3-324TT; type 275, type 277, type 978, LW-02, SPS-55, WM-22 radars, type 162, type 185, Mulloka sonars |
| Rothesay mod. | 2 | 48 | Stuart | 1963 | |
2560t, 112.7x12.5x3.9m, 2b,2gst, 30000hp, 29kts, 235p; 1x4 Seacat SAM(24), 1x1 Ikara ASuM(30), 1x2-120/45, 2x3-324TT; type 975, type 974, type 977, type 978, type 994, LW-02, SPS-55, WM-22 radars, type 162, type 185, Mulloka sonars | |
| 49 | Derwent | 1964 | |||||
| Leander | 2 | 50 | Swan | 1970 |  |
2560t, 112.7x12.5x3.9m, 2b,2gst, 30000hp, 29kts, 247p; 1x4 Seacat SAM(24), 1x1 Ikara ASuM(30), 1x2-120/45, 2x3-324TT; LW-02, WM-22, SGR-301, WM-44 radars, type 162, type 185, Mulloka sonars | |
| 53 | Torrens | 1971 | |||||
| Oliver H. Perry | 4 | 01 | Adelaide | 1980 |  |
3962(02)-4200(01,03,04)t, 135.6(02)-138.8(01,03,04)x13.7x4.5m, 2gt(1), 41000hp, 29kts, 201p; 1x1 Harpoon SSM(4) / Standard SM-1MR SAM(36), 1x1-76/62, 1x6-20/76, 2x1-12.7, 2x3-324TT, 2 helicopters (Ecureuil)(02), 2 helicopters (S70B-2)(01,03,04); SPS-55, SPS-49(v)2, Mk 92 mod. 2, SPG-60 radars, 2x Mk 24 e/o, SQS-56 sonar, SLQ-32(v)2, EA2118 ECM, 4x SRBOC dl, SLQ-25 td, NTDS CCS | |
| 02 | Canberra | 1981 | |||||
| 03 | Sydney | 1983 | |||||
| 04 | Darwin | 1984 |
PATROL AND COASTAL COMBATANTS
| PC | Fremantle | 15 | 203 | Fremantle | 1980 |  |
230t, 42.0x7.2x1.8m, 3d, 7500hp, 30kts, 23p; 1x1-40/60, 2x1-12.7, 1x1-81/12mortar; type 1006 radar, type 133 PRISM ECM |
| 204 | Warrnambool | 1981 | |||||
| 205 | Townsville | 1981 | |||||
| 206 | Wollongong | 1981 | |||||
| 207 | Launceston | 1982 | |||||
| 208 | Whyalla | 1982 | |||||
| 209 | Ipswich | 1982 | |||||
| 210 | Cessnock | 1983 | |||||
| 211 | Bendigo | 1983 | |||||
| 212 | Gawler | 1983 | |||||
| 213 | Geraldton | 1983 | |||||
| 214 | Dubbo | 1984 | |||||
| 215 | Geelong | 1984 | |||||
| 216 | Gladstone | 1984 | |||||
| 217 | Bunbury | 1984 | |||||
| PB | Attack | 3 | 82 | Adroit | 1968 |  |
146t, 32.8x6.1x2.1m, 2d, 3500hp, 23kts, 19p; 1x1-40/60, 2x1-12.7; Decca RM916 radar |
| 87 | Ardent | 1968 | |||||
| 91 | Aware | 1968 |
AMPHIBIOUS
| LST | Tobruk | 1 | L50 | Tobruk | 1981 |  |
6000t, 129.5x19.6x4.3m, 2d, 9600hp, 17kts, 144p; 2x1-40/60, 4x1-12.7, 2 heldecks; 2 LCM(8), 2 LCVP, 11 tanks, 520 troops; Decca RM916, type 1006 radars, Matilda ECM, 2x SRBOC dl |
| LSS | Balikpapan | 6 | L126 | Balikpapan | 1971 |  |
503t, 44.5x10.1x1.9m, 2d, 675p, 10kts, 14p; 3 tanks; Decca RM916 radar |
| L127 | Brunei | 1973 | |||||
| L128 | Labuan | 1973 | |||||
| L129 | Tarakan | 1973 | |||||
| L130 | Wewak | 1973 | |||||
| L133 | Betano | 1974 |
MINE WARFARE
| MSC | Ton | 1 | 1121 | Curlew | 1954 |  |
425t, 46.3x8.8x2.5m, 2d, 3000hp, 15kts, 29p; 1x1-40/60, decompression chamber; type 978 radar, type 193 sonar |
| Brolga | 1 | 1102 | Brolga | 1978 | no picture | 268t, 28.4x8.6x3.1m, 2d, 1080hp, 11kts, 8p; magnetic minesweeping gear; 2x nav. radars, Klein 590 sonar | |
| MSI | Rushcutter | 2 | 80 | Rushcutter | 1986 |  |
170t, 31.0x9.0x1.9m, 2dp,2hm(2az), 340hp, 10kts, 13p; 2x1-12.7, 2x PAP-104 USV, magnetic minesweeping gear; type 1006 radar, MWS-80-5 sonar |
| 81 | Shoalwater | 1987 | |||||
| Koraaga | 1 | 1185 | Koraaga | 1974 | no picture | 119t, 21.9x6.4x3.0m, 1d, 470hp, 10.5kts, 9p; magnetic minesweeping gear; Furuno 7040D radar, Klein 590 sonar |
ARMY
| LC | LCM(8) | 16 | AB1050 | 1967 |  |
116t, 22.7x6.4x1.4m, 4d(2), 600hp, 9kts, 3p; 55t cargo | |
| AB1051 | 1967 | ||||||
| AB1052 | 1967 | ||||||
| AB1053 | 1967 | ||||||
| AB1055 | 1967 | ||||||
| AB1056 | 1967 | ||||||
| AB1058 | 1967 | ||||||
| AB1059 | 1967 | ||||||
| AB1060 | 1967 | ||||||
| AB1061 | 1967 | ||||||
| AB1062 | 1972 | ||||||
| AB1063 | 1972 | ||||||
| AB1064 | 1972 | ||||||
| AB1065 | 1972 | ||||||
| AB1066 | 1972 | ||||||
| AB1067 | 1972 |
CUSTOMS
| PB | Jabiru | 3 | 1 | Jabiru | 1975 | No picture | 17t, 14.0xxm, 2d, 740hp, 23kts; radar |
| 2 | Jacana | 1975 | |||||
| 3 | Jerboa | 1975 | |||||
| Percy Whitton | 3 | 1 | Percy Whitton | 1981 | no picture | 12.8xxm, 17kts; radar | |
| 2 | Edwin Abbott | 1981 | |||||
| 3 | E. T. Hall | 1982 |
AIRCRAFT
NAVY
|
Ship-based |
7 Sea King Mk.50A, 2 Sea King Mk.50, 3 S-70B-2, 6 AS-350B, 3 Bell 206B, 4 UH-1C, 3 Wessex Mk.31B |
| Land-based combat capable | 2 BAe-748 ECM |
ARMY
|
Combat capable |
47 OH-58 Kalkadoon |
AIR FORCE
|
Combat capable |
18 F-111C, 4 RF-111C, 45 F/A-18A, 17 F/A-18B, 16 MB-326H, 20 P-3C Orion |
CUSTOMS
|
Combat capable |
10 N-22B Searchmaster |
