World navies yesterday

1975

Spain 01 January 1975

SUBMARINES

SS	Balao Fleet Snorkel	1	S31	Almirante García de los Reyes	1944		1830/2440t, 95.0x8.3x5.2m, 4dg,4em(2), 4610/2700hp, 20/10kts, 82p, 120m; 10-533TT; SS, ST, SV radars, BQR-2, BQS-2, SQR-3 sonars
	Balao GUPPY IIA	4	S32	Isaac Peral	1944		1848/2440t, 93.6x8.2x5.2m, 3dg,4em(2), 3430/5400hp, 17/15kts, 92p, 120m; 10-533TT; BPS-1, BPS-4, SS radars, BQR-2, BQS-2, SQR-3 sonars
			S33		1943
			S34	Cosme García	1944
			S35	Narciso Monturiol	1944
	Delfín	2	S61	Delfín	1973		869/1069t, 57.8x6.8x5.3m, 2dg,2em, 1300/1600hp, 13.2/15.5kts, 47p, 300m; 12-550TT; DRUA-31 radar, DUUA-1D, DSUV-22 sonars, ARUR-10B ECM
			S62	Tonina	1973
SSX	Tiburón	2	SA51	Tiburón I	1958	no picture	78/81t, 21.5x2.7x2.7m, 2dg,2em(1), 400/400hp, 10/14.5kts, 8p, 120m; 2-533TT
			SA52	Tiburón II	1958

AIRCRAFT CARRIERS

CVL

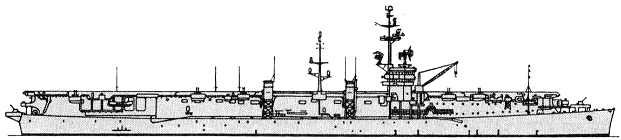

Independence

1

R01

Dédalo

1943

16416t, 189.9x33.3x7.9m, 4b,4gst, 100000hp, 31kts, 1400p; 127belt, 51deck; (2x4+9x2)-40/60, 28aircraft (8 SH-3D, 4 AB-204, 4 AH-1, 4 CH-19E); SPS-6, SPS-8, SPS-10, SPS-40, 2x Mk 28, 2x Mk 29 radars, WLR-1 ECM

PRINCIPAL SURFACE COMBATANTS

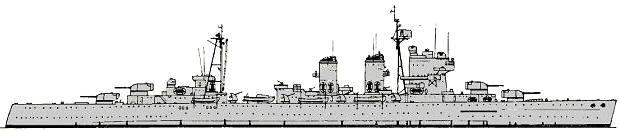

CA	Canarias	1	C21	Canarias	1936		13750t, 193.6x19.5x5.3m, 8b,4gst, 90000hp, 33kts, 1200p; 51belt, 37deck, 25turrets, 25CT; 4x2-203/50, 8x1-120/45, 4x1-40/70, 4x2-37/83, 4x1-20/70, 2dct, 1dcr; SG-6B, MLA-1B, Marconi, Decca 12 radars
DD	Álava	2	D51	Liniers	1951		2287t, 102.5x9.7x3.7m, 4b,2gst, 31500hp, 29kts, 222p; 3x1-76/50, 3x1-40/70, 2-324TR, 2x24 Hedgehog ASWRL, 8dct, 2dcr; MLA-1B, SG-6B, TM626, 2x Mk 63 radars, SQS-30A sonar
			D52	Álava	1951

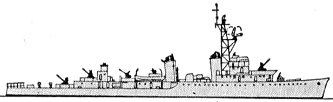

	Audaz	3	D37	Temerario	1964		1548t, 93.9x9.5x3.4m, 3b,2gst, 30800hp, 31.6kts, 199p; 2x1-76/50, 2x1-40/70, 2-324TR, 2x24 Hedgehog ASWRL, 8dct, 2dcr; SPS-5B, MLA-1B, Mk 63 radars, QHBa sonar
			D38	Intrépido	1965
			D39	Relámpago	1965

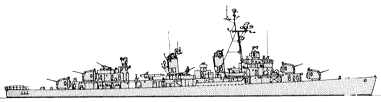

	Fletcher	5	D21	Lepanto	1943		3005t, 114.7x12.1x4.2m, 4b,2gst, 60000hp, 38kts, 290p; 5x1-127/38(21,22), 4x1-127/38(23-25), 3x2-76/50(23-25), 3x2-40/60(21,22), 6x1-20/70(21,22), 1x3-533TT(23-25), 2x3-324TT, 2x24 Hedgehog ASWRL, 6dct(21,22), 4DCT(23-25), 2DCR(21,22), 1DCR(23-25); SPS-6C, SPS-10, MK 25, 2x SPG-34(23-25), Mk 35(23-25) radars, SQS-4 or SQS-29 sonar
			D22	Almirante Ferrándiz	1943
			D23	Almirante Valdéz	1942
			D24	Alcalá Galiano	1944
			D25	Jorge Juan	1943

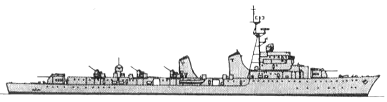

	Ouendo	1	D41	Oquendo	1960		3005t, 116.5x11.1x3.8m, 3b,2gst, 60000hp, 32.4kts, 267p; 2x2-120/50, 6x1-40/70, 2-324TC, 2x24 Hedgehog ASWRL; type 262P, type 275M, type 293Q, SNW-10 radars, QHBa sonar

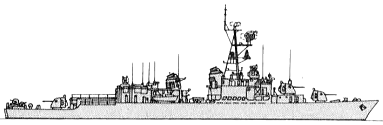

	Roger de Lauria	2	D42	Roger de Lauria	1969		3785t, 119.3x13.0x5.6m, 3b,2gst, 60000hp, 31kts, 318p; 3x2-127/38, 2-533TT, 2x3-324TT, 1 helicopter (Hughes 369HM); SPS-10, SPS-40, RM426, Mk 25, Mk 35 radars, SQS-32C, SQA-10 sonars
			D43	Marqués de la Ensenada	1970
	Gearing	5	D61	Churucca	1945		3493t, 119.0x12.5x4.4m, 4b,2gst, 60000hp, 32kts, 274p; 1x8 ASROC ASuR(17), 2x2-127/38, 2x3-324TT, 1 helicopter (Hughes 369HM); SPS-10, SPS-40(61,62), SPS-37(63-65), Mk 25 or Mk 28 radars, SQS-23 sonar, WLR-1, ULQ-6 ECM
			D62	Gravina	1945
			D63	Méndez Núñez	1945
			D64	Lángara	1945
			D65	Blas de Lezo	1945
FF	Júpiter	1	F12	Vulcano	1937		2600t, 96.0x12.7x3.5m, 4b,2gst, 10000hp, 18.5kts, 180p; 4x1-76/50, 4x1-40/70, 2x24 Hedgehog ASWRL, 8dct, 2dcr, 238mines; SPS-6 radar, sonar
	Pizarro	2	F41	Vicente Yáñez Pinzón	1949		2246t, 95.2x12.2x3.4m, 2b,2gst, 6000hp, 18.5kts, 251p; 2x1-127/38, 4x1-40/70, 2-324TR, 2x24 Hedgehog ASWRL, 8dct, 2dcr; MLA-1B, SS-5B, TM626, Mk 29 radars,sonar
			F42	Legazpi	1951
	Baleares	2	F71	Baleares	1973		4177t, 133.6x14.3x4.6m, 2b,1gst, 35000hp, 28kts, 256p; 1x1 Standard SM-1MR SAM(16), 1x8 ASROC ASuR(16), 1x1-127/54, 2-483TT, 4-324TT; SPS-10, SPS-52A, SPG-51C, SPG-53B, Pathfinder radar, SQS-23, SQS-35A sonars, WLR-1 ECM
			F72	Andalucía	1974
FS	Atrevida	5	F51	Descubierta	1955		1135t, 75.5x10.2x2.7m, 2d, 3000hp, 18.5kts, 132p; 1x1-76/50, 3x1-40/70, 2x24 Hedgehog ASWRL, 8dct, 2dcr; SPS-5B radar, QHBa sonar
			F61	Atrevida	1954
			F62	Princesa	1959
			F64	Nautilus	1959
			F65	Villa de Bilbao	1960

PATROL AND COASTAL COMBATANTS

PT	LT27	2	LT30		1953		116t, 34.8x5.1x1.5m, 3d, 7500hp, 40kts, 22p; 2x1-20/65, 2-533TT, 2dcr; RM914 radar
			LT31		1956
PB	Lanzón	1	V17		1935	no picture	111t, 26.5x5.4x3.1m, 1pe, 285hp, 12kts
	Cabo Fradera	1	PVI01	Cabo Fradera	1963	no picture	28t, 17.8x4.2x0.8m, 2d, 280hp, 10kts, 9p
	LAS1	3	LAS10, 20, 30		1965	no picture	62t, 25.4x4.5x2.0m, 2d, 800hp, 15kts, 10p; 1x1-20/70, 2x4 Mousetrap ASWRL, Decca 978 radar, QCU2 sonar
	LPI1	5	LPI1-5		1965	no picture	18t, 14.0x4.7x1.0m, 2d, 450hp, 13kts, 8p

AMPHIBIOUS

LSD	Cabildo	1	TA31	Galicia	1945		9375t, 139.5x22.0x4.8m, 2b,2gst, 7000hp, 15.4kts, 254p; (2x4+2x2)-40/60, heldeck; 3 LCU or 18 LCM(3) or 27tanks, 137troops; SPS-10, nav. radars
LST	Terrebonne Parish	3	L11	Velasco	1952		5777t, 117.1x17.1x4.9m, 4d(2), 6000hp, 15.5kts, 205p; 3x2-76/50, 5x1-20/70, heldeck; 3 LCVP, 1 LCPL, 10tanks, 395troops; SPS-10, 2x SPG-34, nav. radars
			L12	Martín Álvarez	1954
			L13	Conde de Venadito	1953
LSM	LSM1	2	LSM1		1944		1095t, 62.0x10.5x2.1m, 2d, 2800hp, 12.5kts, 60p; 1x2-40/60; 5tanks, 54troops; radar
			LSM2		1944

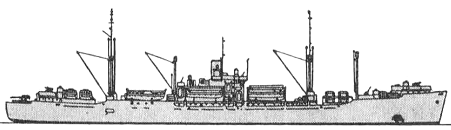

LPA	Haskell	1	TA11	Aragón	1944		12450t, 138.7x18.9x7.3m, 2b,1gst, 8500hp, 17kts, 536p; (1x4+4x2)-40/60; 2 LCM(6), 22 LCVP, 1 LCPL, 1 LCPR, 1800t cargo, 1596troops; SPS-6 radar

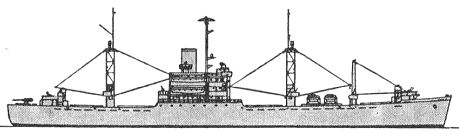

LKA	Andromeda	1	TA21	Castilla	1944		11416t, 139.9x19.2x7.9m, 2b,1gst, 6000hp, 16.5kts, 404p; 1x1-127/38, 4x2-40/60; 6 LCM(6), 2 LCM(3), 13 LCVP, 1 LCPL, 4900t cargo, 78troops; SPS-6 radar
LSS	LCT(4)	2	LCT1	BDK1	1944		640t, 57.1x11.8x1.4m, 2d, 920hp, 10kts, 12p; 2x1-20/70; 6tanks
			LCT2	BDK2	1945
	BDK3	3	LCT3	BDK3	1959		902t, 56.6x11.6x1.7m, 2d, 1000hp, 8.5kts, 20p; 2x1-20/70; 400troops
			LCT4	BDK4	1959
			LCT5	BDK5	1959
	BDK6	3	LCT6	BDK6	1966		665t, 59.0x11.9x1.3m, 2d, 1040hp, 9.5kts, 17p; 1x1-81/12mortar, 2x1-12.7; 5tanks; radar
			LCT7	BDK7	1966
			LCT8	BDK8	1966
	LCU1466	2	LCU11		1953		347t, 35.1x10.4x1.6m, 3d, 675hp, 8kts, 6p; 2x1-20/70; 4tanks
			LCU12		1953
LC	LCM(3)	19	L01-19		1942-1945		52t, 15.3x4.3x1.4m, 2d, 330hp, 8kts, 4p; 2x1-12.7; 1tank
	LCM(6)	13	L61-73		1944-1945		56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank
	LCVP	27	1-27		1943-1945		13t, 11.2x3.2x0.9m, 2d, 220hp, 8kts, 3p; 2x1-12.7; 36troops

MINE WARFARE

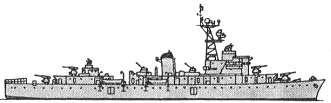

MSO	Guadiaro	7	M11	Guadiaro	1953		770t, 74.3x10.2x3.7m, 2b,2vte, 2400hp, 16kts, 79p; 2x1-20/65, 2dcr, mechanical minesweeping gear; RM914 radar, UQS-1 sonar
			M12	Tinto	1953
			M13	Eume	1953
			M14	Almanzora	1954
			M15	Navia	1955
			M16	Guadalhorce	1953
			M17	Eo	1955
	Aggressive	4	M41	Guadalete	1953		735t, 52.3x10.4x4.0m, 4d(2), 2280hp, 14kts, 70p; 1x1-20/70(41-43), 2x1-12.7, acoustic, magnetic, mechanical minesweeping gear; RM1226, TM626 radars, SQQ-14 sonar
			M42	Guadalmedina	1954
			M43	Guadalquivir	1956
			M44	Guadiana	1954
MSC	Adjutant	12	M21	Nalón	1954		400t, 44.3x8.1x2.1m, 2d, 880(21-25,27-29)-1000(26,30-32)hp, 12(21-25,27-29)-12.5(26,30-32)kts, 39p; 1x2-20/70, acoustic, magnetic, mechanical minesweeping gear; RM914 radar, UQS-1 sonar
			M22	Llobregat	1954
			M23	Júcar	1956
			M24	Ulla	1956
			M25	Miño	1956
			M26	Ebro	1958
			M27	Turia	1955
			M28	Duero	1955
			M29	Sil	1955
			M30	Tajo	1959
			M31	Genil	1959
			M32	Odiel	1959

CUSTOMS

PB	VC1	3	1	Albatros	1958		80t, 31.8x4.7x1.7m, 2d, 2700hp, 28kts, 15p; 1x1-20/70; radar
			2	Albatros II	1958
			3	Albatros III	1958
	Aguilcho	1	1	Aguilcho	1973	no picture	65t, 28.0x5.2x1.3m, 2d, 2750hp, 30kts, 14p; 1x1-20/70; radar
	Águila	1	1	Águila	1974	no picture	80t, 32.0x5.8x1.6m, 2d, 2750hp, 29kts, 16p; 1x1-20/70; RM926 radar

DEPARTMENT OF FISHERIES
