World navies yesterday

1970



West Germany 01 January 1970

SUBMARINES

SS U4 11 S180 U1 1967 419/455t, 44.0(180,181,188)-43.8(183-187,189)-45.8(190,191)x4.5x4.2m, 1dg,1em, 1200/1500hp, 10/17kts, 21p, 150m; 8-533TT; Calypso radar, SRS-M1H, AN5039A1 sonars, DR-2000U ECM, Mk8 CCS
S181 U2 1966
S183 U4 1962
S184 U5 1963
S185 U6 1963
S186 U7 1964
S187 U8 1964
S188 U9 1967
S189 U10 1967
S190 U11 1968
S191 U12 1969

PRINCIPAL SURFACE COMBATANTS

DD Fletcher 5 D170 Zerstörer 1 1943 3120t, 114.7x12.1x5.5m, 4b,2gst, 60000hp, 32kts, 244p; 4x1-127/38, 3x2-76/50, (1x5+2)-533TT, 2x24-178 Hedgehog ASWRL, 1dcr, mines; SPS-6, SPS-10, SPG-25, SPG-36, SPG-35 radars, SQS-29 sonar
D171 Zerstörer 2 1942
D172 Zerstörer 3 1943
D178 Zerstörer 4 1942
D179 Zerstörer 5 1942
Hamburg 4 D181 Hamburg 1964 4330t, 133.7x13.4x5.2m, 4b,2gst, 72000hp, 36kts, 244p; 4x1-100/55, 4x2-40/70, 4x1-533TT, 2x4-375 Bofors ASWRL, 2dcr; LW-02, DA-02, KH14/9, 4x M45 radars, 1BV sonar, WLR-6 ECM
D182 Schleswig-Holstein 1964
D183 Bayern 1965
D184 Hessen 1968

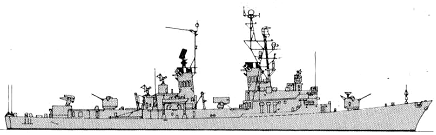

Lütjens 2 D185 Lütjens 1969 4717t, 134.4x14.4x4.5m, 4b,2gst, 70000hp, 36kts, 333p; 1x1 Tartar SAM(40), 1x8 ASROC ASuR(8), 2x1-127/54, 2x3-324TT; SPS-52, SPS-40, SPS-10, 2x SPG-51, SPG-53 radars, SQS-23 sonar, WLR-6 ECM, SATIR I CCS
D186 Mölders 1969
FF Köln 6 F220 Köln 1961 2750t, 109.8x11.0x4.6m, 4d+2gt(2), 38000hp, 32kts, 238p; 2x1-100/55, (2x2+2x1)-40/70, 4x1-533TT, 2x4-375 Bofors ASWRL, 2dcr, 82mines; DA-02, SGR-103, KH14/9, 2x M44, M45 radars, PAE/CWE sonar, ECM
F221 Emden 1961
F222 Augsburg 1962
F223 Karlsruhe 1962
F224 Lübeck 1963
F225 Braunschweig 1964
FT Deutschland 1 A59 Deutschland 1963 5684t, 138.2x16.1x5.1m, 2b,1gst+4d(3), 16400hp, 22kts, 172+250p; 4x1-100/55, (2x2+2x1)-40/70, (2+4x1)-533TT, 2x4-375 Bofors ASWRL, 2dcr, mines; LW-02/03, SGR-114, SGR-105, SGR-103, DA-02, 2x M45 radars, ELAC 1BV sonar
FS Thetis 5 A1430 Thetis 1961 732t, 69.8x8.2x4.2m, 2d, 6000hp, 24kts, 68p; 1x2-40/70, 2-533TT, 1x4-375 Bofors ASWRL, 2dcr; KH14/9, TRS-N radars
A1431 Hermes 1961
A1432 Najade 1962
A1433 Triton 1962
A1434 Theseus 1963
Hans Bürkner 1 Y879 Hans Bürkner 1963 1347t, 81.0x9.4x2.8m, 4d(2), 13600hp, 24kts, 60p; 1x2-40/70, 2-533TT, 1x4-375 Bofors ASWRL, mines; KH14/9, TRS-N radars

PATROL AND COASTAL COMBATANTS

PT Jaguar 30 P6058 Iltis 1957 210(6058-6067,6082-6091)-221(6068-6077)t, 42.6x7.1x2.3(6058-6067,6082-6091)-2.4(6068-6077)m, 4d, 14400hp, 43kts, 39p; 2x1-40/70, 4-533TT; Decca 1226 radar
P6059 Jaguar 1957
P6060 Leopard 1958
P6061 Luchs 1958
P6062 Wolf 1958
P6063 Tiger 1958
P6064 Panther 1958
P6065 Löwe 1959
P6066 Fuchs 1959
P6067 Marder 1959
P6068 Seeadler 1959
P6069 Albatros 1959
P6070 Kondor 1959
P6071 Greif 1959
P6072 Falke 1959
P6073 Geier 1959
P6074 Bussard 1959
P6075 Habicht 1959
P6076 Sperber 1959
P6077 Kormoran 1959
P6082 Weihe 1959
P6083 Kranich 1959
P6084 Alk 1960
P6085 Storch 1960
P6086 Pelikan 1960
P6087 Häer 1960
P6088 Elster 1960
P6089 Reiher 1960
P6090 Pinguin 1961
P6091 Dommel 1961
Zobel 10 P6092 Zobel 1961 190t, 42.6x7.1x2.3m, 4d, 14400hp, 43kts, 39p; 2x1-40/70, 4-533TT; Decca 1226 radar
P6093 Wiesel 1962
P6094 Dachs 1962
P6095 Hermelin 1962
P6096 Nerz 1963
P6097 Puma 1962
P6098 Gepard 1963
P6099 Hyäne 1963
P6100 Frettchen 1963
P6101 Ozelot 1963
PB P1 1 Y832 KW18 1953 78t, 29.0x4.7x1.4m, 2d, 2000hp, 25kts, 17p; 2x1-20/80; radar

AMPHIBIOUS

LSM LSM 2 L750 Krokodil 1945 1095t, 62.0x10.5x2.1m, 2d, 2800hp, 13kts, 60p; 1x2-40/60, helodeck(750); 5tanks, 54troops; radar
L751 Eidechse 1945
LSS Butt 22 L760 Flunder 1966 403t, 40.0x8.8x2.1m, 2d, 1200hp, 11kts, 17p; 2x1-20/70; 3tanks (237t); KH14/9 radar
L761 Karpfen 1966
L762 Lachs 1966
L763 Plötze 1966
L764 Rochen 1966
L765 Schlei 1966
L766 Stör 1966
L767 Tümmler 1966
L768 Wels 1966
L769 Zander 1966
L788 Butt 1965
L789 Brasse 1965
L790 Barbe 1966
L791 Delphin 1966
L792 Dorsch 1966
L793 Felchen 1966
L794 Forelle 1966
L795 Inger 1966
L796 Makrele 1966
L797 Muräne 1966
L798 Renke 1966
L799 Salm 1966
LC Seetaucher 28 LCM1 Seetaucher 1966 168t, 23.6x6.4x1.5m, 2d, 684hp, 10.6kts, 7p; 50troops (60t); radar
LCM2 Seenadel 1966
LCM3 Seedrache 1966
LCM4 Seespinne 1966
LCM5 Seeotter 1966
LCM6 Seezunge 1966
LCM7 Seelilie 1966
LCM8 Seefeder 1966
LCM9 Seerose 1966
LCM10 Seenelke 1966
LCM11 Huchen 1966
LCM12 Sprotte 1966
LCM13 Sardine 1966
LCM14 Sardelle 1966
LCM15 Hering 1966
LCM16 Orfe 1966
LCM17 Maräne 1966
LCM18 Saibling 1966
LCM19 Stint 1966
LCM20 Aesche 1966
LCM21 Hummer 1966
LCM22 Krill 1966
LCM23 Krabbe 1967
LCM24 Auster 1967
LCM25 Muschel 1967
LCM26 Koralle 1967
LCM27 Garnele 1967
LCM28 Languste 1967

MINE WARFARE

ML LST 2 N120 Bochum 1945 4140t, 101.4x15.3x4.0m, 2d, 1800hp, 11kts, 125p; (2x2+2x1)-40/70, mines; radar
N121 Bottrop 1945
Sachsenwald 2 A1437 Sachsenwald 1969 3379t, 110.7x13.9x4.2m, 2d, 5600hp, 17kts, 65p; 2x2-40/70, mines; radar
A1438 Steigerwald 1969
MHC Lindau 1 M1086 Fulda 1960 402t, 47.1x8.0x2.5m, 2d, 4000hp, 17kts, 45p; 1x1-40/70, 4dcr, mines, diving equipment; TRS-N radar, type 193M sonar
Schütze 1 Y849 Stier 1960 267t, 47.4x6.9x2.3m, 2d, 4500(1050-1059)-4760(1060-1069,1090-1099)hp, 25kts, 31p; 1x1-40/70, diving equipment; TRS-N radar
MSC Lindau 17 M1070 Göttingen 1958 402t, 47.1x8.0x2.5m, 2d, 4000hp, 17kts, 45p; 1x1-40/70, 4dcr, mines, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar, DSQS-11 sonar
M1071 Koblenz 1958
M1072 Lindau 1958
M1073 Schleswig 1958
M1074 Tübingen 1958
M1075 Wetzlar 1958
M1076 Paderborn 1958
M1077 Weilheim 1959
M1078 Cuxhaven 1959
M1079 Düren 1959
M1080 Marburg 1959
M1081 Konstanz 1959
M1082 Wolfsburg 1959
M1083 Ulm 1959
M1084 Flensburg 1959
M1085 Minden 1960
M1087 Völkingen 1960
Mercure 6 M1250 Vegesack 1959 383t, 44.6x8.4x2.6m, 2d, 1320hp, 14.5kts, 40p; 1x2-20/70, mechanical, acoustic, magnetic minesweeping gear; Decca 707 radar, Simrad sonar
M1251 Hameln 1959
M1252 Detmond 1960
M1253 Wörms 1960
M1254 Siegen 1960
M1255 Passau 1960
MSI Schütze 29 M1050 Mira 1960 267t, 47.4x6.9x2.3m, 2d, 4500(1050-1059)-4760(1060-1069,1090-1099)hp, 25kts, 31p; 1x1-40/70, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar
M1051 Castor 1962
M1052 Krebs 1959
M1053 Orion 1962
M1054 Pollux 1961
M1055 Sirius 1961
M1056 Rigel 1962
M1057 Regulus 1962
M1058 Mars 1961
M1059 Spica 1961
M1060 Scorpion 1963
M1062 Schütze 1959
M1063 Waage 1962
M1064 Deneb 1961
M1065 Jupiter 1961
M1066 Pegasus 1962
M1067 Altair 1961
M1068 Algol 1963
M1069 Wega 1963
M1090 Perseus 1961
M1091 Steinbock 1960
M1092 Pluto 1960
M1093 Neptun 1960
M1094 Widder 1960
M1095 Herkules 1960
M1096 Fische 1960
M1097 Gemma 1960
M1098 Capella 1960
M1099 Uranus 1960
Niobe 1 Y1643 Niobe 1958 171t, 35.2x6.8x1.7m, 2d, 2000hp, 16kts, 20p; 1x1-40/70, drone control equipment; TRS-N radar
Hansa 1 Y806 Hansa 1958 175t, 35.2x6.6x1.9m, 1d, 1000hp, 14kts, 20p; 1x1-40/70, diving equipment; TRS-N radar
Ariadne 8 M2650 Ariadne 1961 252t, 38.0x8.0x2.1m, 2d, 2000hp, 14.5kts, 24p; 1x1-40/70, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar
M2651 Freya 1962
M2652 Vineta 1962
M2653 Hertha 1962
M2654 Nymphe 1963
M2655 Nixe 1963
M2656 Amazone 1963
M2657 Gazelle 1963
Frauenlob 10 M2658 Frauenlob 1966 246t, 38.0x8.0x2.1m, 2d, 2000hp, 14.5kts, 24p; 1x1-40/70, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar
M2659 Nautilus 1966
M2660 Gefion 1967
M2661 Medusa 1967
M2662 Undine 1967
M2663 Minerva 1967
M2664 Diana 1967
M2665 Loreley 1968
M2666 Atlantis 1968
M2667 Acheron 1969
Holnis 1 M2651 Holnis 1966 181t, 41.7x7.4x1.7m, 2d, 2000hp, 16.5kts, 25p; 1x1-20/90, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar

COAST GUARD

PC La Fougueux 1 W51 UW12 1955 400t, 53.1x7.3x3.1m, 4d(2), 3240hp, 19kts, 62p; 2x1-40/60, 2x1-20/70, 1x24-178 Hedgehog ASWRL, 4dct, 2dcr; Decca radar, DUBA-2 sonar
PB KWK 2 W2 KW2 1944 112t, 22.3x6.4x2.7m, 1d, 150hp, 11kts, 16p; 1x1-20/80
W8 KW8 1944
P1 4 BG1   1953 78t, 29.0x4.7x1.4m, 2d, 2000hp, 25kts, 17p; 2x1-20/80; radar
BG2   1953
BG3   1953
BG4   1953
Neustadt 3 BG11 Neustadt 1969 No picture 218t, 38.5x7.0x2.2m, 2d+1d, 7885hp, 30kts, 24p; 2x1-40/70; ARP1645 radar
BG12 Bad Bramstedt 1969
BG13 Ueltzen 1969
