World navies yesterday

1965



West Germany 01 January 1965

SUBMARINES

SS Type XXI 1 Y888 Wilhelm Bauer 1945 1621/1819t, 76.7x8.0x6.3m, 2dg,1em, 1200/1500hp, 10/12kts, 57p, 135m; 4-533TT
Type XXIII 2 S170 Hai 1945 234/275t, 36.1x3.0x3.7m, 1dg,1em, 630/580hp, 9.7/12.5kts, 17p, 80m; 2-533TT
S171 Hecht 1945
U1 1 S182 U3 1962 395/433t, 43.5x4.6x4.0m, 1dg,1em, 1200/1500hp, 10/17.5kts, 21p, 150m; 8-533TT; Calypso radar, SRS M1H sonar, Mk8 CCS
U4 5 S183 U4 1962 419/455t, 43.8x4.5x4.2m, 1dg,1em, 1200/1500hp, 10/17kts, 21p, 150m; 8-533TT; Calypso radar, SRS-M1H, AN5039A1 sonars, DR-2000U ECM, Mk8 CCS
S184 U5 1963
S185 U6 1963
S186 U7 1964
S187 U8 1964

PRINCIPAL SURFACE COMBATANTS

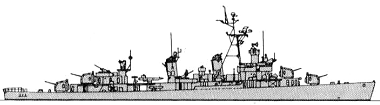

DD Fletcher 6 D170 Zerstörer 1 1943 3120t, 114.7x12.1x5.5m, 4b,2gst, 60000hp, 32kts, 244p; 4x1-127/38, 3x2-76/50, (1x5+2)-533TT, 2x24-178 Hedgehog ASWRL, 1dcr, mines; SPS-6, SPS-10, SPG-25, SPG-36, SPG-35 radars, SQS-29 sonar
D171 Zerstörer 2 1942
D172 Zerstörer 3 1943
D178 Zerstörer 4 1942
D179 Zerstörer 5 1942
D180 Zerstörer 6 1942

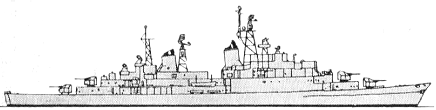

Hamburg 2 D181 Hamburg 1964 4330t, 133.7x13.4x5.2m, 4b,2gst, 72000hp, 36kts, 244p; 4x1-100/55, 4x2-40/70, 4x1-533TT, 2x4-375 Bofors ASWRL, 2dcr; LW-02, DA-02, KH14/9, 4x M45 radars, 1BV sonar, WLR-6 ECM
D182 Schleswig-Holstein 1964
FF Hunt batch 2 1 F212 Gneisenau 1942 1610t, 86.1x9.6x3.8m, 2b,2gst, 19000hp, 27kts, 168p; 1x1-100/55, (1x2+2x1)-40/70; radars
mod. Black Swan 2 F213 Scharnhorst 1943 1950t, 91.3x11.7x3.5m, 2b,2gst, 4300hp, 18.2kts, 192p; 2x1-100/55(213), (1x2+2x1)-40/70(213), 2x2-40/70(216), 60mines(213); radars
F216 Scheer 1943
Hunt batch 3 2 F217 Raule 1942 1590t, 85.3x9.6x3.7m, 2b,2gst, 19000hp, 27kts, 168p; 1x2-102/45(218), 1x1-40/70, 1x2-533TT, 1x4-375 Bofors ASWRL(217), 2x24-178 Hedgehog ASWRL(218); radars, sonars
F218 Brommy 1943

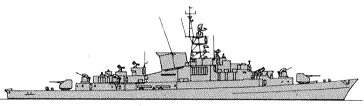

Köln 6 F220 Köln 1961 2750t, 109.8x11.0x4.6m, 4d+2gt(2), 38000hp, 32kts, 238p; 2x1-100/55, (2x2+2x1)-40/70, 2x1-533TT, 2x4-375 Bofors ASWRL, 2dcr, 82mines; DA-02, SGR-103, KH14/9, 2x M44, M45 radars, PAE/CWE sonar, ECM
F221 Emden 1961
F222 Augsburg 1962
F223 Karlsruhe 1962
F224 Lübeck 1963
F225 Braunschweig 1964

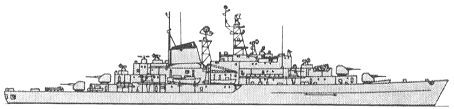

FT Deutschland 1 A59 Deutschland 1963 5684t, 138.2x16.1x5.1m, 2b,1gst+4d(3), 16400hp, 22kts, 172+250p; 4x1-100/55, (2x2+2x1)-40/70, (2+4x1)-533TT, 2x4-375 Bofors ASWRL, 2dcr, mines; LW-02/03, SGR-114, SGR-105, SGR-103, DA-02, 2x M45 radars, ELAC 1BV sonar
FS Type 1939(Mob) 2 F207 Biene 1941 878t, 68.3x8.7x2.6m, 2b,2se, 3500hp, 18.3kts, 100p; 2x1-40/70, 2xx2-20/80, 1x24-178 Hedgehog ASWRL
F209 Brummer 1942
Thetis 5 P6111 Thetis 1961 732t, 69.8x8.2x4.2m, 2d, 6000hp, 24kts, 68p; 1x2-40/70, 2-533TT, 1x4-375 Bofors ASWRL, 2dcr; KH14/9, TRS-N radars
P6112 Hermes 1961
P6113 Najade 1962
P6114 Triton 1962
P6115 Theseus 1963
Hans Bürkner 1 Y879 Hans Bürkner 1963 1347t, 81.0x9.4x2.8m, 4d(2), 13600hp, 24kts, 60p; 1x2-40/70, 2-533TT, 1x4-375 Bofors ASWRL, mines; KH14/9, TRS-N radars

PATROL AND COASTAL COMBATANTS

PT Silbermöwe 5 P6052 Silbermöwe 1956 155t, 35.6x5.2x1.6m, 3d, 9000hp, 42kts, 19p; 1x1-40/70, 2-533TT; radar
P6053 Sturmmöwe 1956
P6054 Wildschwan 1956
P6055 Eismöwe 1955
P6056 Raubmöwe 1956
Jaguar 30 P6058 Iltis 1957 210(6058-6067,6082-6091)-221(6068-6077)t, 42.6x7.1x2.3(6058-6067,6082-6091)-2.4(6068-6077)m, 4d, 14400hp, 43kts, 39p; 2x1-40/70, 4-533TT; Decca 1226 radar
P6059 Jaguar 1957
P6060 Leopard 1958
P6061 Luchs 1958
P6062 Wolf 1958
P6063 Tiger 1958
P6064 Panther 1958
P6065 Löwe 1959
P6066 Fuchs 1959
P6067 Marder 1959
P6068 Seeadler 1959
P6069 Albatros 1959
P6070 Kondor 1959
P6071 Greif 1959
P6072 Falke 1959
P6073 Geier 1959
P6074 Bussard 1959
P6075 Habicht 1959
P6076 Sperber 1959
P6077 Kormoran 1959
P6082 Weihe 1959
P6083 Kranich 1959
P6084 Alk 1960
P6085 Storch 1960
P6086 Pelikan 1960
P6087 Häer 1960
P6088 Elster 1960
P6089 Reiher 1960
P6090 Pinguin 1961
P6091 Dommel 1961
Zobel 10 P6092 Zobel 1961 190t, 42.6x7.1x2.3m, 4d, 14400hp, 43kts, 39p; 2x1-40/70, 4-533TT; Decca 1226 radar
P6093 Wiesel 1962
P6094 Dachs 1962
P6095 Hermelin 1962
P6096 Nerz 1963
P6097 Puma 1962
P6098 Gepard 1963
P6099 Hyäne 1963
P6100 Frettchen 1963
P6101 Ozelot 1963
Pfeil 1 P6193 Pfeil 1962 85t, 29.0x7.3x2.1m, 2gt/2d, 8500/300hp, 54kts, 22p; 2x1-40/70, 4-533TT; Decca 1226 radar
Strahl 1 P6194 Strahl 1962 102t, 30.2x7.3x2.1m, 3gt, 10500hp, 55kts, 22p; 2x1-40/70, 4-533TT; Decca 1226 radar
PB P1 2 Y832 KW18 1953 78t, 29.0x4.7x1.4m, 2d, 2000hp, 25kts, 17p; 2x1-20/80; radar
Y833 KW19 1953

AMPHIBIOUS

LSM LSM 4 L750 Krokodil 1945 1095t, 62.0x10.5x2.1m, 2d, 2800hp, 13kts, 60p; 1x2-40/60, helodeck(750); 5tanks, 54troops; radar
L751 Eidechse 1945
L752 Salamander 1945
L753 Viper 1945
LSS LCT(6) 1 LCU1   1944 320t, 36.3x10.0x1.2m, 3d, 675hp, 8kts, 13p; 1x1-12.7; 4tanks
LFS LSM(R) 2 L754 Otter 1945 1175t, 62.0x10.5x2.1m, 2d, 2800hp, 13kts, 143p; 1x1-127/38, 2x2-40/60, 4x2-20/70, 4x1-107/10mortars, 5x2-127RL; radar
L755 Natter 1945

MINE WARFARE

ML LST 2 N120 Bochum 1945 4140t, 101.4x15.3x4.0m, 2d, 1800hp, 11kts, 125p; (2x2+2x1)-40/70, mines; radar
N121 Bottrop 1945
MSC Lindau 18 M1070 Göttingen 1958 402t, 47.1x8.0x2.5m, 2d, 4000hp, 17kts, 45p; 1x1-40/70, 4dcr, mines, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar, DSQS-11 sonar
M1071 Koblenz 1958
M1072 Lindau 1958
M1073 Schleswig 1958
M1074 Tübingen 1958
M1075 Wetzlar 1958
M1076 Paderborn 1958
M1077 Weilheim 1959
M1078 Cuxhaven 1959
M1079 Düren 1959
M1080 Marburg 1959
M1081 Konstanz 1959
M1082 Wolfsburg 1959
M1083 Ulm 1959
M1084 Flensburg 1959
M1085 Minden 1960
M1086 Fulda 1960
M1087 Völkingen 1960
Mercure 6 M1250 Vegesack 1959 383t, 44.6x8.4x2.6m, 2d, 1320hp, 14.5kts, 40p; 1x2-20/70, mechanical, acoustic, magnetic minesweeping gear; Decca 707 radar, Simrad sonar
M1251 Hameln 1959
M1252 Detmond 1960
M1253 Wörms 1960
M1254 Siegen 1960
M1255 Passau 1960
MSI Schütze 30 M1050 Mira 1960 267t, 47.4x6.9x2.3m, 2d, 4500(1050-1059)-4760(1060-1069,1090-1099)hp, 25kts, 31p; 1x1-40/70, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar
M1051 Castor 1962
M1052 Krebs 1959
M1053 Orion 1962
M1054 Pollux 1961
M1055 Sirius 1961
M1056 Rigel 1962
M1057 Regulus 1962
M1058 Mars 1961
M1059 Spica 1961
M1060 Scorpion 1963
M1061 Stier 1961
M1062 Schütze 1959
M1063 Waage 1962
M1064 Deneb 1961
M1065 Jupiter 1961
M1066 Pegasus 1962
M1067 Altair 1961
M1068 Algol 1963
M1069 Wega 1963
M1090 Perseus 1961
M1091 Steinbock 1960
M1092 Pluto 1960
M1093 Neptun 1960
M1094 Widder 1960
M1095 Herkules 1960
M1096 Fische 1960
M1097 Gemma 1960
M1098 Capella 1960
M1099 Uranus 1960

COAST GUARD

PC La Fougueux 1 W51 UW12 1955 400t, 53.1x7.3x3.1m, 4d(2), 3240hp, 19kts, 62p; 2x1-40/60, 2x1-20/70, 1x24-178 Hedgehog ASWRL, 4dct, 2dcr; Decca radar, DUBA-2 sonar
W23 8 W23 Ariadne 1961 252t, 38.0x8.0x2.1m, 2d, 2000hp, 14.5kts, 24p; 1x1-40/70, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar
W24 Freya 1962
W25 Vineta 1962
W26 Hertha 1962
W27 Nymphe 1963
W28 Nixe 1963
W29 Amazone 1963
W30 Gazelle 1963
PB S139 1 UW11   1944 122t, 34.9x5.3x1.7m, 3d, 7500hp, 41kts, 24p; 1x1-20/80, 2-533TT
KWK 5 W1 KW1 1944 112t, 22.3x6.4x2.7m, 1d, 150hp, 11kts, 16p; 1x1-20/80
W2 KW2 1944
W6 KW6 1944
W7 KW7 1944
W8 KW8 1944
W21 1 W21 Niobe 1958 171t, 35.2x6.8x1.7m, 2d, 2000hp, 16kts, 20p; 1x1-40/70, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar
W22 1 W22 Hansa 1958 175t, 35.2x6.6x1.9m, 1d, 1000hp, 14kts, 20p; 1x1-40/70, mechanical, acoustic, magnetic minesweeping gear; TRS-N radar
P1 4 BG1   1953 78t, 29.0x4.7x1.4m, 2d, 2000hp, 25kts, 17p; 2x1-20/80; radar
BG2   1953
BG3   1953
BG4   1953
