1965



Uruguay 01 January 1965

PRINCIPAL SURFACE COMBATANTS

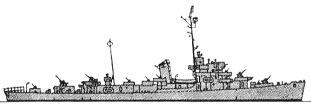

FF Cannon 2 DE1 Uruguay 1943 1602t, 93.3x11.2x3.2m, 4dg,2em, 6000hp, 21kts, 186p; 3x1-76/50, 1x2-40/60, 4x1-20/70, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SPS-5, SPS-6C radars, SQS-4 sonar
DE2 Artigas 1943
Castle 1 PF1 Montevideo 1944 1600t, 76.8x11.2x4.2m, 2b,1vte, 2750hp, 16.5kts, 120p; 1x1-76/50, 2x1-40/60, 4x1-20/70, 1x24-178 Hedgehog ASWRL, 4dct, 1dcr; type 276, 291 radars, sonar

PATROL AND COASTAL COMBATANTS

PC PC 173ft 1 B1 Maldonado 1943 330t, 52.9x7.1x2.4m, 2d, 2880hp, 21kts, 65p; 1x1-76/50, 1x1-40/60, 3x1-20/70, 2x4-178 Mousetrap ASWRL, 2dct, 2dcr; SF radar, sonar
PB Paysandú 2 PR2 Salto 1936 180t, 41.9x5.8x1.7m, 2d, 1000hp, 17kts, 51p; 2x1-76/40, 2x1-47/40
PR3 Río Negro 1936
AVR 63ft 1 AR1   1944 No picture 34t, 19.2x4.6x1.2m, 2d, 1260hp, 33.5kts, 8p; 2x2-12.7
PR11 1 PR11   1957 No picture 70t, 28.4x5.8x2.1m, 25kts; 1x1-20/70; radar
