United Kingdom 01 January 1965
SUBMARINES
| SSN | Dreadnought | 1 | S101 | Dreadnought | 1963 | |
3500/4000t, 89.5x9.8x7.9m, 1nr,2gst(1), 15000hp, 15/28kts, 88p, 230m; 6-533TT; type 1002 radar, type 2001, 2007, 2019 sonars |
| SS | T 1940 | 1 | S87 | Tally-Ho | 1943 | |
1327/1575t, 83.8x8.1x4.5m, 2d/em, 2500/1450hp, 15.2/9kts, 61p, 95m; 1x1-102/40, 11-533TT; type 291W radar, sonar |
| S 1940 | 2 | S89 | Seraph | 1942 | |
842/990t, 66.1x7.2x4.5m, 2d/em, 1900/1300hp, 14.7/9kts, 48p, 95m; 1x1-20/70, 7-533TT; type 267QW radar, sonar | |
| S76 | Sirdar | 1943 | |||||
| S 1941 welded | 1 | S44 | Sea Devil | 1945 | |
814/990t, 66.1x7.2x4.5m, 2d/em, 1900/1300hp, 14.7/9kts, 48p, 95m; 1x1-20/70, 6-533TT; type 267QW radar, sonar | |
| T Conversion | 7 | S34 | Taciturn | 1944 | |
1588/1734t, 88.8-89.5x8.1x4.9m, 4d/em(2), 2800/6000hp, 14/15.4kts, 68p, 110m; 6-533TT; type 267W, type 186, 187, 197 sonars | |
| S55 | Thermopylae | 1945 | |||||
| S54 | Turpin | 1944 | |||||
| S53 | Truncheon | 1952 | |||||
| S32 | Tiptoe | 1944 | |||||
| S33 | Trump | 1944 | |||||
| S42 | Tabard | 1946 | |||||
| T Streamlined | 5 | S77 | Tireless | 1945 | |
1424/1571t, 83.4x8.1x4.8m, 2d/em, 2500/1450hp, 15.2/9.5kts, 50p, 95m; 6-533TT; type 267W radar, type 186, 187, 197 sonars | |
| S35 | Tapir | 1944 | |||||
| S38 | Teredo | 1946 | |||||
| S37 | Talent | 1945 | |||||
| S28 | Token | 1945 | |||||
| S 1942/43 | 1 | S153 | Sea Scout | 1944 | |
814/990t, 66.1x7.2x4.3m, 2d/em, 1900/1300hp, 14.7/9kts, 48p, 110m; 1x1-20/70, 6-533TT; type 291W radar, sonar | |
| A | 15 | S61 | Acheron | 1948 | |
1443/1620t, 85.9x6.8x5.5m, 2d/em, 4300/4300hp, 19/15kts, 63p, 105m; 6-533TT; type 267W radar, type 186, 187, 197 sonars | |
| S72 | Aeneas | 1946 | |||||
| S41 | Alaric | 1946 | |||||
| S65 | Alcide | 1946 | |||||
| S66 | Alderney | 1946 | |||||
| S67 | Alliance | 1945 | |||||
| S68 | Ambush | 1947 | |||||
| S43 | Amphion | 1945 | |||||
| S64 | Anchorite | 1947 | |||||
| S63 | Andrew | 1948 | |||||
| S49 | Artemis | 1947 | |||||
| S96 | Artful | 1948 | |||||
| S47 | Astute | 1945 | |||||
| S69 | Auriga | 1946 | |||||
| S26 | Aurochs | 1947 | |||||
| Porpoise | 8 | S01 | Porpoise | 1958 | |
1975/2303t, 88.5x8.1x5.6m, 2d/em, 3680/6000hp, 12/17kts, 71p, 200m; 8-533TT; type 1002 radar, type 187, 2007, 2019 sonars | |
| S02 | Rorqual | 1958 | |||||
| S03 | Narwhal | 1959 | |||||
| S04 | Grampus | 1958 | |||||
| S05 | Finwhale | 1960 | |||||
| S06 | Cachalot | 1959 | |||||
| S07 | Sealion | 1961 | |||||
| S08 | Walrus | 1961 | |||||
| Oberon | 12 | S09 | Oberon | 1961 | |
2030/2410t, 88.5x8.1x5.6m, 2d/em, 3680/6000hp, 12/17kts, 64p, 230m; 8-533TT; type 1002 radar, type 187, 2007, 2019 sonars | |
| S10 | Odin | 1962 | |||||
| S11 | Orpheus | 1960 | |||||
| S12 | Olympus | 1962 | |||||
| S13 | Osiris | 1964 | |||||
| S14 | Onslaught | 1962 | |||||
| S15 | Otter | 1962 | |||||
| S16 | Oracle | 1963 | |||||
| S17 | Ocelot | 1964 | |||||
| S18 | Otus | 1963 | |||||
| S19 | Opossum | 1964 | |||||
| S20 | Opportune | 1964 | |||||
| SSX | Stickleback | 4 | X51 | Stickleback | 1955 | No picture | 35/39t, 16.4x1.8x2.3m, 1d/em, 50/44hp, 6.5/6kts, 5p, 90m; 2x 2t charges |
| X52 | Shrimp | 1955 | |||||
| X53 | Sprat | 1955 | |||||
| X54 | Minnow | 1955 |
AIRCRAFT CARRIERS
| CV | Illustrious | 1 | R38 | Victorious | 1941 |  |
35500t, 238.0x47.8x9.5m, 6b,3gst, 111000hp, 31kts, 2400p; 102belt, 76deck; 4x2-76/50, 36aircraft (Scimitar, Sea Vixen fighters, Buccaneer attackers, Sea Venom, Gannet ECM planes, Gannet ASW planes, Sea Devon cargo planes, Whirlwind, Belvedere, Wessex, Wasp helicopters); type 272, 277, 279, 281B, 6x 282, 293, SG(R38) radars |
| Eagle | 1 | R05 | Eagle | 1951 |  |
53390t, 245.0x52.1x11.0m, 8b,4gst, 152000hp, 31kts, 2750p; 102belt, 38deck; 6x4 Sea Cat GWS22 SAM, 4x2-120/45, 45aircraft(Scimitar, Sea Vixen fighters, Buccaneer attackers, Sea Venom, Gannet ECM planes, Gannet ASW planes, Sea Devon cargo planes, Whirlwind, Belvedere, Wessex, Wasp helicopters); type 984, 963, 965 AKE-2, 242Q, 293Q, 4x 275 radars | |
| Ark Royal | 1 | R09 | Ark Royal | 1955 |  |
53060t, 245.0x50.1x11.0m, 8b,4gst, 152000hp, 31kts, 2637p; 102belt, 152decks; 2x2-120/45, (4x6+2x2)-40/60, 50aircraft(Scimitar, Sea Vixen fighters, Buccaneer attackers, Sea Venom, Gannet ECM planes, Gannet ASW planes, Sea Devon cargo planes, Whirlwind, Belvedere, Wessex, Wasp helicopters); type 960, 2x 982, 2x 983, 2x 275, 4x 262, 974, 965M radars | |
| CVL | Colossus | 1 | R16 | Triumph | 1946 |  |
18300t, 211.8x24.4x7.1m, 4b,2gst, 40000hp, 25kts, 1300p; 12x1-40/60, 6x4-40/39, 37aircraft(Scimitar, Sea Vixen fighters, Buccaneer attackers, Sea Venom, Gannet ECM planes, Gannet ASW planes, Sea Devon cargo planes, Whirlwind, Belvedere, Wessex, Wasp helicopters); type 277, 293 radars, type 144 sonar |
| Centaur | 1 | R06 | Centaur | 1953 |  |
27000t, 224.8x37.5x8.2m, 4b,2gst, 78000hp, 28kts, 1400p; 25belt, 19deck; (1x6+8x2+4x1)-40/60, 26aircraft(Scimitar, Sea Vixen fighters, Buccaneer attackers, Sea Venom, Gannet ECM planes, Gannet ASW planes, Sea Devon cargo planes, Whirlwind, Belvedere, Wessex, Wasp helicopters); type 982, 983, 275, 974 radars | |
| Hermes | 1 | R12 | Hermes | 1959 |  |
28700t, 226.9x44.1x8.8m, 4b,2gst, 76000hp, 28kts, 2100p; 25belt, 19deck; 5x2-40/60, 28aircraft(Scimitar, Sea Vixen fighters, Buccaneer attackers, Sea Venom, Gannet ECM planes, Gannet ASW planes, Sea Devon cargo planes, Whirlwind, Belvedere, Wessex, Wasp helicopters); type 984, 982, 262, 974 radars | |
| CVH | Lofoten | 1 | K07 | Lofoten | 1945 |  |
4980t, 105.9x16.8x3.8m, 2b,2vte, 5500hp, 13.5kts; 2x2-40/60, 4x2-20/70, 6 helicopters (Wessex); radar |
PRINCIPAL SURFACE COMBATANTS
| CL | Edinburgh | 1 | C35 | Belfast | 1939 |  |
14900t, 187.0x20.2x7.1m, 4b,4gst, 80000hp, 30.5kts, 850p; 114belt, 76deck, 102turrets; 4x3-152/50, 4x2-102/45, 4x2-40/60, 2x3-533TT; type 268, 274, 277, 281B, 282, 285, 293, 4x 903 radars |
| Fiji | 2 | C48 | Gambia | 1942 |  |
11090t, 169.3x18.9x6.3m, 4b,4gst, 72500hp, 31.5kts, 730p; 89belt, 51deck, 51turrets; 3x3-152/50(C80), 4x3-152/50(C48), 4x2-102/45, 2x4-40/39(C48), 5x4-40/39(C80), 10x2-20/70(C48), 24x1-20/70(C80), 2x3-533TT, type 272(C48), 273(C80), 279(C80), 281, 283(C48), 284, 285 radars | |
| C80 | Mauritius | 1941 | |||||

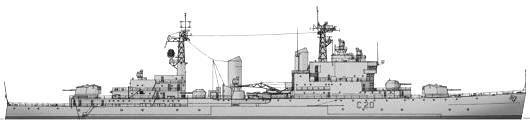

| Tiger | 3 | C20 | Tiger | 1959 |  |
11700t, 169.3x19.5x7.0m, 4b,4gst, 80000hp, 31.5kts, 880p; 89belt, 51deck, 51turrets; 2x2-152/50, 3x2-76/70; type 277Q, 5x 903, 960, 992Q radars | |
| C34 | Lion | 1960 | |||||
| C99 | Blake | 1961 | |||||
| DDG | County | 4 | D02 | Devonshire | 1962 |  |
6800t, 158.9x16.4x6.2m, 2b,gst+4gt(2), 60000hp, 30kts, 471p; 1x2 Sea Slug SAM(36), 2x4 Sea Cat GWS21 SAM(D02,06,16), 2x4 Sea Cat GWS22 SAM(D12), 2x2-120/45, 2x1-20/70, 1 helicopter (Wessex); type 965 AKE-1, 277/278, 992/993, 901, 903, 904(D12) radars, type 170, 174/177 sonars |
| D06 | Hampshire | 1963 | |||||
| D16 | London | 1963 | |||||
| D12 | Kent | 1963 | |||||
| DD | Ca | 7 | D15 | Cavendish | 1945 |  |
2675t, 110.6x10.9x4.4m, 2b,2gst, 40000hp, 36.7kts, 192p; 3x1-114/45(all-D30), 2x1-114/45(D30), (1x2+2x1)-40/60, 1x4-533TT, 2x3-305 Squid ASWRL; type 275, 293P/Q, 978/974, 944 radars, type 170, 174P sonars |
| D07 | Caesar | 1944 | |||||
| D85 | Cambrian | 1944 | |||||
| D01 | Caprice | 1944 | |||||
| D25 | Carysfort | 1945 | |||||
| D10 | Cassandra | 1944 | |||||
| D73 | Cavalier | 1944 | |||||
| Battle batch 1 | 9 | D14 | Armada | 1945 |  |
3300t, 115.5x12.3x4.6m, 2b,2gst, 50000hp, 35.7kts, 222p; 2x2-114/45, (4x2+4x1)-40/60, 2x4-533TT, 1x3-305 Squid ASWRL, 4dct, 2dcr; type 262, 275, 277, 283, 291, 293 radars, type 123A, 127 sonars | |
| D80 | Barfleur | 1944 | |||||
| D32 | Camperdown | 1945 | |||||
| D55 | Finisterre | 1945 | |||||
| D44 | Lagos | 1945 | |||||
| D84 | Saintes | 1946 | |||||
| D60 | Sluys | 1946 | |||||
| D70 | Solebay | 1945 | |||||
| D77 | Trafalgar | 1945 | |||||
| Ch | 3 | D52 | Chaplet | 1945 |  |
2535t, 110.6x10.9x4.4m, 2b,2gst, 40000hp, 36.7kts, 222p; 3x1-114/45, (1x2+4x1)-40/60, 2x1-20/70, 1x4-533TT, 2x3-305 Squid ASWRL, 2dct, 2dcr; type 275, 277, 282, 291 radars, type 123A, 127 sonars | |
| D61 | Chequers | 1945 | |||||
| D51 | Chevron | 1945 | |||||
| Battle batch 2 | 3 | D09 | Dunkirk | 1946 |  |
3420t, 115.5x12.3x4.7m, 2b,2gst, 50000hp, 35.7kts, 306p; (2x2+1x1)-114/45, (3x2+2x1)-40/60, 2x5-533TT, 1x3-305 Squid ASWRL; type 262, 275, 277, 283, 291, 293 radars, type 170, 174/177 sonars | |
| D62 | Jutland | 1947 | |||||
| D43 | Matapan | 1947 | |||||
| Battle radar picket | 4 | D86 | Agincourt | 1947 | |
3430t, 115.5x12.3x4.7m, 2b,2gst, 50000hp, 35.7kts, 268p; 1x4 Sea Cat GWS22 SAM, 2x2-114/45, 2x1-20/70, 1x3-305 Squid ASWRL; type 262, 275, 293, 965 AKE-2, 903, 978 radars, type 170, 174/177 sonars | |
| D22 | Aisne | 1947 | |||||
| D68 | Barrosa | 1947 | |||||
| D97 | Corunna | 1947 | |||||
| Weapon | 3 | D31 | Broadsword | 1948 |  |
2935t, 111.3x11.6x4.5m, 2b,2gst, 40000hp, 34kts, 234p; 2x2-102/45, (2x2+2x1)-40/60, 2x3-305 Squid ASWRL(all-D64), 1x3-305 Squid ASWRL(D64); type 965 AKE-1, 293, 262, 903 radars, type 170, 174/177 sonars | |
| D96 | Crossbow | 1948 | |||||
| D64 | Scorpion | 1947 | |||||
| Daring | 7 | D108 | Dainty | 1953 |  |
3580t, 118.9x13.1x4.1m, 2b,2gst, 54000hp, 34.7kts, 330p; 1x4 Sea Cat GWS20 SAM(D106), 3x2-120/45, 3x2-40/60(D108,05,114,119), (1x2+2x1)-40/60(D35,126), 2x2-40/60(D106); type 262, 903, 277, 291, 293 radars, type 170, 174/177 sonars | |
| D05 | Daring | 1952 | |||||
| D106 | Decoy | 1953 | |||||
| D114 | Defender | 1952 | |||||
| D119 | Delight | 1953 | |||||
| D35 | Diamond | 1952 | |||||
| D126 | Diana | 1954 | |||||
| FF | Hunt batch 1 | 1 | F142 | Brocklesby | 1941 |  |
1450t, 85.3x8.8x3.8m, 2b,2gst, 19000hp, 28kts, 147p; 2x2-102/45, 1x4-40/39, 2x1-20/70, 2dct, 1dcr; type 285 radar, type 123A, 177 sonars |
| Hunt batch 4 | 1 | F79 | Brissenden | 1943 |  |
1750t, 90.2x10.2x3.6m, 2b,2gst, 19000hp, 26kts, 170p; 3x2-102/45, (1x4+1x1)-40/39, 4x2-20/70, 1x3-533TT, 4dct, 2dcr; type 272, 285, 291 radars, type 123A, 127 sonars | |
| Black Swan modified batch 2 | 1 | F123 | Crane | 1944 |  |
1950t, 91.3x11.7x3.5m, 2b,2gst, 4300hp, 19.7kts, 192p; 3x2-102/45, (4x2+2x1)-20/70, 8dct, 2dcr; type 275, 277, 282, 291 radars, type 123A, 177 sonars | |
| River | 1 | F369 | Meon | 1944 |  |
2180t, 91.8x11.2x3.9m, 2b,2vte, 5500hp, 20kts, 140p; 3x1-40/60, 4x1-20/70; type 277, 291 radars, sonars | |
| Loch | 6 | F390 | Loch Fada | 1944 |  |
2260t, 93.6x11.8x3.8m, 2b,2vte, 5500hp, 19.5kts, 177p; 1x2-102/45, 4x1-40/60, 1x4-40/39, 2x3-305 Squid ASWRL, 2dct, 1dcr; type 277Q, 291 radars, sonars | |
| F429 | Loch Fyne | 1944 | |||||
| F628 | Loch Killisport | 1945 | |||||
| F437 | Loch Lomond | 1944 | |||||
| F645 | Loch Ruthven | 1944 | |||||
| F658 | Loch Veyatie | 1946 | |||||
| Surprise | 2 | F647 | Alert | 1946 |  |
2420t, 93.7x11.8x3.9m, 2b,2vte, 5500hp, 19.5kts, 177p; 1x2-102/45, 2x1-40/60; type 276, 285, 291 radars, sonars | |
| F436 | Surprise | 1945 | |||||
| type 15 | 21 | F138 | Rapid | 1943 |  |
2850t, 109.2x10.9x4.3m, 2b,2gst, 40000hp, 36.7kts, 195p; 1x2-102/45, (1x2+3x1)-40/60, 2x3-305 Squid ASWRL, helodeck(F197,53); type 278, 262, 293 radars, type 170, 174 sonars | |
| F185 | Relentless | 1942 | |||||
| F191 | Rocket | 1943 | |||||
| F195 | Roebuck | 1943 | |||||
| F09 | Troubridge | 1943 | |||||
| F197 | Grenville | 1943 | |||||
| F83 | Ulster | 1943 | |||||
| F17 | Ulysses | 1943 | |||||
| F53 | Undaunted | 1944 | |||||
| F141 | Undine | 1943 | |||||
| F08 | Urania | 1944 | |||||
| F196 | Urchin | 1943 | |||||
| F200 | Ursa | 1944 | |||||
| F50 | Venus | 1943 | |||||
| F29 | Verulam | 1943 | |||||
| F93 | Vigilant | 1943 | |||||
| F76 | Virago | 1943 | |||||
| F41 | Volage | 1944 | |||||
| F159 | Wakeful | 1944 | |||||
| F187 | Whirlwind | 1944 | |||||
| F42 | Wizard | 1944 | |||||
| F102 | Zest | 1944 | |||||
| type 16 | 9 | F98 | Orwell | 1942 |  |
2593t, 109.2x10.9x4.9m, 2b,2gst, 40000hp, 180; 1x2-102/45, (1x2+3x1)-40/60, 1x4-533TT, 2x3-305 Squid ASWRL, 60mines(all-F26); type 293, 974 radars, type 170, 174P sonars | |
| F26 | Petard | 1942 | |||||
| F23 | Teazer | 1943 | |||||
| F44 | Tenacious | 1943 | |||||
| F189 | Termagant | 1943 | |||||
| F19 | Terpsichore | 1944 | |||||
| F121 | Tumult | 1943 | |||||
| F156 | Tuscan | 1943 | |||||
| F67 | Tyrian | 1943 | |||||
| Blackwood | 12 | F78 | Blackwood | 1957 |  |
1535t, 94.5x10.7x4.7m, 2b,1gst, 15000hp, 27kts, 140p; 2x1-40/60, 2x3-305 Limbo ASWRL; type 974, 291 radars, type 174, 170, 162 sonars | |
| F80 | Duncan | 1958 | |||||
| F48 | Dundas | 1956 | |||||
| F84 | Exmouth | 1957 | |||||
| F51 | Grafton | 1957 | |||||
| F54 | Hardy | 1955 | |||||
| F85 | Keppel | 1956 | |||||
| F88 | Malcolm | 1957 | |||||
| F91 | Murray | 1956 | |||||
| F94 | Palliser | 1957 | |||||
| F62 | Pellew | 1956 | |||||
| F97 | Russell | 1957 | |||||
| Whitby | 6 | F77 | Blackpool | 1958 |  |
2560t, 112.7x12.5x3.9m, 2b,2gst, 30000hp, 29kts, 231p; 1x2-120/45, 1x1-40/60, 2x3-305 Limbo ASWRL; type 275, 293, 277, 974/978 radars, type 162, 170, 174/177 sonars | |
| F73 | Eastbourne | 1958 | |||||
| F63 | Scarborough | 1957 | |||||
| F65 | Tenby | 1957 | |||||
| F43 | Torquay | 1956 | |||||
| F36 | Whitby | 1956 | |||||
| Leoprad | 4 | F14 | Leopard | 1958 |  |
2520t, 103.6x12.2x3.6m, 8d(2), 14400hp, 25kts, 205p; 2x2-120/45, 1x1-40/60, 1x3-305 Squid ASWRL; type 275, 903, 960, 974, 965 AKE-1, 978, 993 radars, type 170, 174, 162 sonars | |
| F27 | Lynx | 1957 | |||||
| F34 | Puma | 1957 | |||||
| F37 | Jaguar | 1959 | |||||
| Salisbury | 4 | F32 | Salisbury | 1957 |  |
2350t, 103.6x12.2x3.6m, 8d(2), 14400hp, 25kts, 205p; 1x4 Sea Cat GWS20 SAM(F59,99), 1x2-120/45, 1x1-40/60(F32,61), 1x3-305 Squid ASWRL; type 275, 903(F32,61), 904(F59,99), 277, 960, 982, 293, 974(F61,99), 965 AKE-2(F59,32), 978, 993 radars, type 170, 174, 162 sonars | |
| F59 | Chichester | 1958 | |||||
| F61 | Llandaff | 1958 | |||||
| F99 | Lincoln | 1960 | |||||
| Rothesay | 9 | F107 | Rothesay | 1960 |  |
2560t, 112.7x12.5x3.9m, 2b,2gst, 30000hp, 29kts, 235p; 1x2-120/45, 1x1-40/60, 2x3-305 Limbo ASWRL; type 975, 977, 293, 974, 903, 994, 978 radars, type 170, 174/177, 162 sonars | |
| F108 | Londonderry | 1961 | |||||
| F106 | Brighton | 1961 | |||||
| F113 | Falmouth | 1961 | |||||
| F101 | Yarmouth | 1960 | |||||
| F129 | Rhyl | 1960 | |||||
| F103 | Lowestoft | 1961 | |||||
| F115 | Berwick | 1961 | |||||
| F126 | Plymouth | 1961 | |||||
| Tribal | 7 | F117 | Ashanti | 1961 |  |
2700t, 109.7x12.9x4.0m, 1b,1gst+1gt(1), 20000hp, 27kts, 253p; 2x4 Sea Cat GWS21 SAM(F124), 2x1-120/45, 2x1-40/60(F117,119,122,125,131,133), 1x3-305 Limbo ASWRL, 1 helicopter (Wasp), type 965 AKE-1, 993, 903(F117,119,122,125,131,133), 904(F124), 974/978 radars, type 170, 177, 162 sonars | |
| F119 | Eskimo | 1963 | |||||
| F122 | Gurkha | 1963 | |||||
| F125 | Mohawk | 1963 | |||||
| F131 | Nubian | 1962 | |||||
| F133 | Tartar | 1962 | |||||
| F124 | Zulu | 1964 | |||||
| Leander | 7 | F109 | Leander | 1963 |  |
2860t, 113.4x12.5x5.5m, 2b,2gst, 30000hp, 28kts, 263p; 1x2-120/45, 2x1-40/60, 1x3-305 Limbo ASWRL, 1 helicopter (Wasp); type 965 AKE-1, 992Q, 903, 974/978 radars, type 162, 184, 199 sonars | |
| F114 | Ajax | 1963 | |||||
| F104 | Dido | 1963 | |||||
| F127 | Penelope | 1963 | |||||
| F10 | Aurora | 1964 | |||||
| F15 | Euryalus | 1964 | |||||
| F18 | Galatea | 1964 |
PATROL AND COASTAL COMBATANTS
| PT | MTB601 | 2 | MASB3002 | 1944 |  |
118t, 35.1x6.5x1.5m, 4pe, 4800hp, 29kts, 30p; 1x1-40/60, 1x2-20/70, 2x2-12.7/62, 2x12-178 Split Hedgehog ASWRL, 4dc; type 286U radar | |
| MASB3053 | 1945 | ||||||
| Gay | 3 | P1048 | Gay Charger | 1953 |  |
65t, 22.9x6.1x1.2m, 3pe, 4500hp, 40kts, 13p; 1x1-114/19 or 2-533TT, 1x1-40/60; radar | |
| P1049 | Gay Charioteer | 1953 | |||||
| P1051 | Gay Fencer | 1953 | |||||
| Dark | 15 | P1101 | Dark Adventurer | 1954 |  |
64t, 21.8x5.9x1.8m, 2d, 5000hp, 40kts, 15p; 1x1-114/19 or 4-533TT or 6mines, 1x1-40/60; radar | |
| P1103 | Dark Antagonist | 1955 | |||||
| P1104 | Dark Biter | 1955 | |||||
| P1105 | Dark Avenger | 1955 | |||||
| P1107 | Dark Rover | 1954 | |||||
| P1108 | Dark Buccaneer | 1954 | |||||
| P1109 | Dark Clipper | 1955 | |||||
| P1110 | Dark Highwayman | 1955 | |||||
| P1111 | Dark Killer | 1956 | |||||
| P1112 | Dark Hussar | 1957 | |||||
| P1113 | Dark Fighter | 1955 | |||||
| P1114 | Dark Gladiator | 1957 | |||||
| P1115 | Dark Hero | 1957 | |||||
| P1118 | Dark Intruder | 1955 | |||||
| P1119 | Dark Invader | 1955 | |||||
| Brave | 2 | P1011 | Brave Borderer | 1960 |  |
114t, 30.1x7.8x1.8m, 3gt, 10500hp, 50kts, 20p; 1x1-40/60, 4-533TC; radar | |
| P1012 | Brave Swordsman | 1960 | |||||
| PS | Ford | 14 | P3101 | Shalford | 1952 |  |
160t, 35.7x6.1x1.5m, 3d, 1200hp, 18kts, 19p; 1x1-40/60, 1x3-305 Squid ASWRL(P3101), 2dct(all-P3101), 2dcr(all-P3101); type 978 radar, type 144 sonar |
| P3103 | Axford | 1954 | |||||
| P3106 | Bryansford | 1954 | |||||
| P3107 | Camberford | 1953 | |||||
| P3109 | Greatford | 1953 | |||||
| P3111 | Gifford | 1954 | |||||
| P3114 | Mayford | 1954 | |||||
| P3115 | Hinksford | 1955 | |||||
| P3116 | Ickford | 1954 | |||||
| P3119 | Dubford | 1953 | |||||
| P3121 | Kingsford | 1955 | |||||
| P3122 | Marlingford | 1954 | |||||
| P3123 | Tilford | 1956 | |||||
| P3124 | Montford | 1957 | |||||
|
YP |
HDML |
3 |
SDB1323, 3516 SML352 |
|
1944 - 1945 |
|
54t, 22.0x4.8x1.4m, 2d, 260-480hp, 11-12.5kts, 10p; 2x1-20/70, 2dcr; type 291 radar |
AMPHIBIOUS

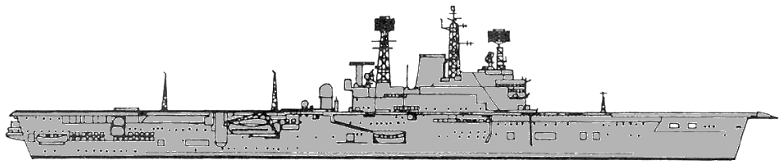

| LPH | Centaur | 2 | R07 | Albion | 1954 | |
27000t, 224.8x37.5x8.2m, 4b,2gst, 78000hp, 28kts, 1400p; 25belt, 19deck; 4x2-40/60, 16 Whirlwind, Belvedere, Wessex, Wasp helicopters; 4 LCA, 900(R07)-733(R08)troops; type 982, 983, 275, 974 radars |
| R08 | Bulwark | 1954 | |||||
| LST | LST(3) | 7 | L101 | Anzio | 1945 | |
4980t, 105.9x16.8x3.8m, 2b,2vte, 5500hp, 13.5kts, 111p; 2x2-40/60, (2x2+2x1)-20/70; 5 LCA, 1 LCT(6), 20 tanks, 14 trucks, 170troops; radar |
| L108 | Dieppe | 1945 | |||||
| L112 | Messina | 1945 | |||||
| L114 | Narvik | 1946 | |||||
| L128 | Striker | 1945 | |||||
| L130 | Tracker | 1945 | |||||
| L120 | Zeebrugge | 1945 | |||||

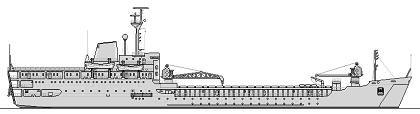

| Round Table | 1 | L3029 | Sir Lancelot | 1964 |  |
5550t, 125.1x19.6x4.3m, 2d, 9520hp, 17kts, 68p; helo deck; 4 LCVP, 16 tanks, 34 vehicles, 534troops; type 1006 radar | |
| LCU | LCT(4) | 3 | L1274 | 1944 |  |
640t, 57.1x11.8x1.4m, 2d, 920hp, 10kts, 12p; 2x1-20/70; 9 tanks | |
| L1283 | 1945 | ||||||
| L1312 | 1944 | ||||||
| LCT(8) | 8 | L4001 | Redoubt | 1945 |  |
810t, 68.6x11.6x1.5m, 2d, 1760hp, 11.9kts, 13p; 3x1-20/70; 8 tanks, 42 troops; radar | |
| L4038 | Citadel | 1945 | |||||
| L4039 | Parapet | 1945 | |||||
| L4040 | Bastion | 1945 | |||||
| L4043 | Counterguard | 1945 | |||||
| L4044 | Portcullis | 1945 | |||||
| L4064 | Sallyport | 1946 | |||||
| L4099 | Buttress | 1946 | |||||
| LC | Avon | 8 | RPL01 | Avon | 1961 | No picture | 100t, 22.0x6.2x1.7m, 2d, 870hp, 9kts, 6p; 1 tank |
| RPL02 | Bude | 1961 | |||||
| RPL03 | Clyde | 1962 | |||||
| RPL04 | Dart | 1962 | |||||
| RPL05 | Eden | 1963 | |||||
| RPL06 | Forth | 1963 | |||||
| RPL07 | Glen | 1964 | |||||
| RPL08 | Hamble | 1964 | |||||
| LCM(9) | 5 | L700 | 1964 | No picture | 176t, 27.5x6.8x1.6m, 2d, 624hp, 10kts, 6p; 2 tanks | ||
| L701 | 1964 | ||||||
| L704 | 1964 | ||||||
| L3507 | 1963 | ||||||
| L3508 | 1963 |
MINE WARFARE AND MINE COUNTERMEASURES
| ML | Plover | 1 | Plover | 1937 |  |
1020t, 59.5x11.4x3.1m, 2b,2vte, 1400hp, 14.7kts, 69p; 1x1-20/70, 100mines; radar | |
| M1 | 8 | Minstrel | 1939 |  |
346t, 33.6x8.1x2.4m, 2d, 360hp, 10kts, 32p; 1x1-20/70, 10mines; type 286 radar | ||
| Gossamer | 1940 | ||||||
| Miner III | 1940 | ||||||
| Miner IV | 1940 | ||||||
| Britannic | 1941 | ||||||
| Miner VI | 1942 | ||||||
| Steady | 1944 | ||||||
| Mindful | 1943 | ||||||
| NL | Protector | 1 | Protector | 1936 |  |
3610t, 103.0x16.2x4.2m, 2b,2gst, 9000hp, 20kts, 190p; 1x2-102/45, (2x2+3x1)-20/70, nets; radar | |
| MSO | Algerine turbine | 8 | M387 | Chamaeleon | 1944 |  |
1265t, 68.6x10.8x3.2m, 2b,2gst, 2000hp, 16.5kts, 138p; 1x1-102/45, 4x1-40/60(M390), 4x2-20/70(all-M390), 4dct, 2dcr, sweeps; radar, sonar |
| M214 | Circe | 1942 | |||||
| M216 | Espiegle | 1942 | |||||
| M390 | Jewel | 1944 | |||||
| M227 | Mutine | 1943 | |||||
| M221 | Onyx | 1943 | |||||
| M298 | Recruit | 1944 | |||||
| M299 | Rifleman | 1944 | |||||
| Algerine VTE | 1 | M442 | Niger | 1945 | |
1325t, 68.6x10.8x3.3m, 2b,2vte, 2400hp, 16.5kts, 138p; 1x1-102/45, 4x2-20/70, 4dct, 2dcr, sweeps; radar, sonar | |
| Isles | 3 | M429 | Ronay | 1945 |  |
770t, 50.0x8.4x3.4m, 1b,1vte, 850hp, 12.2kts, 40p; 1x1-76/40, 3x1-20/70, 4dct, 2dcr, sweeps; radar, sonar | |
| M427 | Sursay | 1945 | |||||
| M432 | Vaceasay | 1945 | |||||
| MSC | Ton | 92 | M1101 | Coniston | 1953 |  |
425t, 46.3x8.8x2.5m, 2d, 2500(M1101-1129,1141,1158)-3000(M1130-1140,1142-1157,1159-1216)hp, 15kts, 29p; 1x1-40/60, 1x2-20/70, sweeps; type 978 radar |
| M1103 | Kilmorey | 1954 | |||||
| M1104 | Alverton | 1954 | |||||
| M1105 | Clyde | 1954 | |||||
| M1106 | Appleton | 1954 | |||||
| M1107 | Beachampton | 1956 | |||||
| M1108 | Bevington | 1954 | |||||
| M1109 | Killiecrankie | 1954 | |||||
| M1110 | Bildeston | 1953 | |||||
| M1112 | Warsash | 1954 | |||||
| M1113 | Brereton | 1954 | |||||
| M1114 | Brinton | 1954 | |||||
| M1115 | Bronington | 1954 | |||||
| M1116 | Burnaston | 1954 | |||||
| M1117 | Thames | 1954 | |||||
| M1118 | Calton | 1955 | |||||
| M1119 | Carhampton | 1956 | |||||
| M1120 | Caunton | 1954 | |||||
| M1122 | Chilcompton | 1954 | |||||
| M1123 | Clarbeston | 1955 | |||||
| M1124 | St. David | 1954 | |||||
| M1125 | Cuxton | 1954 | |||||
| M1126 | Montrose | 1955 | |||||
| M1128 | Derriton | 1954 | |||||
| M1129 | Oulston | 1955 | |||||
| M1130 | Highburton | 1955 | |||||
| M1131 | Hickleton | 1955 | |||||
| M1132 | Blaxton | 1955 | |||||
| M1133 | Bossington | 1956 | |||||
| M1135 | Fenton | 1955 | |||||
| M1136 | Curzon | 1954 | |||||
| M1137 | Flockton | 1954 | |||||
| M1138 | Floriston | 1955 | |||||
| M1140 | Gavinton | 1954 | |||||
| M1141 | Glasserton | 1954 | |||||
| M1145 | Dufton | 1955 | |||||
| M1146 | Venturer | 1954 | |||||
| M1147 | Hubberston | 1955 | |||||
| M1148 | Ilmington | 1954 | |||||
| M1149 | Badminton | 1955 | |||||
| M1150 | Invermoriston | 1955 | |||||
| M1151 | Iveston | 1955 | |||||
| M1153 | Kedleston | 1955 | |||||
| M1154 | Kellington | 1955 | |||||
| M1155 | Monkton | 1956 | |||||
| M1156 | Kemerton | 1954 | |||||
| M1157 | Kirkliston | 1954 | |||||
| M1158 | Laleston | 1954 | |||||
| M1159 | Lanton | 1955 | |||||
| M1160 | Letterston | 1955 | |||||
| M1161 | Leverton | 1955 | |||||
| M1162 | Kildarton | 1955 | |||||
| M1163 | Lullington | 1956 | |||||
| M1164 | Maddiston | 1956 | |||||
| M1165 | Maxton | 1957 | |||||
| M1166 | Nurton | 1957 | |||||
| M1167 | Repton | 1958 | |||||
| M1169 | Penston | 1955 | |||||
| M1170 | Picton | 1956 | |||||
| M1172 | Thankerton | 1957 | |||||
| M1173 | Mersey | 1958 | |||||
| M1174 | Puncheston | 1957 | |||||
| M1175 | Northumbria | 1958 | |||||
| M1176 | Rennington | 1959 | |||||
| M1177 | Rodington | 1955 | |||||
| M1178 | Santon | 1956 | |||||
| M1179 | Sefton | 1955 | |||||
| M1180 | Shavington | 1956 | |||||
| M1181 | Sheraton | 1956 | |||||
| M1182 | Shoulton | 1955 | |||||
| M1184 | Sullington | 1954 | |||||
| M1186 | Tarlton | 1955 | |||||
| M1187 | Upton | 1956 | |||||
| M1188 | Walkerton | 1958 | |||||
| M1189 | Wasperton | 1956 | |||||
| M1192 | Wilkieston | 1957 | |||||
| M1193 | Wolverton | 1957 | |||||
| M1194 | Woolaston | 1958 | |||||
| M1195 | Wotton | 1957 | |||||
| M1196 | Yarnton | 1957 | |||||
| M1198 | Ashton | 1957 | |||||
| M1199 | Belton | 1956 | |||||
| M1200 | Soberton | 1957 | |||||
| M1202 | Maryton | 1959 | |||||
| M1203 | Dartington | 1957 | |||||
| M1204 | Stubbington | 1957 | |||||
| M1205 | Wiston | 1959 | |||||
| M1206 | Fiskerton | 1958 | |||||
| M1208 | Lewiston | 1960 | |||||
| M1209 | Chawton | 1958 | |||||
| M1211 | Houghton | 1958 | |||||
| M1216 | Crofton | 1958 | |||||
| MSI | Ham | 64 | M2601 | Inglesham | 1953 |  |
159t, 32.5(M2601-2739)-32.8(M2777-2793)x6.4(M2601-2637)-6.6(M2701-2739)-6.7(M2777-2793)x1.7m, 2d, 1100hp, 14kts, 15p; 1x1-40/60 or 1x1-20/70, sweeps; type 978 radar |
| M2603 | Arlingham | 1953 | |||||
| M2605 | Bassingham | 1953 | |||||
| M2608 | Blunham | 1953 | |||||
| M2609 | Bodenham | 1953 | |||||
| M2610 | Boreham | 1953 | |||||
| M2611 | Bottisham | 1953 | |||||
| M2613 | Brigham | 1953 | |||||
| M2614 | Bucklesham | 1954 | |||||
| M2615 | Cardingham | 1953 | |||||
| M2616 | Chelsham | 1953 | |||||
| M2617 | Chillingham | 1953 | |||||
| M2618 | Cobham | 1953 | |||||
| M2619 | Darsham | 1953 | |||||
| M2620 | Davenham | 1953 | |||||
| M2621 | Dittisham | 1954 | |||||
| M2622 | Downham | 1956 | |||||
| M2624 | Elsenham | 1956 | |||||
| M2625 | Etchingham | 1958 | |||||
| M2626 | Everingham | 1954 | |||||
| M2627 | Felmersham | 1954 | |||||
| M2628 | Flintham | ||||||
| M2629 | Damerham | 1954 | |||||
| M2630 | Fritham | 1954 | |||||
| M2631 | Glentham | 1958 | |||||
| M2633 | Halsham | 1954 | |||||
| M2635 | Haversham | 1954 | |||||
| M2636 | Lasham | 1954 | |||||
| M2637 | Hovingham | 1956 | |||||
| M2701 | Cranham | 1954 | |||||
| M2706 | Ledsham | 1955 | |||||
| M2708 | Ludham | 1956 | |||||
| M2710 | Mickleham | 1955 | |||||
| M2712 | Neasham | 1957 | |||||
| M2713 | Nettleham | 1958 | |||||
| M2714 | Ockham | 1958 | |||||
| M2716 | Pagham | 1956 | |||||
| M2717 | Fordham | 1956 | |||||
| M2721 | Pulham | 1956 | |||||
| M2722 | Rackham | 1956 | |||||
| M2723 | Reedham | 1958 | |||||
| M2726 | Shipham | 1956 | |||||
| M2727 | Saxlingham | 1957 | |||||
| M2728 | Shrivenham | 1956 | |||||
| M2729 | Sidlesham | 1955 | |||||
| M2733 | Thakeham | 1957 | |||||
| M2735 | Tongham | 1957 | |||||
| M2736 | Tresham | 1955 | |||||
| M2737 | Warmingham | 1956 | |||||
| M2777 | Wintrigham | 1955 | |||||
| M2778 | Woldingham | 1957 | |||||
| M2779 | Wrentham | 1955 | |||||
| M2781 | Portisham | 1956 | |||||
| M2782 | Popham | 1955 | |||||
| M2783 | Odiham | 1956 | |||||
| M2784 | Puttenham | 1958 | |||||
| M2785 | Birdham | 1957 | |||||
| M2786 | Rampisham | 1957 | |||||
| M2787 | Abbotsham | 1957 | |||||
| M2788 | Georgeham | 1957 | |||||
| M2790 | Thatcham | 1958 | |||||
| M2791 | Sandringham | 1957 | |||||
| M2792 | Polsham | 1960 | |||||
| M2793 | Thornham | 1958 | |||||
| Ley | 9 | M2001 | Dingley | 1953 |  |
164t, 32.5x6.6x1.7m, 2d, 700hp, 13kts, 15p; 1x1-40/60 or 1x1-20/70, sweeps; type 978 radar | |
| M2002 | Aveley | 1953 | |||||
| M2003 | Brearley | 1953 | |||||
| M2004 | Brenchley | 1955 | |||||
| M2005 | Brinkley | 1955 | |||||
| M2007 | Watchful | 1953 | |||||
| M2008 | Squirrel | 1954 | |||||
| M2009 | Chailey | 1955 | |||||
| M2010 | Cradley | 1955 |
© Ivan Gogin, 2015
