World navies yesterday

1965

Spain 01 January 1965

SUBMARINES

SS	D1	3	S11	D1	1947		1065/1399t, 84.3x6.7x4.3m, 2d/em, 5000/1350hp, 20.5/9.5kts, 56p, 60m; 1x1-20/65, 6-533TT(11), 4-533TT(21,22)
			S21	D2	1951
			S22	D3	1954
	G1	1	S01	G7	1941		769/1070t, 67.1x6.2x4.7m, 2d/em, 2800/750hp, 17/7.6kts, 54p, 100m; 1x1-88/45, 5-533TT
	Balao	1	S31	Almirante García de los Reyes	1944		1830/2440t, 95.0x8.3x5.2m, 4dg,4em(2), 4610/2700hp, 20/10kts, 82p, 120m; 10-533TT; SS, ST, SV radars, BQR-2, BQS-2, SQR-3 sonars
SSX	Foca	2	F1, 2	Foca I, Foca II	1957	No picture	16/20t, 13.9x1.8x1.5m, 1d/em, 160/110hp, 9.2/12kts, 3p, 120m; 2-533TT
	Tiburón	2	T1, 2	Tiburón I, Tiburón II	1958	No picture	78/81t, 21.5x2.7x2.7m, 2d/2em(1), 400/400hp, 10/14.5kts, 8p, 120m; 2-533TT

PRINCIPAL SURFACE COMBATANTS

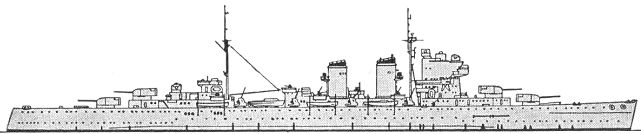

CA	Canarias	1	C21	Canarias	1936		13750t, 193.6x19.5x5.3m, 8b,4gst, 90000hp, 33kts, 1200p; 51belt, 37deck, 25turrets, 25CT; 4x2-203/50, 8x1-120/45, 4x1-40/70, 4x2-37/83, 4x1-20/70, 2dct, 1dcr; SG-6B, MLA-1B, Marconi, Decca 12 radars
CL	Príncipe Alfonso	2	C11	Galicia	1925		9748(11)-9660(12)t, 176.6x16.5x5.0m, 8b,4gst, 80000hp, 31.5(11)-33(12)kts, 781(11)-564(12)p; 76belt, 50deck, 13shields, 150CT; 4x2-152/50(11), (3x2+2x1)-152/50(12), 8x2-37/83, 5x4-20/65(11), 4x1-20/65(12), 4dct(11)
			C12	Almirante Cervera	1927
DD	Churucca	1	D12	José Luis Díez	1929		2087t, 102.0x9.7x3.2m, 4b,2gst, 42000hp, 36kts, 190p; 4x1-120/45, 2x2-37/83, 4x1-20/65, 2x3-533TT, 2dcr
	Almirante Antequera	2	D14	Almirante Antequera	1935		2175t, 101.2x9.7x3.2m, 4b,2gst, 42000hp, 36kts, 190p; 4x1-120/45, 2x2-37/83, 4x1-20/65, 2x3-533TT, 2dct, 2dcr
			D15	Almirante Miranda	1936
	Álava	2	D51	Liniers	1951		2287t, 102.5x9.7x3.7m, 4b,2gst, 31500hp, 29kts, 222p; 3x1-76/50, 3x1-40/70, 2-324TR, 2x24-178 Hedgehog ASWRL, 8dct, 2dcr; MLA-1B, SG-6B, TM626, 2x Mk63 radars, SQS-30A sonar
			D52	Álava	1951
	Audaz	7	D31	Audaz	1953		1548t, 93.9x9.5x3.4m, 3b,2gst, 30800hp, 31.6kts, 199p; 2x1-76/50, 2x1-40/70, 2-324TR, 2x24-178 Hedgehog ASWRL, 8dct, 2dcr; SPS-5B, MLA-1B, Mk63 radars, QHBa sonar
			D32	Osado	1955
			D33	Meteoro	1955
			D34	Furor	1960
			D35	Rayo	1956
			D36	Ariete	1961
			D37	Temerario	1964

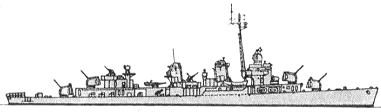

	Fletcher	5	D21	Lepanto	1943		3005t, 114.7x12.1x4.2m, 4b,2gst, 60000hp, 38kts, 290p; 5x1-127/38(21,22), 4x1-127/38(23-25), 3x2-76/50(23-25), 3x2-40/60(21,22), 6x1-20/70(21,22), 1x3-533TT(23-25), 2x3-324TT, 2x24-178 Hedgehog ASWRL, 6dct(21,22), 4dct(23-25), 2dcr(21,22), 1dcr(23-25); SPS-6C, SPS-10, Mk25, 2x SPG-34(23-25), Mk35(23-25) radars, SQS-4 or SQS-29 sonar
			D22	Almirante Ferrándiz	1943
			D23	Almirante Valdéz	1942
			D24	Alcalá Galiano	1944
			D25	Jorge Juan	1943
	Oquendo	1	D41	Oquendo	1960		3005t, 116.5x11.x3.8m, 3b,2gst, 60000hp, 32.4kts, 267p; 2x2-120/50, 6x1-40/70, 2-324TC, 2x24-178 Hedgehog ASWRL; type 262P, 275M, 293Q, SNW-10 radars, QHBa sonar
FF	Pizarro	6	F31	Pizarro	1946		2246t, 95.2x12.2x3.4m, 2b,2gst, 6000hp, 18.5kts, 251p; 3x2-120/50, 4x2-37/83, 6x1-20/65, 4dct, 1dcr, 30mines
			F32	Hernán Cortés	1947
			F33	Vasco Núñez de Balboa	1947
			F34	Martín Alonso Pinzón	1948
			F35	Magallanes	1948
			F36	Sarmiento de Gamboa	1950
	Vicente Yáñez Pinzón	2	F41	Vicente Yáñez Pinzón	1949		2246t, 95.2x12.2x3.4m, 2b,2gst, 6000hp, 18.5kts, 251p; 2x1-127/38, 4x1-40/70, 2-324TR, 2x24-178 Hedgehog ASWRL, 8dct, 2dcr; MLA-1B, SS-5B, TM626, Mk29 radars, sonar
			F42	Legazpi	1951
	Júpiter	4	F01	Marte	1938		2600t, 96.0x12.7x3.5m, 4b,2gst, 10000hp, 18.5kts, 180p; 4x1-120/45(01,02), 2x1-76/40(01), 4x1-76/50(03,04), 4x1-40/70(03,04), 3x1-37/83(01), 2x2-37/83(02), 2x1-20/65(01), 3x1-20/65(02), 2x24-178 Hedgehog ASWRL(03,04), 264mines, 2dct(01,02), 8dct(03,04), 2dcr(03,04); MLA-1B(01), SG-6B(01), SPS-6(03,04) radars
			F02	Neptuno	1939
			F03	Júpiter	1937
			F04	Vulcano	1937
	Eolo	2	F21	Eolo	1941		1925t, 88.9x11.8x3.7m, 2b,2gst, 5000hp, 19.5kts, 220p; 4x1-105/44, 2x2-37/83, 4x1-20/65, 2dct, 70mines
			F22	Tritón	1943
FS	Atrevida	6	F51	Descubierta	1955		1135t, 75.5x10.2x2.7m, 2d, 3000hp, 18.5kts, 132p; 1x1-76/50, 3x1-40/70, 2x24-178 Hedgehog ASWRL, 8dct, 2dcr; SPS-5B radar, QHBa sonar
			F61	Atrevida	1954
			F62	Princesa	1959
			F63	Diana	1960
			F64	Nautilus	1959
			F65	Villa de Balboa	1960

PATROL AND COASTAL COMBATANTS

PC	Mersey	3	1	Uad Kert	1917		665t, 45.1x7.2x2.8m, 1b,1vte, 600hp, 11kts, 45p; 1x1-76/50(1,3), 2x1-76/50(2), 1x1-47/50(3)
			2	Arcíla	1918
			3	Xauen	1918
	Lanzón	2	V17		1935	No picture	111t, 26.5x5.4x3.1m, 1pe, 285hp, 12kts
			V18		1935
	Pegaso	2	W21	Pegaso	1951		498t, 42.0x8.2x2.9m, 1vte, 532hp, 12kts, 39p; 1x1-76/50, 2x1-20/70
			W22	Procyon	1951
	Cíes	2	W31	Cíes	1948	No picture	275t, 31.0x6.1x2.5m, 1d, 400hp, 12kts, 31p; 1x1-20/70; RM914 radar
			W32	Sálvora	1948
	Centinela	2	W33	Centinela	1953	No picture	282t, 35.8x6.9x3.0m, 1d, 430hp, 12kts; 2x1-37/83; radar
			W34	Serviola	1953
	PC	1	1	Javier Quiroga	1943		463t, 52.9x7.1x3.3m, 2d, 2880hp, 19kts, 65p; 1x1-76/50, 1x1-40/60; SO radar
PT	LT27	3	LT30		1953		116t, 34.8x5.1x1.5m, 3d, 7500hp, 40kts, 22p; 2x1-20/65, 2-533TT, 2dcr; RM914 radar
			LT31		1956
			LT32		1959
PB	SC	1	W11	Cándido Pérez	1942		138t, 33.8x5.5x2.0m, 2d, 1000hp, 15.6kts, 27p; 1x1-40/60, 3x1-20/70, 2x4-178 Mousetrap ASWRL, 2dct, 2dcr; SCR-517A radar, QC sonar

AMPHIBIOUS

LSM	LSM	3	LSM1		1944		1095t, 62.0x10.5x2.1m, 2d, 2800hp, 12.5kts, 60p; 1x2-40/60; 5tanks, 54troops
			LSM2		1944
			LSM3		1945
LPA	Haskell	1	TA11	Aragón	1944		12450t, 138.7x18.9x7.3m, 2b,1gst, 8500hp, 17kts, 536p; (1x4+4x2)-40/60; 2 LCM(6), 22 LCVP, 1 LCPL, 1 LCPR, 1596troops, 1800t of cargo; SPS-6 radar
LCU	LCT(4)	2	K1	BDK1	1944		640t, 57.1x11.8x1.4m, 2d, 920hp, 10kts, 12p; 2x1-20/70, 9tanks or 200troops
			K2	BDK2	1945
	BDK3	3	K3	BDK3	1959		902t, 56.6x11.6x1.7m, 2d, 1000hp, 8.5kts, 20p; 2x1-20/70; 400troops
			K4	BDK4	1959
			K5	BDK5	1959
LC	LCM(3)	10	L01 - 10		1942 - 1945		52t, 15.3x4.3x1.4m, 2d, 330hp, 8kts, 4p; 2x1-12.7; 1tank
	LCM(6)	6	L61 - 66		1944 - 1945		56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank
	LCVP	22	1-22		1943 - 1945		13t, 11.2x3.2x0.9m, 2d, 220-450hp, 8kts, 3p; 2x1-12.7; 36troops
	LCP(L)	8	1 - 8		1942 - 1945		8t, 11.2x3.3x1.1m, 1d, 150-250hp, 8kts, 3p; 36troops

MINE WARFARE

MSO	Bidasoa	6	M01	Bidasoa	1946		748t, 61.9x8.5x2.6m, 2b,2vte, 2400hp, 16.5kts, 90p; 1x1-88/45 or 1x1-102/45, 1x1-37/83, 2x1-20/65, 2dcr, sweeps
			M02	Nervión	1946
			M03	Lérez	1947
			M04	Tambre	1946
			M05	Segura	1949
			M06	Ter	1948
	Guadiaro	7	M11	Guadiaro	1953		770t, 74.3x10.2x3.7m, 2b,2vte, 2400hp, 16kts, 79p; 2x1-20/65, 2dcr, sweeps; RM914 radar, UQS-1 sonar
			M12	Tinto	1953
			M13	Eume	1953
			M14	Almanzora	1954
			M15	Navia	1955
			M16	Guadalhorce	1953
			M17	Eo	1955
MSC	Nalón	12	M21	Nalón	1954		400t, 44.3x8.1x2.1m, 2d, 880(21-25,27-29)-1000(26,30-32)hp, 12(21-25,27-29)-12.5(26,30-32)kts, 39p; 1x2-20/70, mechanical, acoustic, magnetic sweeps; RM914 radar, UQS-1 sonar
			M22	Llobregat	1954
			M23	Júcar	1956
			M24	Ulla	1956
			M25	Miño	1956
			M26	Ebro	1958
			M27	Turia	1955
			M28	Duero	1955
			M29	Sil	1955
			M30	Tajo	1959
			M31	Genil	1959
			M32	Odiel	1959
