Portugal 01 January 1965
SUBMARINES
| SS | S | 3 | S160 | Narval | 1945 | |
814/990t, 66.1x7.2x4.3m, 2d/em, 1900/1300hp, 14.7/9kts, 48p, 110m; 1x1-102/40, 6-533TT; type 267W radar, sonar |
| S161 | Náutilo | 1945 | |||||
| S162 | Neptuno | 1944 |
PRINCIPAL SURFACE COMBATANTS

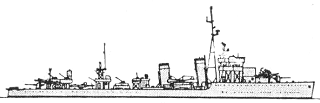

| DD | Vouga | 3 | D333 | Lima | 1933 |  |
1563t, 98.5x9.5x3.4m, 3b,2gst, 33000hp, 36kts, 184p; 2x1-120/50, (1x2+3x1)-40/60, 3x1-20/70, 1x4-533TT, 1x3-305 Squid ASWRL, 2dcr, 20mines; radar |
| D334 | Vouga | 1933 | |||||
| D335 | Tejo | 1935 | |||||
| FF | Gonçalo Velho | 1 | F476 | Gonçalves Zarco | 1933 |  |
1414t, 81.7x10.8x3.4m, 2b,2gst, 2000hp, 16.5kts, 142p; 3x1-120/50, 5x1-20/70, 4dct, 2dcr |
| Afonso de Albuquerque | 1 | F471 | Bartolomeu Dias | 1935 |  |
2480t, 103.2x13.5x3.8m, 2b,2gst, 8000hp, 21kts, 184p; 4x1-120/50, 2x1-76/50, 8x1-20/70, 4dct, 2dcr, 40mines; radar | |
| River | 2 | F331 | Diogo Gomes | 1944 |  |
2180t, 91.8x11.2x3.8m, 2b,2vte, 5500hp, 20kts, 140p; 2x1-102/40, 6x1-40/60, 2x3-305 Squid ASWRL, 2dcr; type 277, 291 radars, sonars | |
| F332 | Nuno Tristão | 1943 | |||||
| WGT | 2 | F333 | Diogo Cão | 1944 |  |
1811t, 93.3x11.3x3.4m, 2b,2gst, 12000hp, 23kts, 156p; 2x1-127/38, (1x4+3x2)-40/60, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SPS-6, SPS-10, Mk25 radars, sonar | |
| F334 | Corte Real | 1944 | |||||

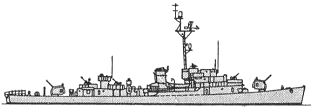

| Pêro Escobar | 1 | F335 | Pêro Escobar | 1957 |  |
1600t, 98.0x10.9x3.1m, 2b,2gst, 24500hp, 32kts, 165p; 2x1-76/62, 1x2-40/70, 1x3-533TT; MLN-1A radar, QCU-2 sonar | |
| Bay | 4 | F336 | Álvares Cabral | 1945 |  |
2420t, 93.7x11.8x3.9m, 2b,2vte, 5500hp, 19.5kts, 177p; 2x2-102/45, (2x2+2x1)-40/60, 1x24-178 Hedgehog ASWRL, 4dct, 2dcr; type 276, 285, 291 radars, sonars | |
| F337 | Pacheco Pereira | 1945 | |||||
| F478 | Vasco da Gama | 1946 | |||||
| F479 | D. Francisco de Almeida | 1949 |
PATROL AND COASTAL COMBATANTS
| PC | Azevia | 5 | P595 | Azevia | 1941 |  |
270t, 42.6x6.5x2.1m, 2d, 2400hp, 17kts, 37p; 2x1-20/70, 2dct |
| P596 | Bicuda | 1941 | |||||
| P597 | Corvina | 1941 | |||||
| P598 | Dourada | 1942 | |||||
| P599 | Espadilha | 1942 | |||||
| PC 173ft | 6 | P581 | Principe | 1945 |  |
463t, 52.9x7.1x3.3m, 2d, 2880hp, 19kts, 65p; 1x1-40/60, 3x1-20/70, 1x24-178 Hedgehog ASWRL, 4dct; radar, sonar | |
| P582 | Madeira | 1945 | |||||
| P583 | Santiago | 1944 | |||||
| P584 | Sal | 1945 | |||||
| P585 | São Tomé | 1944 | |||||
| P586 | São Vicente | 1945 | |||||
| Maio | 8 | P587 | Maio | 1954 |  |
400t, 53.1x7.3x3.1m, 4d(2), 3240hp, 19kts, 62p; 2x1-40/60, 2x1-20/70, 1x24-178 Hedgehog ASWRL, 4dct, 2dcr; Decca radar, DUBA-2 sonar | |
| P588 | Porto Santo | 1955 | |||||
| P589 | São Nicolau | 1955 | |||||
| P590 | Brava | 1956 | |||||
| P591 | Fogo | 1956 | |||||
| P592 | Boavista | 1957 | |||||
| P593 | Santo Antão | 1957 | |||||
| P594 | Santa Luzia | 1958 | |||||
| Zaire | 1 | A5214 | Diu | 1929 |  |
492t, 45.0x8.3x2.1m, 2b,2vte, 700hp, 13kts, 67p; 2x1-76/40, 2x1-20/70, 2dct | |
| PR | Téte | 1 | P371 | Téte | 1918 | No picture | 130t, 23.4x6.1x0.7m, 1b,1vte(sw), 70hp, 8kts, 20p; 2x1-47/43 |
| Rio Minho | 1 | P370 | Rio Minho | 1957 | No picture | 14t, 15.0x3.2x0.7m, 2d, 130hp, 9kts, 7p | |
| PB | Antares | 2 | P360 | Antares | 1959 | No picture | 18t, 17.1x4.6x1.2m, 2d, 460hp, 18.2kts, 7p; 1x1-20/70 |
| P369 | Regulus | 1962 | |||||
| Bellatrix | 8 | P363 | Bellatrix | 1961 | No picture | 28t, 20.7x4.6x1.2m, 2d, 450hp, 15kts, 7p; 1x1-20/70; radar | |
| P364 | Canopus | 1961 | |||||
| P365 | Deneb | 1961 | |||||
| P366 | Espiga | 1961 | |||||
| P367 | Fomalhaut | 1961 | |||||
| P368 | Pollux | 1961 | |||||
| P377 | Altair | 1962 | |||||
| P378 | Rigel | 1962 | |||||
| Argos | 8 | P361 | Lira | 1964 |  |
210t, 41.7x6.2x2.1m, 2d, 1200hp, 17kts, 24p; 2x1-40/60; radar | |
| P362 | Orion | 1964 | |||||
| P372 | Argos | 1963 | |||||
| P373 | Cassiopeia | 1964 | |||||
| P374 | Dragão | 1963 | |||||
| P375 | Escorpião | 1963 | |||||
| P376 | Hidra | 1964 | |||||
| P379 | Pegaso | 1963 | |||||
| Castor | 1 | P580 | Castor | 1964 | No picture | 22t, 17.7x4.0x1.0m, 2d, 500hp, 15kts, 7p; 1x1-20/70; radar | |
| Algol | 1 | P1138 | Algol | 1964 | No picture | 24t, 17.7x4.0x1.0m, 2d, 500hp, 15kts, 7p; radar |
AMPHIBIOUS
| LC | LD1 | 9 | LD101-109 | 1961-1964 | No picture | 18t, 14.0xxm, 2d, 187hp | |
| LDM101 | 21 | LDM101-121 | 1964 |  |
50t, 15.3x4.4x1.1m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank |
MINE WARFARE
| MSO | Tree | 1 | M391 | Faial | 1940 |  |
770t, 50.0x8.4x3.4m, 1b,1vte, 850hp, 12.2kts, 40p; 1x1-76/40, 2x1-20/70, 2dct, 2dcr, sweeps |
| Isle | 1 | M392 | Santa Maria | 1942 | |
770t, 50.0x8.4x3.4m, 1b,1vte, 850hp, 12.2kts, 40p; 1x1-76/40, 3x1-20/70, 4dct, 2dcr, sweeps | |
| Agile | 4 | M415 | São Jorge | 1955 |  |
735t, 52.3x10.4x4.0m, 2d, 1520hp, 13kts, 70p; 1x1-40/60, 2x1-12.7, sweeps; SPS-53 radar, UQS-1 sonar | |
| M416 | Pico | 1955 | |||||
| M417 | Graciosa | 1955 | |||||
| M418 | Corvo | 1955 | |||||
| MSC | Bluebird | 7 | M405 | Ponta Delgada | 1953 |  |
400t, 44.3x8.1x2.1m, 2d, 880hp, 12kts, 39p; 1x2-20/70, sweeps; SPS-53 radar, UQS-1 sonar |
| M406 | Horta | 1953 | |||||
| M407 | Angra do Heroísmo | 1953 | |||||
| M408 | Vila do Porto | 1953 | |||||
| M409 | Santa Cruz | 1954 | |||||
| M410 | Velas | 1954 | |||||
| M411 | Lajes | 1954 | |||||
| Ton | 4 | M401 | São Roque | 1956 |  |
452t, 46.3x8.5x2.5m, 2d, 2500hp, 15kts, 29p; 1x1-40/60, 1x2-20/70, sweeps; type 978 radar | |
| M402 | Ribeira Grande | 1957 | |||||
| M403 | Lagoa | 1956 | |||||
| M404 | Rosário | 1956 |
