Pakistan 01 January 1965
SUBMARINES
| SS | Tench Fleet Snorkel | 1 | S130 | Ghazi | 1945 | |
1830/2440t, 95.0x8.3x5.2m, 4dg,4em(2), 4610/2700hp, 20/10kts, 82p, 135m; 10-533TT; SS, ST, SV radars, BQR-2, BQS-2, JT sonars |
PRINCIPAL SURFACE COMBATANTS

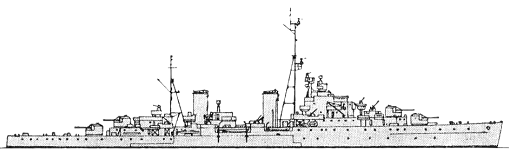

| CT | Bellona | 1 | C84 | Babur | 1944 |  |
7560t, 156.1x15.4x5.6m, 4b,4gst, 62000hp, 30kts, 588p; 76belt, 51deck, 13turrets; 4x2-133/50, (3x2+8x1)-40/60, 2x3-533TT; type 293, 281B, 974, 284, 2x type 285 radars |

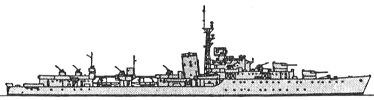

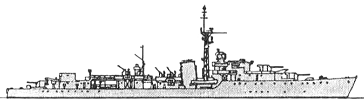

| DD | Ch | 3 | D160 | Alamgir | 1946 |  |
2545t, 110.6x10.9x4.4m, 2b,2gst, 40000hp, 36.7kts, 200p; 3x1-114/45, (1x2+4x1)-40/60, 1x4-533TT, 2x3-305 Squid ASWRL; type 275, 293, Decca radars, type 170, 174 sonars |
| D162 | Jahangir | 1946 | |||||
| D164 | Shah Jehan | 1945 | |||||
| Battle | 2 | D161 | Badr | 1946 |  |
3361t, 115.5x12.3x4.6m, 2b,2gst, 50000hp, 35.7kts, 222p; 2x2-114/45, (4x2+4x1)-40/60, 2x4-533TT, 1x3-305 Squid ASWRL; type 262, 275, 277, 283, 291, 293 radars, type 123A, 127 sonars | |
| D163 | Khaibar | 1946 | |||||
| FF | O | 2 | F260 | Tippu Sultan | 1941 |  |
2593t, 109.2x10.9x4.9m, 2b,2gst, 40000hp, 36.7kts, 180p; 1x2-102/45, (1x2+3x1)-40/60, 1x4-533TT, 2x3-305 Squid ASWRL; type 293, 974 radars, type 170, 174P sonars |
| F261 | Tughril | 1942 |
PATROL AND COASTAL COMBATANTS
| PB | HDML | 4 | P3517-3520 | 1944-1945 |  |
54t, 22.0x4.8x1.4m, 2d, 260hp, 11kts, 10p; 1x1-47/40, 1x1-20/70, 2dcr |
MINE WARFARE
| MSC | Bluebird | 8 | M160 | Mahmood | 1957 |  |
400t, 44.3x8.1x2.1m, 2d, 880hp, 12kts, 39p; 1x2-20/70, acoustic, magnetic, mechanical minesweeping gear; SPS-53 radar, UQS-1 sonar |
| M161 | Momin | 1962 | |||||
| M162 | Mubarak | 1957 | |||||
| M163 | Muhafiz | 1955 | |||||
| M164 | Mujahid | 1956 | |||||
| M165 | Mukhtar | 1959 | |||||
| M166 | Munsif | 1959 | |||||
| M167 | Moshal | 1963 |
