New Zealand 01 January 1965
PRINCIPAL SURFACE COMBATANTS

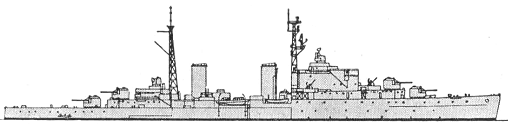

| CL | Black Prince | 1 | C89 | Royalist | 1943 | |
7410t, 156.1x15.4x5.5m, 4b,4gst, 62000hp, 32kts, 530p; 76belt, 51deck, 13turrets; 4x2-133/50, (3x2+2x1)-40/60; type 272, 281, 3x 282, 284, 2x 285 radars |
| FF | Loch | 4 | F422 | Hawea | 1944 | |
2260t, 93.6x11.8x3.8m, 2b,2vte, 5500hp, 19.5kts, 114p; 1x1-102/45, 2x1-40/60(422), 1x4-40/39, (4x2+2x1)-20/70(424,426,625), 4x1-20/70(422), 2x3-305 Squid ASWRL, 2dct, 1dcr; type 277, 291 radars, sonars |
| F424 | Pukaki | 1944 | |||||
| F426 | Kaniere | 1945 | |||||
| F625 | Rotoiti | 1944 | |||||

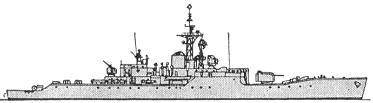

| Otago | 2 | F111 | Otago | 1960 | |
2560t, 112.7x12.5x3.9m, 2b,2gst, 30000hp, 29kts, 235p; 1x2-120/45, 1x1-40/60, 2x3-305 Limbo ASWRL; type 975, 977, 293, 974, 903, 994, 978 radars, type 170, 174/177, 162 sonars | |
| F148 | Taranaki | 1961 |
PATROL AND COASTAL COMBATANTS
| PS | Bathurst | 1 | P353 | Kiama | 1944 |  |
790t, 56.7x9.5x3.0m, 2b,2vte, 2000hp, 16kts, 90p; 1x1-40/60, 1x1-40/60, 2x1-20/70, 4dct, 2dcr; radar, sonar |
| PB | Fairmile B | 1 | P3571 | Philomel | 1943 |  |
86t, 34.8x5.6x1.5m, 2pe, 1200hp, 18kts, 16p; 1x1-47/40, 2dcr; type 291 radar, sonar |
| HDML | 11 | P3551 | Mako | 1943 |  |
54t, 22.0x4.8x1.4m, 2d, 300hp, 11.5kts, 10p; 2x1-20/70, 2dcr; type 291 radar | |
| P3552 | Paea | 1943 | |||||
| P3567 | Managa | 1943 | |||||
| P3562 | Olphert | 1943 | |||||
| P3353 | Tamaki | 1943 | |||||
| P3554 | Irirangi | 1943 | |||||
| P3555 | Ngapona | 1943 | |||||
| P3561 | Ngapona | 1943 | |||||
| P3563 | Pegasus | 1944 | |||||
| P3565 | Haku | 1944 | |||||
| P3564 | Toroa | 1944 |
MINE WARFARE
| MSO | Bathurst | 3 | M233 | Inverell | 1942 | |
790t, 56.7x9.5x3.0m, 2b,2vte, 2000hp, 16kts, 90p; 1x1-102/45, 1x1-40/60, 2x1-20/70, 4dct, 2dcr, sweeps; radar, sonar |
| M252 | Echuca | 1942 | |||||
| M348 | Stawell | 1943 |
