World navies yesterday

1965



South Korea 01 January 1965

PRINCIPAL SURFACE COMBATANTS

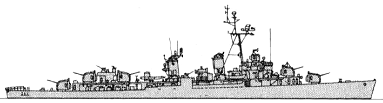

DD Fletcher 1 91 Chungmu 1943 3005t, 114.7x12.1x4.2m, 4b,2gst, 60000hp, 35kts, 250p; 5x1-127/38, (2x4+1x2)-40/60, 2x3-324TT, 2x24-178 Hedgehog ASWRL, 2dcr; SPS-6C, SPS-10, SPG-25, 2x SPG-34 radars, SQS-20 sonar
FF Tacoma 4 61 Dumangang 1944 2238t, 92.6x11.4x3.9m, 3b,2vte, 5500hp, 20kts, 190p; 3x1-76/50, 2x2-40/60, 9x1-20/70, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SA, SF, Mk 26 radars, sonar
63 Daedonggang 1943
65 Nagdonggang 1944
66 Imjingang 1944
Cannon 2 71 Gyeonggi 1944 1602t, 93.3x11.2x3.2m, 4dg,2em, 6000hp, 21kts, 210p; 3x1-76/50, 3x2-40/60, 4x1-20/70, 2x3-324TT, 1x24-178 Hedgehog ASWRL, 2dcr; SPS-5, SPS-6 radars, sonar
72 Gangwon 1944
APD 1 81 Gyeongnam 1945 2130t, 93.3x11.3x3.8m, 2b,2stg, 2em, 12000hp, 23.6kts, 203p; 1x1-127/38, 3x2-40/60, 6x1-20/70, 2dcr; 4 LCVP, 162troops; SA, SF radars, sonar
Rudderow 1 73 Chungnam 1944 1811t, 93.3x11.3x3.4m, 2b,2stg, 2em, 12000hp, 23kts, 156p; 2x1-127/38, 2x2-40/60, 2x3-324TT, 1x24-178 Hedgehog ASWRL, 2dcr; SPS-5, SPS-6 radars, sonar

PATROL AND COASTAL COMBATANTS

PS PCE 10 50 Geojin 1946 903t, 56.2x10.1x2.9m, 2d, 2000hp, 15.1kts, 96p; 1x1-76/50, 1x2-40/60(50), 3x2-40/60(51-59), 4x2-20/70, 1x24-178 Hedgehog ASWRL(51-59), 4dct, 2dcr; SF radar, sonar
51 Noryang 1945
52 Myengnyang 1944
53 Hansan 1943
55 Okpo 1945
56 Tangpo 1944
57 Byeokpa 1943
58 Yulpo 1944
59 Sacheon 1945
Auk 1 1001 Sinseong 1945 1250t, 67.4x9.8x3.3m, 2dg,2em, 2880hp, 18kts, 110p; 2x1-76/50, 2x2-40/60, 2x2-20/70, 2x3-324TT, 1x24-178 Hedgehog ASWRL, 4dct, 2dcr; radars, sonar
PT ELCO80 3 23 Galamegi 1945 61t, 24.4x6.3x1.6m, 3pe, 4500hp, 43kts, 17p; 1x1-37/71, 1x1-20/70, 2x2-12.7, 2x1-127RL, 4-572TR; SO radar
25 Gireogi 1945
27 Jebi 1945
PC PC 173ft 4 706 Myohyangsan 1942 450t, 52.9x7.1x3.3m, 2d, 2880hp, 20kts, 70p; 1x1-76/50, 1x1-40/60, 4x1-20/70, 2x4-178 Mousetrap ASWRL, 2dct, 2dcr; radar, sonar
707 Odaesan 1944
708 Geumjeongsan 1944
709 Seolaksan 1942
PCS 3 202 Geumseong 1944 278t, 41.5x7.5x2.4m, 2d, 800hp, 14kts, 57p; 1x1-76/50, 1x1-40/60, 2x1-20/70, 2x4-178 Mousetrap ASWRL, 4dct, 2dcr; radar, sonar
203 Mokseong 1944
205 Hwaseong 1944

AMPHIBIOUS

LST LST(2) 9 807 Unbong 1944 4080t, 100.0x15.2x4.3m, 2d, 1800hp, 10kts, 70p; (2x2+4x1)-40/60, 2x1-20/70; 4 LCVP, 20tanks, 163troops; 2 radars
808 Deokbong 1943
809 Bibong 1943
810 Gyebong 1943
811 Jangsu 1943
812 Wibong 1945
813 Suyeong 1944
815 Bukhan 1945
816 Hwasan 1945
LSM LSM1 11 601 Daecho 1946 1095t, 62.0x10.5x2.1m, 2d, 2800hp, 13kts, 60p; 1x2-40/60, 4x1-20/70; 5tanks, 54troops; radar
602 Yeodo 1944
605 Gadeok 1944
606 Geomun 1944
607 Bian 1944
608 Pungdo 1944
609 Wolmi 1944
610 Girin 1944
611 Neongna 1944
612 Sinmi 1944
613 Ulleung 1944
LSS LCT(6) 1 71 Mulkae 71 1943 320t, 36.3x10.0x1.2m, 3d, 675hp, 8kts, 13p; 2x1-20/70; 4tanks
LSF LSM(R) 1 311 Siheung 1945 1175t, 62.0x10.5x2.1m, 2d, 2800hp, 13kts, 143p; 1x1-127/38, 2x2-40/60, 4x2-20/70, 8x2-127 Mk 105 RL; radar

MINE WARFARE

MSC YMS 5 503 Gwangju 1944 320t, 41.5x7.5x2.4m, 2d, 800hp, 14kts, 60p; 1x1-76/50, 2x1-20/70, 2dct, 2dcr; mechanical, magnetic, acoustic minesweeping gear; radar
513 Gimcheon 1944
519 Geumhwa 1943
520 Gimpo 1944
521 Gochang 1944
Geumsan 5 522 Geumsan 1959 370(522-525)-380(526-527)t, 43.0(522-525)-44.3(526-527)x8.0(522-525)-8.3(526-527)x2.6(522-525)-2.7(526-527)m, 2d(522-525)-4d(2)(526-527), 1200(522-525)-1020(526-527)hp, 14kts, 40p; 1x2-20/70, 3x1-12.7, mechanical, magnetic, acoustic minesweeping gear; Decca 45 radar, UQS1 sonar
523 Goheung 1959
525 Geumdok 1959
526 Namyang 1963
527 Hadong 1963
