World navies yesterday

1965



Italy 01 January 1965

SUBMARINES

SS Acciaio 1 S501 Giada 1941 701/865t, 60.2x6.4x4.8m, 2d/em, 1350/800hp, 14.7/7.9kts, 54p, 80m; 6-533TT
Flutto 1 S502 Vortice 1943 905/1068t, 63.2x7.0x4.9m, 2d/em, 2400/1350hp, 17/8kts, 50p, 120m; 6-533TT
Gato GUPPY IB 2 S510 Leonardo da Vinci 1943 1830/2440t, 93.6x8.2x5.2m, 4dg,4em(2), 4610/5400hp, 18/15kts, 82p, 90m; 10-533TT; BQR-2, BQS-2, SQR-3 sonars, SS, SV, BPS-1 radars
S511 Enrico Tazzoli 1942
Gato Fleet Snorkel 1 S512 Evangelista Torricelli 1944 2440t, 95.0x8.3x5.2m, 4dg,4em(2), 4610/2700hp, 20/10kts, 82p, 120m; 10-533TT; BQR-2, BQS-2, SQR-3 radars, SS, ST, SV sonars
Flutto deries II 1 S503 Pietro Calvi 1961 905/1107t, 66.0x7.0x4.0m, 2dg, 3em(1), 2700/2700hp, 14/14kts, 60p, 120m; 4-533TT; radar, sonar

PRINCIPAL SURFACE COMBATANTS

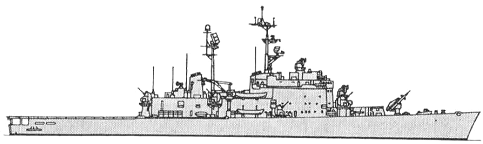

CGH Andrea Doria 2 C553 Andrea Doria 1964 6500t, 149.3x17.3x5.0m, 4b,2gst, 60000hp, 30kts, 485p; 1x2 Terrier SAM(40), 8x1-76/62, 2x3-324TT, 4helicopters(AB-212); SPS-12, SPS-39A, SPQ-2, 2x SPG-55, 4x RTN-10X radars, SQS-39 sonar, SADOC CCS
C554 Caio Duilio 1964

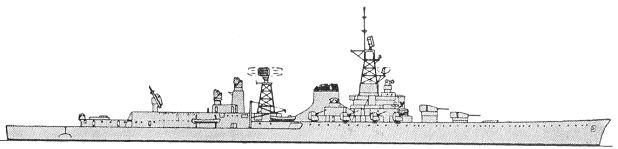

CG Condottieri batch 5 1 C551 Giuseppe Garibaldi 1937 11117t, 187.0x18.9x6.8m, 6b,2gst, 85000hp, 29kts, 692p; 130belt, 55decks, 135turrets, 140CT; 4 Polaris A-1 SLBM (fitted for), 1x2 Terrier SAM(72), 2x2-135/45, 8x1-76/62; SPS-39, SPS-6, ARGO-5000, 2x SPG-55 radars

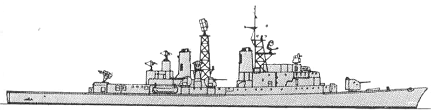

DDG Impavido 2 D570 Impavido 1963 3990t, 131.3x13.7x4.4m, 4b,2gst, 70000hp, 33kts, 340p; 1x1 Tartar SAM(40), 1x2-127/38, 4x1-76/62, 2x3-324TT, helodeck; SPS-12, SPS-39, SPQ-2, 2x SPG-51, Mk25, 4x SPG-34 radars, SQS-23 sonar
D571 Intrepido 1964

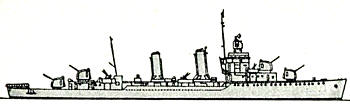

DD Laffey 1 D553 Artigliere 1942 2600t, 106.2x11.0x4.9m, 4b,2gst, 50000hp, 35kts, 208p; 4x1-127/38, 2x2-40/60, 7x1-20/70, 6dct, 2dcr; SC, Mk4 radars, sonar
Gleaves 1 D554 Aviere 1941 2572t, 106.2x11.0x4.0m, 4b,2gst, 50000hp, 35kts, 208p; 4x1-127/38, (2x4+2x2)-40/60, 2x2-20/70, 6dct, 2dcr; SC, Mk4 radars, sonar
Capitani Romani 2 D562 San Giorgio 1943 5600t, 142.2x14.4x6.4m, 4b,2gst, 110000hp, 38.5kts, 494p; 20turrets, 15CT; 3x2-127/38, (3x4+4x2)-40/60, 1x3-305 Menon ASWRL, 4dct, 1dcr; SPS-6, SG-6B, Mk12/22 radars, SQS-11 sonar
D563 San Marco 1956

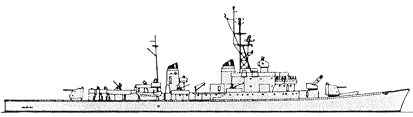

Impetuoso 2 D558 Impetuoso 1958 3810t, 127.6x13.2x4.5m, 4b,2gst, 65000hp, 34kts, 315p; 2x2-127/38, (2x4+4x2)-40/60, 2-533TT, 1x3-305 Menon ASWRL, 4dct, 1dcr; SPS-6, SG-6B, 4x SPG-34, Mk25 radars, SQS-11 sonar
D559 Indomito 1958
FF Pegaso 1 F559 Orione 1938 1575t, 89.3x9.7x3.7m, 2b,2gst, 16000hp, 28kts, 168p; 6x1-40/60, 1x24-178 Hedgehog AWRL, 2dct, 290mines
Cannon 3 F590 Aldebaran 1944 1602t, 93.3x11.2x3.2m, 4dg,2em, 6000hp, 21kts, 186p; 3x1-76/50, 3x2-40/60, 8x1-20/70, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SPS-6, SMA radars, QGB sonar
F591 Altair 1944
F592 Andromeda 1943

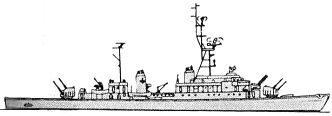

Canopo 4 F551 Canopo 1958 2250t, 103.1x12.0x3.8m, 2b,2gst, 22000hp, 26kts, 207p; 2x2-76/62, 2x2-40/70, 2x1-533TT, 1x3-305 Menon ASWRL, 2dct; SPS-6, SG-6B, MLT-4 radars, SQS-11A sonar
F553 Castore 1957
F554 Centauro 1957
F555 Cigno 1957
Carlo Bergamini 4 F593 Carlo Bergamini 1962 1650t, 94.0x11.4x3.1m, 4d(2), 16000hp, 25kts, 163p; 3x1-76/62, 2x3-324TT, 1x1-305 Menon ASWRL, 1 helicopter (AB-204); SPS-12, SPQ-2, RTN-10X radars, SQS-40 sonar, SPR-A ECM
F594 Virgilio Fasan 1962
F595 Carlo Margottini 1962
F596 Luigi Rizzo 1961
FS Gabbiano 22 F547 Crisalide 1952 728t, 64.4x8.7x2.5m, 2d/em, 3500/300hp, 18/6kts, 110p; 1x2-40/60(549,571,578-579), (1x2+1x1)-40/60(547,548,561, 562,564,566, 568,570,578), 2x2-40/60(563,565,569,572-577,579), 2x1-20/70(549,567,571), 2x1-450TT, 1x24-178 Hedgehog ASWRL(547-549,561,562 ,564-566,568-574,576-579), 4dct, 1dcr(563,565,569,572-577,579), 2dcr(547-549,561,562 ,564,566,568 ,570,571,578), SO-13(547-549,561, 562,566-571,574), SPS-6(563,575,579), NSM-8(565,572,573, 576-578) radar, QCU-2 sonar
  F548 Farfalla 1953
  F549 Bombarda 1951
  F561 Ibis 1943
  F562 Minerva 1943
  F563 Danaide 1943
  F564 Scimitarra 1943
  F565 Sibilla 1943
  F566 Gru 1943
  F567 Ape 1943
  F568 Driade 1943
  F569 Chimera 1943
  F570 Urania 1943
  F571 Gabbiano 1942
  F572 Flora 1943
  F573 Pomona 1943
  F574 Pellicano 1943
  F575 Cormorano 1943
  F576 Folaga 1943
  F577 Fenice 1943
  F578 Baionetta 1943
  F579 Sfinge 1943
Algerine 1 F560 Alabarda 1943 1258t, 68.6x10.8x3.1m, 2b,2vte, 2400hp, 16.5kts, 138p; (1x2+2x1)-40/60, 4dct, 1dcr; SO-13 radar
Albatros 4 F542 Aquila 1956 950t, 76.3x9.7x2.8m, 2d, 5200hp, 19kts, 110p; 3x1-40/70, 2x24-178 Hedgehog ASWRL, 4dct, 1dcr; MLN-1A radar, QCU-2 sonar
F543 Albatros 1955
F544 Alcione 1955
F545 Airone 1955
type 1943 1 F541 Gazzella 1944 821t, 67.8x9.0x2.3m, 2b,2vte, 2700hp, 17kts, 96p; 1x1-100/47, 3x1-40/60, 2dct; radar
Sentinella 1 F598 Sentinella 1956 340t, 49.7x6.6x2.1m, 4d(2), 9000hp, 30kts, 60p; 1x2-40/60, 2-450TT, 1x24-178 Hedgehog ASWRL, 2dct
Vedetta 1 F597 Vedetta 1955 400t, 53.1x7.3x3.1m, 4d(2), 3240hp, 19kts, 62p; 2x1-40/60, 2x1-20/70, 1x24-178 Hedgehog ASWRL, 2dct, 1dcr; QCU-2 sonar

PATROL AND COASTAL COMBATANTS

PT MS11 3 P471-473 MS471-473 1942 63-64t, 28.0x4.3x1.6m, 3pe(471)-3d(472,473), 3450(471)-4500(472,473)hp, 32(471)-33(472,473)kts, 19p; 1x1-40/60(472,473), 2x1-20/65(471), 2-533TT(471), 2-450TT(472,473), 8dc, mines(472,473)
MS51 2 P474, 481 MS474, 481 1943 66t, 28.0x4.3x1.6m, 3d, 4500hp, 33kts, 19p; 1x1-40/60, 2-450TT, mines
Higgins 6 P441-443, 451-453 MAS441-443, 451-453 1942 - 1943 48t, 24.0x6.1x1.6m, 3pe, 4500hp, 34kts, 11p; 1x1-40/60(442,451,452), 3x1-20/70, 2-450TT(442,451,452); SPS-21 radar
S38 1 P485 MC485 1942 115t, 34.9x5.3x1.7m, 3d, 6000hp, 39kts, 22p; 2x1-40/60, 2-533TT
MC490 1 P490 MC490 1955 190t, 39.4x5.8x1.7m, 4d, 10000hp, 36kts, 39p; 2x1-40/60, 2-533TT
MC491 1 P491 MC491 1963 196t, 43.0x6.3x1.5m, 1gt+2d(3), 11700hp, 39kts, 33p; 2x1-40/70, 2-533TT; 3ST7-250 radar

MINE WARFARE SHIPS

MSO Dance 4 M5307 DR307 1941 770t, 50.0x8.4x3.4m, 1b,1vte, 850hp, 12.2kts, 40p; 3x1-20/70, 2dct, 2dcr, mechanical sweeps
M5308 DR308 1941
M5312 DR312 1940
M5316 DR316 1940
Shakespearian 1 M5310 DR310 1941 770t, 50.0x8.4x3.4m, 1b,1vte, 850hp, 12.2kts, 40p; 3x1-20/70, 4dct, 2dcr, mechanical sweeps
Isles 11 M5301 DR301 1941 770t, 50.0x8.4x3.4m, 1b,1vte, 850hp, 12.2kts, 40p; 3x1-20/70, 4dct, 2dcr, mechanical sweeps
M5302 DR302 1941
M5303 DR303 1942
M5304 DR304 1942
M5305 DR305 1942
M5306 DR306 1942
M5309 DR309 1943
M5311 DR311 1942
M5313 DR313 1942
M5314 DR314 1942
M5315 DR315 1942
Aggressive 4 M5430 Salmone 1956 735t, 52.3x10.4x4.0m, 2d, 1600hp, 14kts, 70p; 1x1-40/60, acoustic, magnetic, mechanical sweeps; SPS-53 radar, UQS-1 sonar
M5431 Storione 1956
M5432 Sgombro 1957
M5433 Squalo 1957
MSB YMS 17 M5400 Anemone 1942 250t, 41.5x7.5x2.4m, 2d, 800hp, 15kts, 60p; 1x1-76/50, 2x1-20/70, mechanical, acoustic, magnetic sweeps
M5401 Azalea 1943
M5402 Begonia 1943
M5403 Biancospino 1942
M5404 Dalia 1943
M5405 Fiordaliso 1943
M5406 Gardenia 1943
M5407 Geranio 1942
M5408 Magnolia 1943
M5409 Mughetto 1942
M5410 Narciso 1942
M5411 Oleandro 1942
M5412 Orchidea 1943
M5413 Primula 1943
M5414 Tulipano 1943
M5415 Verbena 1943
M5416 Gladiolo 1943
Adjutant 36 M5501 Abete 1953 400t, 44.3x8.1x2.1m, 2d, 1200hp, 13kts, 39p; 1x2-20/70, acoustic, magnetic, mechanical sweeps; SPS-53 radar, UQS-1 sonar
M5502 Acacia 1953
M5503 Betulla 1953
M5504 Castagno 1955
M5505 Cedro 1954
M5506 Cillegio 1953
M5507 Faggio 1953
M5508 Frassino 1953
M5509 Gelso 1953
M5510 Larice 1953
M5511 Noce 1954
M5512 Olmo 1954
M5513 Ontano 1954
M5514 Pino 1954
M5515 Pioppo 1954
M5516 Platano 1954
M5517 Quercia 1954
M5521 Bambù 1956
M5522 Ebano 1956
M5523 Mango 1956
M5524 Mogano 1957
M5525 Palma 1957
M5526 Rovere 1957
M5527 Sandalo 1957
M5531 Agave 1955
M5532 Alloro 1955
M5533 Edera 1955
M5534 Gaggia 1956
M5535 Gelsomino 1955
M5536 Giaggiolo 1956
M5537 Glicine 1956
M5538 Loto 1957
M5539 Mirto 1955
M5540 Timo 1956
M5541 Trifoglio 1955
M5542 Vischio 1956
M5519 Mandorlo 1960
MSI Ham 20 M5450 Aragosta 1957 188t, 32.5x6.4x1.8m, 2d, 1000hp, 15kts, 14p; 1x1-20/70, mechanical sweep; BX-732 radar
M5451 Arsella 1957
M5452 Astice 1957
M5453 Attinia 1957
M5454 Calamaro 1957
M5455 Conchiglia 1957
M5456 Dromia 1957
M5457 Gambero 1957
M5458 Granchio 1957
M5459 Mitilo 1957
M5460 Ostrica 1957
M5461 Paguro 1957
M5462 Pinna 1957
M5463 Polipo 1957
M5464 Porpora 1957
M5465 Riccio 1957
M5466 Scampo 1957
M5467 Seppia 1957
M5468 Tellina 1957
M5469 Totano 1957
MSB RDV 1 P403 DV113 1945 No picture 110t, 34.0x5.8x1.4m, 2d, 2000hp, 17kts, 24p; 1x1-20/65, mechanical sweeps

AMPHIBIOUS

LST LST(2) 1 A5306 Anteo 1943 3640t, 100.0x15.2x4.3m, 2d, 1800hp, 12.1kts, 125p; (1x2+5x1)-40/60, 2x1-20/70; 20tanks, 163troops; SU radar
LPA Stromboli 1 A5329 Stromboli 1953 6160t, 102.0x14.0x7.0m, 3b,1gst, 3700hp, 13.5kts; 1x1-100/47, 4x1-40/60; 4 LCM, 1 LCVP, cargo, troops
LKA Vesuvio 1 A5330 Vesuvio 1955 6160t, 102.0x14.0x7.0m, 3b,1gst, 3700hp, 13.5kts; 1x1-100/47, 4x1-40/60; 4 LCM, 1 LCVP, cargo, troops
Etna 1 A5328 Etna 1944 13910t, 139.9x19.2x7.9m, 2b,1gst, 6000hp, 16.5kts, 404p; 2x2-40/60; 6 LCM(6), 2 LCM(3), 13 LCVP, 1 LCPL, 4900t of cargo, 78troops; SPS-6 radar
LPR Barnegat 1 A5301 Pietro Cavezzale 1943 2800t, 94.7x12.5x3.7m, 4dg,2em, 6080hp, 16kts, 200p; 1x1-76/50, 1x2-40/60, diving equipment, RIBs; SPS-6, Jason radars
LCU MZ-A 5 A5341 MTC1001 1942 239t, 47.0x6.5x1.0m, 3d, 450hp, 11kts, 13p; 1x1-76/40, 2x1-20/65; 200men
A5343 MTC1003 1942
A5344 MTC1004 1942
A5345 MTC1005 1942
A5346 MTC1006 1942
MZ-B 3 A5347 MTC1007 1943 279t, 46.5x6.5x1.0m, 3d, 450hp, 11kts, 13p; 1x1-76/40, 2x1-20/65; 200men
A5348 MTC1008 1943
A5349 MTC1009 1943
MFP-A,C 3 A5353 MTC1103 1943 220t, 47.0x6.5x1.5m, 3d, 390hp, 10.5kts, 21p; 1x1-37/83, 2x1-20/65; 3tanks
A5354 MTC1104 1942
A5357 MTC1107 1942
MFP-D 1 A5350 MTC1010 1943 239t, 49.8x6.6x1.4m, 3d, 375hp, 10.3kts, 21p; 1x1-37/83, 2x1-20/65; 3tanks
MFP-DM 1 A5351 MTC1101 1945 256t, 49.8x8.6x1.4m, 3d, 390hp, 8kts, 21p; 1x1-37/83, 2x1-20/65; 3tanks
LCT(2) 3 A5331 MOC1201 1942 460t, 48.8x9.5x1.6m, 3d, 1380hp, 11kts, 12p; 2x1-20/70; 3tanks
A5337 MOC1207 1942
A5338 MOC1208 1942
LCT(3) 4 A5332 MOC1202 1942 640t, 58.5x9.5x1.7m, 2d, 1000hp, 10.5kts, 12p; 4x1-20/70; 5tanks
A5333 MOC1203 1942
A5334 MOC1204 1942
A5335 MOC1205 1942
LFR LCS(L)3 6 L9851 Alano 1944 387t, 48.2x7.2x1.7m, 8d(2), 2320hp, 15.5kts, 71p; (2x2+1x1)-40/60, 4x1-20/70, 10x1-127 Mk7 RL; SU radar
L9852 Bracco 1944
L9853 Mastino 1944
L9854 Molosso 1944
L9855 Segugio 1944
L9856 Spinone 1944
LC LCM(3) 20   MTM9901 - 9920 1942 - 1945 52t, 15.3x4.3x1.4m, 2d, 330hp, 8kts, 4p; 2x1-12.7; 1tank
LCM(6) 9   MTM9921 - 9929 1943 - 1945 56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank
LCVP 20   MTP9701 - 9720 1943 - 1945 13t, 11.2x3.2x0.9m, 2d, 220hp, 8kts, 3p; 2x1-12.7; 36troops or 1light tank
