Israel 01 January 1965
SUBMARINES
| SS | S | 2 | Tz71 | Tanin | 1945 | |
990t, 66.1x7.2x4.3m, 2d/em, 1900/1300hp, 14.7/9kts, 48p, 110m; 1x1-102/40, 1x1-20/70, 6-533TT; type 291W radar, sonars |
| Tz73 | Rahav | 1945 |
PRINCIPAL SURFACE COMBATANTS

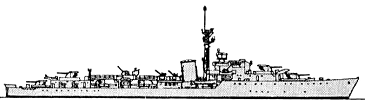

| DD | Z | 2 | K40 | Eilath | 1944 |  |
2575t, 110.6x10.9x4.4m, 2b,2gst, 40000hp, 36.7kts, 222p; 4x1-114/45, (1x2+4x1)-40/60, 2x4-533TT, 4dct, 2dcr; type 275, type 277, type 282, type 291 radars, type 123A, type 127 sonars |
| K42 | Yaffa | 1944 | |||||
| FF | River Canadian | 1 | K30 | Misgav | 1944 |  |
2180t, 91.8x11.2x3.9m, 2b,2vte, 5500hp, 20kts, 140p; (1x2+1x1)-102/45, 1x1-76/40, 4x2-20/70, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; type 268, type 272, type 275, type 291 radars, sonars |
| Hunt 1 | 1 | K38 | Haifa | 1940 |  |
1450t, 85.3x8.8x3.8m, 2b,2gst, 19000hp, 28kts, 147p; 2x2-102/45, 2x1-40/39, 4x1-20/70, 2dct, 1dcr; type 285 radar, type 123A, 177 sonars |
PATROL AND COASTAL COMBATANTS
| PC | PC 173ft | 1 | K22 | Nogah 2 | 1944 |  |
463t, 52.9x7.1x3.3m, 2d, 2880hp, 19kts, 65p; 1x1-76/50, 1x1-40/60, 3x1-20/70, 2x4-178 Mousetrap ASWRL, 2dct, 2dcr; SO radar, sonar |
| Yarden | 2 | M42 | Yarden | 1956 |  |
109t, 30.5x6.1x1.9m, 2d, 22kts, 16p; 2x1-20/70; radar | |
| M44 | Yarkon | 1957 | |||||
| PT | Vosper 70ft | 4 | T209 | Shaldag | 1944 |  |
47t, 22.3x5.9x1.3m, 3pe, 4200hp, 40kts, 16p; 1x1-40/60, 1x2-20/70, 2-450TT, 2dcr; type 291 radar |
| T210 | Lilit | 1944 | |||||
| T211 | Yinshof | 1944 | |||||
| T212 | Tinshemett | 1944 | |||||
| Baz | 3 | T205 | Baz | 1951 |  |
62t, 26.0x6.3x1.5m, 4pe(2), 4600hp, 42kts, 14p; 1x1-40/60, (1x2+2x1)-20/70, 2-450TT | |
| T207 | Peres | 1952 | |||||
| T208 | Yisaor | 1952 | |||||
| Ayah | 3 | T203 | Ayah | 1961 | |
62t, 26.0x6.3x1.5m, 2d, 5000hp, 42kts, 15p; 1x1-40/60, 2x1-20/70, 2-450TT; radar | |
| T204 | Daya | 1962 | |||||
| T205 | Takhmas | 1962 | |||||
| Ophir | 3 | T150 | Ophir | 1956 |  |
40t, 21.3x5.2x1.5m, 2pe+1d; 4150hp, 40kts; 1x1-40/60, 1x2-20/70, 2-450TT; radar | |
| T151 | Sheva | 1956 | |||||
| T152 | Tarshish | 1956 | |||||
| PB | HDML | 3 | M21 | Dror | 1943 | No picture | 54t, 22.0x4.8x1.4m, 2d, 320hp, 12kts, 12p; 2x1-20/70, 2dcr |
| M23 | Saar | 1943 | |||||
| M35 | Tirza | 1943 |
AMPHIBIOUS
| LCM | LCM(6) | 3 | Makh-32, 38, 40 | 1957-1961 |  |
56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank |
© Ivan Gogin, 2016
