World navies yesterday

1965

Egypt 01 January 1965

SUBMARINES

SS	pr. 96	1	1	-	1950		280/351t, 49.5x4.4x2.8m, 2d/2em, 1200/430hp, 15.5/7.9kts, 23p, 60m; 4-533TT
	pr. 613	6	1	S1	1954		1045/1342t, 76.0x6.3x4.6m, 2d/em, 4000/2700hp, 18.3/13.1kts, 55p, 170m; 6-533TT; Flag radar, Tamir-5L, Feniks sonars, Nakat ECM
			2	S2	1954
			3	S3	1954
			4	S4	1955
			5	S5	1954
			6	S6	1955

PRINCIPAL SURFACE COMBATANTS

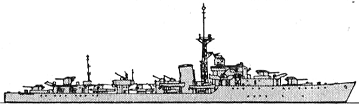

DD	Z	2	1	El Qaher	1944		2575t, 110.6x10.9x4.4m, 2b,2gst, 40000hp, 36.7kts, 222p; 4x1-114/45, (1x2+4x1)-40/60, 2x4-533TT, 4dct, 2dcr; type 275, 277, 293, 960 radars, type 123A, 127 sonars
			2	El Fateh	1944
	pr. 30bis	4	1	El Nasser	1952		3066t, 120.5x12.0x4.3m, 4b,2gst, 60000hp, 35.5kts, 286p; 2x2-130/51, 1x2-85/52, 4x2-37/70, 2x5-533TT, 6dct, 2dcr, 60mines; Giuys-1M, P-10, Rif-1, Rym-1, Zalp(1), Redan(2-4), Vympel-2, Zaria(1), Redan-4(2) radars, Tamir-5N sonar
			2	El Zaffer	1952
			3	Suez	1951
			4	Damiet	1951
FF	mod. Black Swan	1	42	Tariq	1943		1950t, 91.3x11.7x3.4m, 2b,2gst, 4300hp, 19.7kts, 192p; 3x2-102/45, 2x2-40/60, (2x2+2x1)-20/70, 8dct, 2dcr; type 272, 285, 291 radars, type 147, 177 sonars
	Hunt batch 1	1	11	Mohammed Ali	1940		1450t, 85.3x8.8x3.8m, 2b,2gst, 19000hp, 28kts, 147p; 2x2-102/45, 1x2-37/70, 1x2-25/80; type 285 radar
	River	1	43	Rashid	1942		2180t, 91.8x11.2x3.9m, 2b,2vte, 5500hp, 20kts, 140p; 2x1-102/40, 6x1-40/60, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; type 277, 291 radars, sonars
	Flower	1	1	As Sudan	1940		1170t, 62.5x10.1x4.1m, 2b,1vte, 2750hp, 16.5kts, 109p; 1x1-102/45, 1x1-40/39, 2x1-20/70, 2dct, 2dcr; type 286, 290 radars, sonar

PATROL AND COASTAL COMBATANTS

PC	pr. 201M	4	211		1959		216t, 41.7x6.2x1.9m, 3d, 6600hp, 27kts, 27p; 2x2-25/80, 4x5 RBU-1200 ASWRL, 2dcr, 18mines; Reya radar, Tamir-11 sonar
			217		1959
			222		1959
			228		1959
PM	pr. 183R	4	781, 783, 785, 787		1959-1965		81t, 25.5x6.2x1.4m, 4d, 4800hp, 38kts, 17p; 2x1 P-15 SSM, 1x2-25/80; Rangout radar
PT	Fairmile D	2	1	El Naser	1944		118t, 35.1x6.5x1.5m, 4pe, 4800hp, 29kts, 30p; 2x1-57/43, 1x2-20/70, 2x2-12.7, 4-450TT, 2dcr; type 286U radar
			2	El Zafer	1944
	pr. 183	22	1-22		1949-1960		67t, 25.5x6.2x1.2m, 4d, 6000hp, 43kts, 14p; 2x2-25/80, 2-533TT, 2dcr; Zarnitsa radar
PB	Higgins	6	1-6		1943		54t, 24.8x6.1x1.6m, 3pe, 4050hp, 41kts, 17p; 1x1-40/60, 2x1-20/70, 2x2-12.7; SO radar
	Fairmile B	3	1	Hamza	1943		86t, 34.8x5.6x1.5m, 2pe, 1200hp, 18kts, 16p; 1x1-47/40, (1x2+1x1)-20/70, 2dcr; type 286 radar, sonar
			2	Sab El Bahr	1943
			3	Saker Al Bahar	1943
	Nisr	3	1	Nisr	1963	No picture	110t, 31.0x5.2x1.5m, 2d, 3000hp, 24kts; 1x1-20/70; radar
			2	Nimr	1963
			3	Thar	1963

AMPHIBIOUS

LC

LCM(3)

18

1-18

-

1942-1945

52t, 15.3x4.3x1.4m, 2d, 330hp, 8kts, 4p; 2x1-12.7; 1tank or 60troops

MINE WARFARE

MSO	Bangor	2	1	Matrouh	1941		875t, 54.9x8.7x3.1m, 2b,2vte, 2400hp, 16.5kts, 87p; 1x1-102/45, 1x1-76/45, 2x1-40/60, 2x1-20/70, 2dct; radar, sonar
			2	Nasr	1941
	pr. 254K	4	304	Sharkiya	1954		577t, 58.0x8.5x2.3m, 2d, 2200hp, 14kts, 68p; 2x2-37/70, 4x2-12.7, 2dct, 2dcr, 16mines, mechanical, magnetic, acoustic minesweeping gear
			305	Dakahliya	1954
			302	Sinai	1954
			303	Assiut	1954
MSC	YMS	6	1	Arish	1942		250t, 41.5x7.5x2.4m, 2d, 800hp, 15kts, 60p; 1x1-76/50, 2x1-20/70, mechanical, acoustic, magnetic minesweeping gear; radar
			2	Malek Fuad	1943
			4	Naharia	1943
			5	Kaisaria	1943
			6	Rafah	1943
			8	Kordofan	1943
MSI	pr. 255K	2	708	El Fayoum	1950		161t, 38.0x5.7x1.6m, 3d, 690hp, 12kts, 37p; 2x1-45/68, 2x1-12.7, 2dcr, mechanical, magnetic and acoustic minesweeping gear; Tamir-10 sonar
			619	El Monufia	1950
