Chile 01 January 1965
SUBMARINES
| SS | Balao | 2 | 21 | Simpson | 1944 | |
1845/2415t, 95.0x8.3x4.7m, 4dg,4em(2), 5400/2740hp, 20.2/8.7kts, 60p, 120m; 1x1-127/25, 1x1-40/60, 10-533TT; SS, ST, SV radars, sonars |
| 22 | Thomson | 1944 |
PRINCIPAL SURFACE COMBATANTS

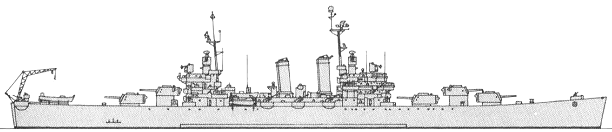

| CL | Brooklyn | 2 | 02 | O'Higgins | 1938 |  |
13500t, 185.4x18.8x7.3m, 8b,4gst 100000hp, 32.5kts, 868p; 127belt, 51deck, 165turrets, 127CT; 5x3-152/47, 8x1-127/25, (6x4+2x2)-40/60, 6x2-20/70, 1helicopter(Jet Ranger); SPS-10, SPS-12, Mk13, 2x Mk28 radars |
| 03 | Capitán Prat | 1938 | |||||
| DD | Serrano | 2 | 10 | Teniente Serrano | 1928 |  |
1430t, 91.4x8.8x3.9m, 3b,2gst, 28000hp, 35kts, 130p; 2x1-120/45, 3x1-20/70, 1x3-533TT, 1x24-178 Hedgehog ASWRL, 2dct; mines |
| 12 | Capitán Orella | 1928 | |||||
| Riveros | 2 | 18 | Almirante Riveros | 1960 |  |
3300t, 122.5x13.1x4.0m, 2b,2gst, 54000hp, 34.5kts, 266p; 2x4 Seacat GWS20 SAM (16), 4x1-102/62, 4x1-40/70, 1x5-533TT, 2x3-305 Squid ASWRL; AWS-1, 2x M4, 2x SGR-102 radars, type 184B sonar | |
| 19 | Almirante Williams | 1960 | |||||

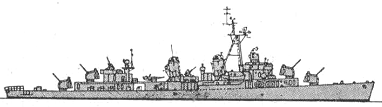

| Fletcher | 2 | 14 | Blanco Encalada | 1943 |  |
3005t, 114.7x12.1x4.2m, 4b,2gst, 60000hp, 38kts, 273p; 4x1-127/38, 3x2-76/50, 1x5-533TT, 2x24-178 Hedgehog ASWRL, 6dct, 2dcr; SPS-6, SPS-10, SPG-25, 2x SPG-50 radars, sonar | |
| 15 | Cochrane | 1944 | |||||
| FF | River | 3 | 30 | Baquedano | 1944 |  |
2180t, 91.8x11.2x3.9m, 2b,2vte, 5500hp, 20kts, 140p; 1x2-102/45, 1x1-76/40, (4x2+2x1)-20/70, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; type 268, 272, 275, 291 radars, sonars |
| 31 | Iquique | 1944 | |||||
| 32 | Covadonga | 1944 | |||||
| FS | Flower mod | 3 | 37 | Casma | 1944 |  |
1370t, 63.5x10.1x4.4m, 2b,1vte, 2750hp, 16.5kts, 109p; 1x1-102/40, (2x2+2x1)-20/70, 1x24-178 Hedgehog ASWRL, 4dct, 2dcr; type 268, 276 radars, sonar |
| 38 | Chipana | 1944 | |||||
| 39 | Papudo | 1944 |
PATROL AND COASTAL COMBATANTS
| PS | Sotoyomo | 3 | 60 | Lientur | 1944 |  |
835t, 43.6x10.3x4.0m, 2dg,2em, 1500hp, 13kts, 49p; 1x1-40/60, 2x1-20/70; Decca 1226 radar |
| 61 | Leucotón | 1944 | |||||
| 62 | Lautaro | 1943 |
AMPHIBIOUS
| LST | LST1 | 1 | 91 | Águila | 1945 |  |
4080t, 100.0x15.2x4.3m, 2d, 1800hp, 12.1kts, 125p; (2x2+4x1)-40/60, 12x1-20/70; 4 LCVP, 20tanks, 163troops; radar |
| LSM | LSM1 | 3 | 89 | Aspirante Goycolea | 1945 |  |
1095t, 62.0x10.5x2.1m, 8d(2), 2800hp, 13.2kts, 60p; 1x2-40/60, 4x1-20/70; 5tanks, 54troops; radar |
| 90 | Guardiamarina Contreras | 1944 | |||||
| 92 | Aspirante Morel | 1945 | |||||
| LKA | Artemis | 1 | 41 | Presidente Pinto | 1945 |  |
6740t, 129.9x17.7x4.7m, 2b,2tg,2em; 6000hp, 18kts, 303p; 1x1-127/38, 4x2-40/60, 10x1-20/70; 13 LCVP, 2 LCM(3), 1 LCPL, 2900t cargo, 252troops; radar |
| Angamos | 1 | 48 | Angamos | 1946 |  |
3800t, 104.0xxm, 12kts; 1x1-102/50, 2x1-20/70; cargo, troops | |

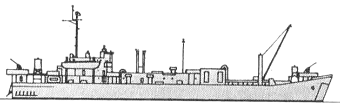

| Piloto Pardo | 1 | 45 | Piloto Pardo | 1959 |  |
3000t, 82.0x11.9x4.6m, 2dg,2em, 2000hp, 14kts, 44p; 1x1-102/50, 2x1-20/70, helodeck; 24passenger, cargo; radar | |
| LCU | LCI(L) | 2 | 97 | Cabo Bustos | 1944 |  |
385t, 48.9x7.2x1.6m, 8d(2)), 2320hp, 15.5kts, 29p; 5x1-20/70; 209troops; SCR-517A radar |
| 98 | Eduardo Llanos | 1944 | |||||
| LCT(6) | 3 | 93 | Grumete Tellez | 1944 |  |
320t, 36.3x10.0x1.2m, 3d, 675hp, 8kts, 13p; 2x1-20/70; 4tanks | |
| 95 | Grumete Bolados | 1944 | |||||
| 96 | Grumete Díaz | 1944 | |||||
| Orompello | 1 | 94 | Orompello | 1964 | No picture | 750t, 49.2x10.4x2.3m, 2d, 1006hp, 11kts, 19p; 2x1-20/70; 180troops, tanks; Pathfinder 1500B radar | |
| LC | LCM(6) | 3 | 1-3 | Pisagua, Junín, Valdivia | 1944-1945 |  |
56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank |
