Brazil 01 January 1965
SUBMARINES
| SS | Gato | 2 | S14 | Humaitá | 1943 | |
1810/2410t, 95.0x8.3x4.7m, 4dg/4em(2), 5400/2740hp, 20.2/8.7kts, 60p, 90m; 10-533TT; SS, ST, SV radars, sonars |
| S15 | Riachuelo | 1943 | |||||
| Balao | 2 | S11 | Rio Grande do Sul | 1943 | |
1845/2415t, 95.0x8.3x4.7m, 4dg/4em(2), 5400/2740hp, 20.2/8.7kts, 60p, 120m; 10-533TT; SS, ST, SV radars, sonars | |
| S12 | Bahia | 1944 |
AIRCRAFT CARRIERS

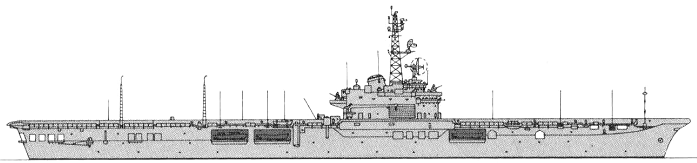

| CVL | Colossus | 1 | A11 | Minas Gerais | 1945 |  |
18040t, 211.8x36.4x7.1m, 4b,2gst, 40000hp, 25kts, 1300p; (2x4+1x2)-40/60, 35aircraft (S-2E ASW planes, SH-3A helicopters); SPS-4, SPS-12, SPS-8B, 2x SPG-34 radars |
PRINCIPAL SURFACE COMBATANTS

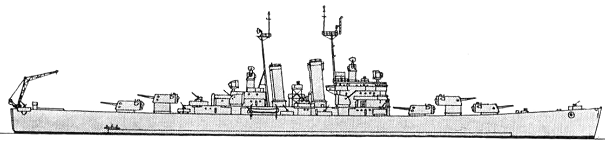

| CL | Brooklyn | 2 | C11 | Barroso | 1938 |  |
12700(11)-13500(12)t, 185.4x21.2(11)-21.0(12)x6.9(11)-7.4(12)m, 8b,4gst, 100000hp, 32.5kts, 868p; 127belt, 51deck, 165turrets; 5x3-152/47, 5x2-127/38(12), 8x1-127/25(11), (4x4+6x2)-40/60, 10x2-20/70(11), 8x1-20/70(12), 1helicopter; SPS-10, SPS-12, Mk13(11), Mk8(12), 2x Mk4(11), 2x Mk28(12) radars |
| C12 | Tamandaré | 1939 | |||||
| DD | Mariz e Barros | 3 | D24 | Greenhalgh | 1943 |  |
2200t, 108.8x10.6x3.0m, 4b,2gst, 42800hp, 36.5kts, 190p; 4x1-127/38, 2x2-40/60, 4x1-20/70, 1x4-533TT, 4dct, 2dcr; sonar |
| D25 | Marcílio Dias | 1943 | |||||
| D26 | Mariz e Barros | 1943 | |||||
| Amazonas | 4 | D10 | Acre | 1951 |  |
1800t, 98.5x10.7x2.6m, 3b,2gst, 34600(10)-45000(12,14,15)hp, 33.5(10)-36(12,14,15)kts, 150p; 3x1-127/38, 2x2-40/60, 4x1-20/70, 2x3-533TT, 8dct, 2dcr; SPS-4, SPS-10 radars, sonar | |
| D12 | Amazonas | 1949 | |||||
| D14 | Araguaya | 1949 | |||||
| D15 | Araguari | 1951 | |||||

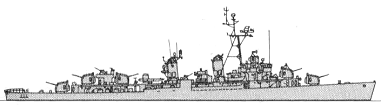

| Fletcher | 4 | D27 | Pará | 1942 |  |
3005t, 114.7x12.1x4.2m, 4b,2gst, 60000hp, 38kts, 273p; 5x1-127/38(27-29), 4x1-127/38(30), 3x2-76/50(30), 5x2-40/60(27,29), (2x4+3x2)-40/60(28), 7x1-20/70(27,29), (4x2+3x1)-20/70(28), 1x5-533TT, 2-324TC(27,29), 2x24-178 Hedgehog ASWRL, 1dcr; SPS-6, SPS-10, Mk12/22 radars, SQS-4/29 sonar | |
| D28 | Paraiba | 1943 | |||||
| D29 | Parana | 1944 | |||||
| D30 | Pernambuco | 1943 | |||||

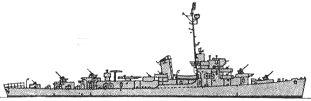

| FF | Cannon | 5 | D17 | Beberibe | 1943 |  |
1602t, 93.3x11.2x3.2m, 4dg, 2em, 6000hp, 21kts, 186p; 3x1-76/50, 1x2-40/60, 8x1-20/70, 1x3-533TT, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SA, SU radars, sonar |
| D18 | Bracuí | 1943 | |||||
| D19 | Bauru | 1943 | |||||
| D20 | Baependi | 1943 | |||||
| D23 | Bocaina | 1943 |
PATROL AND COASTAL COMBATANTS
| PCO | Sotoyomo | 3 | R21 | Tritão | 1945 |  |
835t, 43.6x10.3x4.0m, 2dg,2em, 1500hp, 13kts, 49p; 1x1-76/50, 2x1-20/70; radar |
| R22 | Tridente | 1945 | |||||
| R23 | Triunfo | 1945 | |||||
| Imperial Marinheiro | 10 | V15 | Imperial Marinheiro | 1955 |  |
960t, 55.7x9.6x3.6m, 2d, 2160hp, 16kts, 70p; 1x1-76/50, 4x1-20/70; Decca radar | |
| V16 | Iguatemi | 1955 | |||||
| V17 | Ipiranga | 1955 | |||||
| V18 | Forte de Coimbra | 1955 | |||||
| V19 | Caboclo | 1955 | |||||
| V20 | Angostura | 1955 | |||||
| V21 | Bahiana | 1955 | |||||
| V22 | Mearim | 1955 | |||||
| V23 | Purus | 1955 | |||||
| V24 | Solimões | 1955 | |||||
| RMON | Parnaíba | 1 | U17 | Parnaíba | 1938 |  |
720t, 55.0x10.2x1.5m, 2b,2vte, 1300hp, 12kts, 90p; 76belt, 38deck; 1x1-76/50, 2x1-40/60, 6x1-20/70 |
| Paraguassú | 1 | U16 | Paraguassú | 1940 |  |
600t, 44.7x10.6x1.5m, 2b,2vte, 1100hp, 13kts, 71p; 19belt, 13deck; 1x1-76/50, 2x1-40/60, 6x1-20/70 |
AMPHIBIOUS
| LC | EDVP | 21 | EDVP501-521 | 1959-1960 |  |
13t, 10.9x3.2x1.0m, 1d, 180hp, 9kts, 3p; 2x1-12.7; 36troops |
MINE WARFARE
| MSC | YMS | 4 | M11 | Javarí | 1943 |  |
320t, 41/5x7.5x2.4m, 2d, 800hp, 14kts, 60p; 1x1-76/50, 2x1-20/70, 2dct, 2dcr, mechanical, acoustic, magnetic sweeps; SU radar |
| M12 | Jutaí | 1943 | |||||
| M13 | Juruá | 1944 | |||||
| M14 | Juruena | 1943 |
